Aardwolf A-Frame Truck Lifter

(0 reseña)
$ 2.987,11 $ 2.987,11
$ 2.987,11
  • Marca
  • Model
Contacta con nosotros
Terms and Conditions
Model AF1850QP, AF2440QP, AF2750QP, AF3500QP
Marca Aardwolf

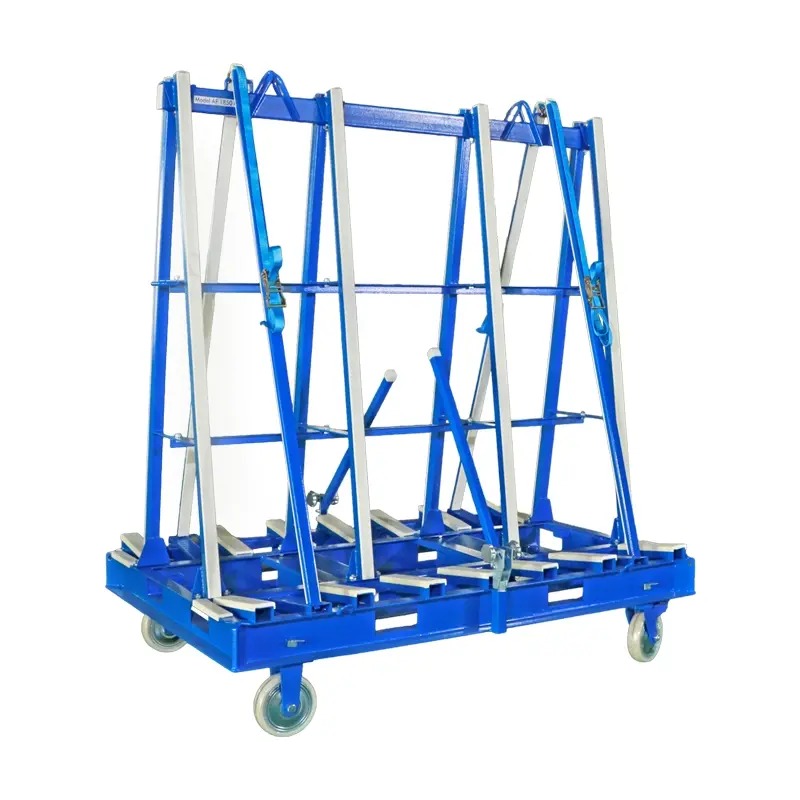

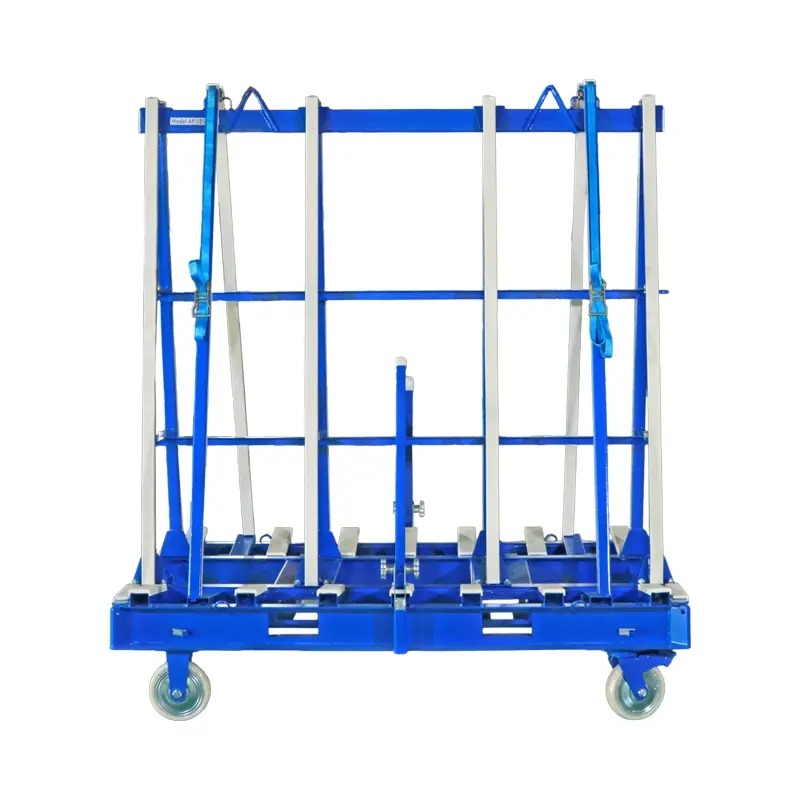

Aardwolf A-Frame Truck Lifter — AF Series

The Aardwolf A-Frame Truck Lifter is a portable transport frame for moving granite, marble, and glass slabs between sites and trucks. Slabs rest on rubber profiles and are secured by rubber-lined locking bars with ratchet straps. Available in four lengths to match common slab sizes.

Features

  • Sturdy and safe structure, designed to eliminate any risk of slabs tipping over.
  • Load-bearing surfaces are topped with rubber to prevent scratches and damage to goods being transported.
  • It contains two lifting eyes at the top frame for lifting frames on and off trucks with a crane.

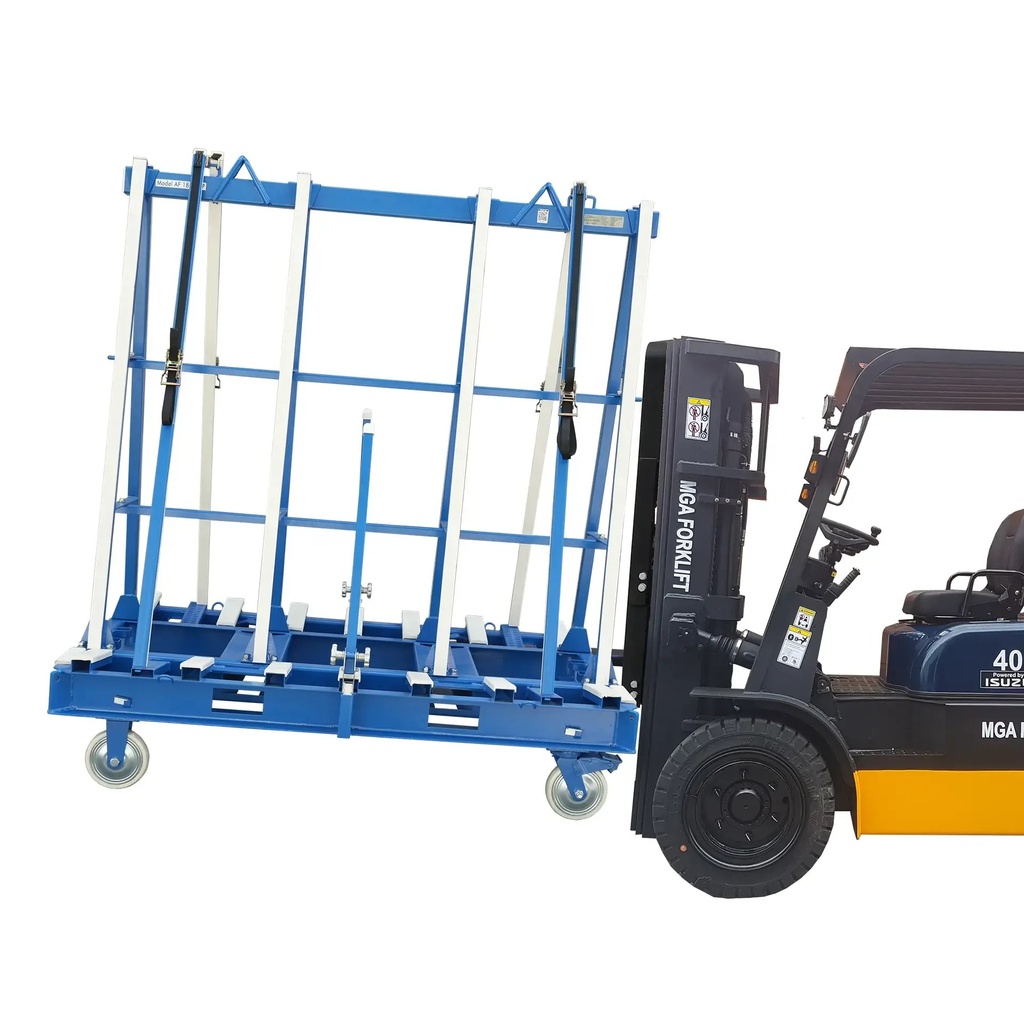

  • It has four lifting points at the corner of the frame base for lifting loaded frames on and off trucks and onto building sites.
  • Handles are located at the end of "A" frames.
  • Wheels with brakes to ensure safety in operation.
  • Four locking bars per frame are mounted in slotted holes on the bottom.
  • A powder-coated finish ensures an aesthetic feature as well as the durability of the product.
AF1850QP — 73 in / 1,860 mm Length
Property Detail
Part Number AF1850QP
Length 73 in (73.2" / 1,860 mm)
Transport Capacity 5,512 lb (2,500 kg)
Stationary Capacity 8,818 lb (4,000 kg)
Weight ~493 lb (223.5 kg)
Wheels Four 7.87 in with brakes
AF2440QP — 96 in / 2,440 mm Length
Property Detail
Part Number AF2440QP
Length 96.5 in (96.5" / 2,450 mm)
Width 48.8 in (48.8" / 1,240 mm)
Height 14.2 in (14.2" / 360 mm)
Transport Capacity (Wheels) 5,512 lb (2,500 kg)
Stationary Capacity 8,818 lb (4,000 kg)
Weight 619 lb (281 kg)
AF2750QP — 108 in / 2,750 mm Length
Property Detail
Part Number AF2750QP
Length ~108 in (108.3" / 2,750 mm)
Stationary Capacity Up to 8,818 lb (4,000 kg)
Wheels Four 7.87 in with brakes
AF3500QP — 138 in / 3,500 mm Length — Heavy Duty
Property Detail
Part Number AF3500QP
Length 138 in (137.8" / 3,500 mm)
Width 50 in (50.0" / 1,270 mm)
Height 17.7 in (17.7" / 450 mm)
Stationary Capacity 19,842 lb (9,000 kg)
Wheel Capacity 17,637 lb (8,000 kg)
Weight 1,499 lb (680 kg)
Property Detail
Brand Aardwolf
Fork-End Capacity 2,425 lb (1,100 kg)
Lifting-Eye Capacity 5,511 lb (2,500 kg)
Stationary Capacity 8,818 lb (4,000 kg)
Weight 492 lb (223.5 kg)
Slab Width per Side 11.6" (295 mm)
Dimensions 73.2" x 47.2" x 12.6" (1860 x 1200 x 320 mm)
Features Rubber-topped, wheels with brakes, locking bars
Country of Origin Vietnam
  1. Roll the A-frame to the loading area and lock all wheel brakes.

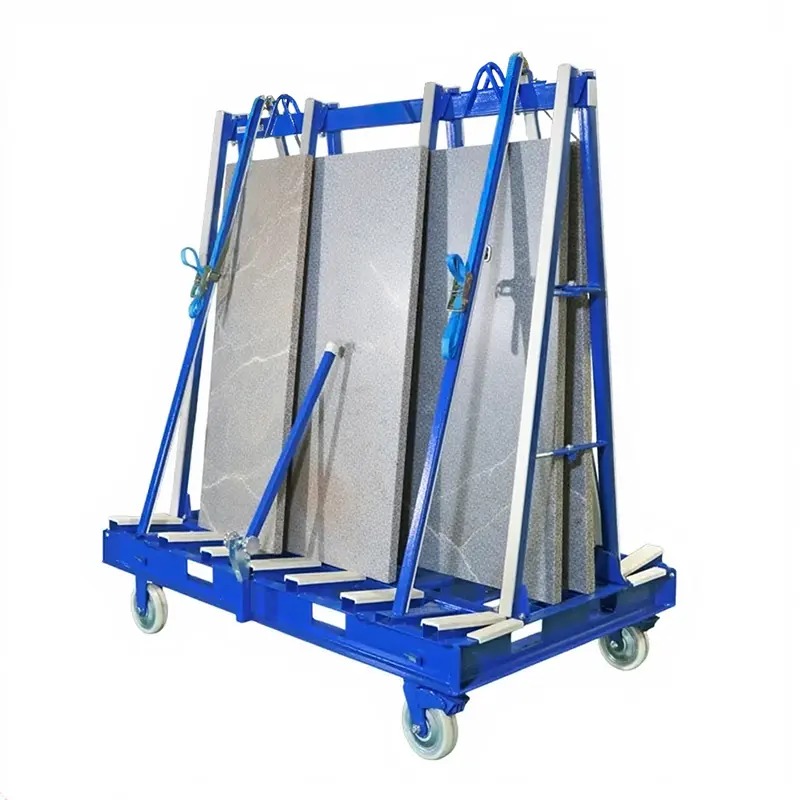

  2. Lean slabs against the rubber profiles, heaviest piece nearest the spine.
  3. Position the locking bars across the load and tension the ratchet straps.
  4. For transport, lift via the top eyes or base points onto the truck bed.
  5. Tie down to the truck and re-check straps before driving.
  6. Wear gloves, hard hat, and steel-toe boots when handling slabs.
