Aardwolf Vacuum Lifter (AVGLP)

(0 reseña)
$ 6.814,69 $ 6.814,69
$ 5.442,70
  • Marca
  • Model
Contacta con nosotros
Terms and Conditions
Model AVGLP2-AR, AVGLP2-200, AVGLP4-400, AVGLP4-400L, AVGLP6-500, AVGLP8-800
Marca Aardwolf

Aardwolf Vacuum Lifter (AVGLP)

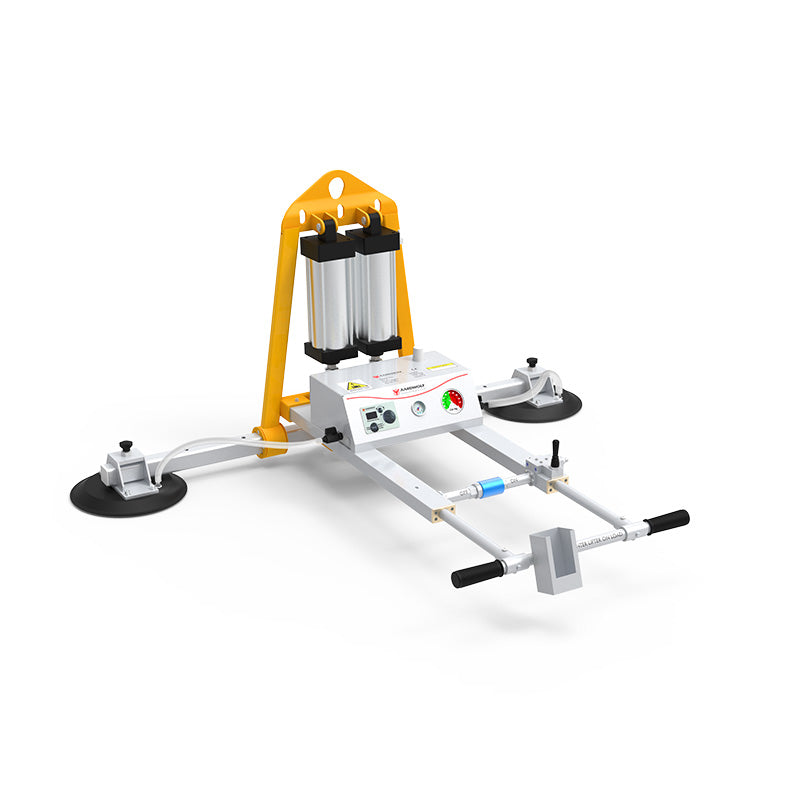

The Aardwolf AVGLP2-200 Vacuum Glass Lifter is a vacuum lifter for handling smooth, non-porous material. It is rated at 441 lb (200 kg), a 2 x 12" (300 mm) circular pad. Power/actuation: 72 PSI (5 bar). Unit weight 141 lb (64 kg).

Features

  • 441 lb (200 kg) lifting capacity
  • 2 x 12" (300 mm) circular
  • Runs on 72 PSI (5 bar)
  • 6.4 CFM (180 L/min) air consumption
  • Pneumatic 0-90 deg tilt
  • Stainless steel vacuum tank, audio/visual alarm
  • Weighs 141 lb (64 kg)
Property Detail
Brand Aardwolf
Lifting Capacity 441 lb (200 kg)
Vacuum Pads 2 x 12" (300 mm) circular
Weight 141 lb (64 kg)
Air Pressure 72 PSI (5 bar)
Air Consumption 6.4 CFM (180 L/min)
Tilting Pneumatic 0-90 deg
Safety Stainless steel vacuum tank, audio/visual alarm
Country of OriginVietnam
  1. Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
  2. Connect the air/battery supply — 72 PSI (5 bar).
  3. Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
  4. Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
  5. Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 441 lb (200 kg).
  6. Set the material down fully, then release vacuum and vent the pad.
