Aardwolf Vacuum Glass Lifters — Pneumatic vacuum systems for fast, safe handling of glass and large porcelain panels. Rugged steel construction with vertical–horizontal tilting delivers precise placement and secure lifting in the shop or on site.
Recommended for: glass sheets, insulated units, porcelain panels, smooth non-porous slabs.
- Pneumatic 0–90° tilt; selected models feature air-cylinder rotation.
- Automatic vacuum re-pump with integrated vacuum tank.
- Audio/visual low‑vacuum alarm and energy‑saving mode.
- ON/OFF slide valve for quick attach & release.
AVGLP2-200 — 2-Pad Vacuum Glass Lifter
Specifications
| AVGLP2-200 |
Metric |
Imperial |
| Capacity / WLL |
200 kg |
441 lb |
| Pads / Pad diameter |
2 / 300 mm |
- / 11.8" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
64 kg |
141 lb |
| Packaging |
L.1480 x W.430 x H.960 mm |
58.3" x 16.9" x 37.8" |
AVGLP2-AR — 2-Pad Vacuum Glass Lifter
Specifications
| AVGLP2-AR |
Metric |
Imperial |
| Capacity / WLL |
200 kg |
441 lb |
| Pads / Pad diameter |
2 / Overall 300 mm / Seal-to-seal 280 mm |
- / 11.8" / 11" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
60 kg |
132 lb |
| Packaging |
L.860 x W.710 x H.1170 mm |
33.8" x 28" x 46" |
AVGLM2-200 — 2-Pad Vacuum Glass Lifter
Specifications
| AVGLM2-200 |
Metric |
Imperial |
| Capacity / WLL |
200 kg |
441 lb |
| Pads / Pad diameter |
2 / 300 mm |
- / 11.8" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
42 kg |
93 lb |
| Packaging |
L.1480 x W.460 x H.820 mm |
58.3" x 18" x 32.3" |
AVGLP4-400 — 4-Pad Vacuum Glass Lifter
Specifications
| AVGLP4-400 |
Metric |
Imperial |
| Capacity / WLL |
Vertical 200 kg / Horizontal 400 kg |
441 lb / 882 lb |
| Pads / Pad diameter |
4 / Seal-to-seal 280 mm |
- / 11" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
79 kg |
174 lb |
| Packaging |
L.1480 x W.380 x H.960 mm |
58.2" x 15" x 37.8" |
AVGLP4-400L — 4-Pad Vacuum Glass Lifter
Specifications
| AVGLP4-400L |
Metric |
Imperial |
| Capacity / WLL |
Vertical 200 kg / Horizontal 400 kg |
441 lb / 882 lb |
| Pads / Pad diameter |
4 / Seal-to-seal 300 mm |
- / 11.8" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
82 kg |
181 lb |
| Packaging |
L.2580 x W.430 x H.960 mm |
101.6" x 16.9" x 37.8" |

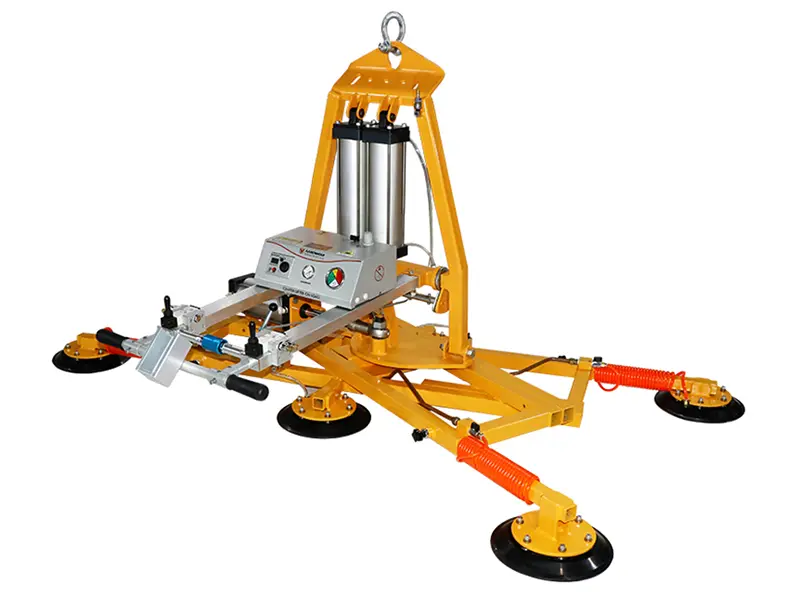

AVGLP6-500 — 6-Pad Vacuum Glass Lifter
Specifications
| AVGLP6-500 |
Metric |
Imperial |
| Capacity / WLL |
500 kg |
1102 lb |
| Pads / Pad diameter |
6 / 300 mm |
- / 11.8" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
173 kg |
381 lb |
| Packaging |
|
|
AVGLP8-800 — 8-Pad Vacuum Glass Lifter
Specifications
| AVGLP8-800 |
Metric |
Imperial |
| Capacity / WLL |
Vertical 400 kg / Horizontal 800 kg |
882 lb / 1764 lb |
| Pads / Pad diameter |
8 / Seal-to-seal 300 mm |
- / 11.8" |
| Jaw Opening / Clamping range |
— |
— |
| Net Weight |
108 kg |
238 lb |
| Packaging |
L.2050 x W.430 x H.960 mm |
80.7" x 17" x 37.8" |
