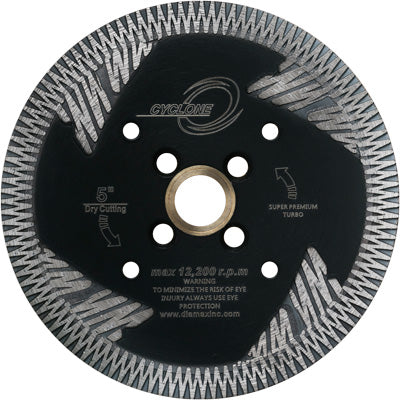

Cyclone Side Segment Turbo Blade

Cyclone Side Segment Turbo Blade

USE Wet or dry Side segments are fully inlaid within the core for safe cutting Side segments prevent blade from binding within the stone Thick solid steel core eliminates any possibility of warping and insures straight cuts View product video Get a Quote ITEM # SIZE ARBOR BUSHING # MAX RPM SSTB5P 5″ 7/8″ – 5/8″ – 20 mm BS57820S 12,200 SSTB6P 6″ 7/8″ – 5/8″ – 20 mm BS57820S 10,185 SSTB7P 7″ 5/8″ + DKO BS57820S 8,730

Features

• Cyclone Side Segment Turbo Blade | Diamax Search for: Search Button Products New Products Safety & Technology About Diamax Customer Service Sales Flyers Account Login Products New Products
• Dry Polishing
• Wet Polishing
• Engineered Stone Polishing
• Core Drill Bits
• Grinders/Shapers
• CNC Tooling
• Auto-edge Tooling

Specifications

How to Use

1. Verify the blade is rated for the machine RPM and the target material.
2. Mount the blade with the rotation arrow matching the spindle direction.
3. Ensure water lines deliver consistent flow to both faces of the blade.
4. Set the correct feed rate; let the blade self-feed without forcing.
5. Use sacrificial scoring passes for hard or brittle materials to prevent chipping.
6. After cutting, run a dressing stick if segments glaze, and store the blade flat.

Compatible Materials

• Granite
• Marble
• Quartz
• Quartzite
• Engineered Stone
• Porcelain
• Sintered Stone

Always wear appropriate PPE (safety glasses, hearing protection, dust mask, gloves) and follow local safety regulations when operating power tools or using diamond cutting and grinding consumables. Inspect the tool before each use; never exceed the rated maximum RPM.
