Alpha® Eased Edge / Tile Bullnose Kit
The Alpha® Eased Edge / Tile Bullnose Kit lets a single operator shape a bullnose or eased edge on tile and stone and polish it to a factory-quality finish without leaving the jobsite. Built around the VSP-320 Variable-Speed Wet Polisher, the kit pairs a 3/8" Profiler B roundover wheel with a 4" flexible backer pad and a full set of Ceramica EX polishing discs (#200 through #3000) to handle profiling and polishing with one tool.
Features
- Creates a bullnose or eased edge on tile and stone in the field
- Polishes the new edge to a factory-quality finish

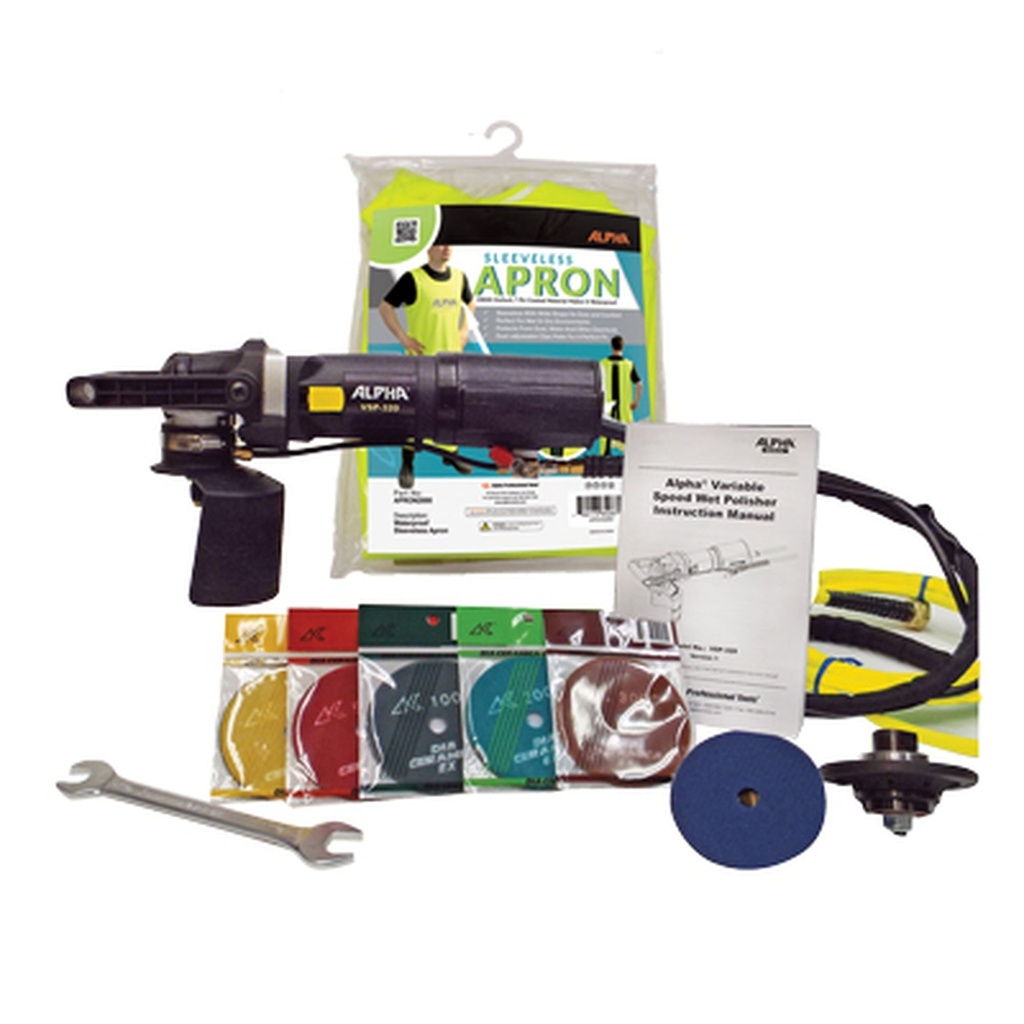

- Complete kit: VSP-320 polisher, profiler, backer pad, and 5 Ceramica EX discs
- PFB101 Profiler B produces a 3/8" demi-bullnose roundover
- Variable-speed 120V polisher (700 to 2,500 RPM)
- Includes waterproof apron and instructional DVD
- Goof-proof workflow for tile contractors and stone fabricators
- Saves time and cost vs. shop fabrication
- One-year tool warranty
| Part No. | Description | Contents | UPC |
|---|---|---|---|
| 5480-1400 | Eased Edge / Tile Bullnose Kit (VSP-320) | VSP-320 Variable-Speed Wet Polisher, Profiler B (PFB101, 3/8" roundover), 4" Flexible Backer Pad (GP45/8PD), Ceramica EX discs #200/#500/#1000/#2000/#3000, Waterproof Apron (APRON2000), Tile Contractor Tools DVD (170008) | 749173661501 |
- Plug the VSP-320 polisher into a GFCI-protected 120V outlet and connect the water supply.
- Mount the PFB101 Profiler B on the 5/8"-11 spindle to shape a 3/8" roundover edge on the tile or stone.
- Run the profiler at the polisher's recommended speed with continuous water, working along the edge until the desired profile is formed.
- Swap the profiler for the GP45/8PD flexible backer pad.
- Polish the new edge starting with Ceramica EX #200, then progress through #500, #1000, #2000, and finish with #3000.
- Keep the surface wet and use light, even pressure at each grit.
- Wipe dry and inspect the edge between grits to verify scratch removal.
4" discs / 3/8" roundover — Complete Eased Edge / Tile Bullnose Kit — 5480-1400
| Part No. | 5480-1400 |
| UPC | 749173661501 |
| Size | 4" discs / 3/8" roundover |
| Type | Complete Eased Edge / Tile Bullnose Kit |
| Max RPM | 2,500 |
| Recommended For | Bullnose / eased-edge profiling and polishing on tile and stone |
| Packaged Weight | 15.55 lbs (packaged) lbs |
| Package Dimensions | 23.5" x 13.5" x 8" |
| Country of Origin | See individual components |
| Property | Detail |
|---|---|
| Polisher Model | VSP-320 Variable-Speed Wet Polisher |
| Voltage | 120 V, single-phase, 50/60 Hz |
| Amperage | 7.0 A |
| Power | 800 W |
| Speed Range | 700 to 2,500 RPM (variable, no load) |
| Polisher Weight | 7.3 lbs (3.3 kg) |
| Spindle | 5/8"-11 |
| Cord Length | 15 ft (4.5 m) |
| Profile | 3/8" demi-bullnose roundover (PFB101) |
| Polishing Disc Size | 4" (100 mm) |
| Warranty | One Year |
What edge profile does this kit produce?
The included PFB101 Profiler B creates a 3/8" demi-bullnose (roundover) edge on tile and stone.
Can one person operate the kit?
Yes. The kit is engineered as a single-operator, hand-held workflow - profile the edge with the Profiler B, then polish through the Ceramica EX grit sequence with the same VSP-320 polisher.
Is a water source required?
Yes. The VSP-320 is a wet polisher and must run with a continuous water supply. Always plug it into a GFCI outlet.
What surfaces can it be used on?
The kit is designed for tile and stone edge work, including granite, marble, and porcelain.
Does the kit include polishing discs?
Yes. Five Ceramica EX 4" discs are included: #200, #500, #1000, #2000, and #3000.
Alpha Tile Bullnose Kit
Best Wet Electric Polisher (VSP-320)
Perfect Edge Treatment
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
