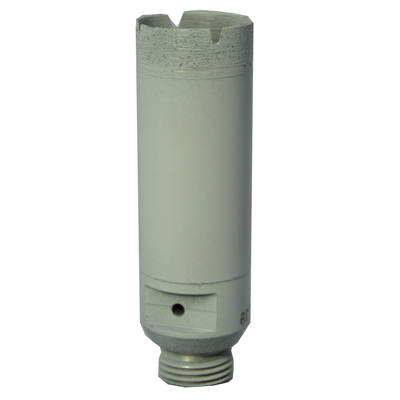

Alpha CNC Core Bits for Porcelain & Sintered Slabs

(0 reseña)
  • Wet Core Drill Bit Designed for CNC Machines and Radial Arm Workstations
  • Designed for Dekton®, Crystallized Glass and Other Vitreous Materials
  • Comes with A 1/2” Gas Thread for Tool Holders
  • Diamonds and Matrix Minimize Blow-Out
  • Utilizes The Superior Technology

$ 103,59 $ 103,59
$ 103,59

  • Size
Terms and Conditions
Shipping: 2-3 Business Days
Contáctenos
Documentos
CNC Core Finger Bits Dekton Flyer.pdf Tools for Dekton Flyer.pdf Tools for Sintered Slabs Flyer.pdf

Alpha® CNC Core Bits for Porcelain & Sintered Slabs

Alpha® CNC Core Bits are wet core drill bits engineered for CNC machines and radial-arm workstations cutting porcelain slabs, sintered surfaces such as Dekton® and Neolith®, crystallized glass and other vitreous materials. The 1/2" gas thread fits standard CNC tool holders, and the diamonds and matrix are selected to minimize blow-out at the bottom of the stone — critical because most CNC fabrication is done upside-down. The same Vacuum-Brazed diamond technology that made Alpha® Wet and Dry Core Bits the industry standard is built into every CNC bit.

Features

  • Wet core drilling for CNC machines and radial-arm workstations
  • Optimized diamond matrix minimizes bottom-side blow-out on upside-down CNC fabrication
  • 1/2" gas thread — fits standard CNC tool holders
  • Designed for porcelain, sintered slabs, Dekton®, Neolith® and crystallized glass
  • Long bit life from premium diamond and matrix selection
  • Clean-walled holes for downstream polishing and assembly
Part No. Diameter Thread Max RPM UPC
DND01250 1-1/4" 1/2" Gas 4,000 RPM 749173461712
DND01375 1-3/8" 1/2" Gas 4,000 RPM 749173461729
  1. Thread the CNC Core Bit onto a 1/2" gas-thread tool holder, fully seated.
  2. Set the CNC spindle to 4,000 RPM — do not exceed.
  3. Use a traverse speed of approximately 1-1/4" (30mm)/min when entering 3/4"-thick material.
  4. Reduce traverse to 5/8" (15mm)/min as the bit exits the bottom of the slab to prevent blow-out.
  5. Run with continuous, generous water flow through the tool holder for cooling and slurry removal.
  6. Keep the slab firmly clamped and supported under the cut area — CNC fabrication is typically performed upside-down.
  7. Inspect the bit between holes and clear any matrix loading; dress with a dressing stick if cutting slows.
1-1/4" — CNC Wet Core Bit — DND01250
Part No. DND01250
UPC 749173461712
Size 1-1/4"
Type CNC Wet Core Bit
Thread 1/2" Gas
Max RPM 4,000 RPM
Recommended For Porcelain, Sintered Slabs, Dekton, Neolith, Crystallized Glass
Packaged Weight 0.40 lbs
Package Dimensions 6.25" x 1.5" x 1.5"
Commodity Code 8207.19.3060
Country of Origin Italy
1-3/8" — CNC Wet Core Bit — DND01375
Part No. DND01375
UPC 749173461729
Size 1-3/8"
Type CNC Wet Core Bit
Thread 1/2" Gas
Max RPM 4,000 RPM
Recommended For Porcelain, Sintered Slabs, Dekton, Neolith, Crystallized Glass
Packaged Weight 0.45 lbs
Package Dimensions 6.25" x 1.75" x 1.75"
Commodity Code 8207.19.3060
Country of Origin Italy
Property Detail
Application Wet core drilling on CNC machines and radial-arm workstations
Drive 1/2" Gas Thread
Maximum RPM 4,000 RPM
Traverse Speed (3/4" stock) 1-1/4" (30mm) / min
Traverse Exit Speed 5/8" (15mm) / min
Diamond Technology Vacuum Brazed sintered diamond, blow-out-optimized matrix
Materials Porcelain Slabs, Sintered Slabs, Dekton®, Neolith®, Crystallized Glass
Country of Origin Italy
What materials are these CNC Core Bits designed for?

Porcelain slabs, sintered slabs (Dekton®, Neolith®), crystallized glass and other vitreous materials.

What thread do they use?

1/2" gas thread, the standard fitment for CNC stone tool holders.

What is the maximum RPM?

4,000 RPM. Do not exceed.

Why is bottom-side blow-out a concern?

Most CNC fabrication of porcelain and sintered slabs is performed upside-down, so the bit exits through the visible face. The Alpha® matrix is engineered to keep that exit clean.

Can these be used dry?

No. CNC Core Bits require continuous water through the tool holder for cooling, slurry removal and bit life.

What traverse speeds should I use?

Approximately 1-1/4" (30mm)/min while cutting through 3/4" stock, reducing to 5/8" (15mm)/min as the bit exits to prevent blow-out.

No product-specific videos are currently available from the manufacturer or DST.

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.

Especificaciones

Size 1-1/4", 1-3/8"
