APEXX Vacuum Brazed Countersink Core Bit 5/8"-11

(0 reseña)
$ 74,56 $ 74,56
$ 68,00
  • Marca
  • Diameter
Terms and Conditions
Diameter 1-3/8", 1-3/8" x 1-1/2" Rim, 1-1/2", 1-3/4", 2", 3-1/2"
Marca Apexx

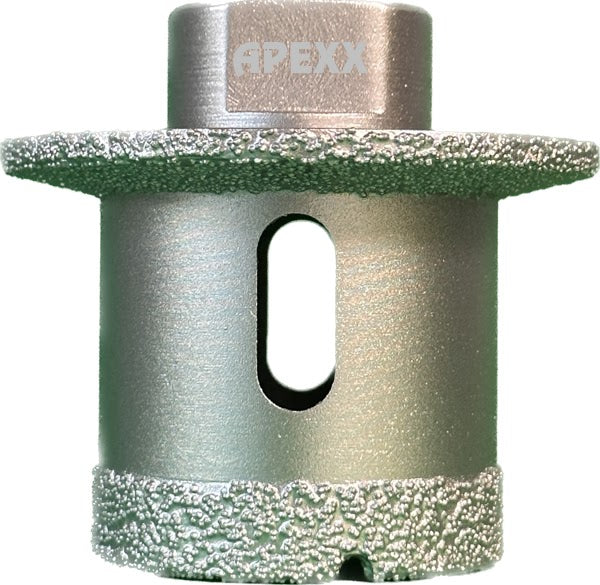

APEXX Vacuum Brazed Countersink Core Bit 5/8"-11

APEXX Vacuum Brazed Countersink Core Bit 5/8"-11 is part of the Apexx line from Ocean Diamond. The table below lists the manufacturer's published specifications for each item number in this product, exactly as the manufacturer prints them.

Prado Unifit Outlet Bit (22229-07006)

The 1-3/8" x 1-1/2" Rim option (item 22229-07006) is sized to Prado's cutout template for the unifit single outlet: a 1-3/8" (35 mm) installation hole and an optional 1-1/2" (38.1 mm) flush-mount countersink, 1/10" (2.5 mm) deep. This bit has a 1-3/8" core and a 1-1/2" tapered rim, the same two diameters.

  • Installation hole: 1-3/8" (35 mm), the same as the bit's core diameter
  • Flush-mount countersink: 1-1/2" (38.1 mm), the same as the bit's tapered rim diameter. A tapered rim leaves a sloped countersink, not a flat-bottom recess.
  • Not the 1-3/8" x 2" rim size (22229-07005): its rim is wider than Prado's 1-1/2" countersink
  • For stone, Prado's guide lists CNC, waterjet or laser for the hole and CNC for the countersink, and recommends a test on a sample piece first
  • Step-by-step guide: How to Cut a Prado Outlet Hole in Quartz and Stone Countertops
  • Other Prado models use other cutouts; check Prado's template for your model

Prado and unifit are trademarks of their owner. This bit is not made or endorsed by Prado.

PropertyDetail
CategoryCountersink Core Bits
BrandOcean Diamond
ManufacturerOcean Diamond

These details come from our own product record, not from the manufacturer's published specification tables.

Item #CORE BIT DIAMETERTAPERED RIM DIAMETERMAX. RPM
22229-070011-1/2"2-3/8"4,000
22229-070021-3/4"2-9/16"4,000
22229-070032"2-3/4"4,000
22229-070043-1/2"4-7/16"3,500
22229-070051-3/8"2”4,000

The MAX RPM / MAX. RPM column is the manufacturer's published maximum for that item number. Do not exceed it. Every figure applies to the item number on its own row; ratings vary by item and must not be applied across the range.

Always wear appropriate PPE for diamond tooling — eye and face protection, hearing protection, and respiratory protection appropriate to the operation. Never run this tool above the speed rating published by its manufacturer for the specific item number you are using, and observe the speed limits of the machine it is mounted in.
