Dry Core Bit With Side Protection

(0 reseña)
$ 59,90 $ 59,90
$ 59,90
  • Marca
  • Diameter
  • Wet / Dry Use
Contacta con nosotros
Terms and Conditions
Diameter 1-1/4", 1-3/8", 1-1/2", 2"
Marca DST
Wet / Dry Use Dry

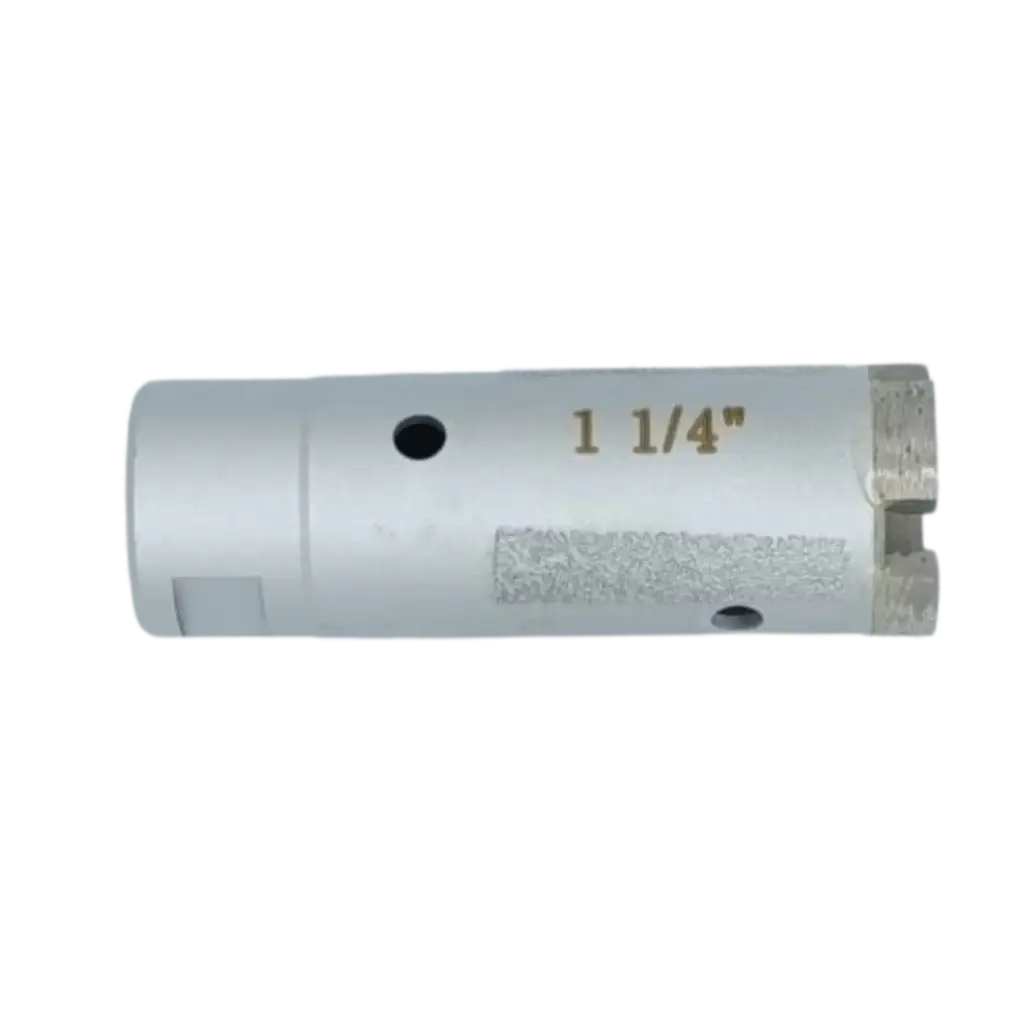

Dry Core Bit With Side Protection

This dry core bit cuts clean round holes in granite, quartz, concrete and other hard natural or engineered stone. Diamond segments on the barrel's interior and exterior — the side protection — keep cutting through the full depth of the hole, and side cooling holes let heat escape so the bit can run without water. It threads onto a standard 5/8"-11 arbor and can also be run wet when extra segment life is wanted. Offered in 1-1/4", 1-3/8", 1-1/2" and 2" diameters.

Features

  • Diamond side protection on the barrel's interior and exterior for cutting through the full hole depth
  • Side cooling holes vent heat for sustained dry drilling
  • Works on granite, quartz, concrete and other hard natural or engineered stone
  • Dry or wet use — add water to extend segment life when needed
  • Standard 5/8"-11 arbor thread fits common angle grinders and core drills
  • Available in 1-1/4", 1-3/8", 1-1/2" and 2" diameters
SKU Diameter Arbor
CBVS1141-1/4"5/8"-11
CBVS1381-3/8"5/8"-11
CBVS1121-1/2"5/8"-11
CBVS22"5/8"-11
  1. Mark the hole center on the stone and thread the correct-diameter bit onto a 5/8"-11 output shaft.
  2. Start the bit at a slight angle to score the surface, then bring it upright once a shallow groove is cut.
  3. Run dry at a steady, moderate feed rate; add water at the cutting face if extra segment life is wanted.
  4. Let the side-protection diamonds and cooling holes do their job — avoid forcing the bit or stalling the motor.
  5. Back the bit out periodically on deep holes to clear slurry/dust and let it cool.
  6. Wear eye and hearing protection and a dust mask; clamp or secure the workpiece before drilling.
PropertyDetail
Product TypeDry diamond core bit with side protection
Diameters1-1/4", 1-3/8", 1-1/2", 2"
Arbor Thread5/8"-11
MaterialsGranite, quartz, concrete and other hard natural or engineered stone
Wet/Dry UseDry or wet

Wear appropriate PPE (safety glasses, hearing protection, gloves, dust mask). Follow manufacturer instructions and applicable safety regulations.
