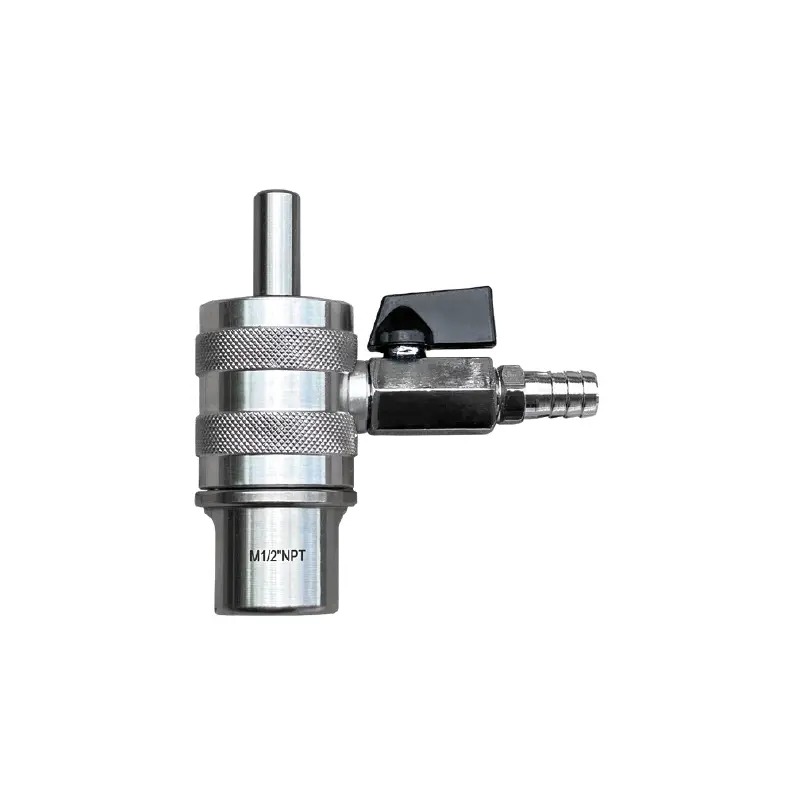

Aardwolf Water Swivel — Wet Coring Water Feed Adapter

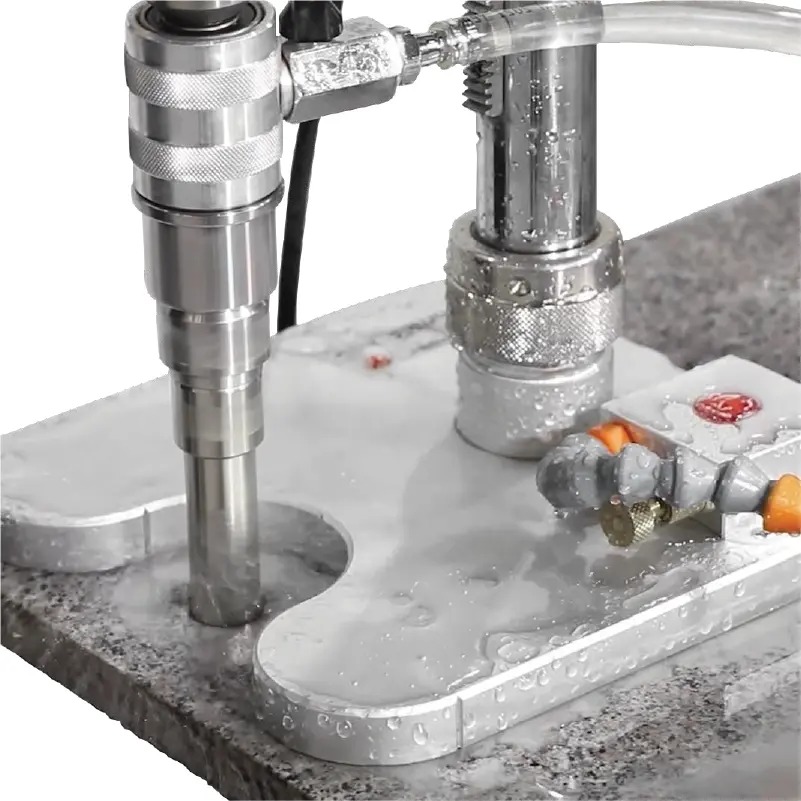

The Aardwolf Water Swivel delivers water through a rotating drill or core bit for wet stone and concrete cutting. The sealed bearing allows the bit to spin while the water hose stays stationary. Two sizes — WS01 and WS03 — fit standard core drill spindles.
Features
- Sealed rotating swivel for water feed during coring
- Allows hose to stay still while bit rotates
- Reduces dust and extends diamond bit life
- WS01 and WS03 sizes for common core drill spindles
- Brass and steel construction for corrosion resistance
- Standard hose barb for shop water connection
WS01 — WS01 Water Swivel (1/2 in Female)
| Property | Detail |
|---|---|
| Inlet Thread | 1/2 in Female (F1/2) |
| Housing | Aluminum |
| Spindle | Stainless steel |
| Bearings | Two precision ball bearings |
| Water Flow | Adjustable |
| Use | Supplies water/coolant to diamond core drill bits |
| Adapter Options | M.1/2-M.5/8 NPT or M.1/2-M.M14 |
WS03 — WS03 Water Swivel (5/8 NPT Male)
| Property | Detail |
|---|---|
| Inlet Thread | 5/8 in NPT Male |
| Housing | Aluminum |
| Spindle | Stainless steel |
| Bearings | Two precision ball bearings |
| Water Flow | Adjustable |
| Use | Supplies water/coolant to diamond core drill bits |
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Weight | 1 lb (0.45 kg) |
| Threading | F 1/2" (adapters M1/2-M5/8 NPT, M1/2-M14) |
| Construction | Aluminum housing, stainless steel spindle |
| Bearings | 2 precision ball bearings |
| Application | Core-drill attachment for wet drilling |
| Country of Origin | Vietnam |
- Thread the swivel onto the core drill spindle.
- Connect a water hose to the swivel inlet.
- Open the water supply and confirm flow at the bit.
- Begin coring at low speed; let water cool the diamonds.
- Disconnect, drain, and store the swivel after each shift.
- Wear safety glasses and hearing protection during coring.

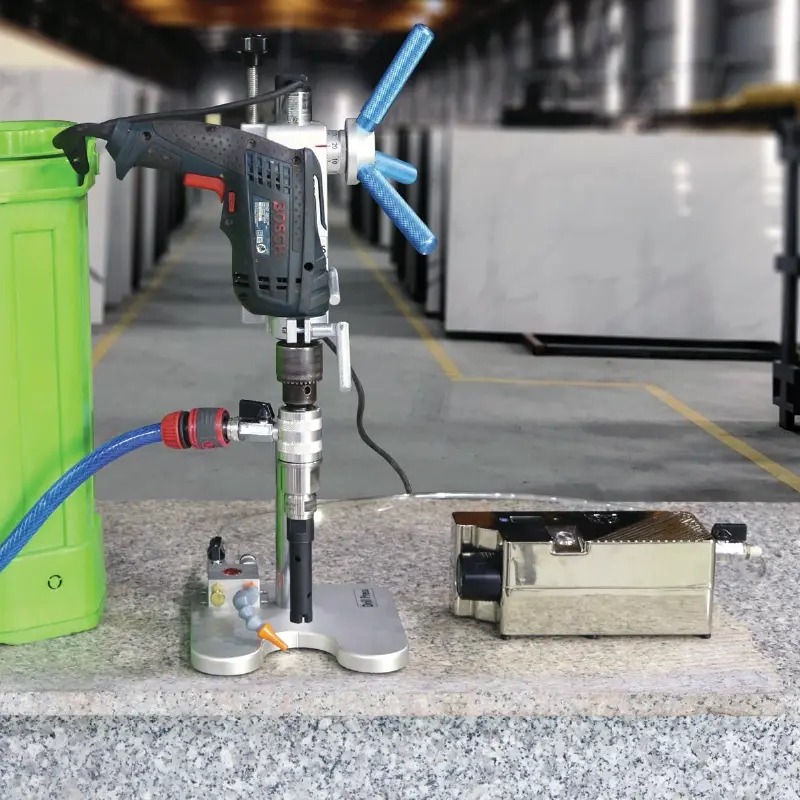

Diamond core bits and rotary stone drilling on granite, marble, concrete, and porcelain.
