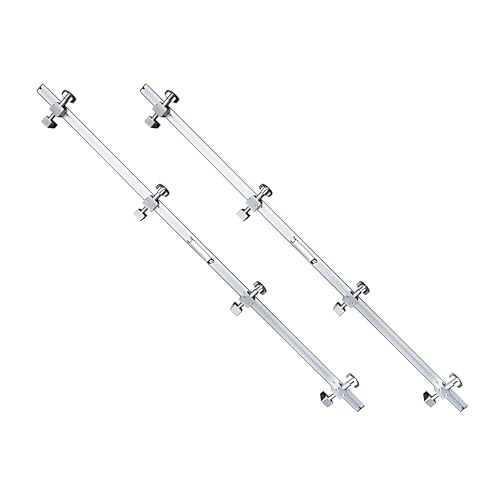

Aardwolf Anti-Breakage Bar — CTTABB Series
The Aardwolf Anti-Breakage Bar protects granite, marble, and engineered-stone slabs in transport frames. Rubber-lined jaws and bar distribute pressure evenly, preventing chips and cracks at clamping points. Available in 4 ft, 6 ft, and 8 ft lengths to match common transport frames.
Features
- Available lengths: CTTABB4 (4 ft), CTTABB6 (6 ft), CTTABB8 (8 ft); CTABB6-SINGLE for 6 ft single-bar replacement
- Rubber-lined upper and lower jaws cushion the slab edge
- Rubber-lined bar distributes load to prevent point compression
- Full-grip hand knobs for fast tightening with bare hands or gloves
- Bottom jaws connected by a rod that slides through the upper jaws
- Keyway design prevents complete separation of jaws and rod
- Clamps stone thickness from approximately 0.6 in to 1.65 in (15–42 mm)
- Sold in pairs (multi-bar SKUs); CTABB6-SINGLE is a single-bar item
CTABB6-SINGLE — 6 ft Single Bar
| Property | Detail |
|---|---|
| Part Number | CTABB6-SINGLE |
| Length | 6 ft (1,830 mm) |
| Quantity | 1 bar |
| Jaw Lining | Rubber |
CTTABB4 — 4 ft Set of 2
| Property | Detail |
|---|---|
| Part Number | CTTABB4 |
| Length | 4 ft (1,220 mm) |
| Quantity | Set of 2 |
| Jaw Lining | Rubber |
CTTABB6 — 6 ft Set of 2
| Property | Detail |
|---|---|
| Part Number | CTTABB6 |
| Length | 6 ft (1,830 mm) |
| Quantity | Set of 2 |
| Jaw Lining | Rubber |
CTTABB8 — 8 ft Set of 2
| Property | Detail |
|---|---|
| Part Number | CTTABB8 |
| Length | 8 ft (2,440 mm) |
| Quantity | Set of 2 |
| Jaw Lining | Rubber |
- Load slabs into the transport frame, leaning slightly inward.
- Place the bar across the top of the slab stack with rubber against the stone.
- Engage the upper and lower jaws onto the slab edges.
- Tighten the hand knobs evenly until the bar holds firmly without crushing.
- Re-check tension before transport and again after the first mile of travel.
- Wear gloves and steel-toe boots when working around slab loads.
Especificaciones
| Marca | Aardwolf |
| Package Dimensions | 70" x 8" x 7" |
