Marca
| Marca: Aardwolf |

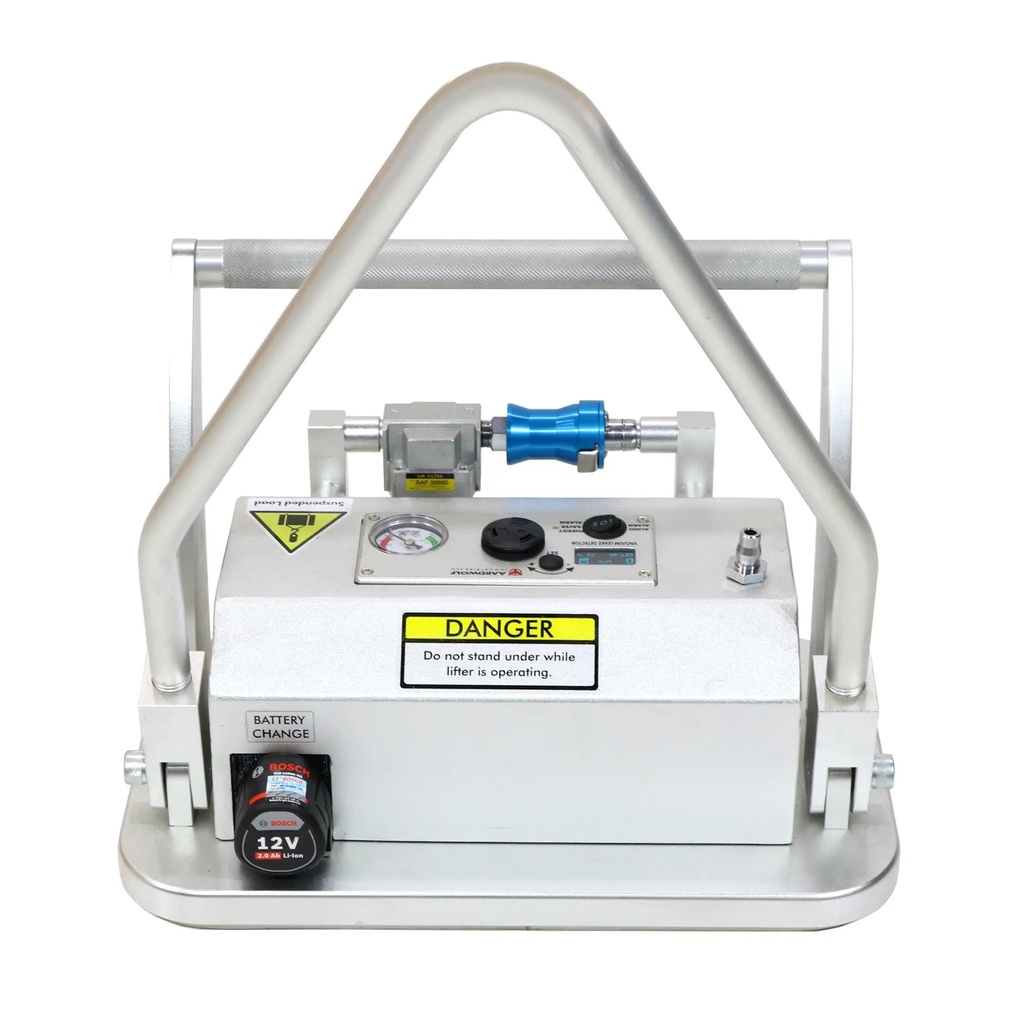

SPVL100 Small Pneumatic Vacuum Lifter
The Aardwolf SPVL-100 Small Pneumatic Vacuum Lifter is a vacuum lifter for handling smooth, non-porous material. It is rated at 265 lb (120 kg). Power/actuation: Compressed air (no electricity). Built from all aluminum incl. suction pad. Unit weight 25 lb (11.5 kg).
Features
- 265 lb (120 kg) lifting capacity
- Powered by Compressed air (no electricity)
- Operates at 58-87 PSI (4-6 bar)
- Clip-in battery alarm, ON/OFF valve, energy saver
- Weighs 25 lb (11.5 kg)
- All aluminum incl. suction pad
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Lifting Capacity | 265 lb (120 kg) |
| Weight | 25 lb (11.5 kg) |
| Operating Pressure | 58-87 PSI (4-6 bar) |
| Vacuum Reservoir | 0.26 gal (1 liter) |
| Power Source | Compressed air (no electricity) |
| Construction | All aluminum incl. suction pad |
| Vacuum Generator | Venturi (no moving parts) |
| Safety | Clip-in battery alarm, ON/OFF valve, energy saver |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Connect the air/battery supply — 58-87 PSI (4-6 bar).
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 265 lb (120 kg).
- Set the material down fully, then release vacuum and vent the pad.
