The Pivot Boom model PFB1-2600 is adjustable for height and length. The tilt facility allows the extra height to compensate for the hook and sling length lost when lifting with a jib attachment.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
Manual telescope: 59" - 102.4"
Increment: 22"
Slip onto a fork designed with fork pockets: 6.1" x 2.3"
Fork pockets: 14.4"
Working load limit: 3307 lb (Retracted) 1102 lb (Extended)

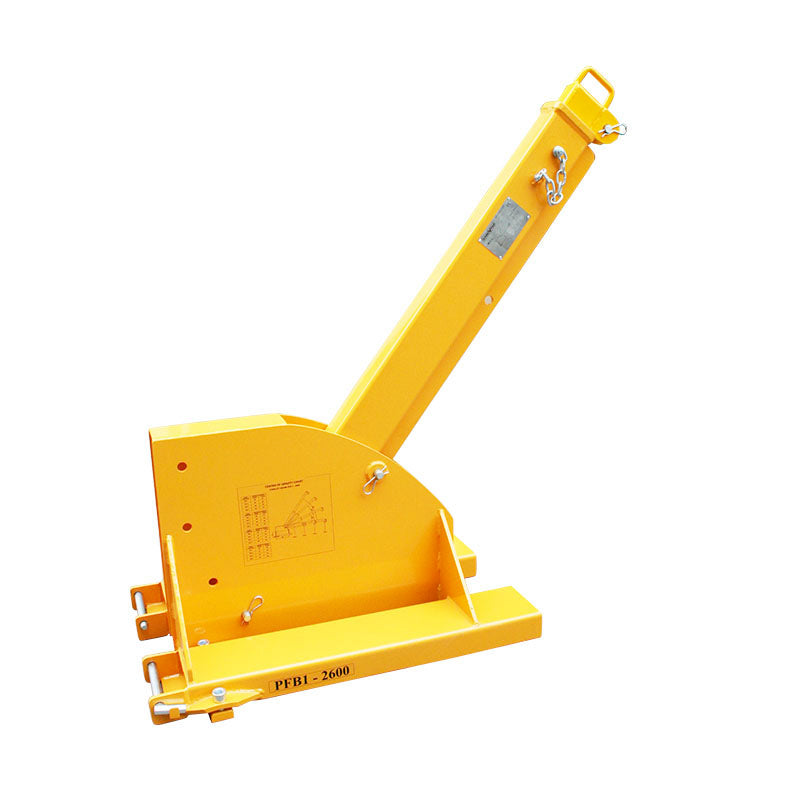

Pivot Forklift Boom PFB1-2600
|
Metric
|
Imperial
|
|
| Manual telescope | 1500 - 2600 mm | 59" - 102 3/8" |
| Increment | 560 mm | 22" |
| Slip onto a fork designed with fork pockets | 154 x 58 mm | 6" x 2 1/4" |
| Fork pockets | 366 mm | 14 3/8" |
| Working load limit | Retracted: 1500 kg Extended: 500 kg |
3307 lb 1102 lb |
| Net weight | 151 kg | 333 lb |
| Gross weight | 160 kg | 353 lb |
| Packaging dimensions | L.1750 x W.620 x H.710 mm | L.68 7/8" x W.24 3/8" x H.28" |
Pivot Forklift Boom PFB2-3450
Especificaciones
| Marca | AARDWOLF |
| Package Dimensions | 70" x 28" x 29" |
