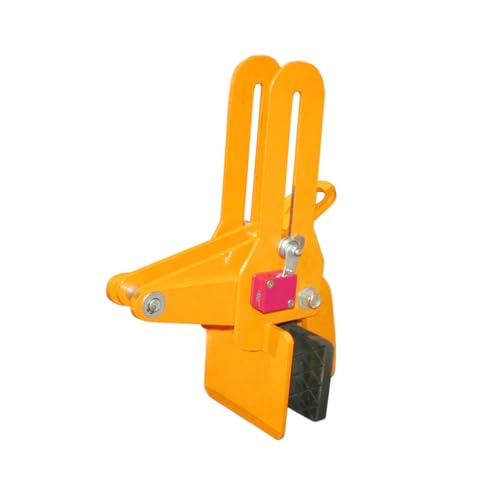

Aardwolf Billet Lifter — BL59 / DBL-30

The Aardwolf Billet Lifter is a gravity-controlled clamp for handling marble and granite billets and slabs straight from the billet saw. The single movable jaw is rubber-lined to protect polished and rough faces. Built for stone fabricators feeding billet saws and slab lines.

Features

  • BL59 working load: 441 lb
  • Grip range: 0.2 in to 2.4 in (5–60 mm)
  • Gravity hoisting device — clamp opens and closes automatically
  • Single movable jaw with rubber lining to protect the workpiece
  • Single overhead lifting eye for crane or hoist attachment
  • DBL-30 variant offers higher capacity for larger billets
BL59 — 441 lb / 200 kg Capacity
Property Detail
Part Number BL59
Working Load 441 lb (200 kg)
Grip Range 0.2 in to 2.4 in (5–60 mm)
Net Weight 35 lb (16 kg)
Jaw Single movable, rubber-lined
Locking Gravity
DBL-30 — Double-Jaw Billet Lifter
Property Detail
Part Number DBL-30
Jaw Double-jaw configuration
Locking Gravity
  1. Lower the billet lifter onto the workpiece until the clamp rests open.
  2. Center the jaw against the billet face with rubber lining in contact.
  3. Lift slowly with a crane or hoist; the clamp closes under load.
  4. Move the billet to the saw, polishing line, or storage rack.
  5. Lower so the clamp rests and releases the load.
  6. Wear PPE and keep clear of suspended loads at all times.

Marble, granite, and engineered-stone billets and slabs handled at billet saws and slab lines.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Especificaciones

Model BL59, DBL-30
Marca Aardwolf
Package Dimensions 23" x 8" x 13"
