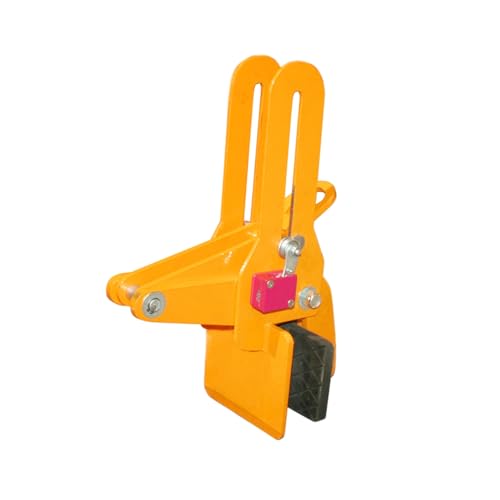

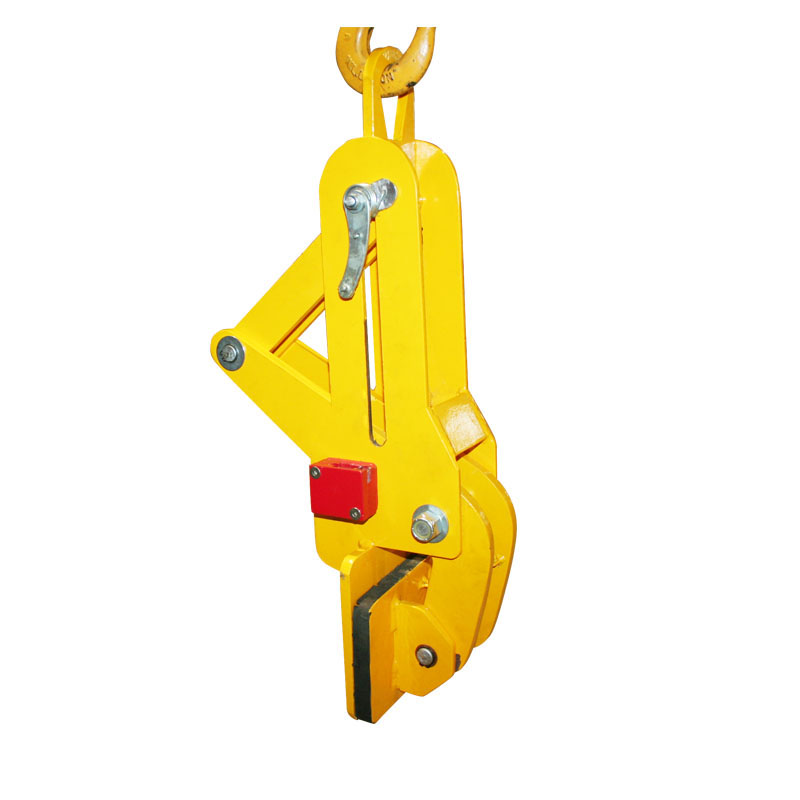

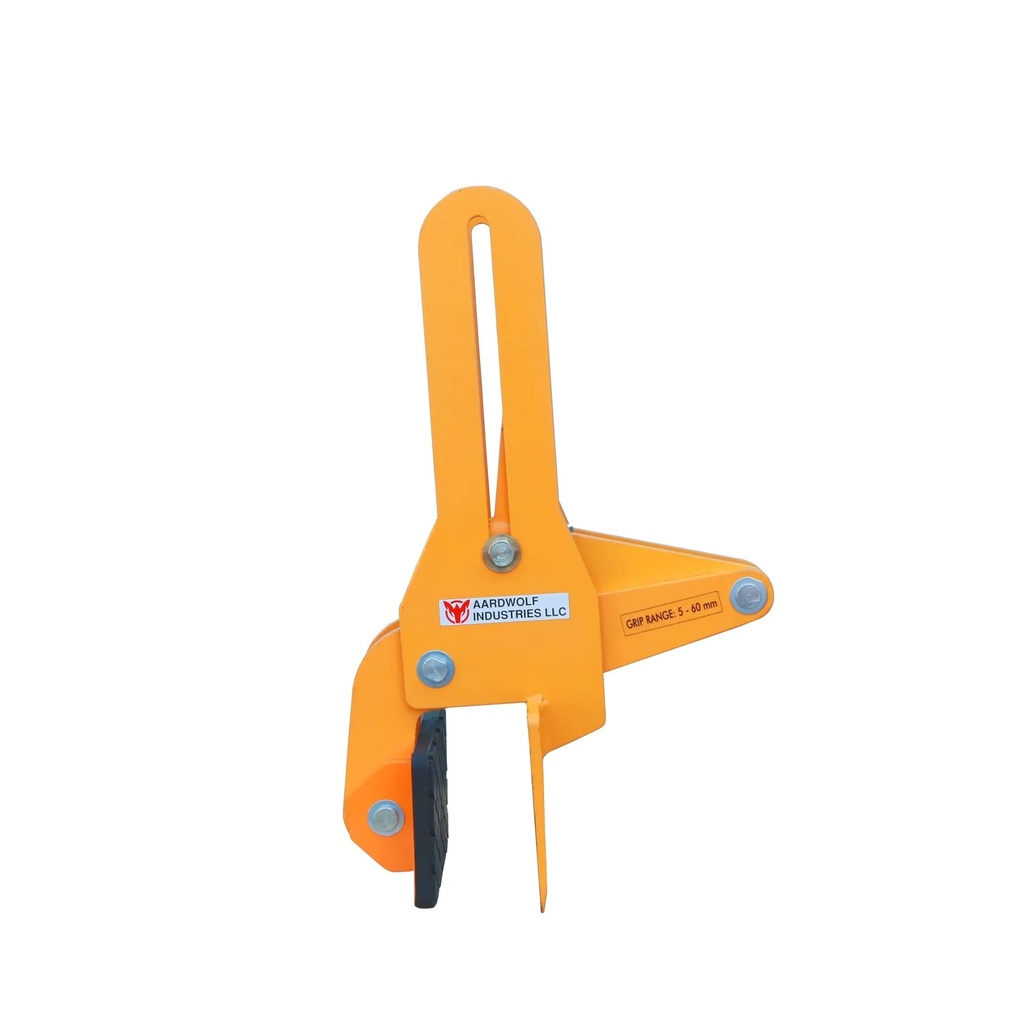

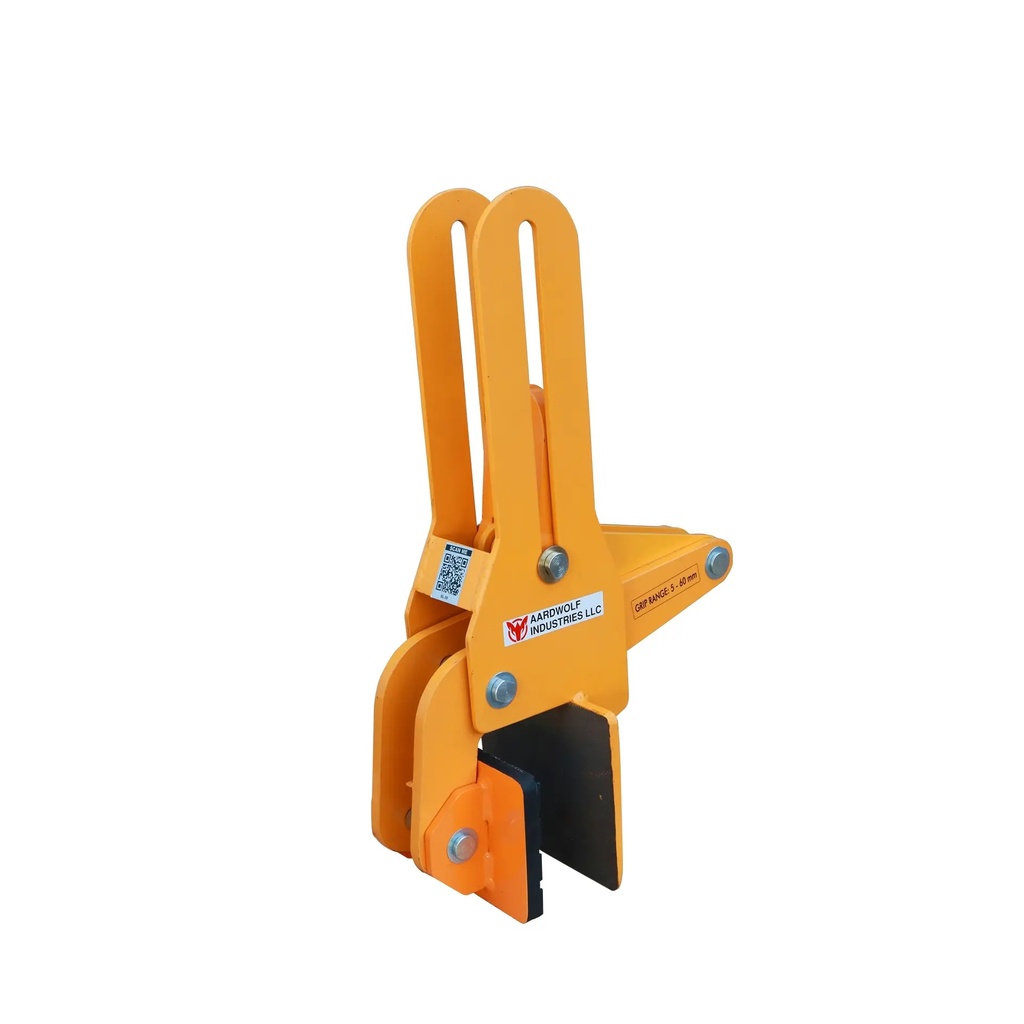

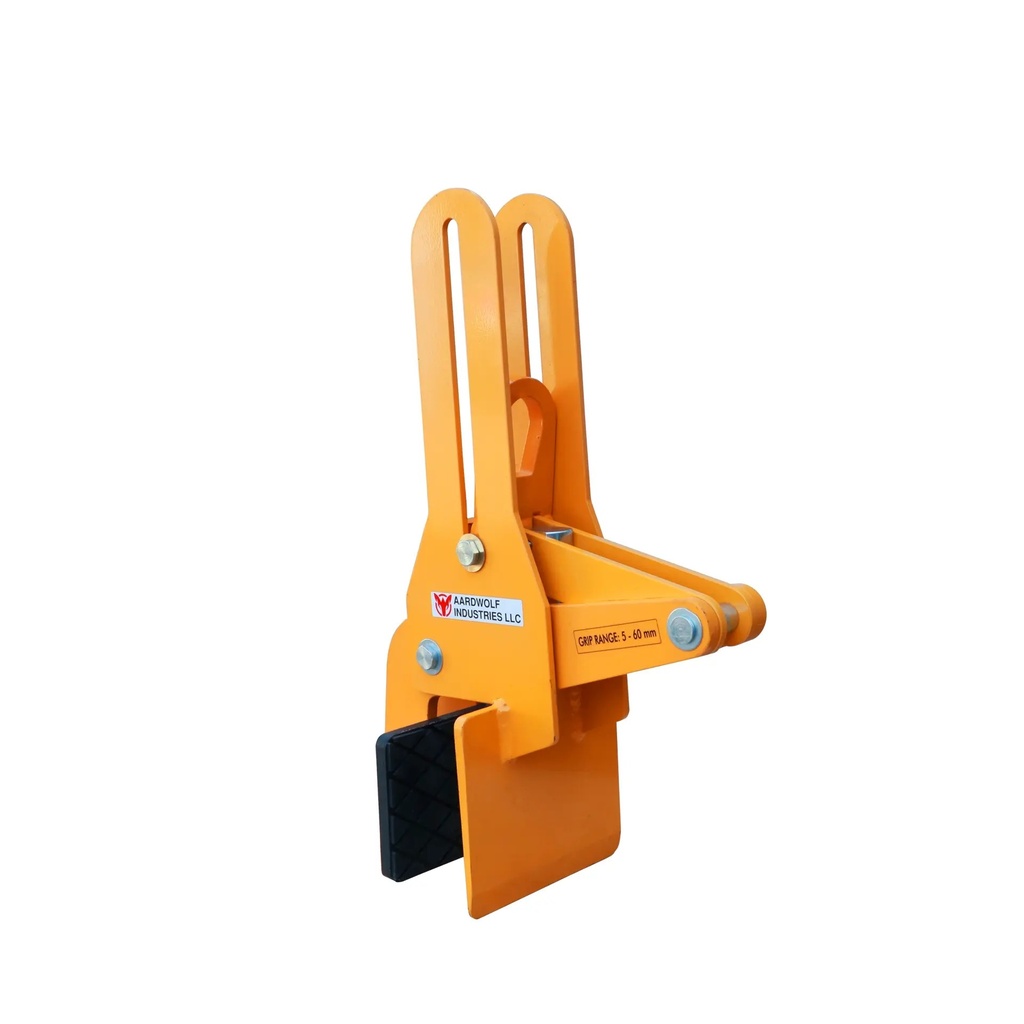

Aardwolf Billet Lifter — BL59 / DBL-30
The Aardwolf Billet Lifter is a gravity-controlled clamp for handling marble and granite billets and slabs straight from the billet saw. The single movable jaw is rubber-lined to protect polished and rough faces. Built for stone fabricators feeding billet saws and slab lines.
Features
- A gravity hoisting device is used to control the opening and closing of the clamp.
- The clamp has one movable jaw, which is lined with rubber
- The clamp uses the weight of the load to generate a closing force and the friction generated by the clamping force to clamp the slabs
BL59 — 441 lb / 200 kg Capacity
| Property | Detail |
|---|---|
| Part Number | BL59 |
| Working Load | 441 lb (200 kg) |
| Grip Range | 0.2 in to 2.4 in (5–60 mm) |
| Net Weight | 35 lb (16 kg) |
| Jaw | Single movable, rubber-lined |
| Locking | Gravity |
DBL-30 — Double-Jaw Billet Lifter
| Property | Detail |
|---|---|
| Part Number | DBL-30 |
| Jaw | Double-jaw configuration |
| Locking | Gravity |
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Lifting Capacity | 441 lb (200 kg) |
| Grip Range | 0.2" to 2" |
| Dimensions | 13.58" W x 20.47" H x 7.09" D |
| Weight | 35 lb (16 kg) |
| Jaw | Rubber-lined moveable jaw, gravity-operated |
| Country of Origin | Vietnam |
- Lower the billet lifter onto the workpiece until the clamp rests open.
- Center the jaw against the billet face with rubber lining in contact.
- Lift slowly with a crane or hoist; the clamp closes under load.
- Move the billet to the saw, polishing line, or storage rack.
- Lower so the clamp rests and releases the load.
- Wear PPE and keep clear of suspended loads at all times.
Marble, granite, and engineered-stone billets and slabs handled at billet saws and slab lines.
Specifications
| Model | BL59, DBL-30 |
| Brand | Aardwolf |
