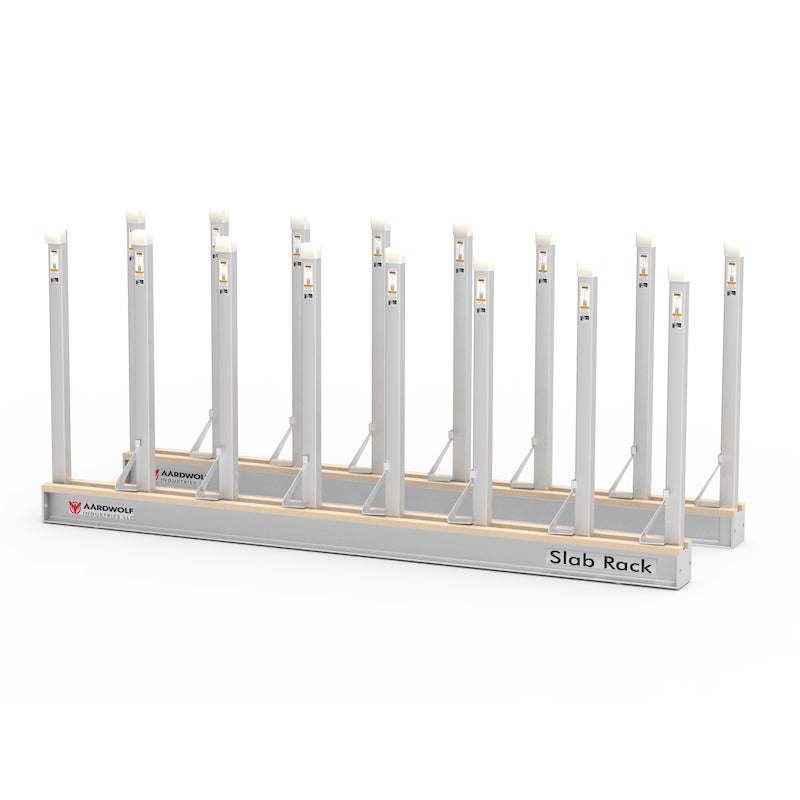

Aardwolf ASR Slab Rack Kit — Galvanized Steel Stone Storage System

The Aardwolf ASR Slab Rack Kit is a modular stone storage system built around galvanized steel rails and removable square-tube posts. The ASR0107 ships as a complete kit with 9 ft 10 in rails and sixteen 47.2 inch posts. Spacing adjusts in the rail slots to fit any inventory mix.

Features

  • Pair of galvanized steel rails 9 ft 10 in (3 m) long
  • Square steel tube posts (50 x 50 x 5 mm, ≥345 MPa) drop into the rails
  • ASR0107 kit includes sixteen ASR07 posts, 47.2 in high
  • Galvanized finish resists rust in damp shop and yard environments
  • Post spacing adjusts on demand for slabs of any width
  • Steel post bases stabilize each upright on concrete or pavers
  • Other kit lengths available (ASR0108, ASR0109, ASR0110)
ASR01 — Slab Rack Kit Base — Galvanized Rails
Property Detail
Includes Pair of galvanized rails
Rail Length 9 ft 10 in (3 m)
Finish Hot-dip galvanized
Mounting Free-standing on concrete or pavers
ASR0107 — Slab Rack Kit with 16 x ASR07 Posts (47.2 in)
Property Detail
Rails Pair, 9 ft 10 in (3 m)
Posts 16 x ASR07, 47.2 in (1200 mm)
Post Section 2 x 2 x 0.2 in (50 x 50 x 5 mm)
Finish Hot-dip galvanized
ASR0108 — Slab Rack Kit with 16 x ASR08 Posts (55.1 in)
Property Detail
Rails Pair, 9 ft 10 in (3 m)
Posts 16 x ASR08, 55.1 in (1400 mm)
Post Section 2 x 2 x 0.2 in (50 x 50 x 5 mm)
Finish Hot-dip galvanized
ASR0109 — Slab Rack Kit with 16 x ASR09 Posts (63 in)
Property Detail
Rails Pair, 9 ft 10 in (3 m)
Posts 16 x ASR09, 63 in (1600 mm)
Post Section 2 x 2 x 0.2 in (50 x 50 x 5 mm)
Finish Hot-dip galvanized
ASR0110 — Slab Rack Kit with 16 x ASR10 Posts (70.8 in)
Property Detail
Rails Pair, 9 ft 10 in (3 m)
Posts 16 x ASR10, 70.8 in (1800 mm)
Post Section 2 x 2 x 0.2 in (50 x 50 x 5 mm)
Finish Hot-dip galvanized
  1. Lay the galvanized rails parallel on a level slab or concrete pad.
  2. Drop the ASR07 posts into the slotted rails at the chosen spacing.
  3. Verify each post sits square in its base before loading slabs.
  4. Load slabs vertically, leaning into the posts; alternate face directions.
  5. Re-space posts as inventory mix changes; posts lift out without tools.
  6. Wear gloves and steel-toe boots when loading or repositioning slabs.

Especificaciones

Model ASR0107, ASR0108, ASR0109, ASR0110, ASR01, ASR0110
Marca Aardwolf
Package Dimensions 120" x 40" x 12"
