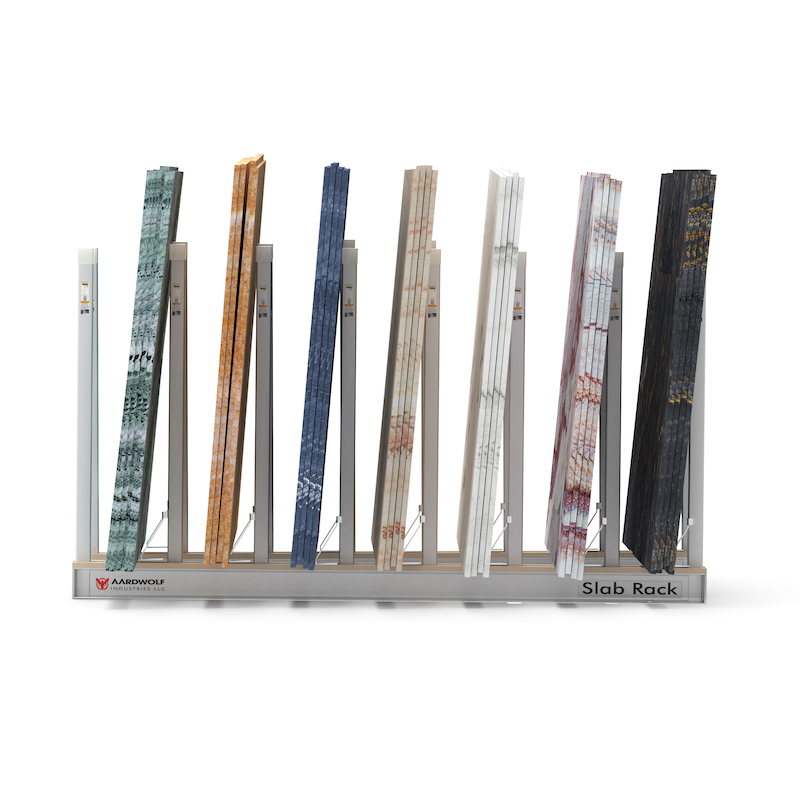

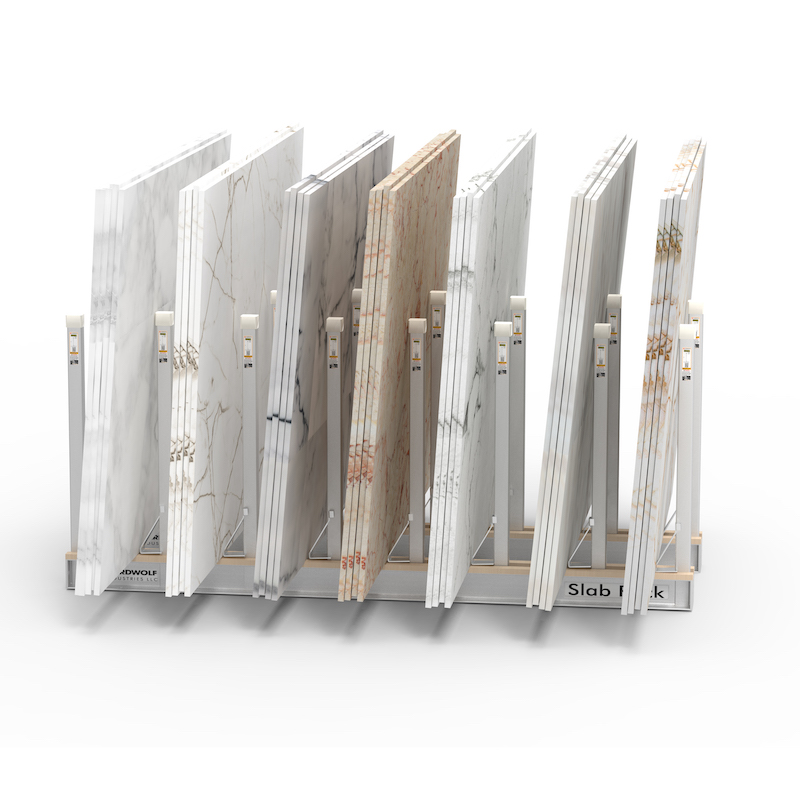

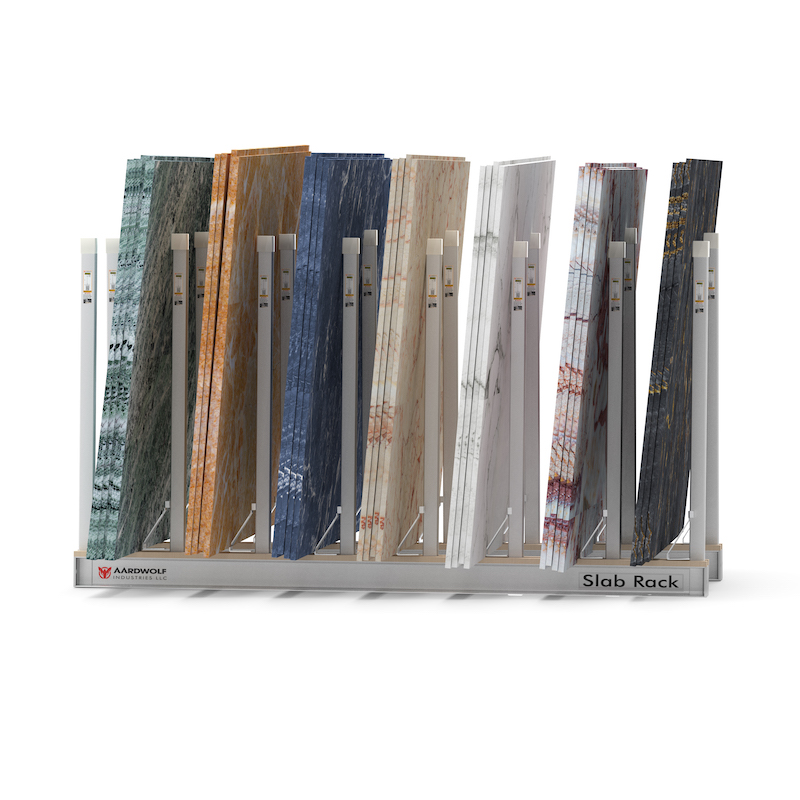

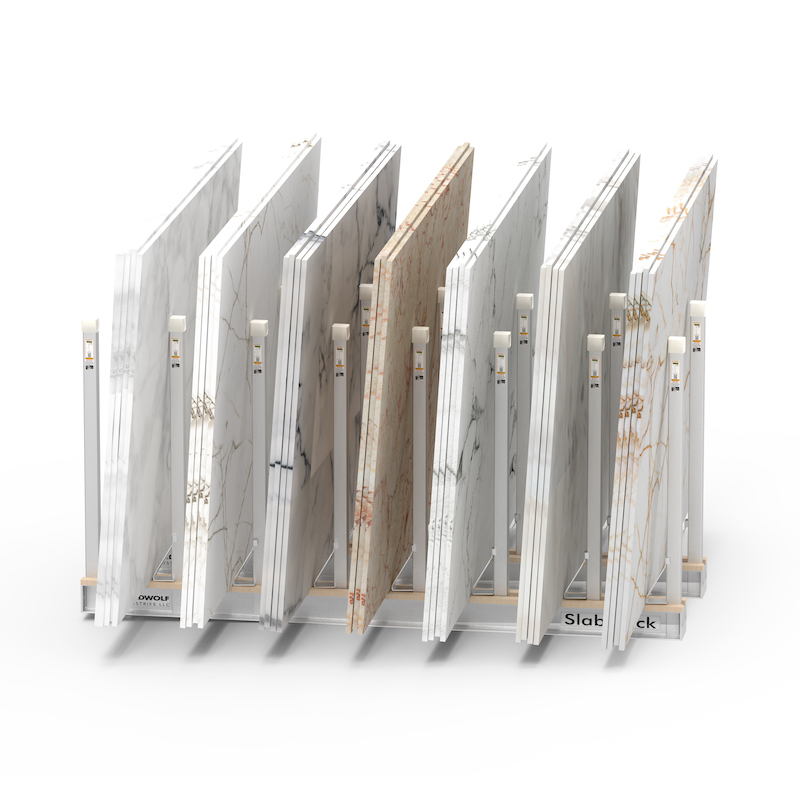

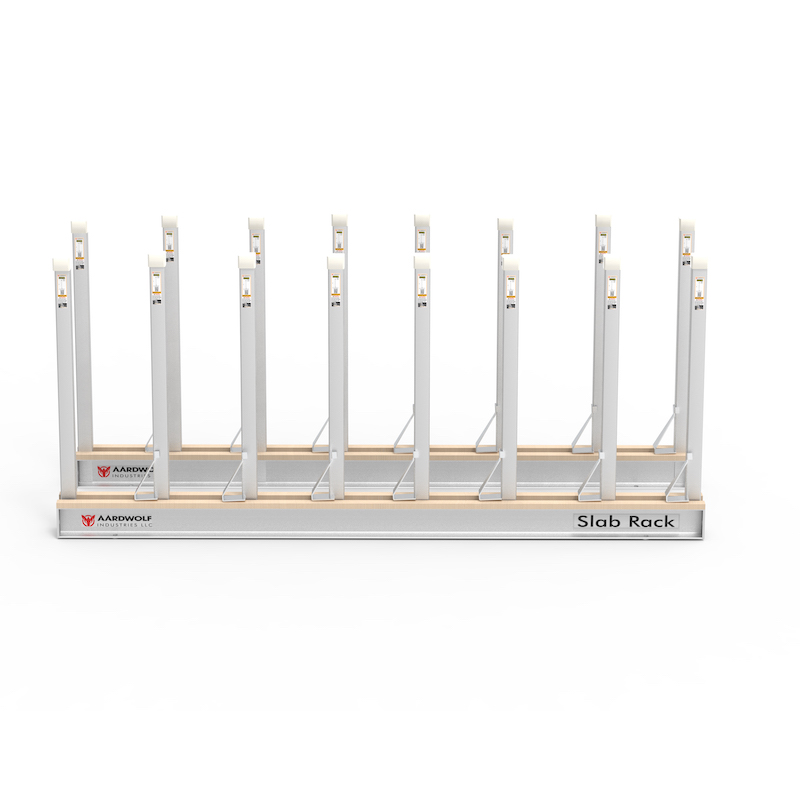

Aardwolf ASR01 Slab Rack Kit – Vertical Slab Storage

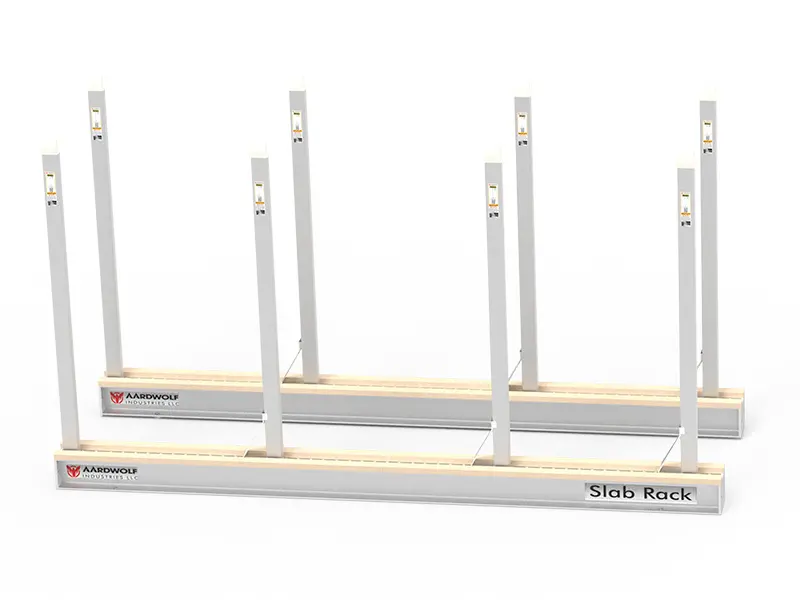

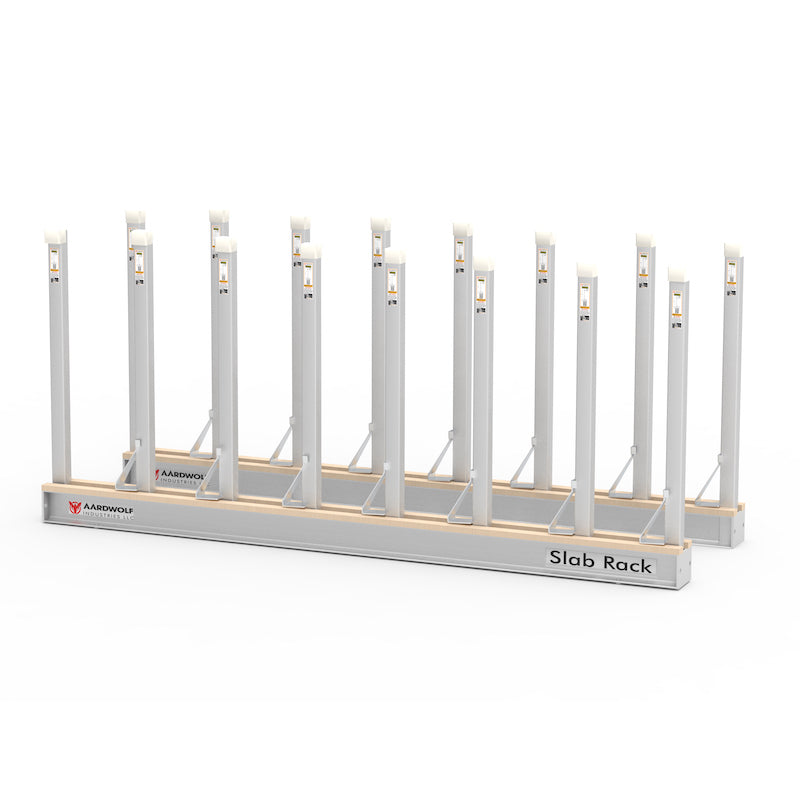

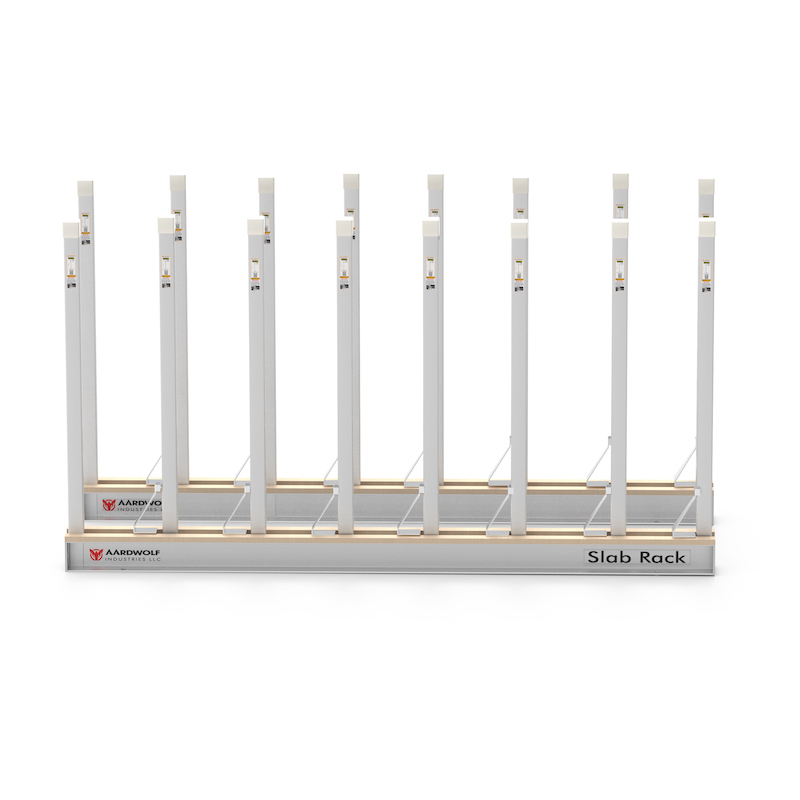

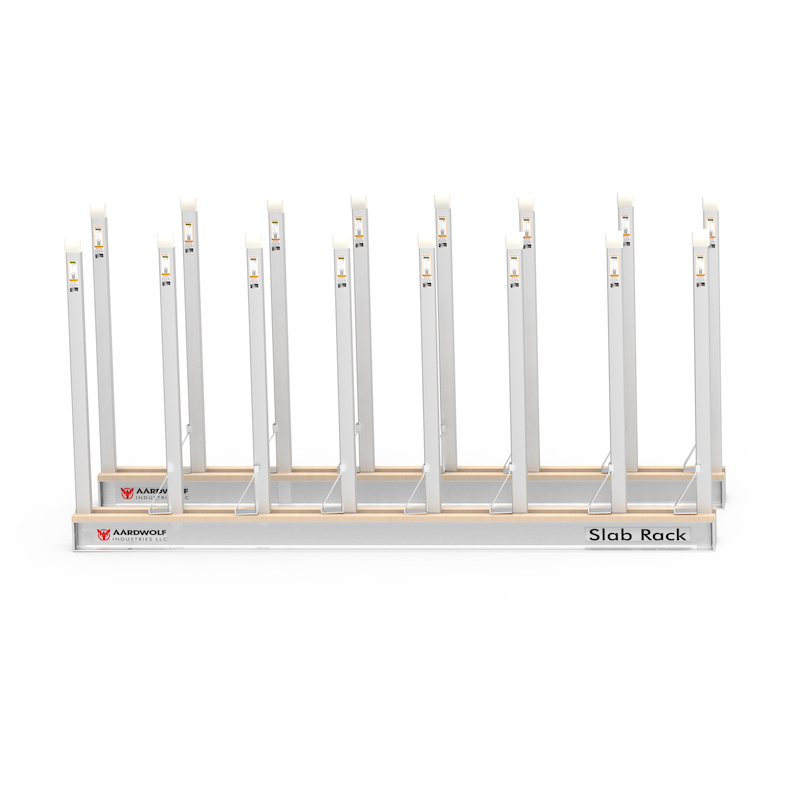

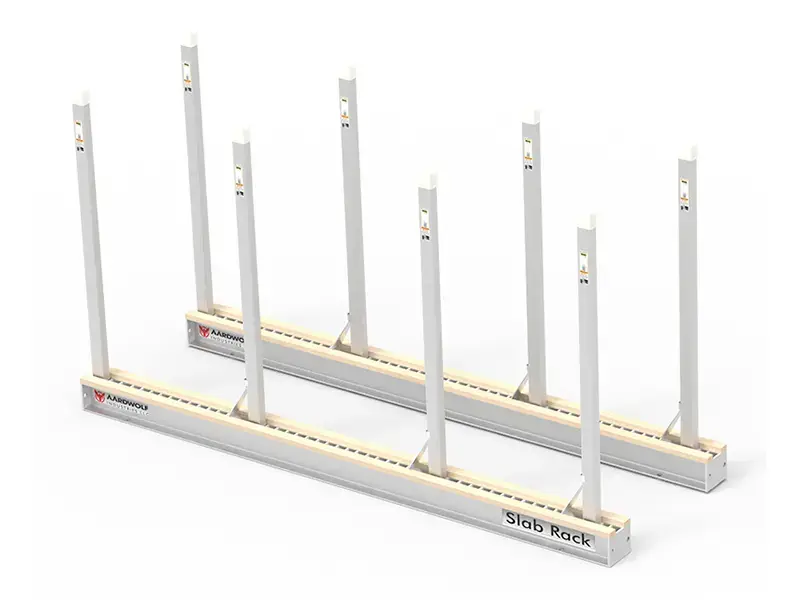

The Aardwolf ASR01 Slab Rack Kit provides a pair of galvanised steel rails with square steel-tube posts and steel bases for vertical slab storage. Posts can be positioned anywhere along the rail. All posts use square steel tube with a minimum 345 MPa yield strength for safe storage of slab bundles.

Features

  • Pair of galvanised steel rails, 118" (3 m) long
  • 16 square steel-tube posts, positionable anywhere along the rail
  • Post height 47 1/4" – 70 7/8"
  • Minimum 345 MPa steel yield strength for slab-bundle safety
  • Steel post bases for stable vertical loading at a 4° lean
  • Economical, space-saving slab storage solution
Property Detail
Brand Aardwolf
Rail Length 9' 10" (3,000 mm)
Rail Height 6.5" (165 mm)
Rail Width 6.4" (164 mm)
Post Size 2" (50 mm) square tube
Post Wall Thickness 0.2" (5 mm)
Post Steel Yield Strength 50,000 PSI (345 MPa) minimum
Post Heights Available 47-1/4" (1,200 mm) and 63" (1,600 mm)
Net Weight 172 lb (78 kg) per rail
Finish Galvanized steel
Storage Lean Angle 4 degrees
Country of OriginVietnam
  1. Anchor the base rails on a level, load-rated concrete floor.
  2. Set the square-tube posts at the required bay spacing.

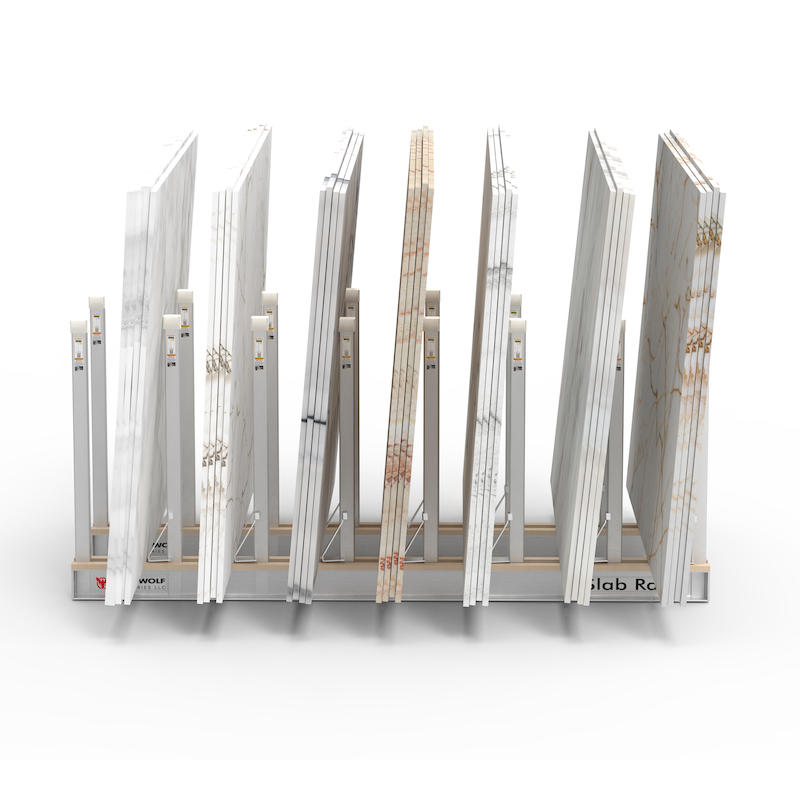

  3. Load slab bundles vertically at the 4° lean against the posts.
  4. Keep bundle weight within your floor and rack rating.
  5. Wear gloves and steel-toe boots and use mechanical aids when loading slabs.

Always wear appropriate PPE. Follow local safety regulations when using power tools or material-handling equipment.

Specifications

Model ASR01, ASR0107, ASR0108, ASR0109, ASR0110
Brand Aardwolf
