Aardwolf Transport Frame

(0 review)
$ 2,379.13 $ 2,379.13
$ 2,253.44
  • Brand
  • Model
Contact Us
Terms and Conditions
Model TF2000G, TF2000PC, TF2440G, TF2440PC, TF3050, TF3050H
Brand Aardwolf

Aardwolf Transport Frame — A-Frame for Slab Storage and Transit

The Aardwolf Transport Frame is a steel A-frame designed to store and transport stone slabs safely between fabrication shops, trucks, and job sites. Forklift pockets and stacking pads keep slabs secure during loading, road transport, and handover. Available in galvanized or powder-coated finishes in three working widths.

Features

  • Heavy-duty welded steel A-frame construction
  • Forklift pockets on both sides for easy maneuvering
  • Stacking pads protect slab edges from steel contact
  • Galvanized (G) or powder-coated (PC) finish options
  • Sizes: TF2000 (78 in), TF2440 (96 in), TF3050 (120 in)
  • TF3050H heavy variant for oversized slab loads
  • Tie-down points for strap securing during transport
TF2000G — Transport Frame 78 in (Galvanized)
Property Detail
Brand Aardwolf
Model TF2000G
Length 78.7 in (78.7" / 2,000 mm)
Width 40.2 in
Height 16.5 in (with locking bars)
Capacity 5,511 lb (2,500 kg)
Finish Galvanized
Locking Bars 6
Forklift Access All sides

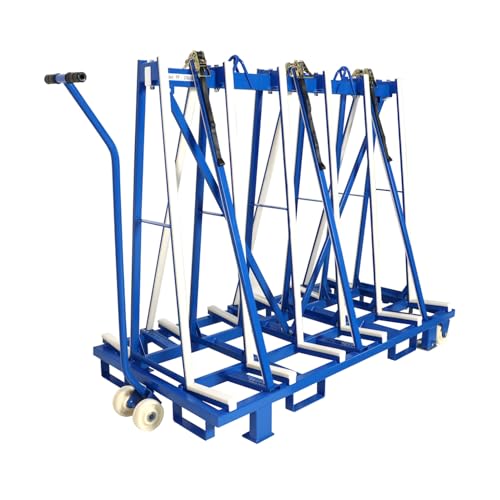

TF2000PC — Transport Frame 78 in (Powder-Coated)
Property Detail
Brand Aardwolf
Model TF2000PC
Length 78.7 in (78.7" / 2,000 mm)
Capacity 5,511 lb (2,500 kg)
Finish Powder-coated
Locking Bars 6
Forklift Access All sides
TF2440G — Transport Frame 96 in (Galvanized)
Property Detail
Brand Aardwolf
Model TF2440G
Length 96 in (96.1" / 2,440 mm)
Width 44 in (44.0" / 1,118 mm)
Height 66.3 in (66.3" / 1,684 mm)
Capacity 3,307 lb (1,500 kg)
Net Weight 340.6 lb (154.5 kg)
Finish Galvanized
Forklift Access Both sides
TF2440PC — Transport Frame 96 in (Powder-Coated)
Property Detail
Brand Aardwolf
Model TF2440PC
Length 96 in (96.1" / 2,440 mm)
Width 44 in (44.0" / 1,118 mm)
Height 66.3 in (66.3" / 1,684 mm)
Capacity 3,307 lb (1,500 kg)
Finish Powder-coated
Forklift Access Both sides

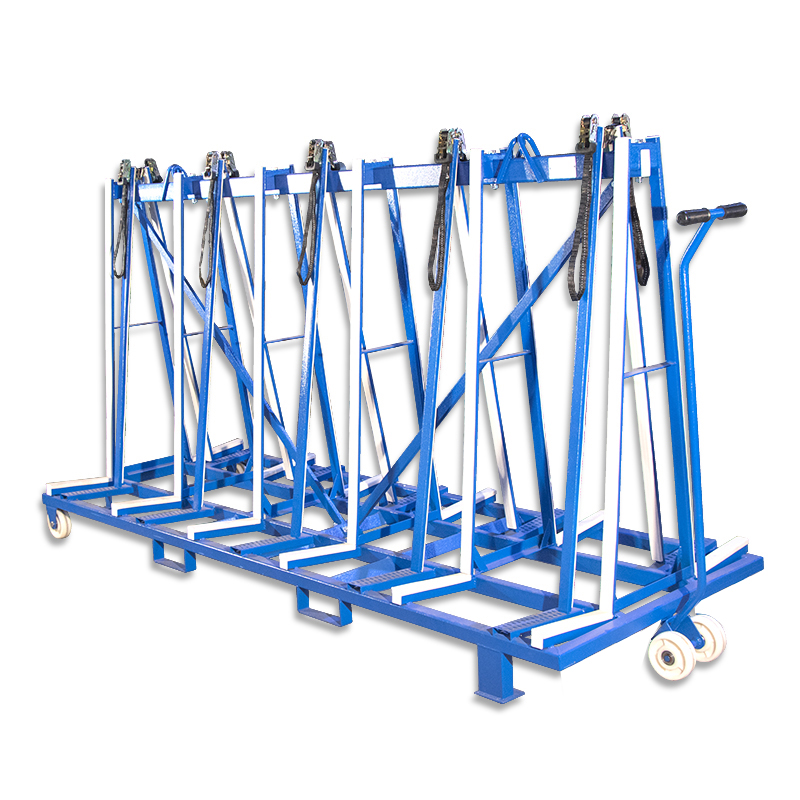

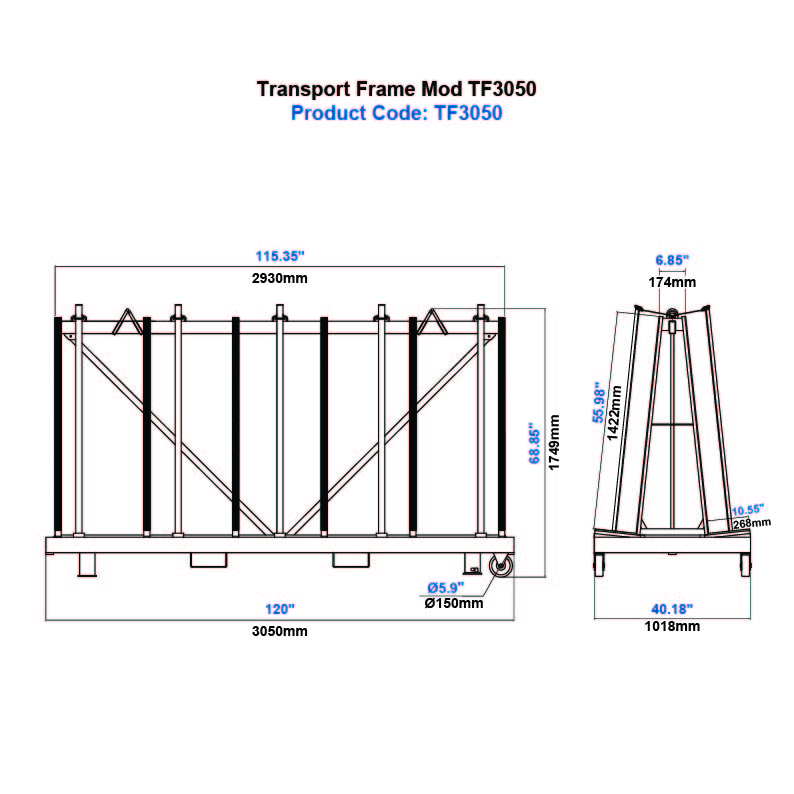

TF3050 — Transport Frame 120 in
Property Detail
Brand Aardwolf
Model TF3050
Length 120 in (120.1" / 3,050 mm)
Width 44 in (44.0" / 1,118 mm)
Height 65.1 in (65.1" / 1,654 mm)
Capacity 2,205 lb (1,000 kg)
Net Weight 409 lb (185.5 kg)
Forklift Access Both sides

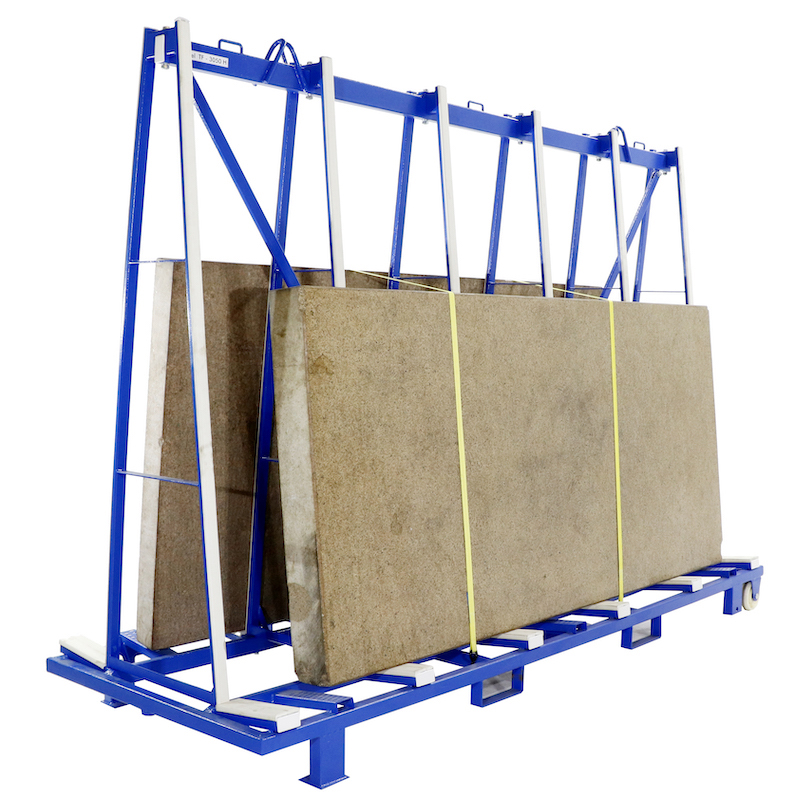

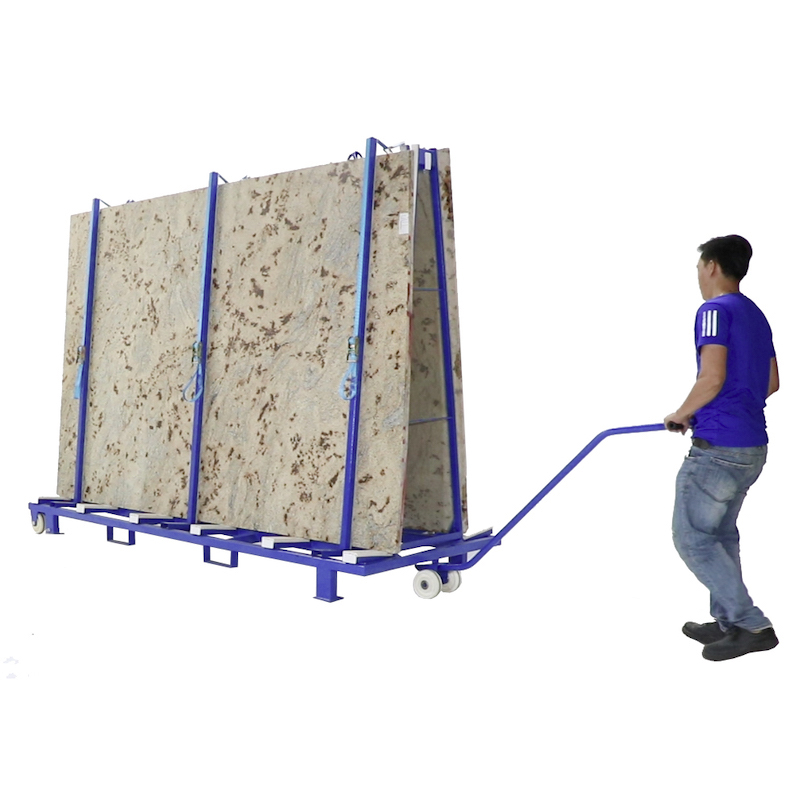

TF3050H — Transport Frame 120 in Heavy-Duty
Property Detail
Brand Aardwolf
Model TF3050H
Length 120 in (120.1" / 3,050 mm)
Width 40.6 in (40.6" / 1,030 mm)
Height 17.7 in (17.7" / 450 mm) base section
Capacity 5,512 lb (2,500 kg)
Net Weight 573 lb (260 kg)
Forklift Access Both sides
Property Detail
Brand Aardwolf
Working Load 5,511 lb (2,500 kg)
Weight 401 lb net (182 kg)
Height 10.6" (268 mm)
Construction 1.6" (40 mm) square steel tube, galvanized
Wheels 4-wheel
Country of Origin Vietnam
  1. Position the transport frame on a level surface or truck deck.
  2. Insert forklift tines fully into the side pockets to relocate.
  3. Load slabs vertically with even weight on both sides of the A-frame.
  4. Secure each slab with ratchet straps to the frame tie-points.
  5. Verify load symmetry before lifting or transporting on public roads.

Manufacturer demonstration of the TF3050C — same product family; features and operation are representative, ratings differ by model.
