Size

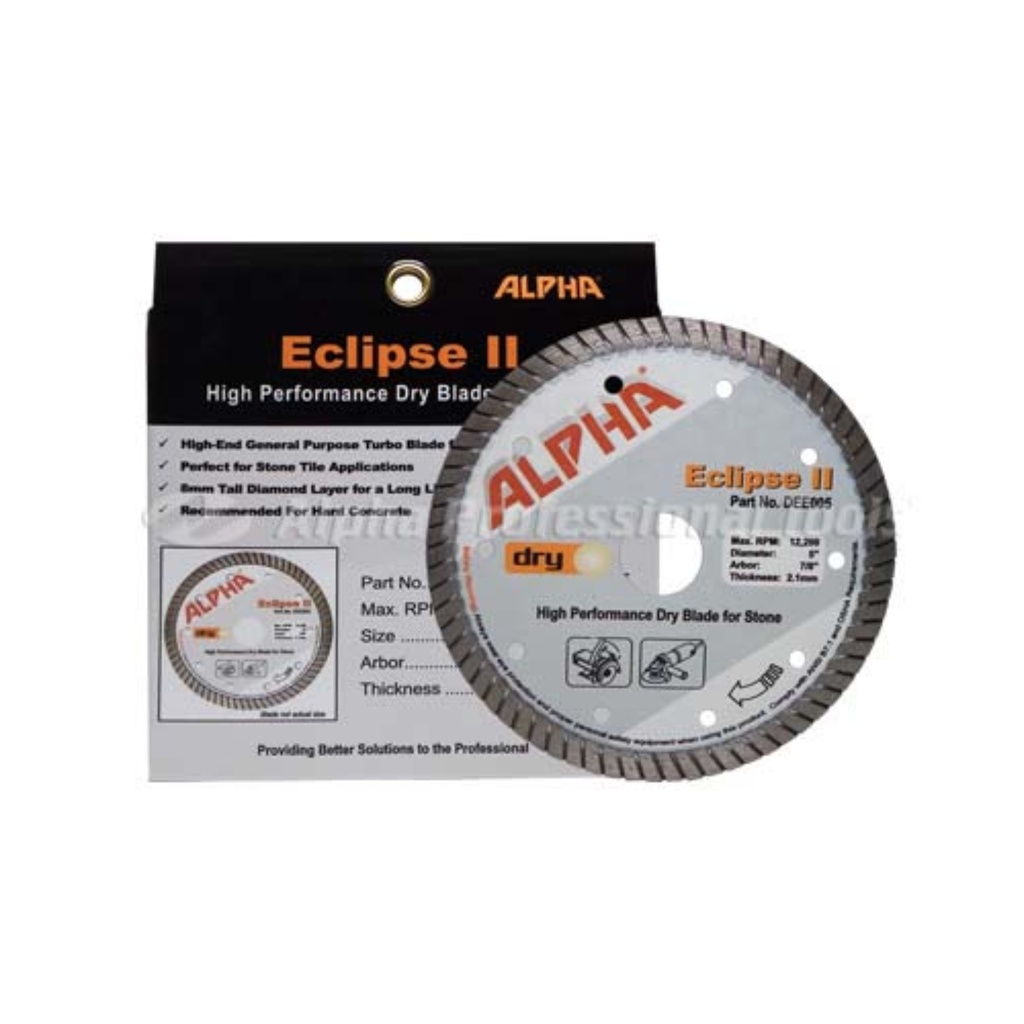

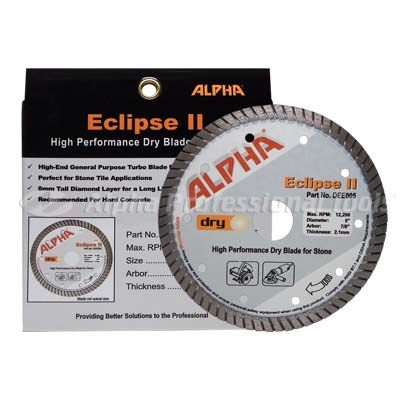

Alpha® Eclipse II High Performance Dry Blade for Stone
The Alpha® Eclipse II is a high-performance dry diamond blade engineered for general-purpose cutting on tile, brick, block, concrete, slate and natural stone, with superior results on granite. With an 8 mm tall diamond layer for extended blade life and a profile that fits most angle grinders and Alpha® wet stone cutters, the Eclipse II delivers consistent, chip-free cuts on the toughest jobs. It is best suited for medium-to-soft granite classifications and will also cut hard granite.
Features
- 8 mm tall diamond layer for extended blade life
- Recommended for hard concrete and natural stone applications
- Superior cutting performance on granite (medium-to-soft classifications)
- Cuts tile, brick, block, concrete, slate and natural stone
- Consistent performance without chipping
- Fits most angle grinders and Alpha® wet stone cutters
- Dry cutting capable; may also be used wet to extend blade life and suppress silica dust
- Six diameters from 4" through 8" for portable and bench-mounted tools
| Part No. | Diameter | Arbor | Max RPM | UPC |
|---|---|---|---|---|
| DEE478 | 4" | 7/8", 20mm, 5/8" | 14,500 | 749173462092 |
| DEE045 | 4-1/2" | 7/8", 20mm | 13,200 | 749173460531 |
| DEE005 | 5" | 7/8" | 12,200 | 749173460494 |
| DEE006 | 6" | 7/8", 5/8" | 10,100 | 749173460500 |
| DEE007 | 7" | 5/8" | 8,400 | 749173460517 |
| DEE008 | 8" | 5/8" | 7,400 | 749173460524 |
- Verify the tool RPM does NOT exceed the Max RPM stamped on the blade.
- Mount the blade with the arrow on the blade matching the rotation direction of the tool.
- Tighten the flange firmly using the manufacturer’s wrench; never over-torque.
- Allow the blade to reach full speed before contacting the material.
- Let the blade do the cutting; apply only light, steady feed pressure.
- For dust suppression and longer blade life, cut wet whenever the tool permits.
- Never use an 18 V cordless circular saw — 3,200 RPM is insufficient and causes premature wear.
- After use, run the blade free for several seconds to expel debris before storage.

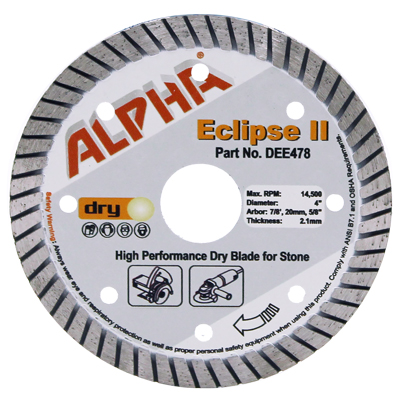

4" — 7/8", 20mm, 5/8" — DEE478
| Part No. | DEE478 |
| UPC | 749173462092 |
| Size | 4" |
| Attachment | 7/8", 20mm, 5/8" |
| Max RPM | 14,500 |
| Recommended For | Stone Cutter/Angle Grinder |
| Packaged Weight | 0.30 lbs |
| Package Dimensions | 5.25" x 4.5" x 0.25" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
4.5" — 7/8", 20mm — DEE045
| Part No. | DEE045 |
| UPC | 749173460531 |
| Size | 4.5" |
| Attachment | 7/8", 20mm |
| Max RPM | 13,200 |
| Recommended For | Stone Cutter/Angle Grinder |
| Packaged Weight | 0.40 lbs |
| Package Dimensions | 5.5" x 5" x 0.25" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |

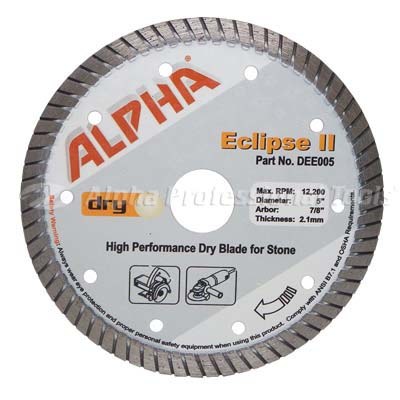

5" — 7/8" — DEE005
| Part No. | DEE005 |
| UPC | 749173460494 |
| Size | 5" |
| Attachment | 7/8" |
| Max RPM | 12,200 |
| Recommended For | Stone Cutter/Angle Grinder |
| Packaged Weight | 0.30 lbs |
| Package Dimensions | 6" x 5.5" x 0.25" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
6" — 7/8", 5/8" — DEE006
| Part No. | DEE006 |
| UPC | 749173460500 |
| Size | 6" |
| Attachment | 7/8", 5/8" |
| Max RPM | 10,100 |
| Recommended For | Stone Cutter/Angle Grinder |
| Packaged Weight | 0.40 lbs |
| Package Dimensions | 7" x 6.5" x 0.25" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
7" — 5/8" — DEE007
| Part No. | DEE007 |
| UPC | 749173460517 |
| Size | 7" |
| Attachment | 5/8" |
| Max RPM | 8,400 |
| Recommended For | Worm Drive |
| Packaged Weight | 0.80 lbs |
| Package Dimensions | 7.5" x 7.5" x 0.25" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
8" — 5/8" — DEE008
| Part No. | DEE008 |
| UPC | 749173460524 |
| Size | 8" |
| Attachment | 5/8" |
| Max RPM | 7,400 |
| Recommended For | Worm Drive |
| Packaged Weight | 1.00 lbs |
| Package Dimensions | 8.5" x 8.5" x 0.25" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Property | Detail |
|---|---|
| Blade Type | Dry diamond turbo blade |
| Diamond Rim Height | 8 mm |
| Recommended Materials | Tile, brick, block, concrete, slate, natural stone, granite |
| Best On | Medium-to-soft granite (also cuts hard granite) |
| Wet/Dry | Dry blade — may also be used wet |
| Commodity Code (HTS) | 8202.91.0000 |
| Country of Origin | Japan |
What is the cutting edge rim height of the Eclipse II blades?
The rim height is 8 mm.
Which granite classifications are recommended for the Eclipse II?
The Eclipse II blades are best suited for medium-to-soft granite classifications; however, they will also cut hard granite classifications.
Can a dry blade be used wet?
Yes. Cutting wet generally increases blade life and eliminates harmful silica dust exposure.
Why use an Alpha® Stone Cutter rather than an angle grinder for 5" or smaller blades?
The AWS-110 or AWS-125 stone cutters provide better cutting stability and increased accuracy since the tool’s base glides across the cutting surface.
Can I use an 18 V cordless circular saw with Eclipse blades?
No. The 3,200 RPM of these circular saws is insufficient for diamond blades and causes premature wear or out-of-round conditions.
What materials can be cut with Eclipse II blades?
The Alpha® Eclipse II Series can be used to cut tile, brick, block, concrete, slate and natural stone, and gives superior results on granite.

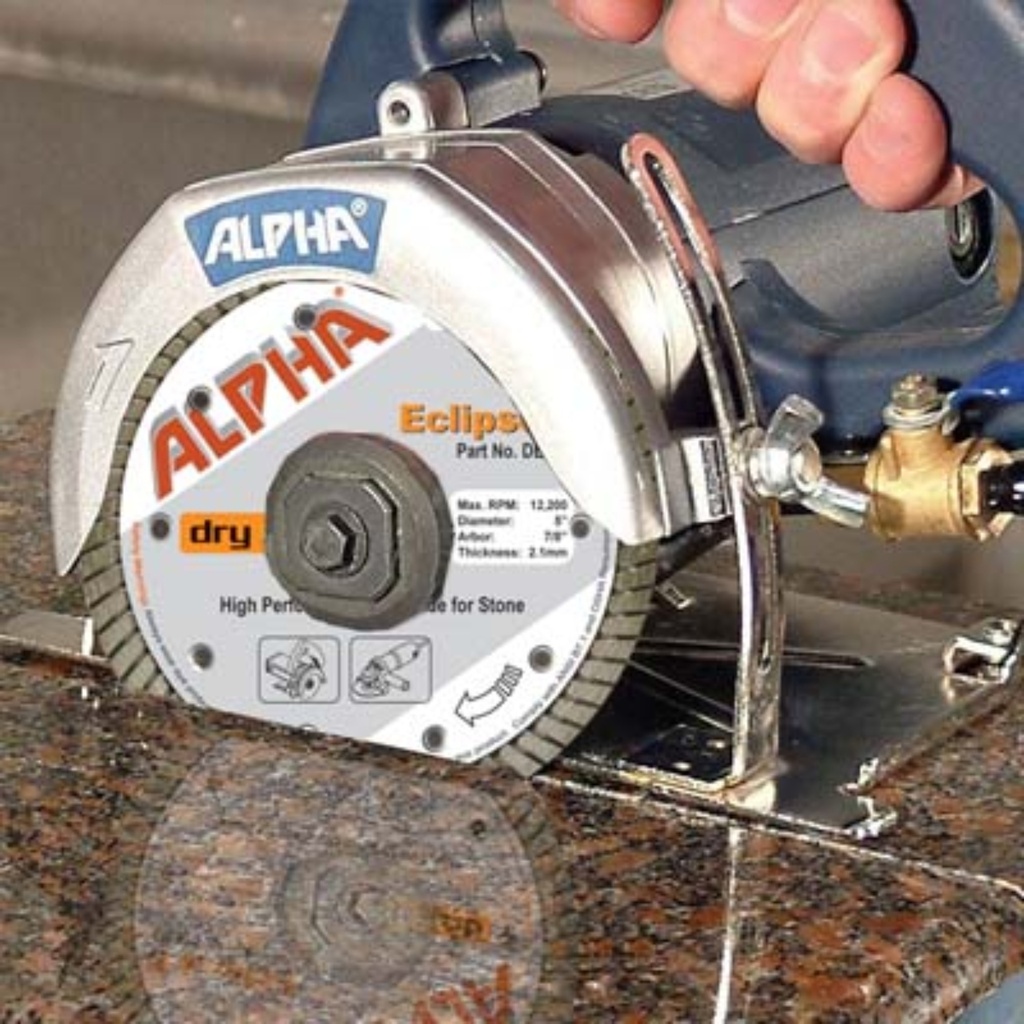

AWS-125 with Eclipse II on Granite
How to Trim Countertops
Best Wet and Dry Stone Cutter
⚠ WARNING: Cancer — This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Always wear appropriate PPE.
Specifications
| Size | 4", 4-1/2", 5", 6", 7", 8" |
