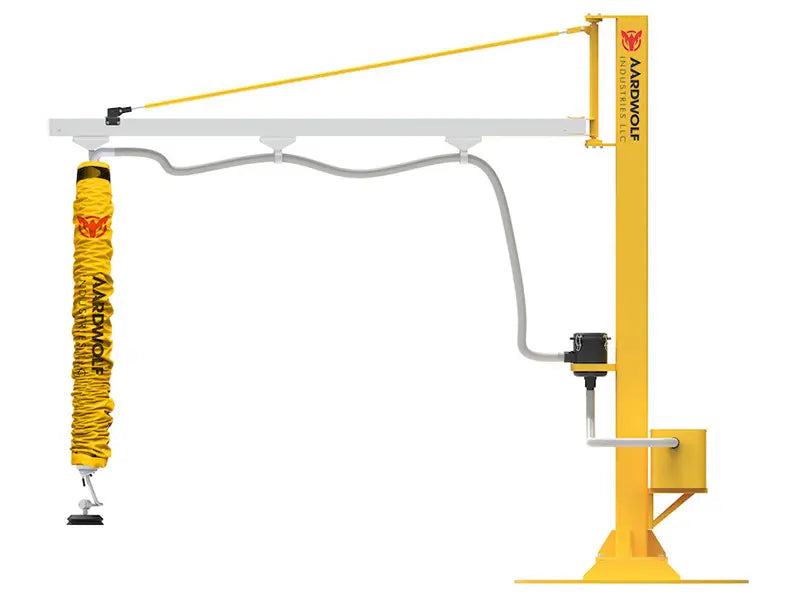

Aardwolf Mobile Vacuum Tube Lifter (AVTL1)
Aardwolf Mobile Vacuum Tube Lifter — A mobile jib‑crane with vacuum tube lifting head for fast, ergonomic handling of cartons, bags and smooth panels. Designed to reduce operator strain and speed up material flow.
Recommended for: carton boxes, sacks, packaged goods, smooth wood/laminate sheets and other non‑porous surfaces.
- Mobile crane WLL 100 kg (220 lb); vacuum head handles up to 78 kg (172 lb).
- Crane height 3150 mm (124") with 3050 mm (120") arm; tube size 120 mm (4.7").
- High‑performance vacuum pump with 87–105 m³/h flow; 270° working area.
- Quick pad change with plunger knobs; manual/remote operation modes.
AVTL1 — Mobile Vacuum Tube Lifter
Specifications
| AVTL1 | Metric | Imperial |
|---|---|---|
| Mobile crane Capacity / WLL | 100 kg | 220 lb |
| Lifting capacity of vacuum head | 78 kg | 172 lb |
| Crane height | 3150 mm | 124" |
| Arm length | 3050 mm | 120" |
| Tube size (diameter) | 120 mm | 4.7" |
| Vacuum pump flow | 87–105 m³/h | - |
| Net Weight | — | — |
| Shipping Weight | ≈ 363 kg | ≈ 800 lb |
| Packaging | — | — |
