Cyclone SCDA Silent Core Bridge Saw Blade

Cyclone SCDA Silent Core Bridge Saw Blade

(0 review)
$ 395.96 $ 395.96
$ 311.26

  • Diameter
  • Configuration
  • Segment Width
Terms and Conditions
Shipping: 2-3 Business Days
Contact Us

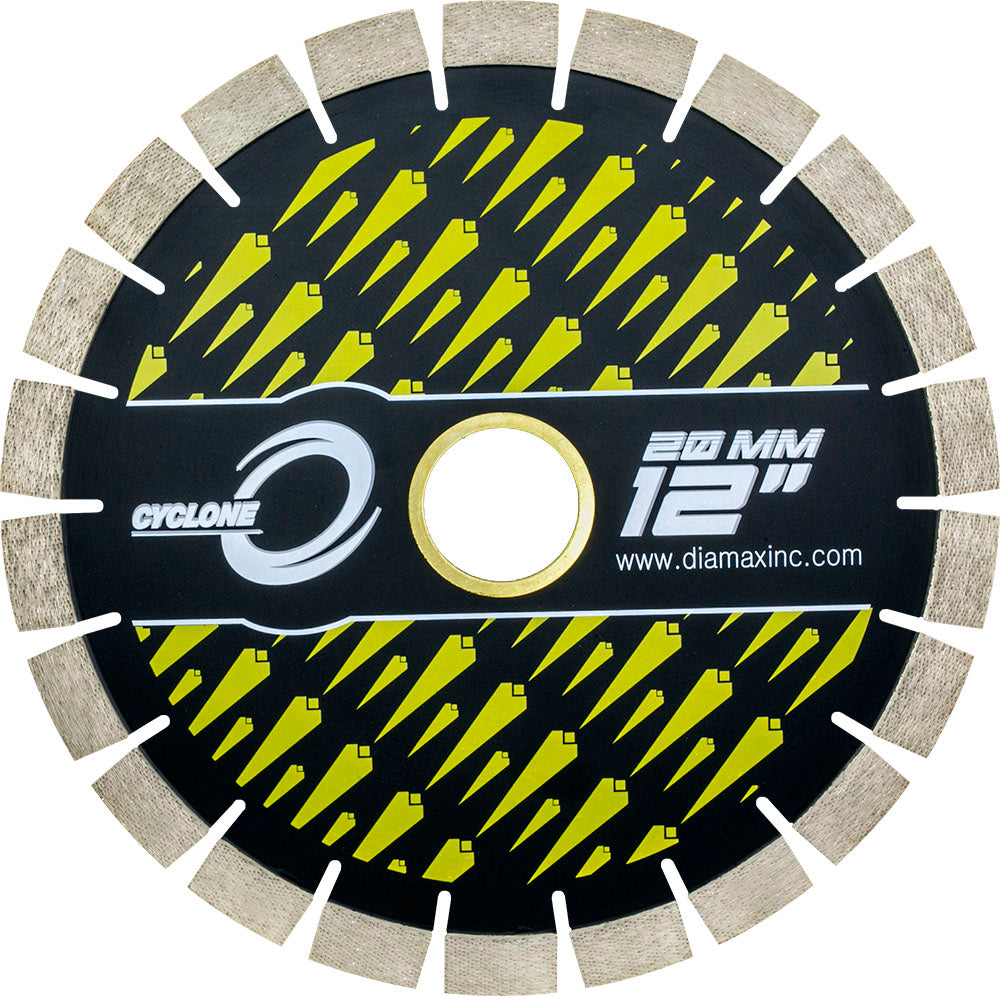

Cyclone SCDA Silent Core Bridge Saw Blade

The Cyclone SCDA Silent Core Bridge Saw Blade is a Diamax diamond blade. Available in 12", 14", 16", 18".

Features

  • Segments are pressure tested to ensure solid welding
  • Cyclone high-speed patterned technology provides fast cutting
  • Feed rate: 10 ft – 17 ft a minute
  • Diamax-engineered diamond blade for stone fabrication
  • Consistent diamond bond formulation for repeatable performance
  • Designed for professional fabrication shops
SCDA1220 — 12", Standard, 20mm
PropertyDetail
Diameter12"
ConfigurationStandard
Segment Width20mm
Weight (lb)4.00
Barcode7425744173262
HS Code8202.39
SCDA1420 — 14", Standard, 20mm
PropertyDetail
Diameter14"
ConfigurationStandard
Segment Width20mm
Weight (lb)6.00
Barcode645748846413
HS Code8202.39
SCDA1420S — 14", Reinforced, 20mm
PropertyDetail
Diameter14"
ConfigurationReinforced
Segment Width20mm
Weight (lb)3.00
Barcode645748846475
HS Code8202.39
SCDA1426S — 14", Reinforced, 26mm
PropertyDetail
Diameter14"
ConfigurationReinforced
Segment Width26mm
Weight (lb)3.00
Barcode0742574433746
HS Code8202.39
SCDA1620 — 16", Standard, 20mm
PropertyDetail
Diameter16"
ConfigurationStandard
Segment Width20mm
Weight (lb)8.00
Barcode645748846536
HS Code8202.39
SCDA1620S — 16", Reinforced, 20mm
PropertyDetail
Diameter16"
ConfigurationReinforced
Segment Width20mm
Weight (lb)8.00
Barcode645748846604
HS Code8202.39
SCDA1626S — 16", Reinforced, 26mm
PropertyDetail
Diameter16"
ConfigurationReinforced
Segment Width26mm
Weight (lb)8.00
Barcode7425744260696
HS Code8202.39
SCDA1626U — 16", Soft Bond, 26mm
PropertyDetail
Diameter16"
ConfigurationSoft Bond
Segment Width26mm
Weight (lb)8.00
Barcode645748846567
HS Code8202.39
SCDA1690 — 16", 90mm Bore, 26mm
PropertyDetail
Diameter16"
Configuration90mm Bore
Segment Width26mm
Weight (lb)4.00
Barcode645748846611
HS Code8202.39
SCDA1690S — 16", 90mm Bore Reinforced, 26mm
PropertyDetail
Diameter16"
Configuration90mm Bore Reinforced
Segment Width26mm
Weight (lb)8.00
HS Code8202.39
SCDA1690_none — 16", 90mm No Pin Holes, 26mm
PropertyDetail
Diameter16"
Configuration90mm No Pin Holes
Segment Width26mm
Weight (lb)4.00
Barcode645748846628
HS Code8202.39
SCDA16DD — 16", Denver+Donatoni+Breton, 26mm
PropertyDetail
Diameter16"
ConfigurationDenver+Donatoni+Breton
Segment Width26mm
Weight (lb)0.50
Barcode645748846635
HS Code8202.39
SCDA1826S — 18", Reinforced, 26mm
PropertyDetail
Diameter18"
ConfigurationReinforced
Segment Width26mm
Weight (lb)12.00
Barcode0742574433739
HS Code8202.39
  1. Mount the blade on a compatible saw, ensuring correct rotation direction.
  2. Set RPM within the blade's rated range for its diameter.
  3. Use water cooling for wet cutting; never force the blade through the material.
  4. Maintain steady feed pressure; allow the diamonds to cut.
  5. Wear PPE: safety glasses, hearing protection, and dust mask.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Specifications

Diameter 12", 14", 16", 18"
Configuration Standard, Reinforced, Soft Bond, 90mm Bore, 90mm Bore Reinforced, 90mm No Pin Holes, Denver+Donatoni+Breton
Segment Width 20mm, 26mm
