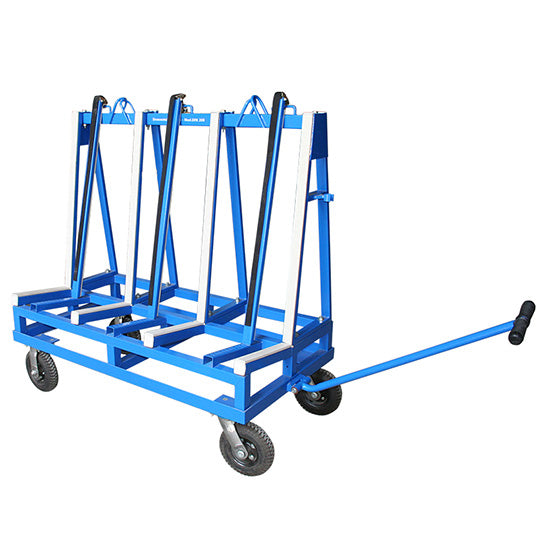

Aardwolf Demountable Frame

(0 incele)
LTL $300
$ 1.103,44 $ 1.103,44
$ 1.103,44

  • Marka
  • Model
  • Package Dimensions
Terms and Conditions
Shipping: 2-3 Business Days
Bize Ulaşın

Aardwolf Demountable A-Frame for Stone Slab Transport

The Aardwolf Demountable A-Frame is a heavy-duty transport rack for moving granite, marble, and quartz slabs between fabrication shops, jobsites, and trucks. Its modular bolt-together design folds flat for return transport and storage. Available in multiple capacities (DFF200, DFF400, DFF1500PC) and a hot-dip galvanized finish (DFH200) for outdoor durability.

Features

  • Demountable bolt-together construction for flat-pack return shipping
  • Steel A-frame design for stable double-sided slab loading
  • Multiple capacity options: DFF200, DFF400, and DFF1500PC for different load sizes
  • DFH200 hot-dip galvanized variant for corrosion resistance in outdoor use
  • Rubber-padded base rails protect slab edges from chips and cracks
  • Compatible with shipping containers, flatbed trucks, and warehouse floors
DFF1500PC — Top Frame Only — 2,200 lb
Property Detail
Type Top frame only (no base)
Working Load 2,200 lb (1,000 kg)
Frame Weight 165 lb (75 kg)
Construction Powder-coated steel, rubber-topped
Pickup 2 overhead crane hooking points
DFF200 — Demountable A-Frame DFF200
Property Detail
Type Bolt-together demountable A-frame
Locking Bars 6 adjustable locking bars per side
Securing Locking bars + ratchet straps
Pickup Forklift channels and crane hook points
DFF400 — Demountable A-Frame DFF400 — 1,100 lb/side
Property Detail
Type Bolt-together demountable A-frame
Working Load Per Side 1,100 lb (500 kg)
Slab Storage Base Width 11.8" (300 mm) per side
Locking Bars 6 adjustable locking bars per side
DFH200 — Demountable Frame DFH200 — 1,650 lb
Property Detail
Type Hot-dip galvanized demountable frame
Working Load 1,650 lb (750 kg)
Storage Width 12.0" (304 mm)
Frame Weight 203 lb (92 kg)
Locking Bars 8 locking bars in slotted holes
Construction 40 mm (1.57") square steel tubing
  1. Position the A-frame on a level surface and bolt the legs to the base rails.
  2. Load slabs evenly on both sides to balance the frame and prevent tipping.
  3. Strap each slab to the frame with rated webbing and non-marring corner protectors.
  4. Verify the total load does not exceed the model's rated capacity.
  5. Wear gloves, steel-toe boots, and a hard hat when loading or unloading.

Özellikler

Model DFH200, DFF200, DFF400, DFF1500PC
Marka Aardwolf
Package Dimensions 54" x 40" x 18"
