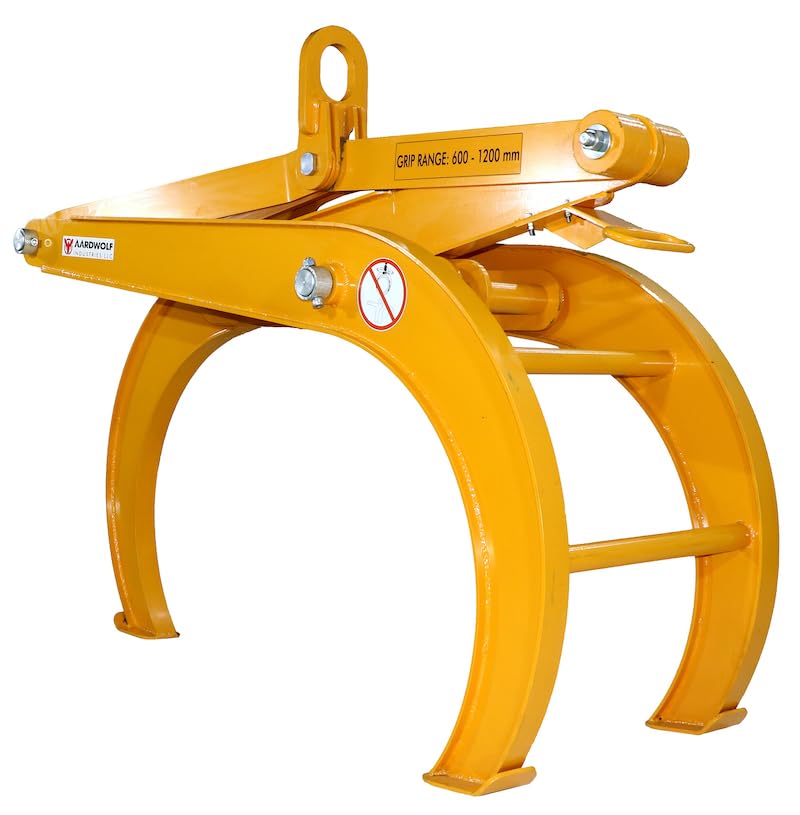

Aardwolf Rock Lifter Grapple ARL — Self-Adjusting Boulder Clamp

The Aardwolf ARL Rock Lifter Grapple is a self-adjusting clamp built for landscapers and stonemasons moving large rocks and boulders. The ARL-800 lifts 1,653 lb across a 14 to 31 inch grip range; the ARL-1200 lifts 3,307 lb with a 23.6 to 47.2 inch grip range. An automatic grab-and-release actuator simplifies repeated set-down work.

Features

  • ARL-800 working load 1,653 lb; ARL-1200 working load 3,307 lb
  • Grip range 14 to 31 inches (ARL-800) or 23.6 to 47.2 inches (ARL-1200)
  • Self-adjusting jaws — clamp force increases with the weight of the rock
  • Automatic grab-and-release actuator on every lift cycle
  • High-tensile welded steel construction for boulders and irregular stone
  • Minimal moving parts means low maintenance and reliable shop life
  • Net weight 262 lb (ARL-800) or 820 lb (ARL-1200)
ARL-1200 — Rock Lifter Grapple, 3,307 lb
Property Detail
Working Load 3,307 lb (1,500 kg)
Grip Range 23.6 in to 47.2 in (600 to 1200 mm)
Net Weight 820 lb (372 kg)
Construction High-tensile welded steel
Mounting Crane, excavator, or skid-steer hook
Actuator Automatic grab and release
ARL-800 — Rock Lifter Grapple, 1,653 lb
Property Detail
Working Load 1,653 lb (750 kg)
Grip Range 14 in to 31 in (356 to 787 mm)
Net Weight 262 lb (119 kg)
Construction High-tensile welded steel
Mounting Crane, excavator, or skid-steer hook
Actuator Automatic grab and release
  1. Connect the grapple shackle to a crane, excavator, or skid-steer hook.
  2. Lower the grapple over the rock so the jaws straddle the widest point.
  3. Allow the actuator to set; the jaws self-engage as you lift.
  4. Lift smoothly and keep the load close to the ground during transport.
  5. Set the rock down on a stable surface to release the grapple automatically.
  6. Wear hard hat, gloves, eye protection, and steel-toe boots throughout.

Suits rounded and irregular boulders, river rock, landscape stone, and quarry blocks. Not designed for slabs or finished countertop materials.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Özellikler

Model ARL-800, ARL-1200
