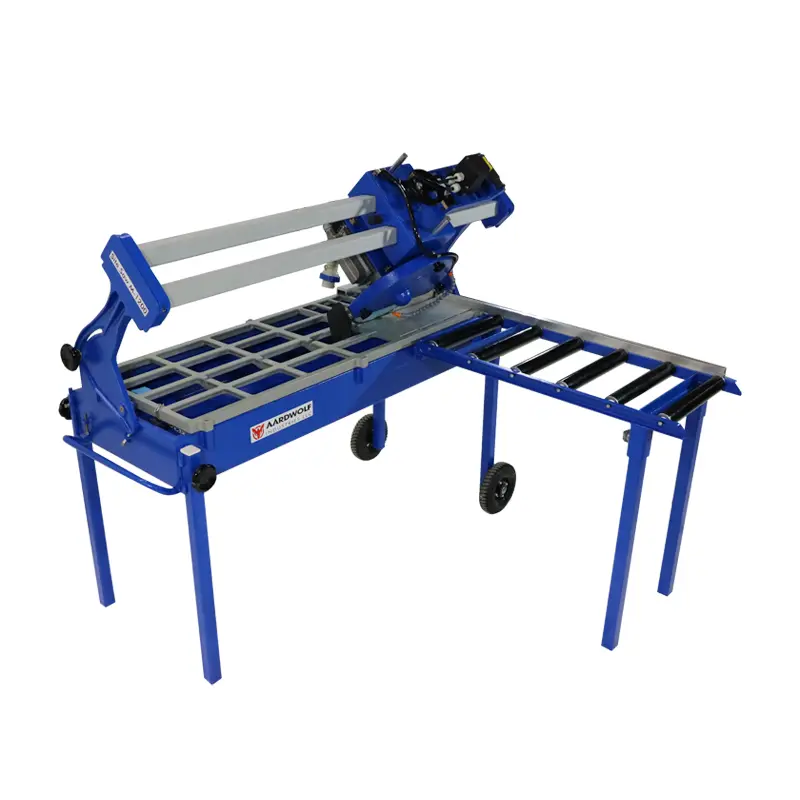

Aardwolf Site Saw SSM Series — Bench Wet Saw for Stone and Masonry

The Aardwolf SSM Site Saw is a heavy-duty bench wet saw built for cutting stone, tile, and masonry on construction sites and in fabrication shops. A 3 HP motor rides on twelve bearings across two extruded aluminum bars for chip-free cuts. Roller conveyors and adjustable stops support repeat cutting on long workpieces.

Features

  • 3 HP motor at 220 V single phase for continuous shop and site duty
  • Cutting head rolls on twelve bearings across two extruded aluminum bars
  • Tilts to 45 degrees for bevel cuts on stone and tile
  • Cast aluminum machined work table bolts firmly to the water tank
  • Roller conveyors carry long slabs through the cut without sag
  • Two adjustable stops on the load-support brackets enable accurate repeat cuts
  • Recirculating water tank keeps the blade cool and dust suppressed
  • Stainless steel measuring tape mounted on the table and conveyor
SSM1200 — Site Saw, 1.2 m Cut Length
Property Detail
Cut Length Class 1,200 mm (~47.2 in)
Motor 3 HP, 220 V, single phase
Tilt Range 0 to 45 degrees
Bearings 12, riding on twin extruded aluminum bars
Work Table Cast aluminum, machined
Water System Recirculating tank with pump
SSM2000 — Site Saw, 2.0 m Cut Length
Property Detail
Cut Length Class 2,000 mm (~78.7 in)
Motor 3 HP, 220 V, single phase
Tilt Range 0 to 45 degrees
Bearings 12, riding on twin extruded aluminum bars
Work Table Cast aluminum, machined
Water System Recirculating tank with pump
  1. Set the saw on level ground and fill the water tank to the marked line.
  2. Confirm the recirculating pump is primed and water reaches the blade.
  3. Set the cut depth with the hand wheel and lock the bevel angle if needed.
  4. Place the workpiece on the conveyor against the adjustable stop.
  5. Feed the cutting head smoothly; let the blade do the work.
  6. Wear eye protection, hearing protection, and a dust mask at all times.

Cuts granite, marble, quartzite, engineered quartz, porcelain, concrete, and brick. Use a continuous-rim diamond blade matched to the material for clean edges.

Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.

Özellikler

Model SSM1200, SSM2000
