Aardwolf Stone Carry Clamp

(0 incele)
$ 191,07 $ 191,07
$ 191,07
  • Marka
  • Model
Bize Ulaşın
Terms and Conditions
Model SCC02, SCC05, SCC05-W, SCC06
Marka Aardwolf

Aardwolf Stone Carry Clamp — Manual Panel Carrier for Sheet Material

The Aardwolf Stone Carry Clamp is a manual panel carrier that creates a sturdy temporary handle on the edge of stone, glass, or wood sheets. The weight of the panel itself locks the jaws onto the material. Used in pairs by two workers, it makes site delivery and showroom moves safer and faster.

Features

  • Self-tightening jaw — slab weight provides the clamping force
  • Vulcanized rubber lining inside the jaws prevents face damage
  • Used in pairs for two-person panel carries
  • SCC02 panel carrier with cable handle for finished panels
  • SCC05 sheet-material carrier for tile and small slab work
  • SCC05-W white-finish variant for showroom use
  • Welded steel body for years of fabrication-shop service

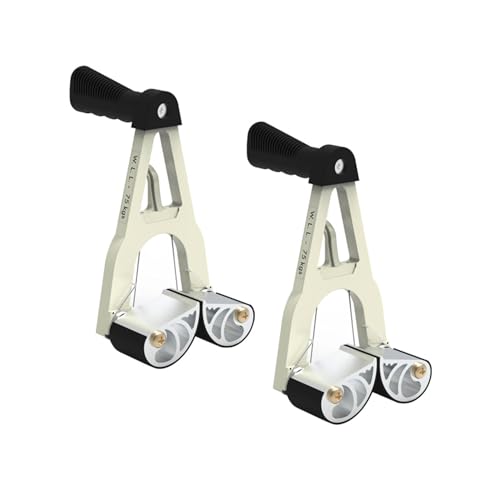

SCC02 — Stone Panel Carrier with Cable
Property Detail
Brand Aardwolf
Model SCC02
Capacity 331 lb per pair
Grip Range 0 to 2 in (0 to 2.0" (50 mm))
Net Weight 4 lb per pair
Body Lightweight aluminum
Jaw Lining Vulcanized rubber
Action Auto-lock; finger trigger release
Use Sold in pairs for two-person carry
SCC05 — Stone Carry Clamp 50-100 mm (Black)
Property Detail
Brand Aardwolf
Model SCC05
Capacity 441 lb (200 kg) per pair
Grip Range 2 to 4 in (50 to 3.9" (100 mm))
Net Weight 18.3 lb (8.3 kg) per pair
Jaw Lining Vulcanized rubber, black
Action Gravity self-tightening
Use In pairs, two-person carry
SCC05-W — Stone Carry Clamp 50-100 mm (White)
Property Detail
Brand Aardwolf
Model SCC05-W
Capacity 441 lb (200 kg) per pair
Grip Range 2 to 4 in (50 to 3.9" (100 mm))
Net Weight 18.3 lb (8.3 kg) per pair
Jaw Lining White vulcanized rubber (non-marking for showroom)
Action Gravity self-tightening
Use In pairs, two-person carry
SCC06 — Stone Carry Clamp (SCC06)
Property Detail
Brand Aardwolf
Model SCC06
Body Welded steel with rubber-lined jaws
Action Gravity self-tightening
Jaw Lining Vulcanized rubber
Use In pairs, two-person carry of stone, glass, or sheet panels
Property Detail
Brand Aardwolf
Lifting Capacity 331 lb per pair (150 kg)
Grip Range 0-2" (0-52 mm)
Weight 5 lb per unit (2.3 kg)
Material Aluminum frame, vulcanized rubber pads
Features Auto-lock, finger-trigger jaws, molded hand grips
Country of Origin Vietnam
  1. Open the jaw and slide the clamp over the slab edge.
  2. Tilt the slab slightly so the jaw bites into the rubber lining.
  3. Have two workers grip a clamp on each side of the panel.
  4. Lift together; the slab weight keeps the jaws locked.
  5. Set the slab down fully before releasing either clamp.
  6. Wear gloves and steel-toe boots during every carry.

Granite, marble, quartzite, engineered quartz, porcelain, glass, and wood sheet panels with a flat edge that fits the jaw.
