$ 55,06
$ 55,06
$ 47,50
-
Color
- For incremental sink cut-out with 5-Axis machines like Sasso K600, Park Saber, Donatoni Jet 625, etc.
- Advanced vacuum-brazed diamond specially made for Marble;
- Cut faster and last longer than electroplated diamond bits;
- Material: Marble;
- Wet use only;
- Medium bond - Good speed & Extra long life;
- Material: Engineered Stone, Granite;
- Soft bond - Fast cutting & Long life;
- Material: Quartzite, Granite, Engineered Stone;
- Super Soft bond - Super fast cutting & Good life;
- Material: UltraCompact Surfaces (UCS), Quartzite, Granite;

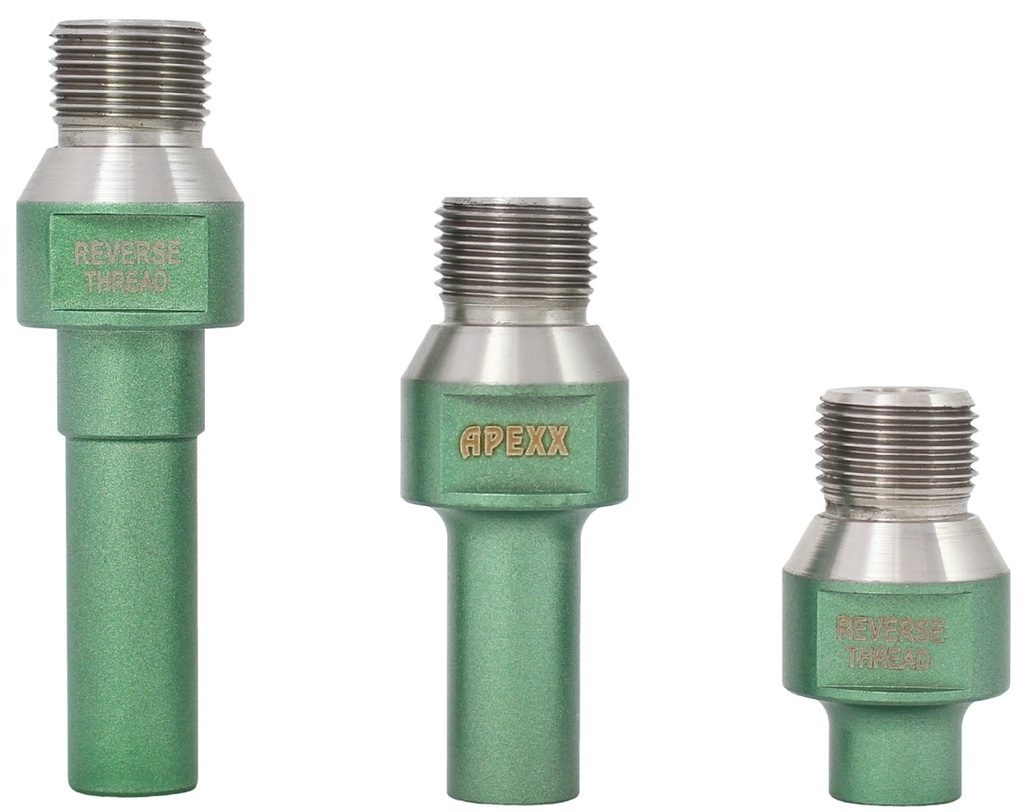

- Stainless adapters from Reverse-1/2"-Gas to Reverse-M12 threads;
- Fit all 5-Axis CNC machines with reverse threads;
- Total length available in 2", 3" and 4";
- The reverse threads are also referred as left-hand threads
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

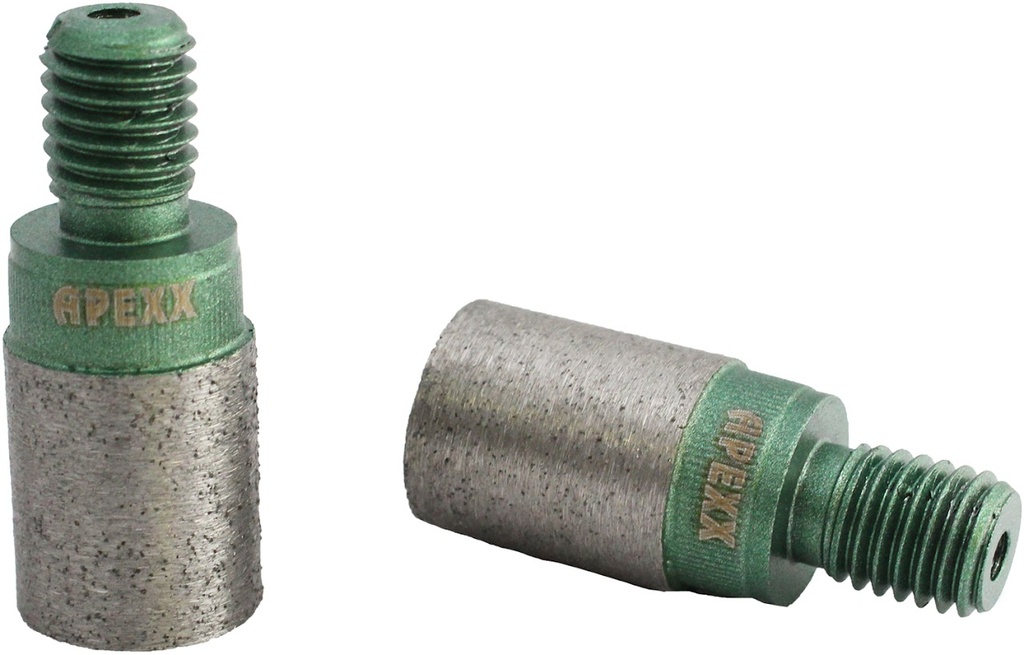

22401-02014 | Green | 20mm | 23mm | Reverse M12 | Quartz (ES); Granite | 4,500 -- 5,000 | 1/16” (1-2mm) |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

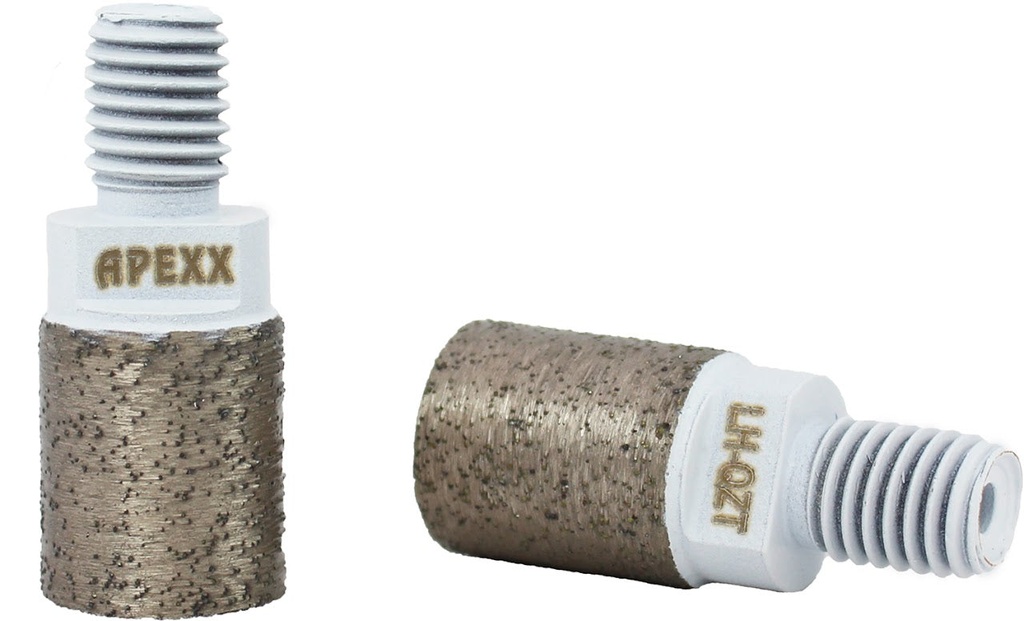

22401-02019 | White | 20mm | 23mm | Reverse M12 | Quartzite; Granite; Quartz | 4,500 -- 5,000 | 1/16” (1-2mm) |
ITEM # | DESCRIPTIONS | TOTAL LENGTH | THREADS |
10101-03009 | 2" Reverse-Thread Adapter | 2” | Reverse ½” Gas - M12 |
10101-03010 | 3" Reverse-Thread Adapter | 3” | Reverse ½” Gas - M12 |
10101-03007 | 4" Reverse-Thread Adapter | 4” | Reverse ½” Gas - M12 |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

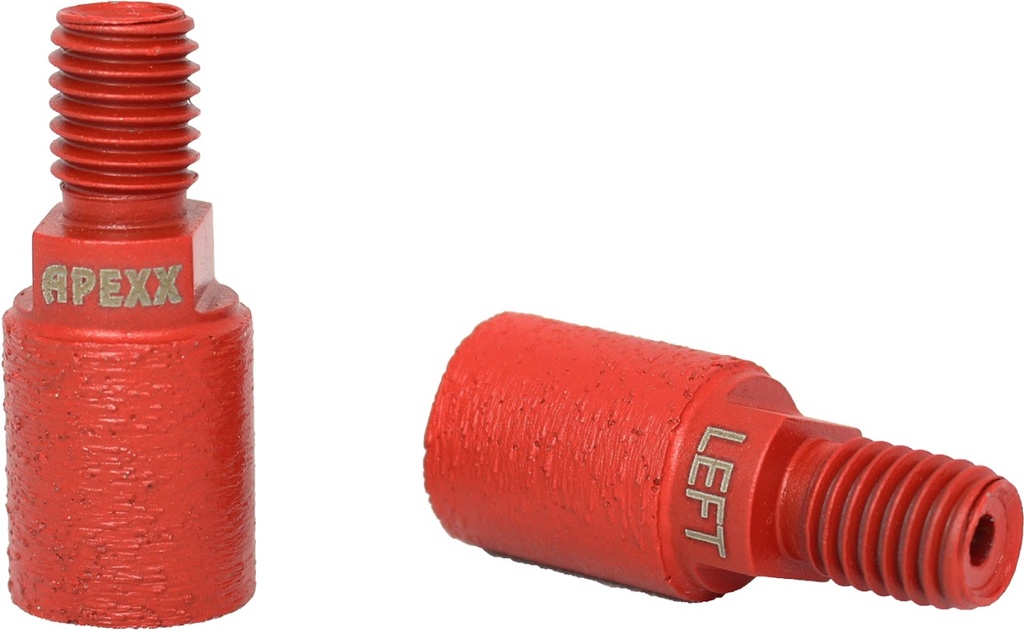

22401-02025 | Red | 20mm | 23mm | Reverse M12 | UltraCompact Surface; Quartzite; Granite | 4,500 -- 5,000 | 1/32” -- 1/16” (0.8--1.6mm) |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

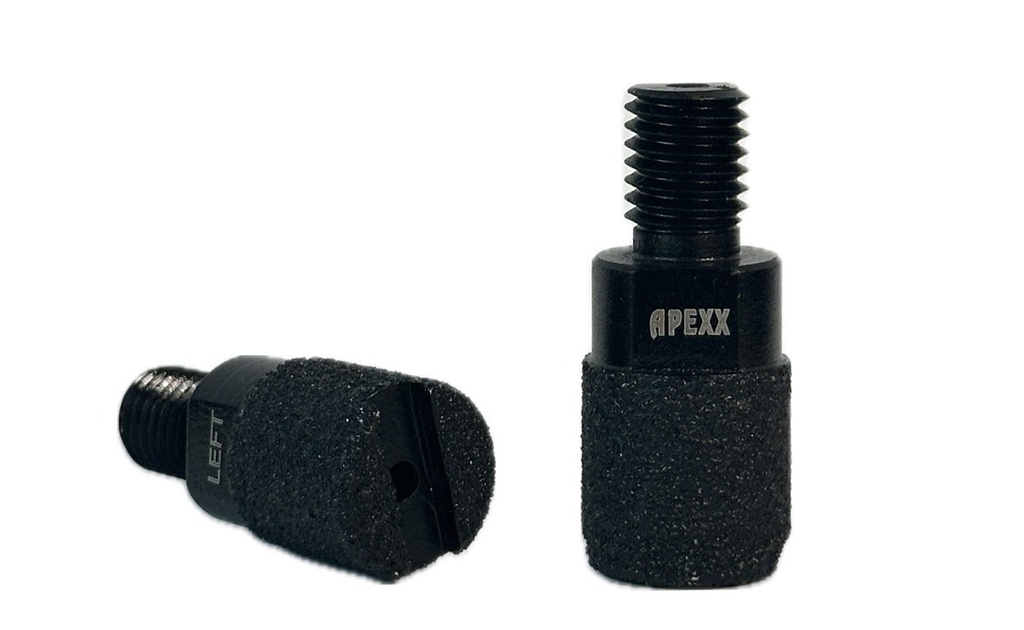

22429-05002 | Black | 20mm | 20mm | Reverse M12 | Marble | 4,500 -- 5,000 | 1/32” -- 1/16” (0.8--1.6mm) |
Source: Ocean Diamond
Özellikler
| Color | White, Red, Green |
