Type
Alpha® EZ Click Leveling Cap System
The Alpha® EZ Click is a next-generation, screw-based tile leveling system. Its patent-pending leveling cap makes adjacent tiles perfectly level with zero effort — tightened by hand, no pliers needed. After the thinset cures, a proprietary unlocking system ejects the screw instantly, eliminating the tedious unscrewing of traditional caps.
Features
- Hand-tightened — no pliers or extra tools required
- Proprietary unlocking system for instant screw ejection after cure
- Cap contact edge clears residue and debris to prevent tile scratching

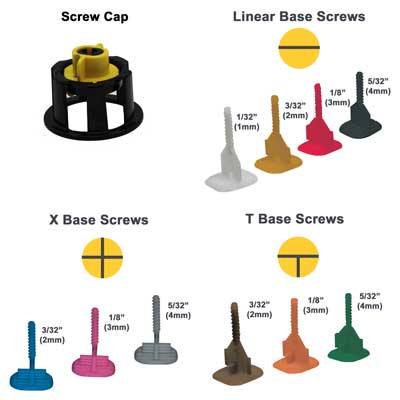

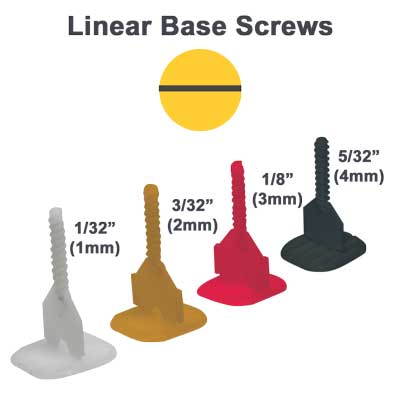

- Three base shapes — Linear, T-joint, and X-joint — for any layout
- Four calibrated joint sizes: 1/32" (1.0 mm), 3/32" (2.0 mm), 1/8" (3.0 mm), 5/32" (4.0 mm)
- Color-coded bases simplify on-site size identification
- Reusable caps; bases break cleanly at floor level
| Part No. | Size | Pack Qty | Color | UPC |
|---|---|---|---|---|
| EZCLICKCP | Screw Cap | 50 caps | — | 749173260056 |
| EZCLB10WH | 1/32" (1.0 mm) | 200 pcs | White | 749173260063 |
| EZCLB20YW | 3/32" (2.0 mm) | 200 pcs | Yellow | 749173260070 |
| EZCLB30RD | 1/8" (3.0 mm) | 200 pcs | Red | 749173260087 |
| EZCLB40BK | 5/32" (4.0 mm) | 200 pcs | Black | 749173260094 |
| EZCTB20BR | 3/32" (2.0 mm) | 200 pcs | Brown | 749173260131 |
| EZCTB30OR | 1/8" (3.0 mm) | 200 pcs | Orange | 749173260148 |
| EZCTB40GR | 5/32" (4.0 mm) | 200 pcs | Green | 749173260155 |
| EZCXB20BL | 3/32" (2.0 mm) | 200 pcs | Gray | 749173260100 |
| EZCXB30VI | 1/8" (3.0 mm) | 200 pcs | Gray | 749173260117 |
| EZCXB40GY | 5/32" (4.0 mm) | 200 pcs | Gray | 749173260124 |

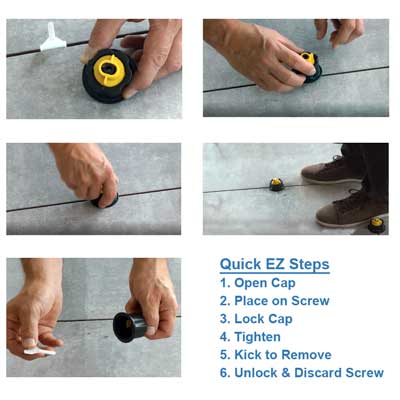

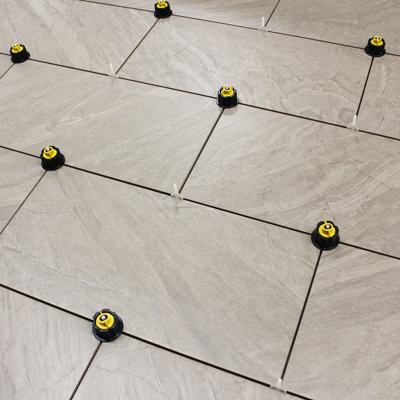

- Apply thinset and set the first tile.

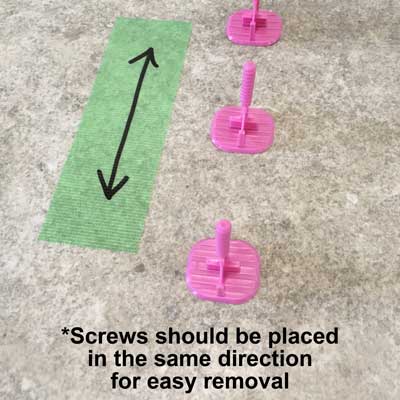

- Slide the appropriate Base Screw (Linear / T / X) under the tile edge or joint based on your layout.

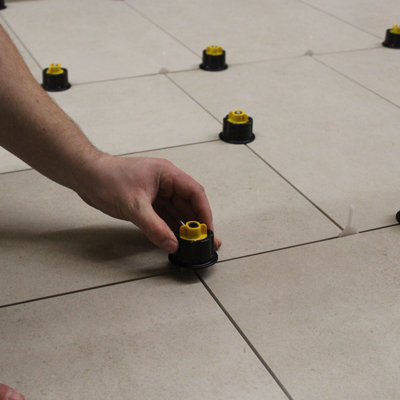

- Set the adjacent tile(s) and thread an EZ Click Cap onto the base.

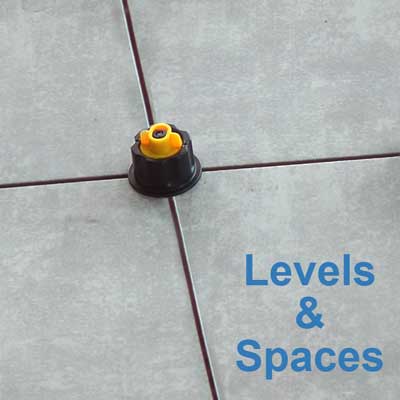

- Tighten the cap by hand until tiles are flush and lippage is eliminated.
- Allow the thinset to cure fully.
- Engage the unlocking mechanism — the screw ejects instantly. Snap the base at floor level.
- Recover the caps and reuse on the next job.

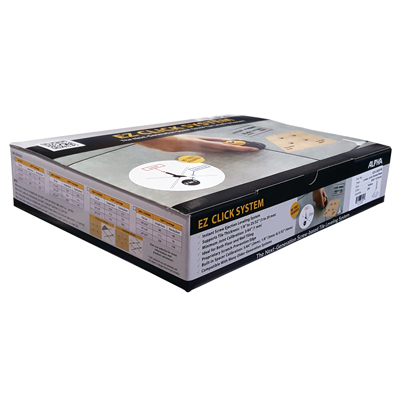

50 caps — Leveling Screw Cap — EZCLICKCP
| Part No. | EZCLICKCP |
| UPC | 749173260056 |
| Size | 50 caps |
| Type | Leveling Screw Cap |
| Packaged Weight | 2.12 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
White — 1/32" (1.0 mm) — Linear Joint Base Screw — EZCLB10WH
| Part No. | EZCLB10WH |
| UPC | 749173260063 |
| Size | 1/32" (1.0 mm) |
| Type | Linear Joint Base Screw |
| Color | White |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Yellow — 3/32" (2.0 mm) — Linear Joint Base Screw — EZCLB20YW
| Part No. | EZCLB20YW |
| UPC | 749173260070 |
| Size | 3/32" (2.0 mm) |
| Type | Linear Joint Base Screw |
| Color | Yellow |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Red — 1/8" (3.0 mm) — Linear Joint Base Screw — EZCLB30RD
| Part No. | EZCLB30RD |
| UPC | 749173260087 |
| Size | 1/8" (3.0 mm) |
| Type | Linear Joint Base Screw |
| Color | Red |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Black — 5/32" (4.0 mm) — Linear Joint Base Screw — EZCLB40BK
| Part No. | EZCLB40BK |
| UPC | 749173260094 |
| Size | 5/32" (4.0 mm) |
| Type | Linear Joint Base Screw |
| Color | Black |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Brown — 3/32" (2.0 mm) — T Joint Base Screw — EZCTB20BR
| Part No. | EZCTB20BR |
| UPC | 749173260131 |
| Size | 3/32" (2.0 mm) |
| Type | T Joint Base Screw |
| Color | Brown |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Orange — 1/8" (3.0 mm) — T Joint Base Screw — EZCTB30OR
| Part No. | EZCTB30OR |
| UPC | 749173260148 |
| Size | 1/8" (3.0 mm) |
| Type | T Joint Base Screw |
| Color | Orange |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Green — 5/32" (4.0 mm) — T Joint Base Screw — EZCTB40GR
| Part No. | EZCTB40GR |
| UPC | 749173260155 |
| Size | 5/32" (4.0 mm) |
| Type | T Joint Base Screw |
| Color | Green |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Gray — 3/32" (2.0 mm) — X Joint Base Screw — EZCXB20BL
| Part No. | EZCXB20BL |
| UPC | 749173260100 |
| Size | 3/32" (2.0 mm) |
| Type | X Joint Base Screw |
| Color | Gray |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Gray — 1/8" (3.0 mm) — X Joint Base Screw — EZCXB30VI
| Part No. | EZCXB30VI |
| UPC | 749173260117 |
| Size | 1/8" (3.0 mm) |
| Type | X Joint Base Screw |
| Color | Gray |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
Gray — 5/32" (4.0 mm) — X Joint Base Screw — EZCXB40GY
| Part No. | EZCXB40GY |
| UPC | 749173260124 |
| Size | 5/32" (4.0 mm) |
| Type | X Joint Base Screw |
| Color | Gray |
| Packaged Weight | 1.34 lbs |
| Package Dimensions | 14.75" x 3" x 10" |
| Commodity Code | 3925.90.0000 |
| Country of Origin | Italy |
| Property | Detail |
|---|---|
| System | Screw-based tile leveling with reusable cap |
| Base Types | Linear, T-joint, X-joint |
| Joint Sizes | 1/32" (1.0 mm), 3/32" (2.0 mm), 1/8" (3.0 mm), 5/32" (4.0 mm) |
| Cap Reusability | Yes — instant ejection, designed for reuse |
| Tool Required | Hand-tighten; no pliers needed |
| Country of Origin | Italy |
