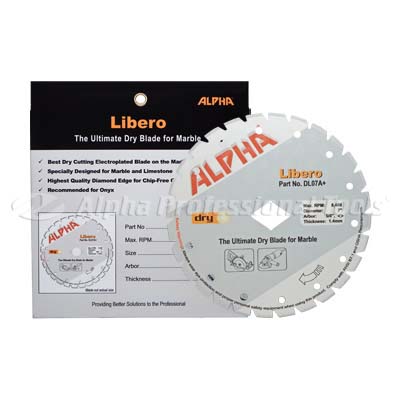

Alpha® Libero Electroplated Dry-Cutting Blade

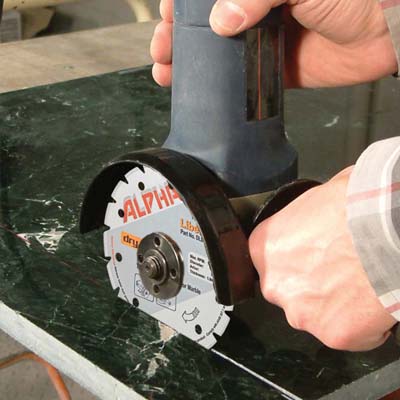

The Alpha® Libero is an electroplated diamond blade engineered for chip-free dry cutting of softer stones — marble, travertine, soapstone, alabaster, onyx and limestone — on angle grinders, stone cutters, and (in 7") worm-drive saws. Five sizes from 4" to 7" cover everything from small detail work to full-depth slab cuts.

Features

  • Electroplated diamond edge engineered for chip-free cuts on softer stones
  • Recommended for marble, travertine, soapstone, alabaster, onyx and limestone
  • Runs dry — running wet further extends blade life
  • Five sizes (4" / 4-1/2" / 5" / 6" / 7") for grinders, stone cutters and 7" worm drives
  • NOT for granite or other very hard stones (electroplated diamonds will dull quickly)
Part No. Size Thickness Max RPM Arbor(s) For Use On
DL0478 4" 0.8 mm 14,500 7/8", 20 mm, 5/8" Stone cutter / angle grinder
DL05A+ 4-1/2" 0.8 mm 13,200 7/8", 20 mm Stone cutter / angle grinder
DL05S 5" 1.0 mm 12,200 7/8" Stone cutter / angle grinder
DL06A+ 6" 1.2 mm 10,100 7/8", 5/8", diamond knockout Stone cutter / angle grinder
DL07A+ 7" 1.4 mm 8,400 5/8", diamond knockout Worm drive / angle grinder
  1. Match the blade size to your tool and confirm the blade Max RPM exceeds your tool RPM.
  2. Mount the blade with the correct arbor bushing for your spindle (7/8", 5/8", 20 mm, or diamond knockout per part number).
  3. Lower the blade fully onto the work and let blade weight do the cutting — do not force feed.
  4. Use a steady, light-pressure pass; back the blade out and re-enter to clear the kerf on deep cuts.
  5. For longer life, run with light water mist where the application allows (still rated for dry use).
  6. Inspect the diamond layer after each job — replace once the electroplated edge is worn smooth.
4" — 7/8", 20 mm, 5/8" — Electroplated diamond blade, 0.8 mm thick — DL0478
Part No. DL0478
UPC 749173462108
Size 4"
Type Electroplated diamond blade, 0.8 mm thick
Attachment 7/8", 20 mm, 5/8"
Max RPM 14,500
Recommended For Marble, travertine, soapstone, alabaster, onyx, limestone (dry or wet); NOT for granite
Packaged Weight 0.20 lbs
Package Dimensions 5.25" x 4.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
4-1/2" — 7/8", 20 mm — Electroplated diamond blade, 0.8 mm thick — DL05A+
Part No. DL05A+
UPC 749173460609
Size 4-1/2"
Type Electroplated diamond blade, 0.8 mm thick
Attachment 7/8", 20 mm
Max RPM 13,200
Recommended For Marble, travertine, soapstone, alabaster, onyx, limestone (dry or wet); NOT for granite
Packaged Weight 0.30 lbs
Package Dimensions 5.5" x 5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
5" — 7/8" — Electroplated diamond blade, 1.0 mm thick — DL05S
Part No. DL05S
UPC 749173460616
Size 5"
Type Electroplated diamond blade, 1.0 mm thick
Attachment 7/8"
Max RPM 12,200
Recommended For Marble, travertine, soapstone, alabaster, onyx, limestone (dry or wet); NOT for granite
Packaged Weight 0.35 lbs
Package Dimensions 6.5" x 5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
6" — 7/8", 5/8", diamond knockout — Electroplated diamond blade, 1.2 mm thick — DL06A+
Part No. DL06A+
UPC 749173461828
Size 6"
Type Electroplated diamond blade, 1.2 mm thick
Attachment 7/8", 5/8", diamond knockout
Max RPM 10,100
Recommended For Marble, travertine, soapstone, alabaster, onyx, limestone (dry or wet); NOT for granite
Packaged Weight 0.50 lbs
Package Dimensions 6" x 5.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan

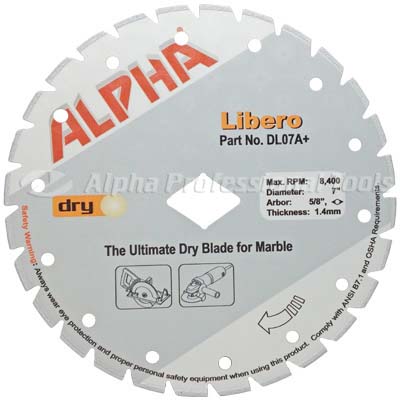

7" — 5/8", diamond knockout — Electroplated diamond blade, 1.4 mm thick — DL07A+
Part No. DL07A+
UPC 749173460623
Size 7"
Type Electroplated diamond blade, 1.4 mm thick
Attachment 5/8", diamond knockout
Max RPM 8,400
Recommended For Marble, travertine, soapstone, alabaster, onyx, limestone (dry or wet); NOT for granite
Packaged Weight 0.80 lbs
Package Dimensions 7.5" x 7.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
Property Detail
Diamond Format Electroplated diamond edge
Cutting Method Dry (wet permissible for longer life)
Recommended Materials Marble, travertine, soapstone, alabaster, onyx, limestone, fiberglass (dry)
Not Recommended For Granite or other very hard stones
Commodity Code 8202.91.0000
Country of Origin Japan
What materials can I cut with a Libero blade?

Softer stones: marble, travertine, soapstone, alabaster, onyx and limestone. It also handles fiberglass when used dry.

Can I use Libero on granite?

No. Granite is too hard for an electroplated diamond edge — the diamonds will dull almost immediately. Use a sintered or brazed blade for granite.

Can I use Libero wet?

Yes. Libero is designed to run dry, but adding water will significantly extend the life of the blade.

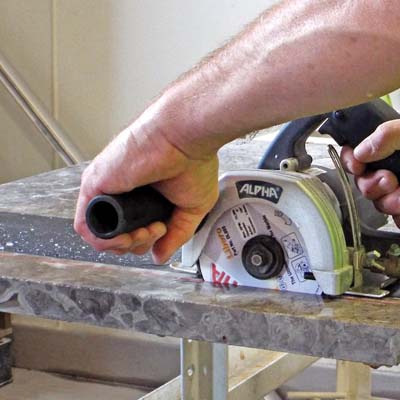

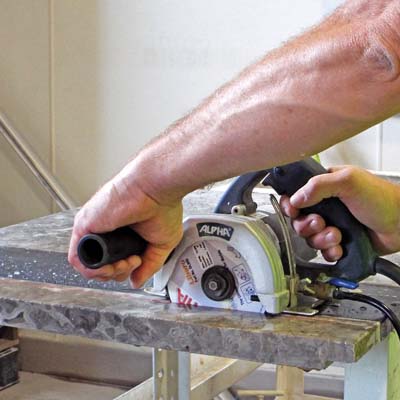

What is the advantage of a stone cutter over an angle grinder?

A stone cutter provides better stability and accuracy than a handheld angle grinder, especially for long straight cuts and miters.

Can I use Libero on fiberglass?

Yes — use it dry on fiberglass.

Which size do I need?

Match the blade diameter to your tool. 4"-6" sizes fit angle grinders and small stone cutters; 7" fits 7" worm drives and larger angle grinders.

No product-specific videos are currently available from the manufacturer or DST.

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
