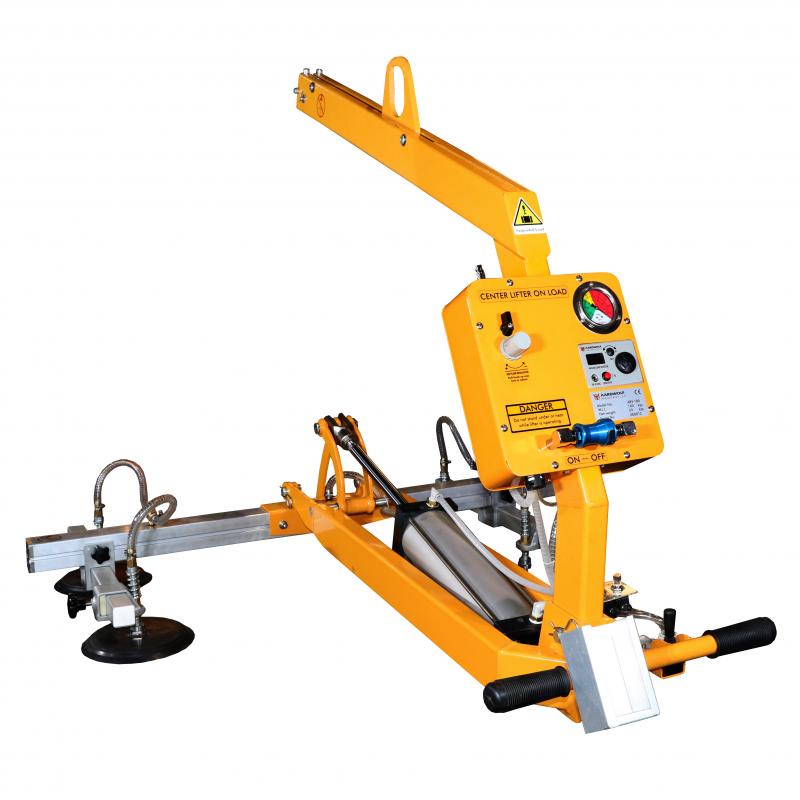

Aardwolf Rotation Vacuum Lifter (ARV-180)
Aardwolf Rotation Vacuum Lifter — Pneumatic, 4‑pad lifter with **180° rotation** for flipping and positioning large sheets safely.
Recommended for: smooth, non‑porous surfaces such as glass, metal sheet, composite panels, polished granite & engineered stone.
- 180° rotation with linear, controlled movement.
- Audio/visual alarm system with dedicated 3.7 V Li‑ion battery (up to ~7 h non‑stop).
- Slide valve for quick lift/release; ergonomic controls.
- Compressed‑air driven (≈5 bar, ~180 L/min).
ARV-180 — Rotation Vacuum Lifter (4‑pad)
Specifications
| ARV-180 | Metric | Imperial |
|---|---|---|
| Capacity / WLL | 160 kg | 353 lb |
| Number of pads | 4 | - |
| Pad diameter | 200 mm | 8" |
| Net Weight | 69 kg | 152 lb |
| Packaging | 1420 × 520 × 1210 mm | 55.9" × 20.5" × 47.6" |
| Air requirement | 180 L/min @ 5 bar | ~72 psi |
| Alarm battery | 3.7 V, 2000 mAh (≈7 h) | - |
