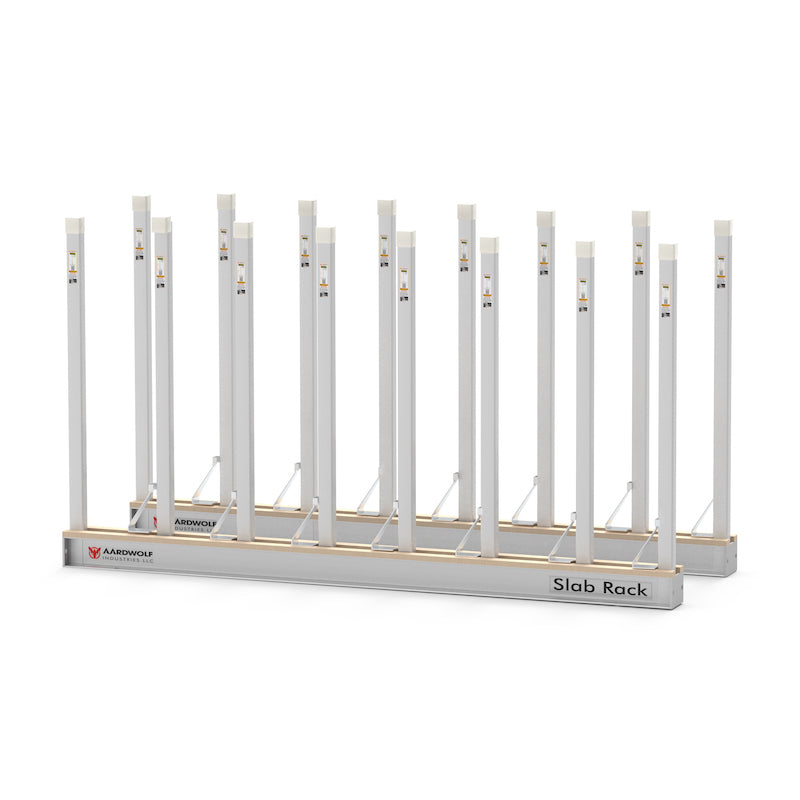

Aardwolf ASR0109 Slab Rack Kit - (Includes 16 Poles 63"high & SPB1618 Safety Steel Post )

$ 2.787,05

Marka
Package Dimensions
- 120" x 40" x 12"

Terms and Conditions

Marka: Aardwolf

Package Dimensions: 120" x 40" x 12"

Aardwolf ASR01 Slab Rack Kit – Vertical Slab Storage

The Aardwolf ASR01 Slab Rack Kit provides a pair of galvanised steel rails with square steel-tube posts and steel bases for vertical slab storage. Posts can be positioned anywhere along the rail. All posts use square steel tube with a minimum 345 MPa yield strength for safe storage of slab bundles.

Features

Pair of galvanised steel rails, 118" (3 m) long
16 square steel-tube posts, positionable anywhere along the rail
Post height 47 1/4" – 70 7/8"
Minimum 345 MPa steel yield strength for slab-bundle safety
Steel post bases for stable vertical loading at a 4° lean
Economical, space-saving slab storage solution

Specifications

Property	Detail
Brand	Aardwolf
Rail Length	9' 10" (3,000 mm)
Rail Height	6.5" (165 mm)
Rail Width	6.4" (164 mm)
Post Size	2" (50 mm) square tube
Post Wall Thickness	0.2" (5 mm)
Post Steel Yield Strength	50,000 PSI (345 MPa) minimum
Post Heights Available	47-1/4" (1,200 mm) and 63" (1,600 mm)
Net Weight	172 lb (78 kg) per rail
Finish	Galvanized steel
Storage Lean Angle	4 degrees
Country of Origin	Vietnam

How to Use

Anchor the base rails on a level, load-rated concrete floor.
Set the square-tube posts at the required bay spacing.
Load slab bundles vertically at the 4° lean against the posts.
Keep bundle weight within your floor and rack rating.
Wear gloves and steel-toe boots and use mechanical aids when loading slabs.

Always wear appropriate PPE. Follow local safety regulations when using power tools or material-handling equipment.
