- For incremental sink cut-out with 5-Axis machines like Sasso K600, Park Saber, Donatoni Jet 625, etc.
- Advanced vacuum-brazed diamond specially made for Marble;
- Cut faster and last longer than electroplated diamond bits;
- Material: Marble;
- Wet use only;
- For incremental sink cut-out with CNC machines or radial-arm machines like Fab King, Thibaut T108 or Park Wizard;
- Medium bond - Good speed & Extra long life;
- Material: Engineered Stone, Granite;
- Soft bond - Fast cutting & Long life;
- Material: Quartzite, Granite, Engineered Stone;
- The APEXX Purple one combines the features of APEXX White one and APEXX Blue one, which is perfect for fabrication shops who frequently switch between different types of stones such as Engineered Stone, Granites and Natural Quartzite;
- Material: Engineered Stone, Quartzite & Granite;
- Super Soft bond - Super fast cutting & Good life;
- Material: UltraCompact Surfaces, Quartzite, Granite;
- Featuring 2 slots on diamond to release water pressure;
- Stainless adapters from 1/2"-Gas to M12 threads;
- Fit all standard CNC machines;
- Total length available in 2", 3" and 4";
- Thick & thin sleeves available for 4" adapter.
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

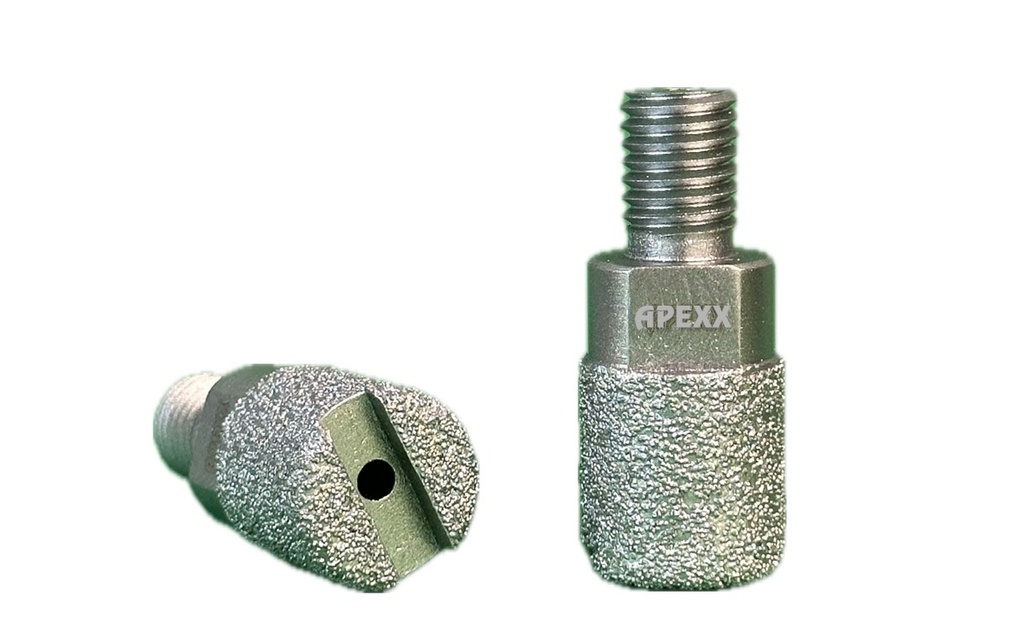

22429-05001 | Sliver Gray | 20mm | 20mm | M12 | Marble | 4,500 -- 5,000 | 1/32” -- 1/16” (0.8--1.6mm) |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

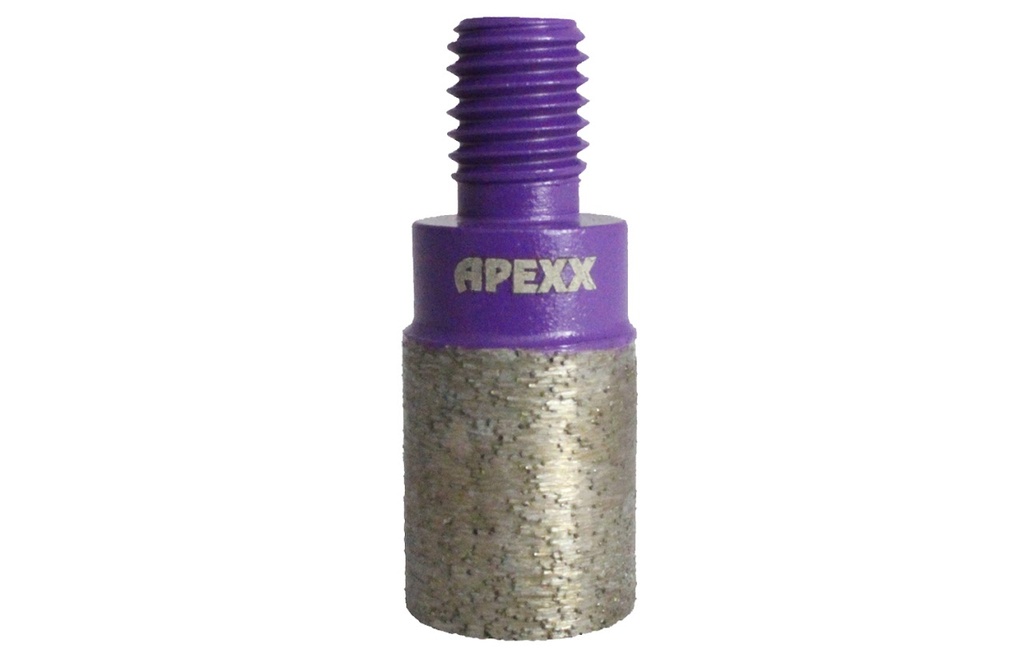

22401-02027 | Purple | 20mm | 23mm | M12 | Quartz; Quartzite; Granite; (Frequently Switch) | 4,500 -- 5,000 | 1/16” (1-2mm) |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |
22401-02013 | Orange | 20mm | 23mm | M12 | Quartz (ES); Granite | 4,500 -- 5,000 | 1/16” (1-2mm) |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

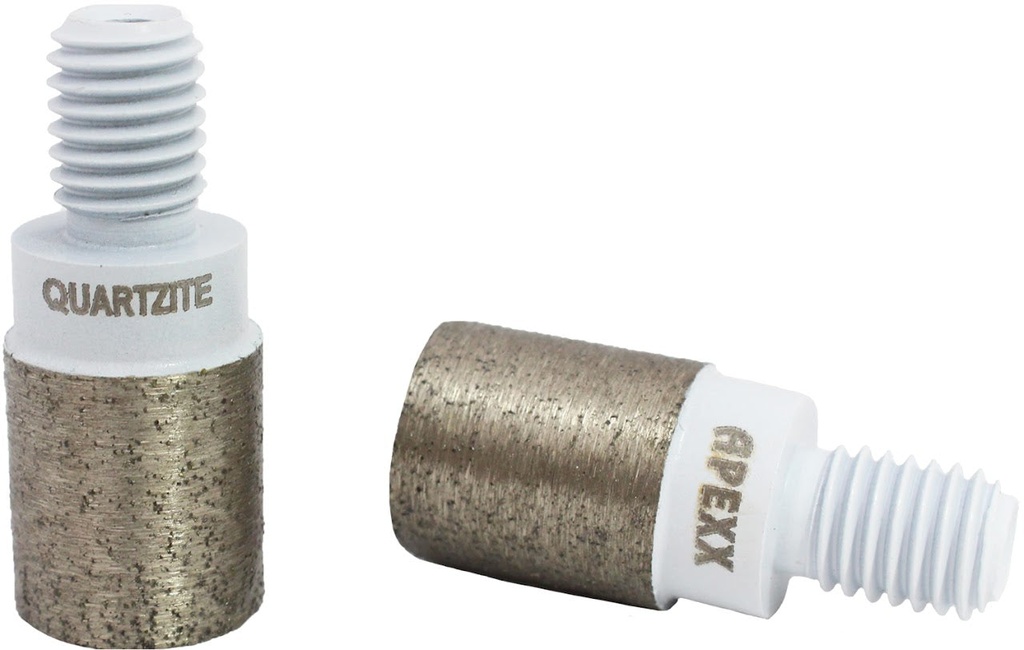

22401-02018 | White | 20mm | 23mm | M12 | Quartzite; Granite; Quartz | 4,500 -- 5,000 | 1/16” (1-2mm) |
ITEM # | DESCRIPTIONS | TOTAL LENGTH | THREADS |
10101-03008 | 2" Regular-Thread Adapter | 2” | ½” Gas - M12 |
10101-03012 | 3" Regular-Thread Adapter | 3” | ½” Gas - M12 |
10101-03005 | 4" Regular-Thread Adapter | 4” | ½” Gas - M12 |
10101-03004 | Thick Sleeve for 4” Adapter | 1-¾” | n/a |
10101-03001 | Thin Sleeve for 4” Adapter | 1-¾” | n/a |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

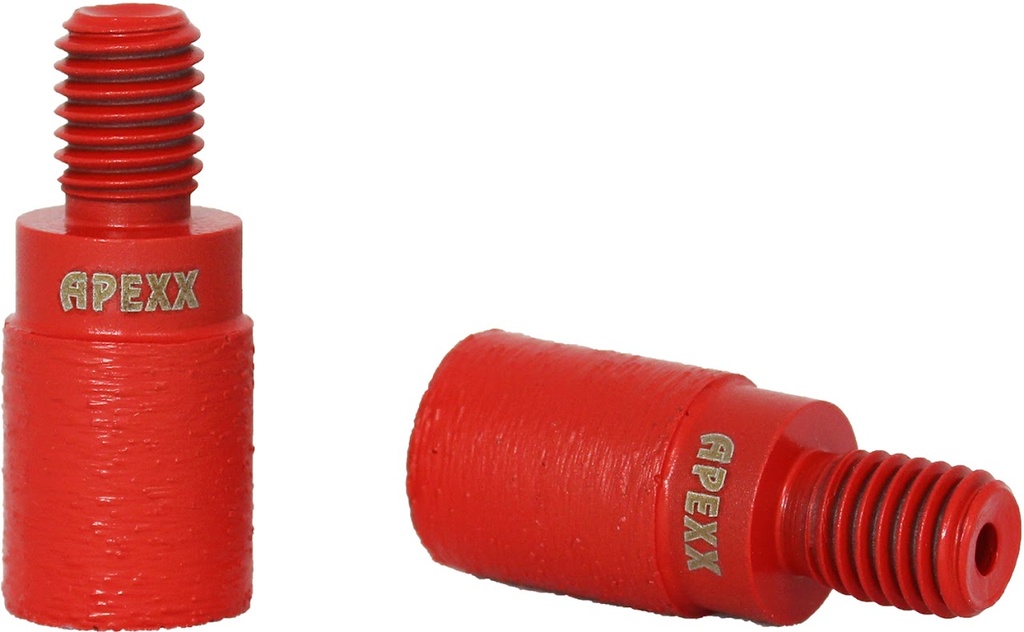

22401-02026 | Red | 20mm | 23mm | M12 | UltraCompact Surface; Quartzite; Granite | 4,500 -- 5,000 | 1/32” -- 1/16” (0.8--1.6mm) |
ITEM # | COLOR | DIAMETER | DIAMOND HEIGHT | THREAD | MATERIALS | RPM | REMOVAL PER PASS |

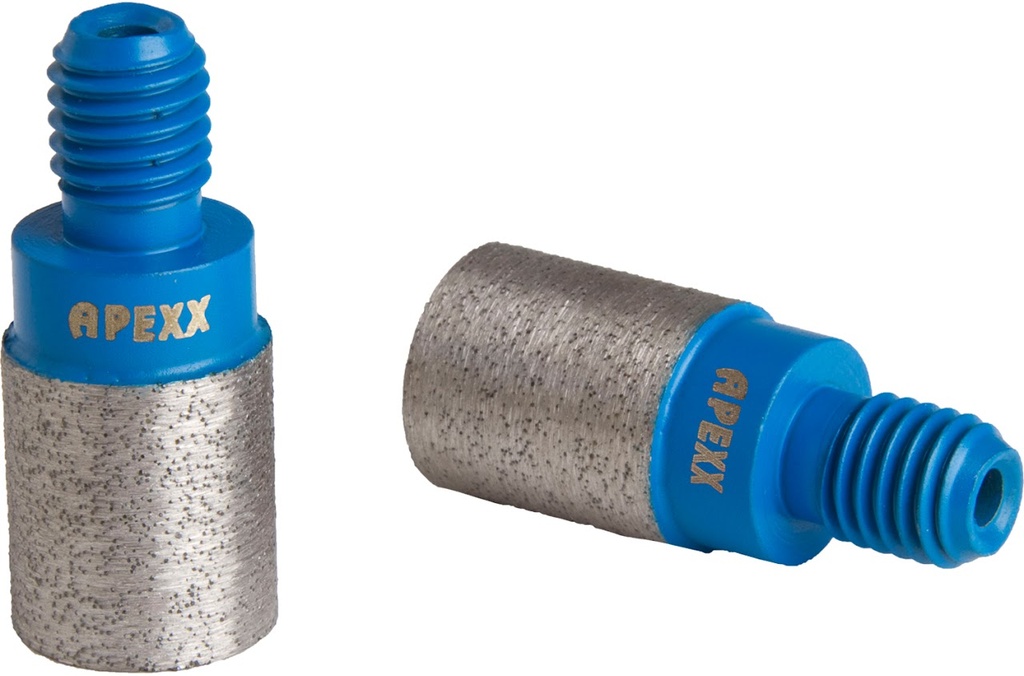

22401-02002 | Blue | 20mm | 23mm | M12 | Quartz (ES); Granite | 4,500 -- 5,000 | 1/16” (1-2mm) |
Source: Ocean Diamond
Özellikler
| Color | White, Red, Blue, Orange, Purple |
