Marka
| Marka: Aardwolf |
Aardwolf Rotation Vacuum Lifter (ARV-180)
The Aardwolf ARV-180 180-deg Rotation Vacuum Lifter is a vacuum lifter for handling smooth, non-porous material. It is rated at 353 lb (160 kg), a 8" pad. Power/actuation: Pneumatic (compressed air), 72 PSI (5 bar).
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Lifting Capacity | 353 lb (160 kg) |
| Rotation | 180 deg |
| Number of Pads | 4 |
| Pad Size | 8" |
| Power | Pneumatic (compressed air), 72 PSI (5 bar) |
| Features | Self-balancing, adjustable pads with scales, support stand |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Charge or connect the pump power supply and confirm it primes.
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 353 lb (160 kg).
- Set the material down fully, then release vacuum and vent the pad.

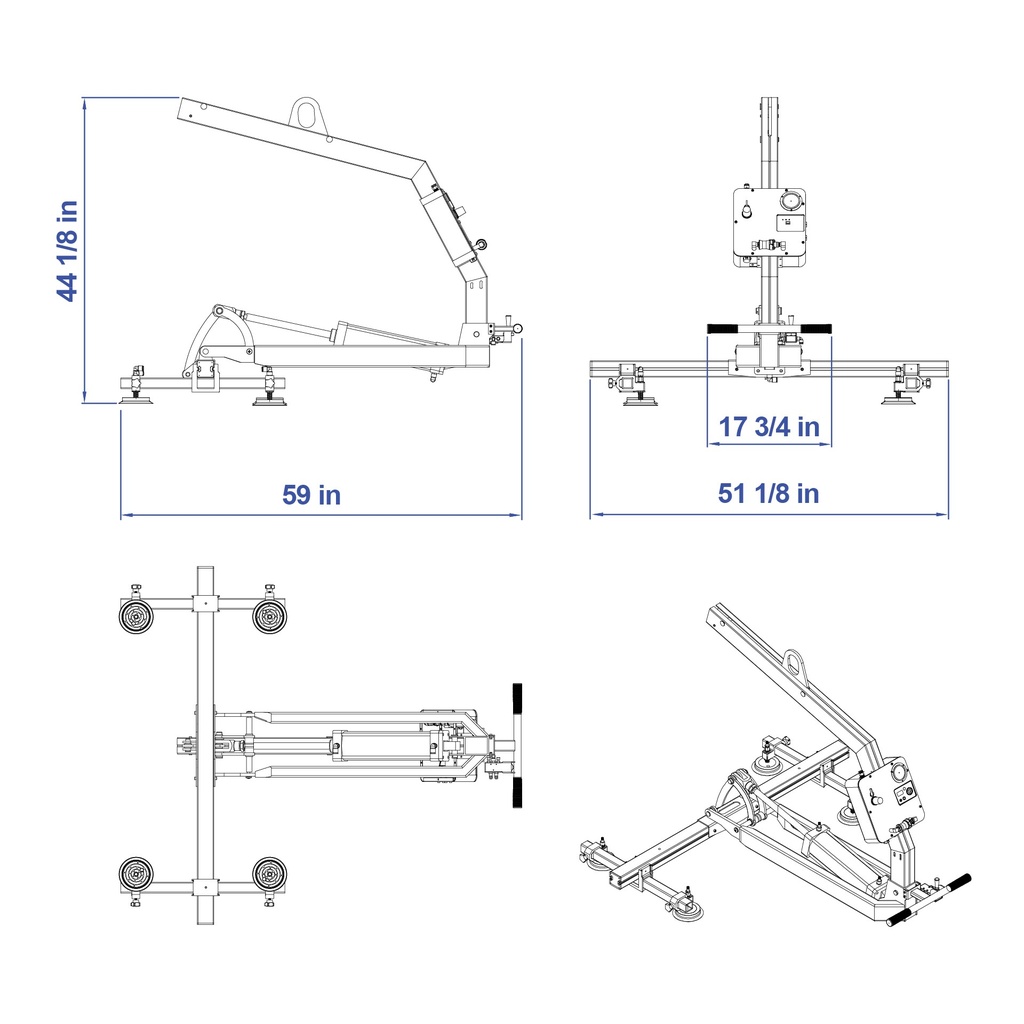

Aardwolf ARV-180 Rotating Vacuum Lifter
