Aardwolf TF3050 Transport Frame Mod

LTL $450
$ 2.802,86 $ 2.802,86
$ 2.802,86

  • Marka
  • Package Dimensions
Terms and Conditions
Shipping: 2-3 Business Days
Bize Ulaşın

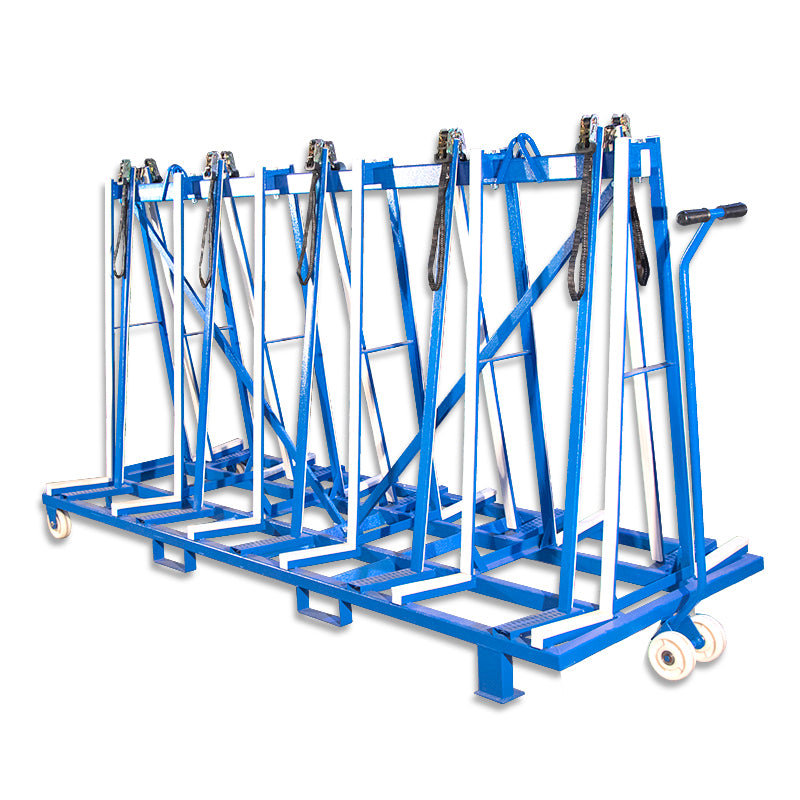

The Transport Frame TF3050 is designed for transporting porcelain slabs and other long, low, and medium-height slabs. The Transport Frame TF3050 has a powder-coated finish (or galvanized finish upon request) to provide a long-lasting structure. They are equipped with locking bars and ratchet straps to hold and transport loads securely. Loaded frames can be moved manually by one man around a factory or work site. The fully loaded frame can be loaded on and offloaded from trucks by forklift.

Features

  • Frames are delivered with bolts pre-installed.
  • Frames are easily assembled.
  • A sturdy structure is designed to eliminate any risk of the slab tipping over.
  • Slabs are placed on unique rubber profiles and secured with six locking bars and ratchet straps to retain materials.
  • The frame features two hooking points to be picked up by an overhead crane.
  • Two diagonal stays create a robust, ridged design.
  • Built-in forklift receivers on two long sides for lifting by forklift.
  • The base and uprights use replaceable white rubber to prevent markings and scratches.
  • A counter-lever handle with wheels moves the frame manually, even when loaded.
  • A counter-lever handle is used to jack the uploaded frame and lower support legs when wheels are not required.
  • A powder-coated finish ensures an aesthetic feature as well as the durability of the product.

Note: Support legs should always be lowered when a loaded frame is transported on a truck.

Özellikler

Marka AARDWOLF
Package Dimensions 122" x 40" x 22"
