Diamax Hurricane ES White Resin 3-Step Pads 5 Inch for Granite

The Hurricane ESHWP501 is part of Diamax's Hurricane line is engineered for production-grade fabrication of granite, marble, and engineered stone surfaces. This product is designed to bring stone surfaces from rough grind through a high-gloss finish using a structured grit progression.

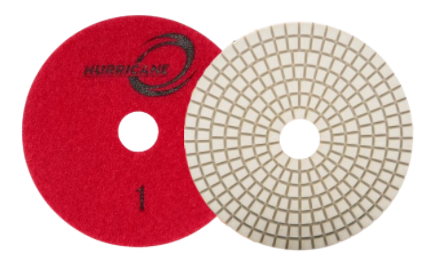

Manufacturer overview: 5" Hurricane ES White Resin 3-Step Pad #1.

Features

  • Diamax Hurricane series tooling
  • Manufacturer model code: ESHWP501
  • Engineered for professional stone-fabrication workflows
  • Designed for polishing pads applications
  • Use only on equipment rated for the tool's operating speed and cooling method (wet vs. dry)
PropertyDetail
BrandDiamax
FamilyHurricane
Model / Part NumberESHWP501
Vendor CategoryPolisher Wet
Product TypePolishing Pads
  1. Mount the pad on a hook-and-loop backer or velcro head sized for the pad diameter.
  2. Wet the work area continuously if using a wet polisher; dry-pad operation requires the dry-rated grit only.
  3. Run the polisher at the speed printed on the pad — typically 2,500–4,500 RPM for handheld stone polishers.
  4. Move the pad in steady overlapping passes; do not concentrate force on the pad edge.
  5. Step through the grit progression in order; skipping grits leaves scratch patterns visible at the final gloss step.
  6. Rinse the pad and the slab between grit changes.
  • Rinse the tool with clean water after wet use to flush slurry from the matrix.
  • Air-dry before storage; do not store wet tools in sealed containers.
  • Inspect the tool for cracks, chipping, or excessive wear before every shift.
  • Do not exceed the maximum RPM printed on the tool body.
  • Replace the tool when cut rate drops noticeably or visible damage appears.

Always wear ANSI Z87 eye protection, hearing protection, and a dust-rated respirator. Follow OSHA silica-exposure rules and the tool manufacturer's operating instructions when fabricating stone.

Specifications

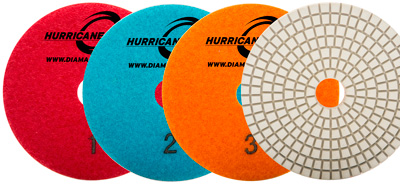

Step #1, #2, #3
