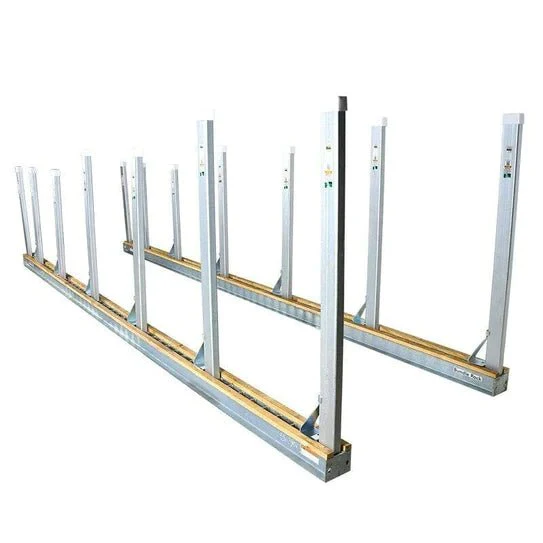

Aardwolf provides the Bundle Rack Kit, which contains a pair of galvanized steel rails 3m long, with rectangular galvanized steel tube posts and steel post bases. The rectangular post can be positioned in the pockets along the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa and a 0.197'' wall thickness, ensuring safety for the vertical storage of slab bundles.

The bases and seven holes are folded steel, making the rack lightweight.

The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.

The bundle rack rail is combined with eight steel tube posts, which have a height of 47.24" - 62.99" and suitable steel post bases.

This rack is the best storage solution, offering cost-saving and economic effects for users.

Features

  • Net Weight: 171 lb (77.7 kg) — rails only
  • Gross Weight: 172 lb (78 kg)
  • Rail Dimensions: 115.2" x 6.5" x 6.5" (2,925 x 165 x 165 mm); hole 101.5 × 52 mm
  • Construction/Material: Galvanized rectangular tube steel; ≥345 MPa yield; 1/4" (6.35 mm) wall
  • Compatible Materials: Marble, granite, engineered stone, glass bundles
  • Components: Pair of galvanized steel rails 3 m (9'10")
  • Operation type: Floor-mounted bundle/slab vertical storage at 4° lean
ABR01
Property Detail
Components Pair of galvanized steel rails 3 m (9'10")
Rail Dimensions 115.2" x 6.5" x 6.5" (2,925 x 165 x 165 mm); hole 101.5 × 52 mm
Net Weight 171 lb (77.7 kg) — rails only
Construction/Material Galvanized rectangular tube steel; ≥345 MPa yield; 1/4" (6.35 mm) wall
Compatible Materials Marble, granite, engineered stone, glass bundles
Operation type Floor-mounted bundle/slab vertical storage at 4° lean
Country of Origin Vietnam
Notes Rubber-capped poles; posts repositionable along rail
Gross Weight 172 lb (78 kg)

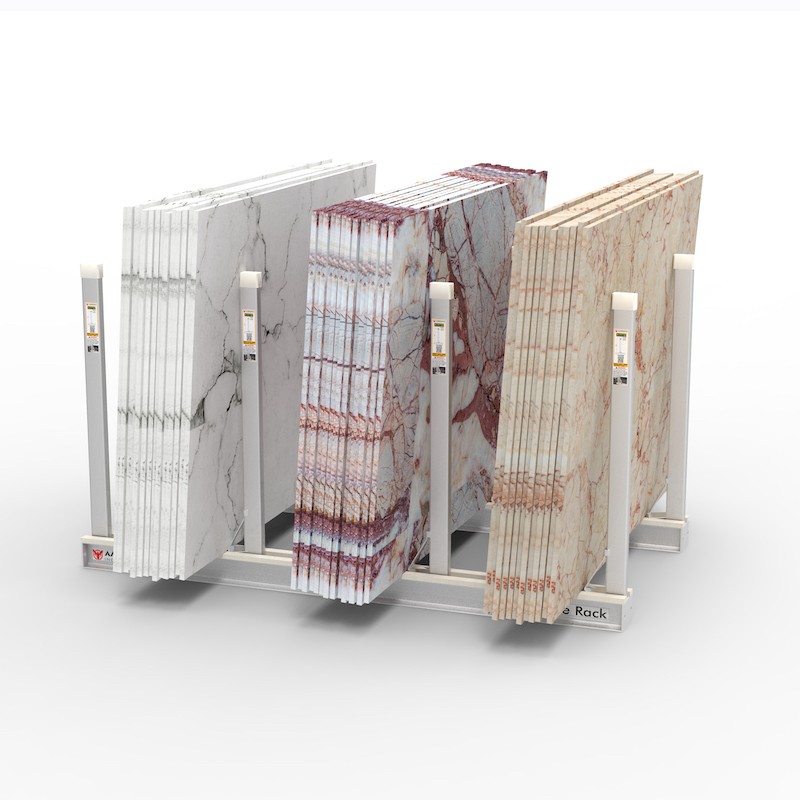

ABR0106
Property Detail
Components ABR01 rails + 8× ABR06 poles
Rail Dimensions Same rails
Pole Height 47.2" (1,200 mm)
Net Weight 392 lb (177.7 kg) total — rails 171 lb (77.7 kg) + 8 poles @ 27.6 lb (12.5 kg)
Construction/Material Same + ABR06 poles
Compatible Materials Marble, granite, engineered stone, glass bundles
Operation type Floor-mounted bundle/slab vertical storage at 4° lean
Country of Origin Vietnam
Notes Kit nomenclature: 06/07/08 suffix = pole height (47"/55"/63")
Wall Thickness 1/4" (6.35 mm)

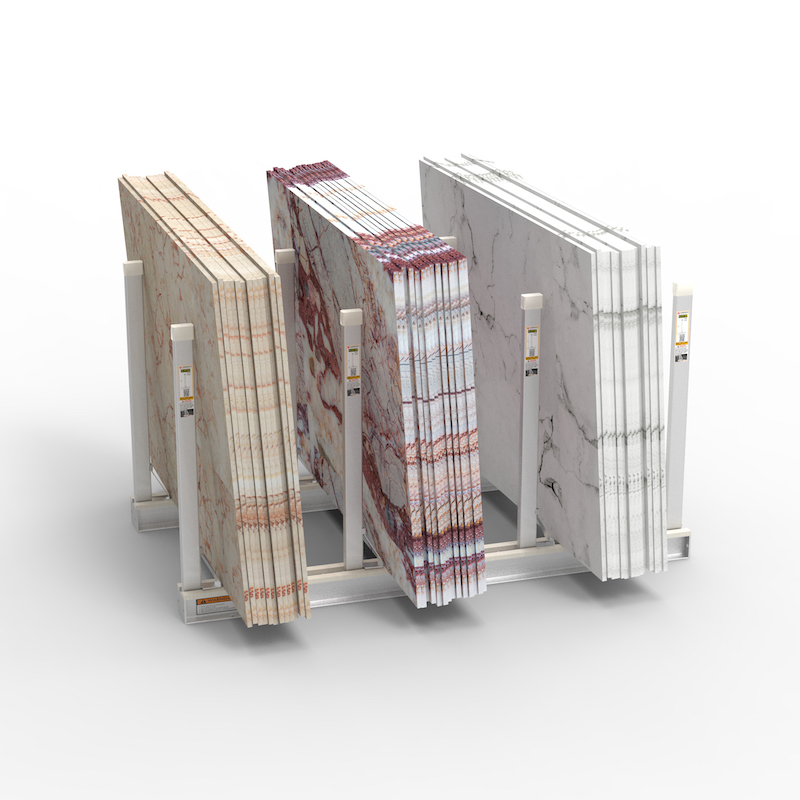

ABR0107
Property Detail
Components ABR01 rails + 8× ABR07 poles
Rail Dimensions Same rails
Pole Height ≈55" (1,400 mm)
Construction/Material Same + ABR07 poles
Compatible Materials Marble, granite, engineered stone, glass bundles
Operation type Floor-mounted bundle/slab vertical storage at 4° lean
Country of Origin Vietnam
Notes Rubber-capped poles; posts repositionable along rail
Wall Thickness 1/4" (6.35 mm)

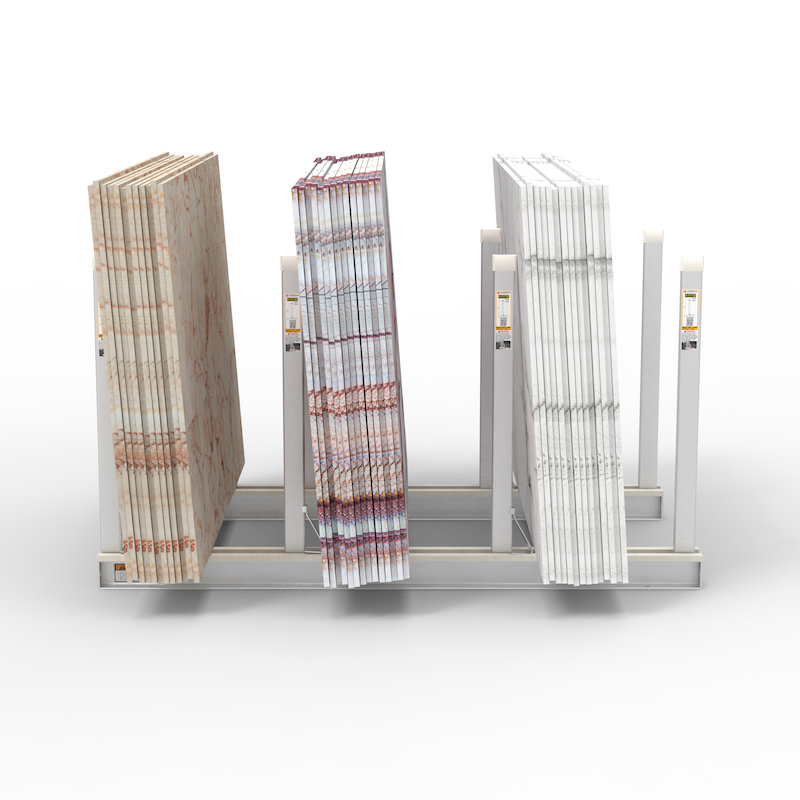

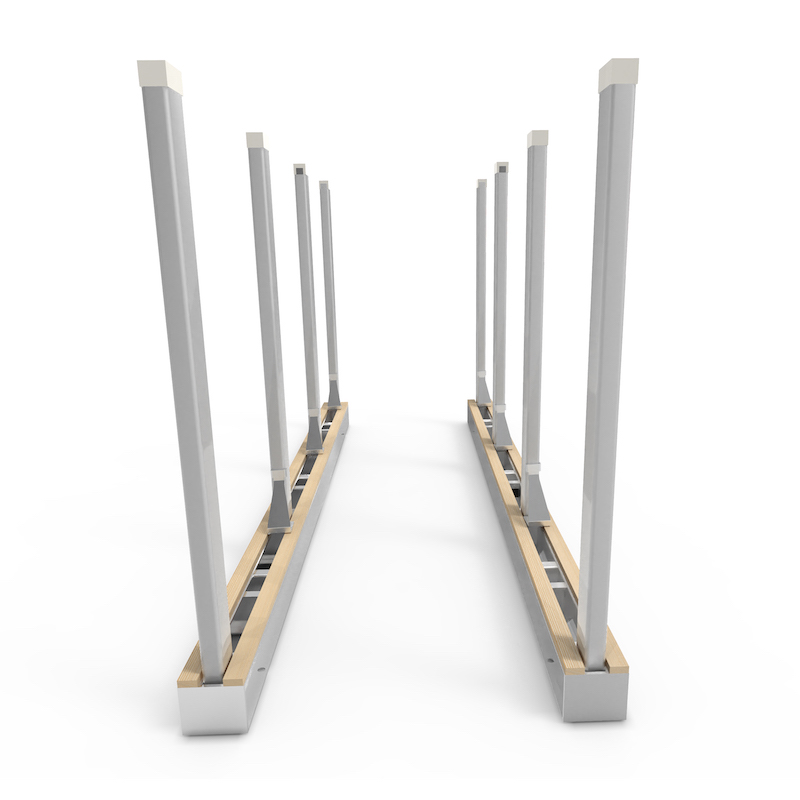

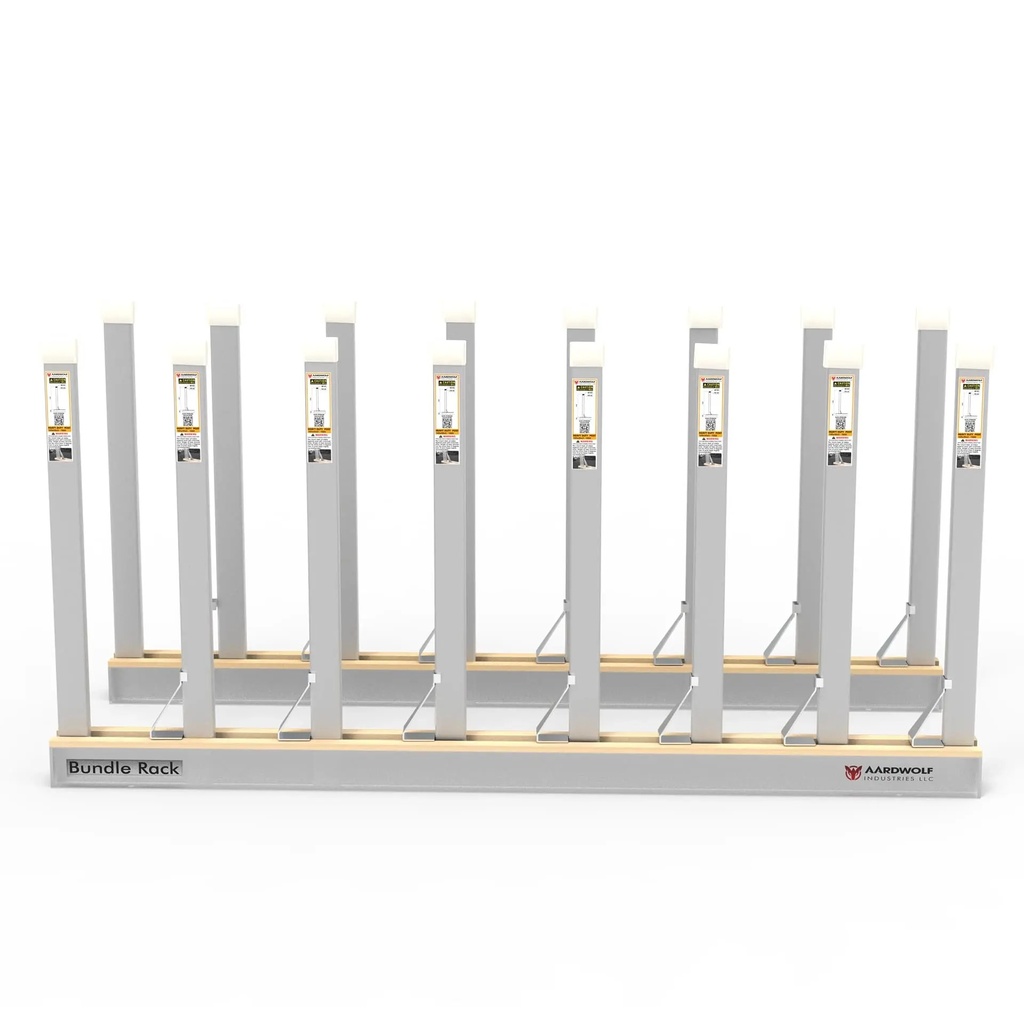

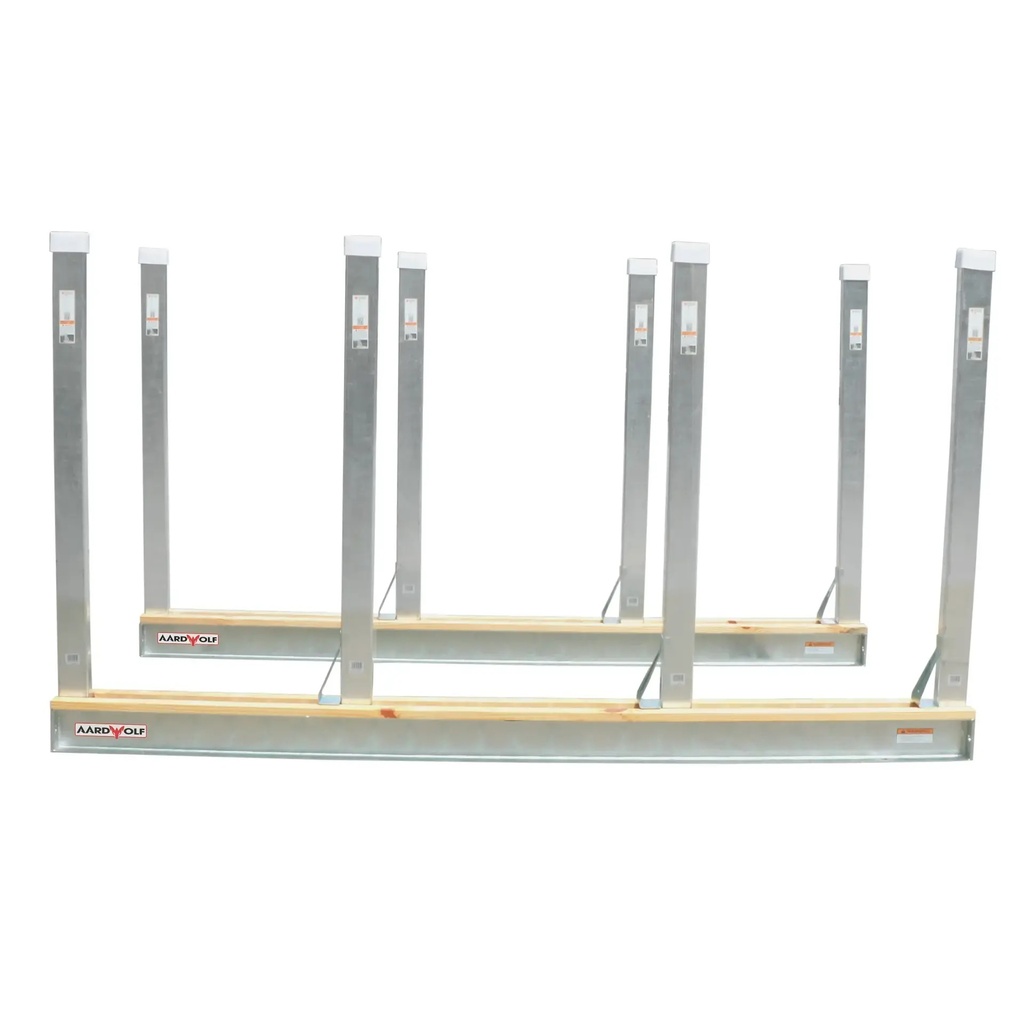

ABR0108
Property Detail
Components ABR01 rails + 8× ABR08 poles
Rail Dimensions Same rails
Pole Height 63" (1,600 mm)
Construction/Material Same + ABR08 poles
Compatible Materials Marble, granite, engineered stone, glass bundles
Operation type Floor-mounted bundle/slab vertical storage at 4° lean
Country of Origin Vietnam
Notes Rubber-capped poles; posts repositionable along rail
Wall Thickness 1/4" (6.35 mm)
  • Refer to the Specifications table above for the Compatible Materials field of each variant.
  • For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.

Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.

Specifications

Model ABR01, ABR0106, ABR0107, ABR0108
Brand Aardwolf
