Aardwolf Forklift Boom
Aardwolf Forklift Booms are telescoping rectangular-tube steel booms that turn a forklift into a slab-lifting crane, letting you reach into containers and set stone where a fork cannot. Each boom extends manually in fixed increments and carries its full rating only when fully retracted — capacity drops as the boom extends because leverage increases. The FB1-2720 carries 3,307 lb (1,500 kg) retracted and 1,102 lb (500 kg) extended, reaches 63.4" to 107.2", weighs 201 lb (91 kg), and suits 2 to 2.5 ton forklift trucks. Larger models in the range are listed below with their own ratings. All are built from AS1163-450 LO rectangular tube steel with a swivel hook, and the extensions are designed so they cannot be pulled all the way out.
Features
- The boom extension is designed so it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins

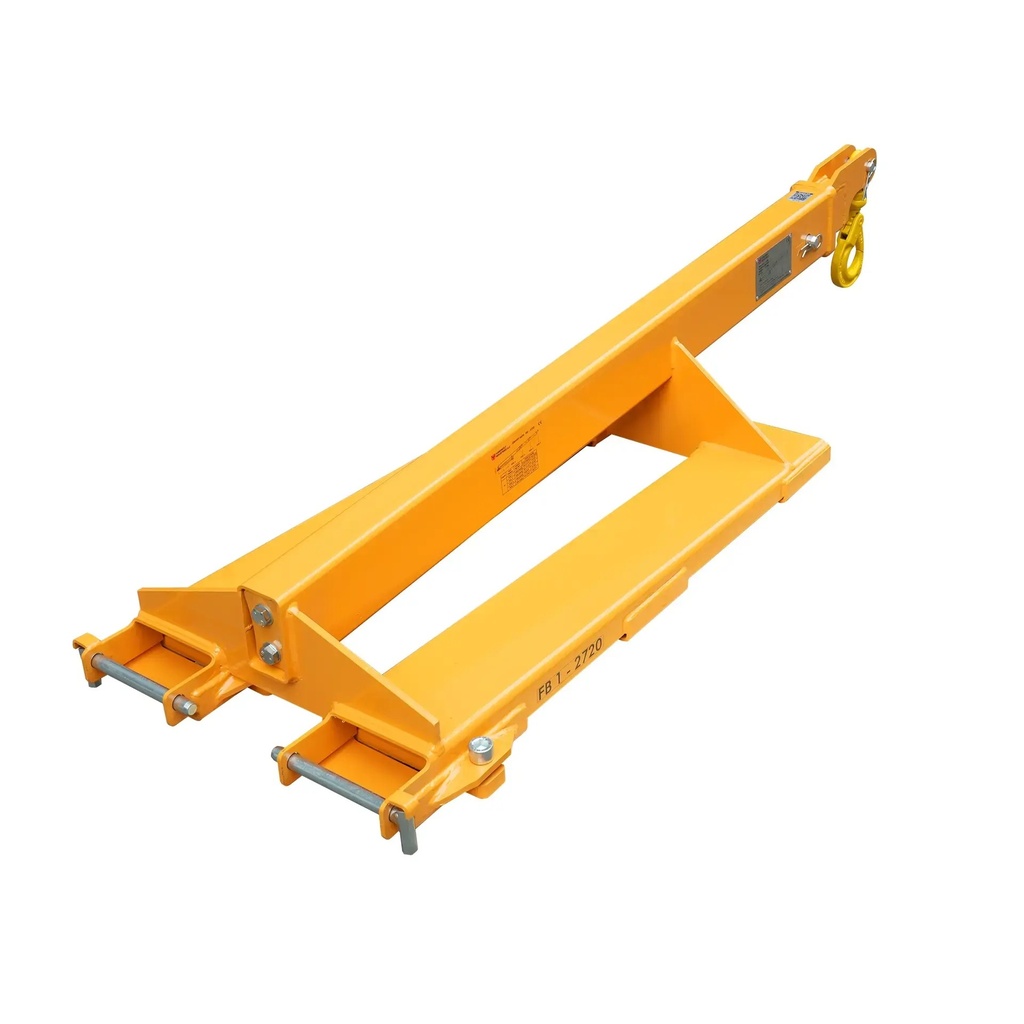

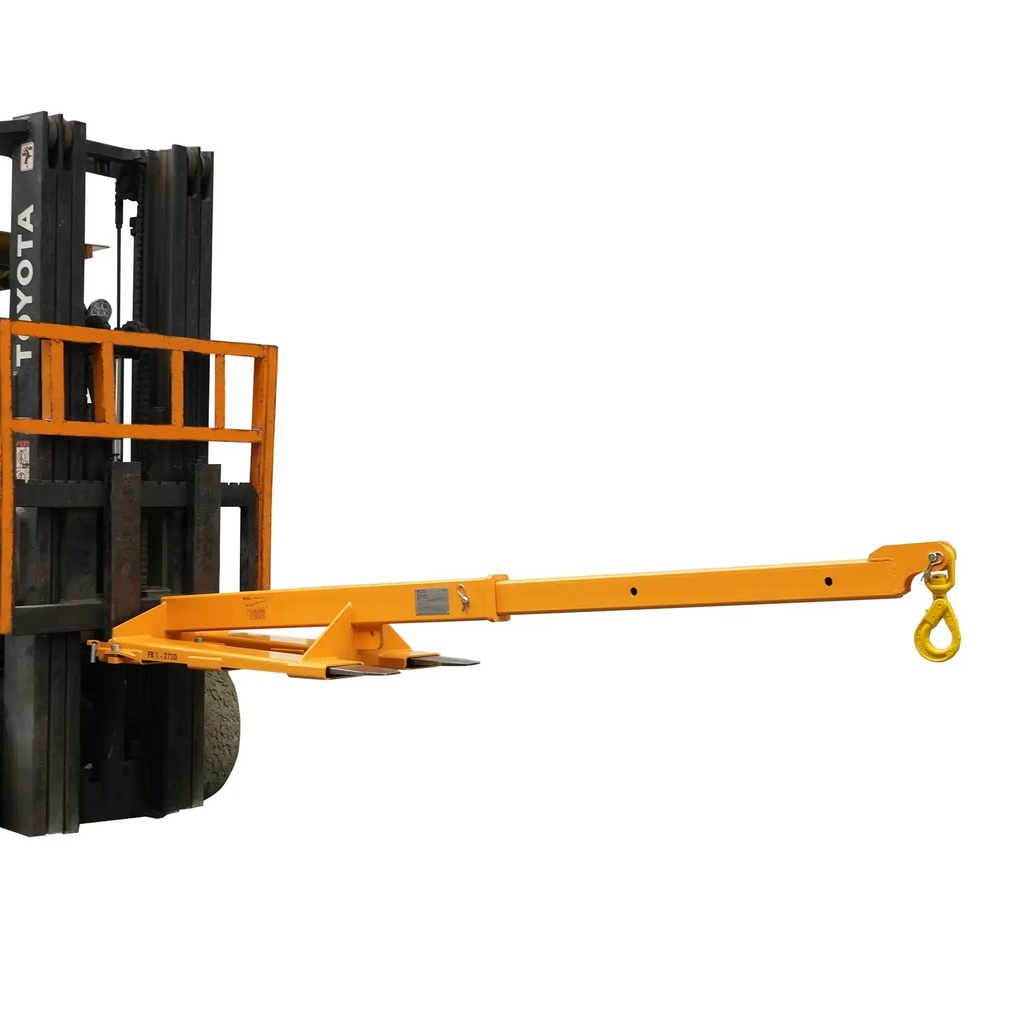

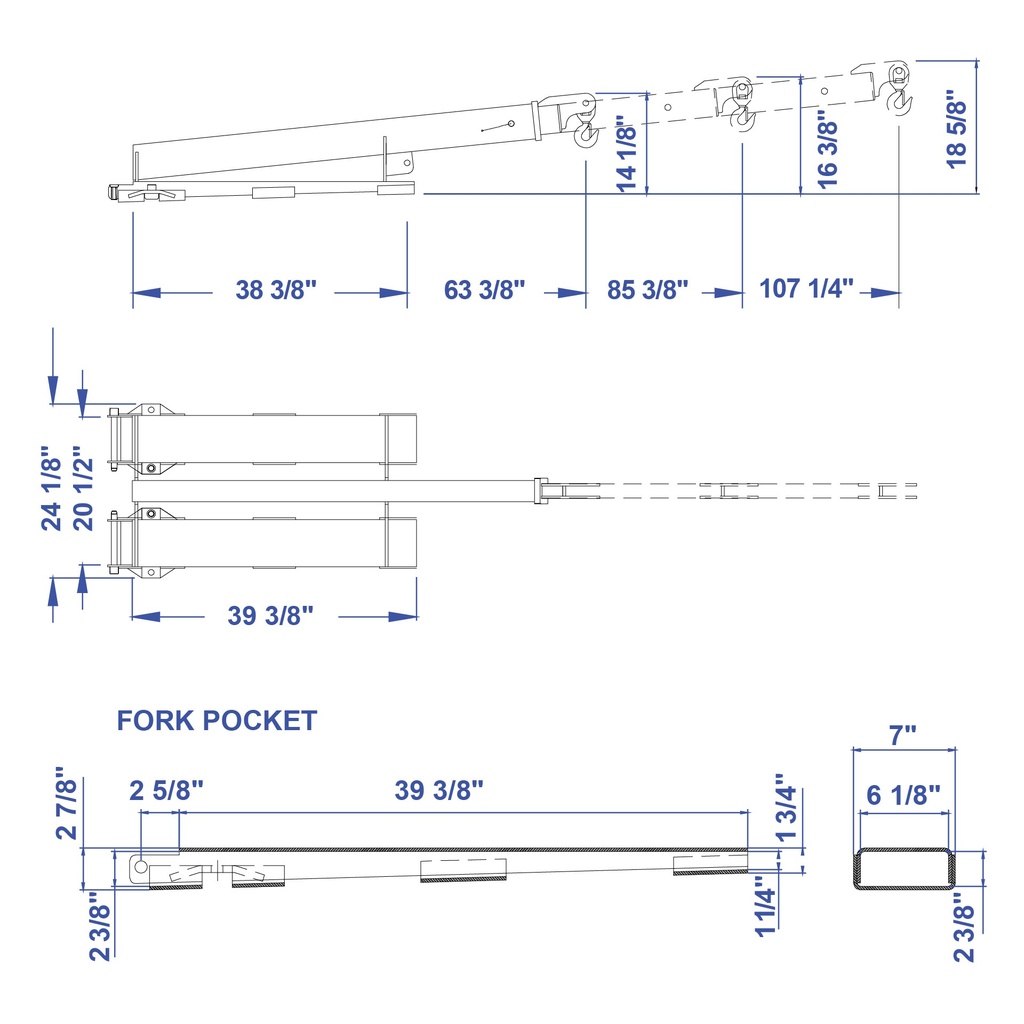

FB1-2720
| Property | Detail |
|---|---|
| WLL fully retracted | 3,307 lb (1,500 kg) |
| WLL fully extended | 1,102 lb (500 kg) |
| Boom length range | 63.4" – 107.2" (1,610–2,724 mm) |
| Sections / increments | 2-section, 2 increments × 21 7/8" (~556 mm) |
| Fork pocket size | 6.1" x 2.4" (154 x 61 mm) |
| Fork pocket center distance | 14 3/8" (365 mm) |
| Net Weight | 201 lb (91 kg) |
| Gross/Packaging Weight | 220 lb (100 kg) |
| Packaging Dimensions | 68 7/8" × 24 3/8" × 16 1/8" (L1750 x W620 x H410 mm) |
| Material | AS1163-450 LO rectangular tube steel |
| Compatible forklift | 2 – 2.5 ton |
| Operation | Manual telescoping; swivel hook standard |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Notes | "FB" = Forklift Boom |

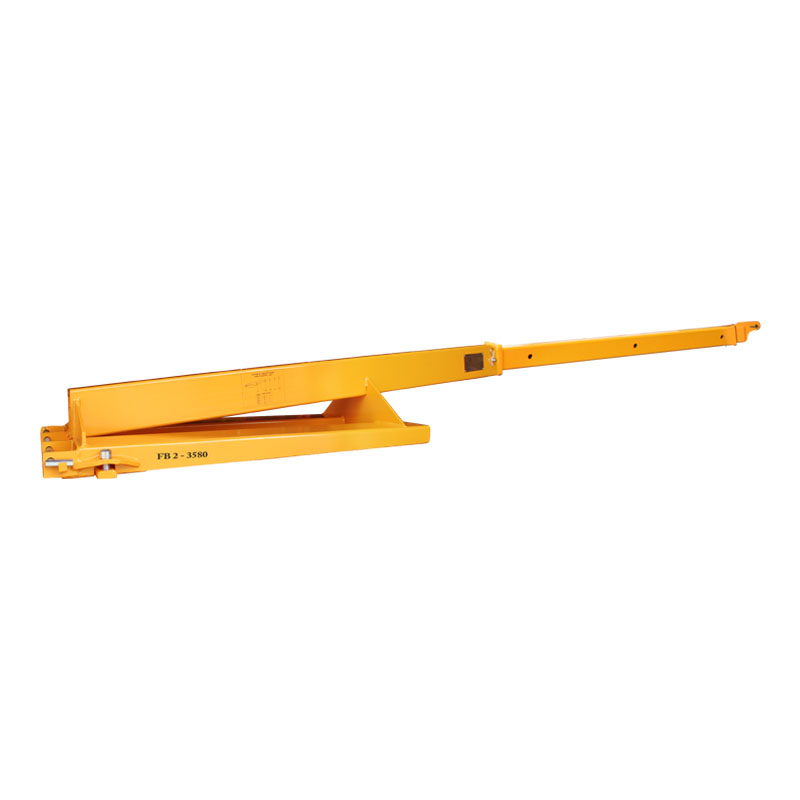

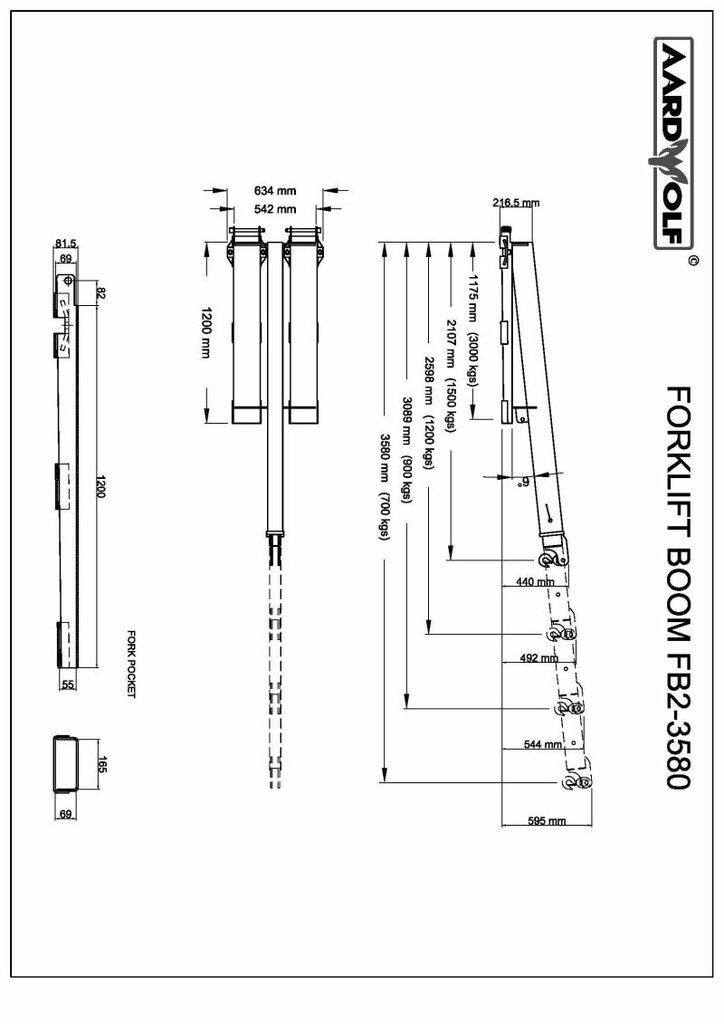

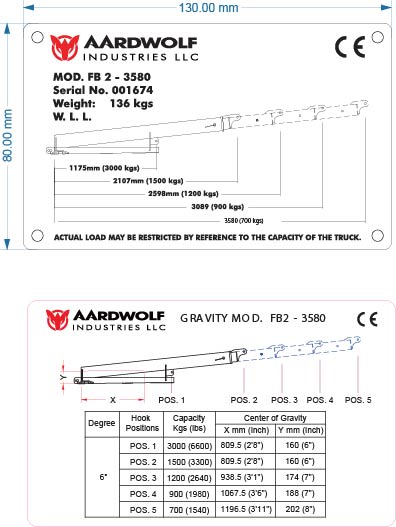

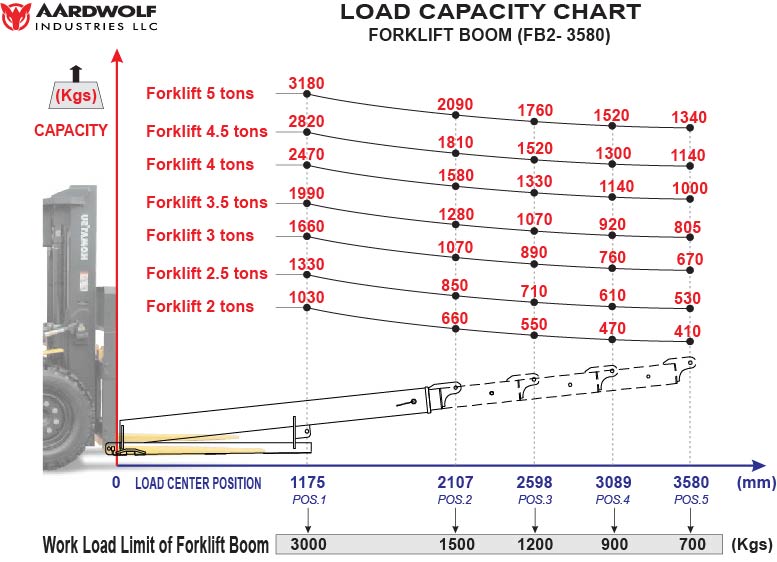

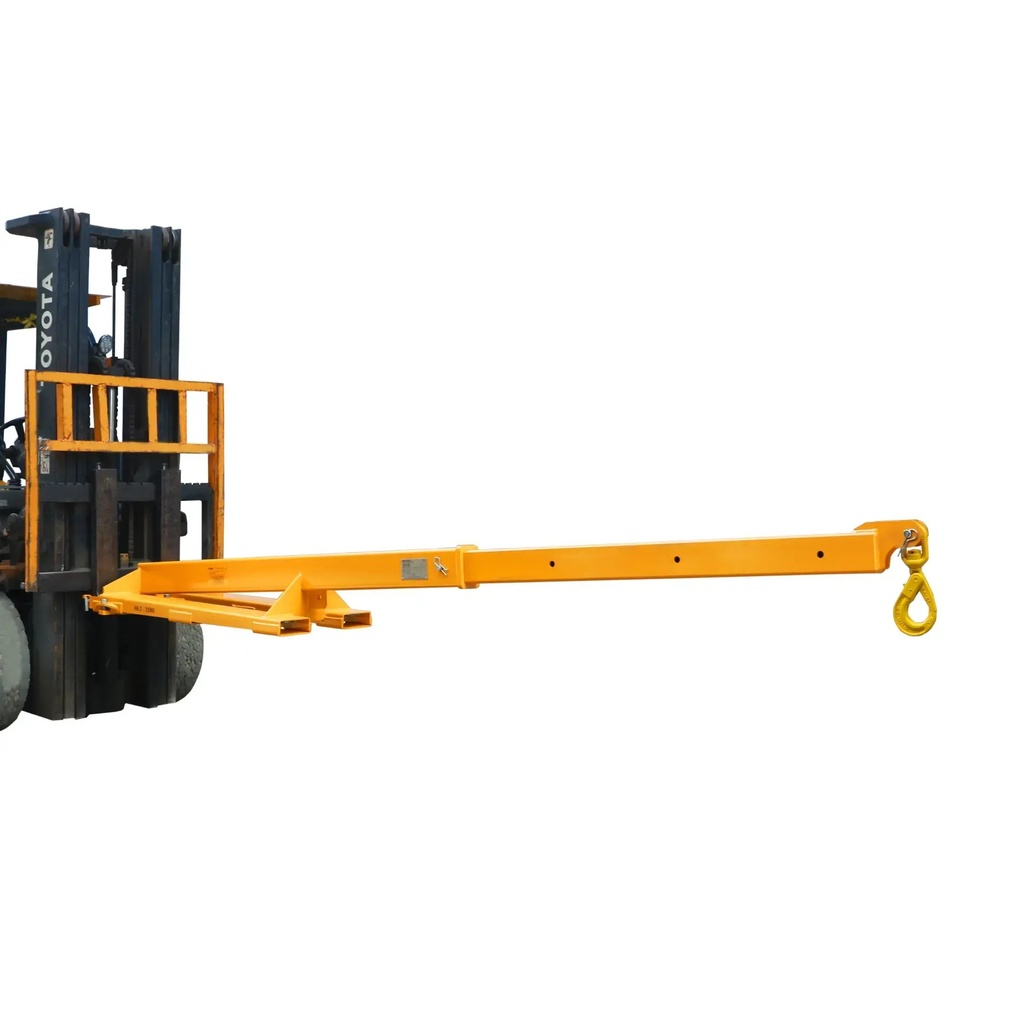

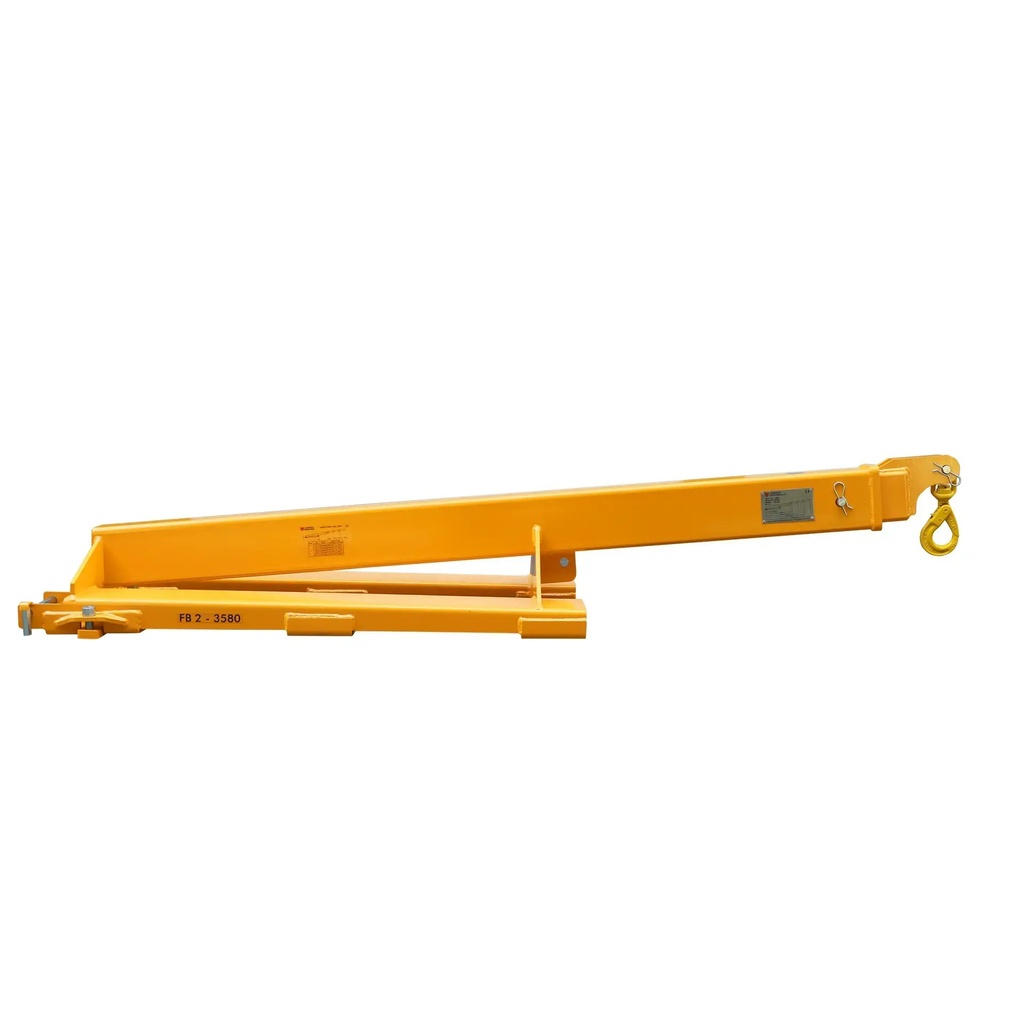

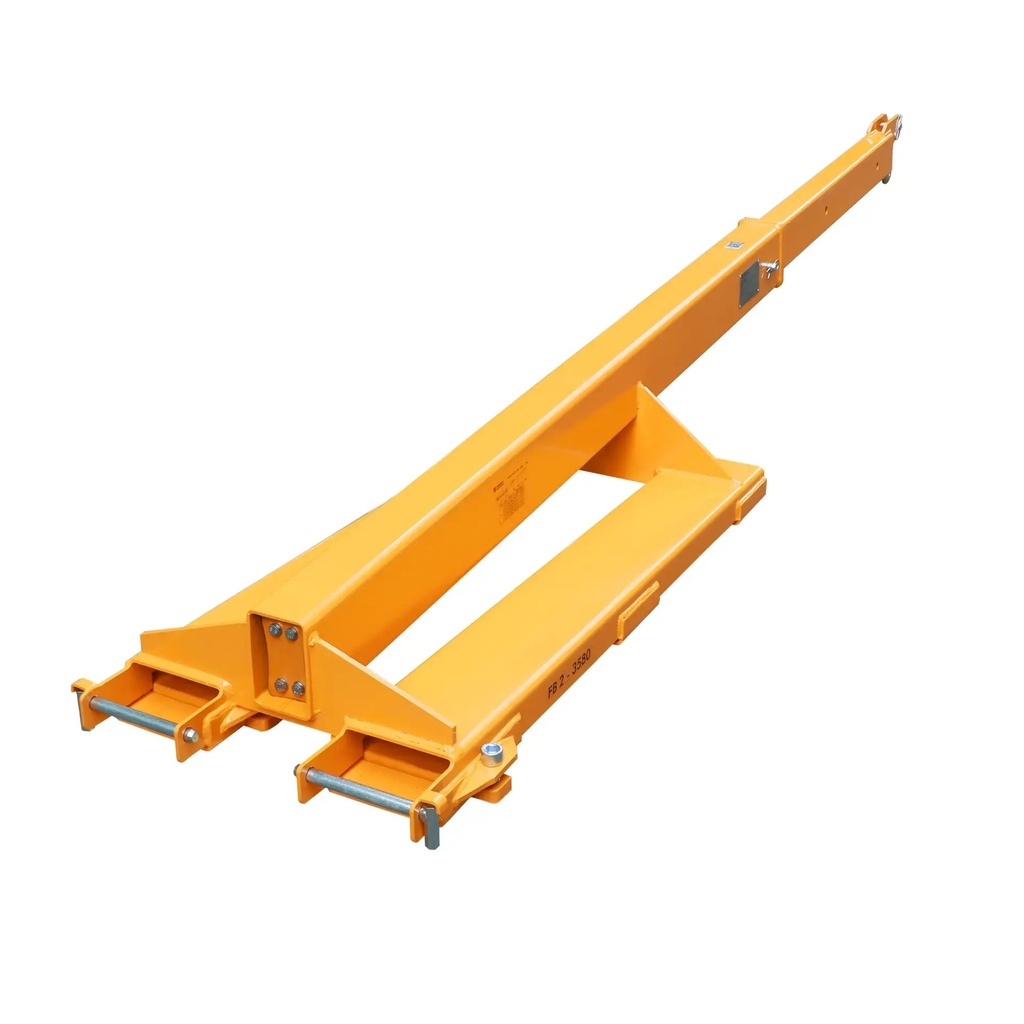

FB2-3580
| Property | Detail |
|---|---|
| WLL fully retracted | 3,307 lb (1,500 kg) |
| WLL fully extended | 1,322 lb (600 kg) |
| Boom length range | 82.9" – 141" (2,107–3,580 mm) |
| Sections / increments | 2-section, 3 increments × 19.3" (491 mm) |
| Fork pocket size | 5.9" x 2.4" (150 x 61 mm) |
| Fork pocket center distance | 14.8" (377 mm) |
| Net Weight | 300 lb (136 kg) |
| Gross/Packaging Weight | 322 lb (146 kg) |
| Packaging Dimensions | 88.6" L x 24.8" W x 21.7" H (L2250 x W630 x H550 mm) |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger |
| Operation | Manual telescoping; swivel hook |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |

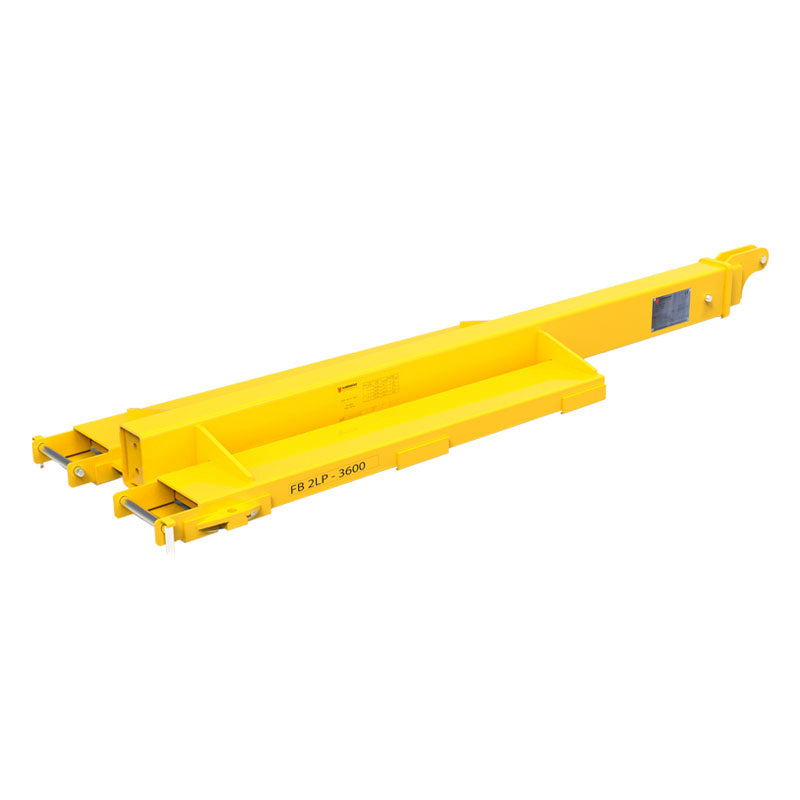

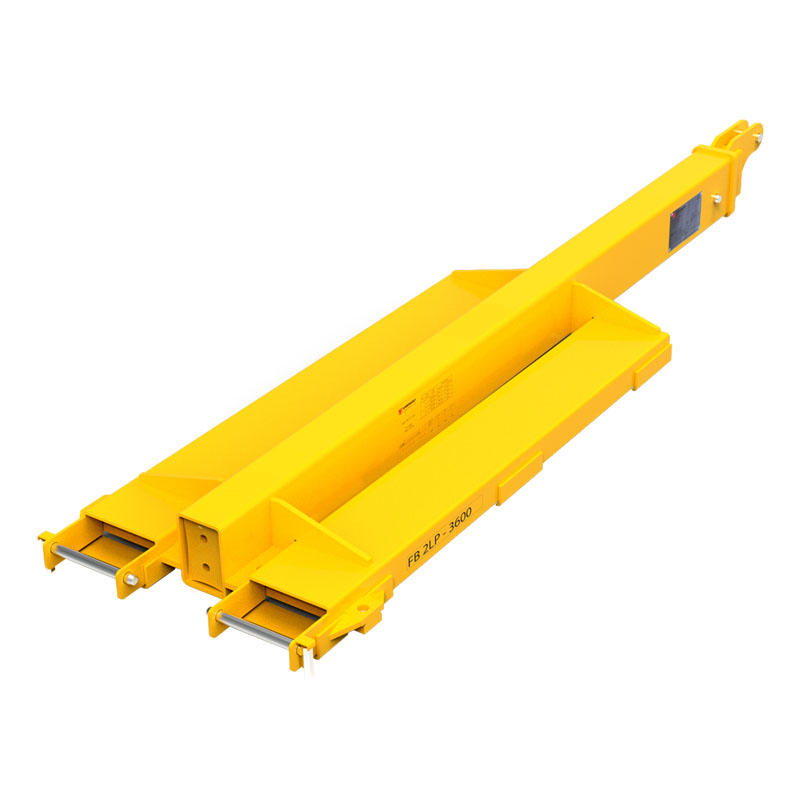

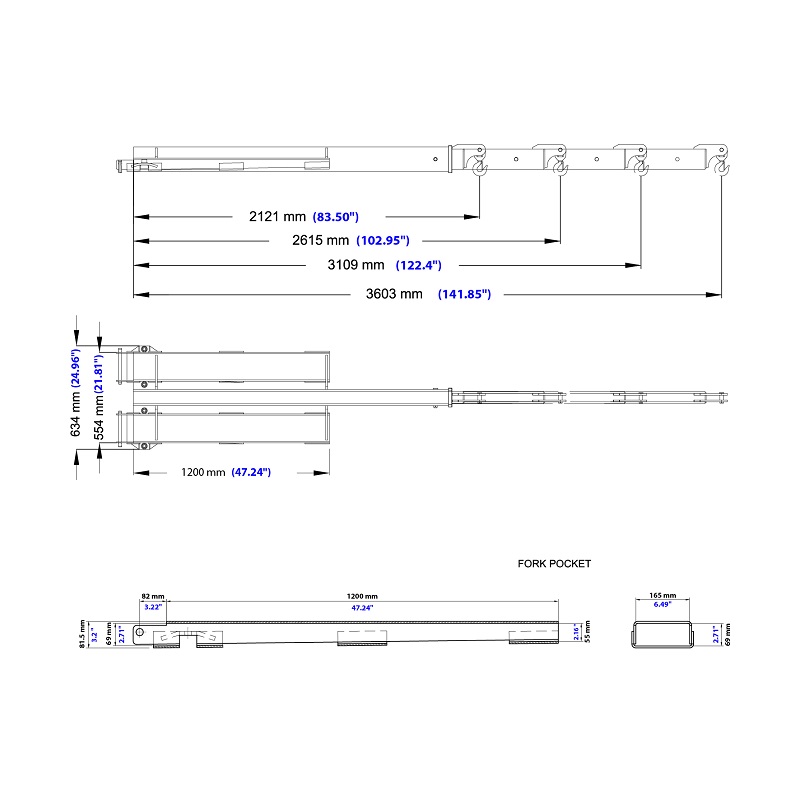

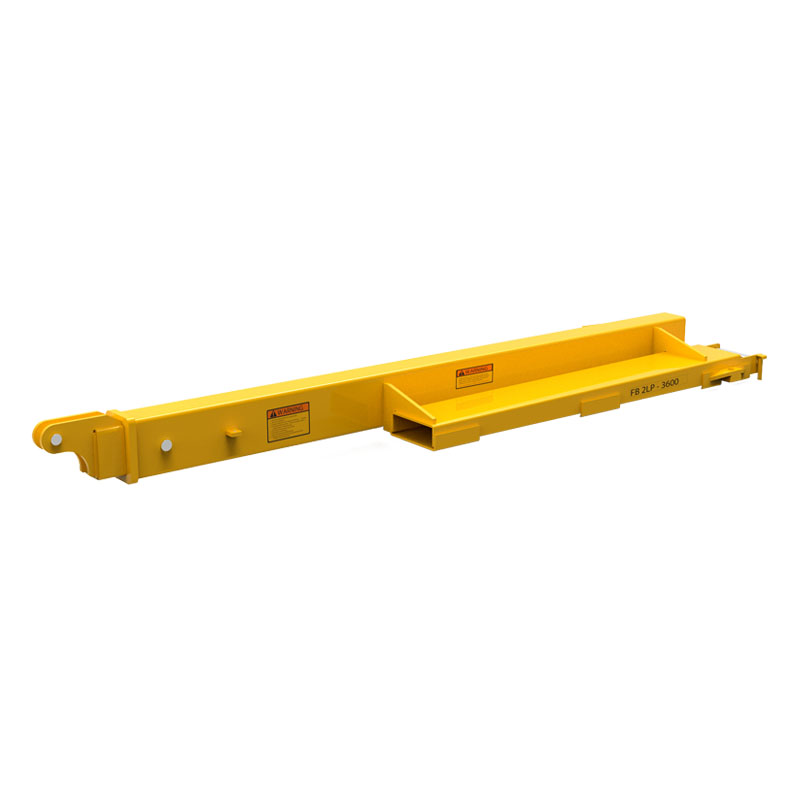

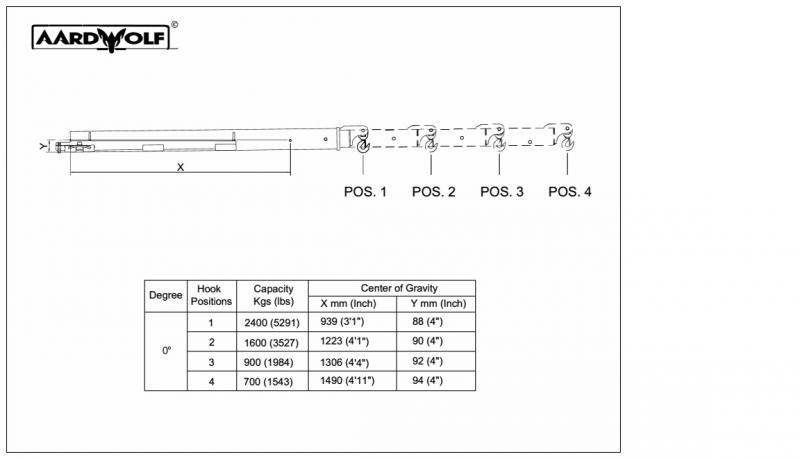

FB2LP-3600
| Property | Detail |
|---|---|
| WLL fully retracted | 5,291 lb (2,400 kg) |
| WLL fully extended | 1,322 lb (600 kg) |
| Boom length range | 83.5"–141.9" (2,121–3,603 mm) |
| Sections / increments | 3-section telescoping, 19.4" (494 mm) per increment |
| Net Weight | 295 lb (134 kg) |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger (low profile / container work) |
| Operation | Manual telescoping; low-profile for container unloading |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Fork Pocket Size | 6.5" x 2.6" (165 x 65 mm) |
| Fork Pocket Centers | 14.8" (377 mm) |

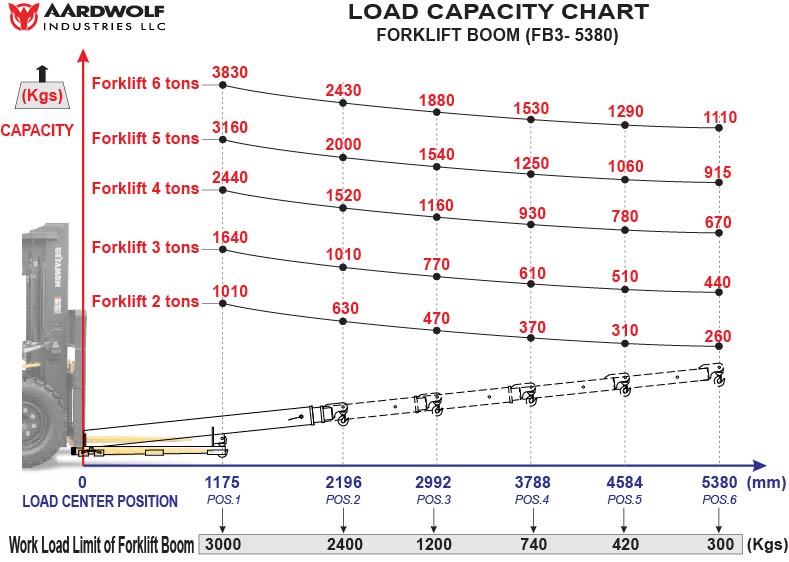

FB3-5380
| Property | Detail |
|---|---|
| WLL fully retracted | 5,291 lb (2,400 kg) |
| WLL fully extended | 661 lb (300 kg) |
| Boom length range | 87" – 212" (2,210–5,380 mm) |
| Sections / increments | 3-section |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger |
| Operation | Manual telescoping |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Net Weight | 359 lb (163 kg) |
| Gross Weight | 381 lb (173 kg) |
| Packaging Dimensions | 92.5" x 24.8" x 22.8" (2,350 x 630 x 580 mm) |
| Fork Pocket Size | 6.5" x 2.6" (165 x 65 mm) |
| Fork Pocket Centers | 14.8" (377 mm) |

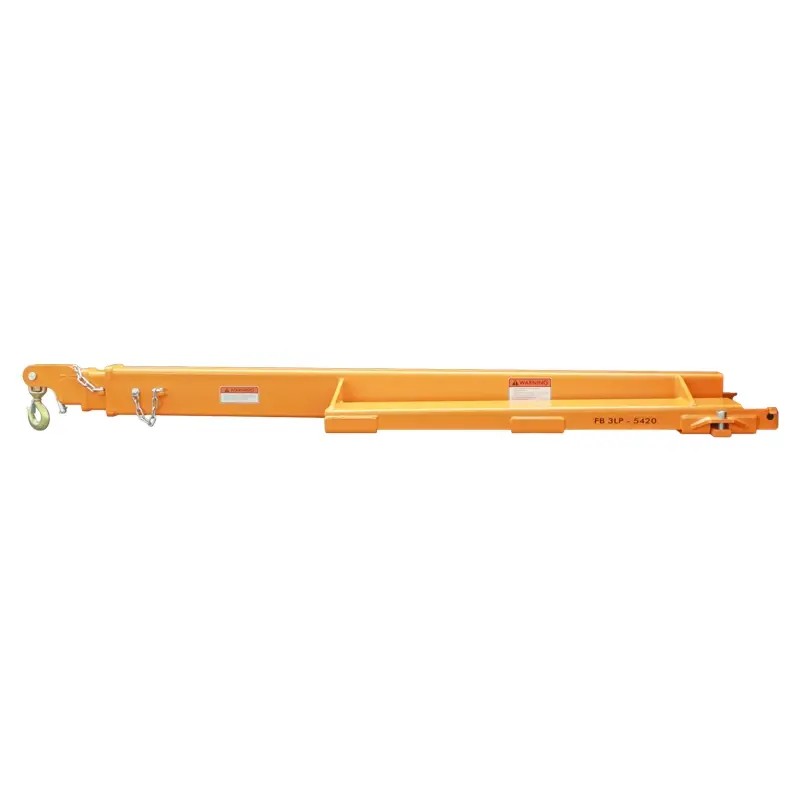

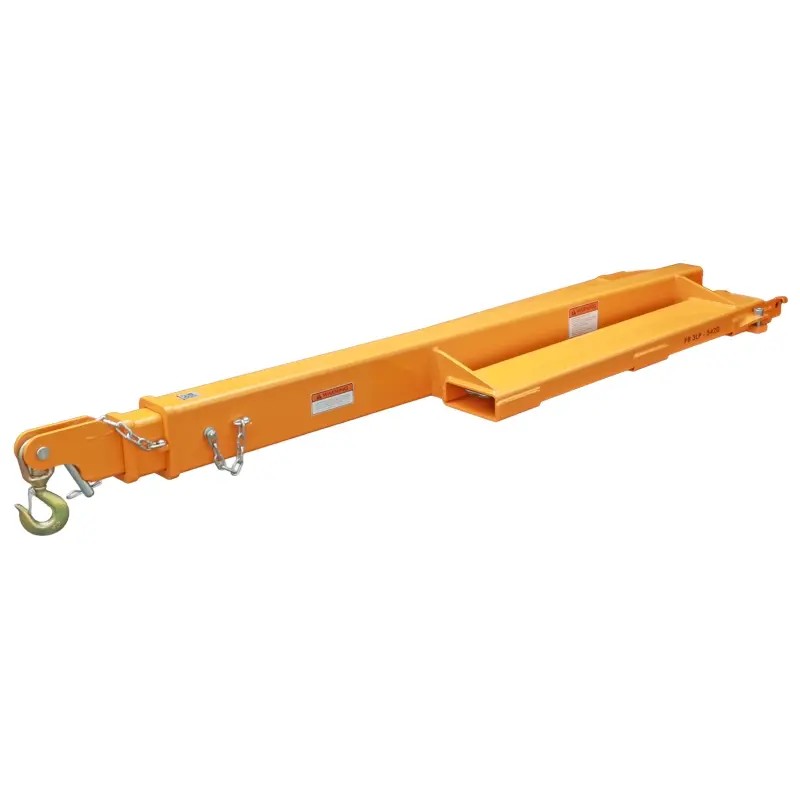

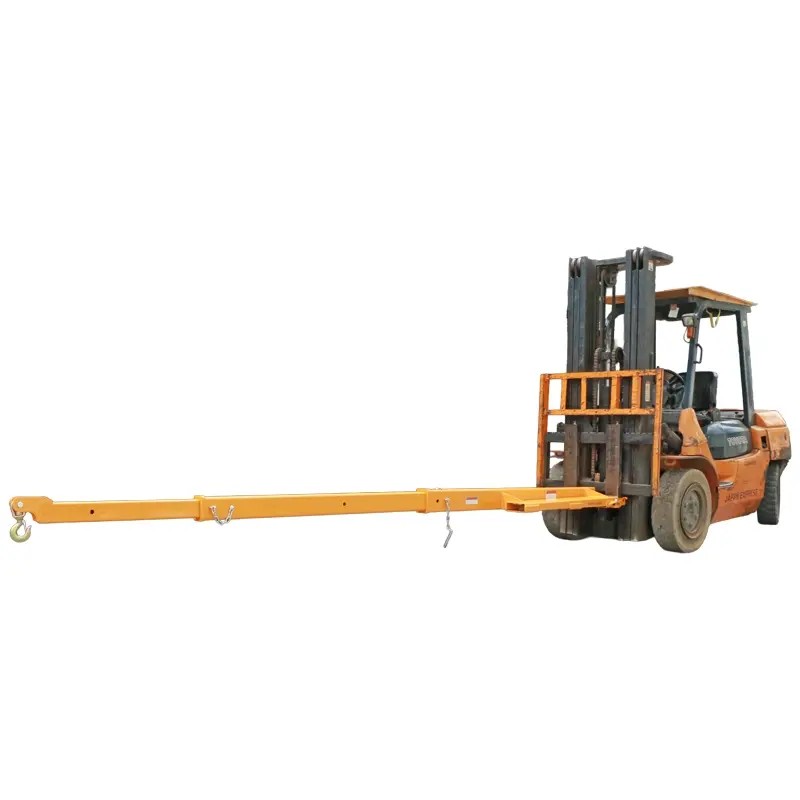

FB3LP-5420
| Property | Detail |
|---|---|
| WLL fully retracted | 5,280 lb (2,400 kg) |
| WLL fully extended | 660 lb (300 kg) |
| Boom length range | 87" – 213" (2,210–5,420 mm) |
| Sections / increments | 3-section (low profile), 16 increments × 7.9" (200 mm) |
| Hook positions | 5 positions: 87", 118.5", 150", 181.5", 213" |
| Fork pocket size | 2.6" × 6.5" (66 × 165 mm) |
| Fork pocket center distance | 14.8" (376 mm) |
| Net Weight | 359 lb (163 kg) |
| Material | AS1163-450 LO |
| Compatible forklift | 3-ton and larger (low profile / container work) |
| Operation | Manual telescoping; swivel hook, 5 hook positions |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Increments | 31.5" (800 mm) per section |
| Sections | 3-section telescoping |
| Gross Weight | 379 lb (172 kg) |

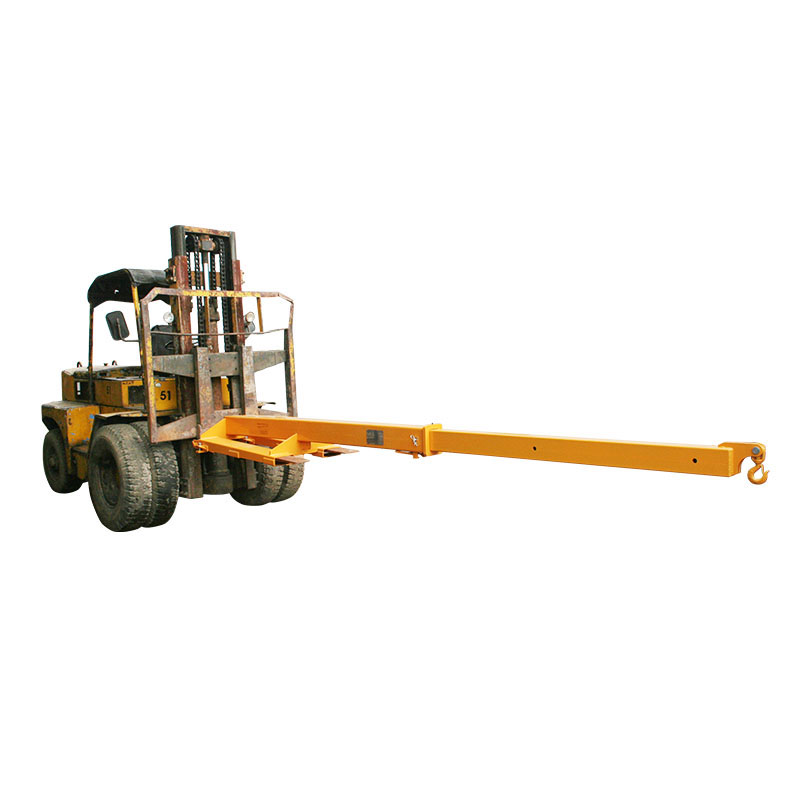

FB4-4800
| Property | Detail |
|---|---|
| WLL fully retracted | 6,614 lb (3,000 kg) |
| WLL fully extended | 2,205 lb (1,000 kg) |
| Boom length range | 110" – 189" (2,800–4,800 mm) |
| Net Weight | 437 lb (198 kg) |
| Material | AS1163-450 LO |
| Compatible forklift | 5 – 8 tonne |
| Operation | Manual telescoping |
| Standards | Built to current lifting safety guidelines |
| Country of Origin | Vietnam |
| Sections / Increments | 2-section telescoping, 39.4" (1,000 mm) per increment |
| Fork Pocket Size | 7.6" x 3.2" (193 x 81 mm) |
| Fork Pocket Centers | 20.5" (520 mm) |
| Gross Weight | 463 lb (210 kg) |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
Specifications
| Model | FB1-2720, FB2-3580, FB2LP-3600, FB3-5380, FB3LP-5420, FB4-4800 |
| Brand | Aardwolf |
