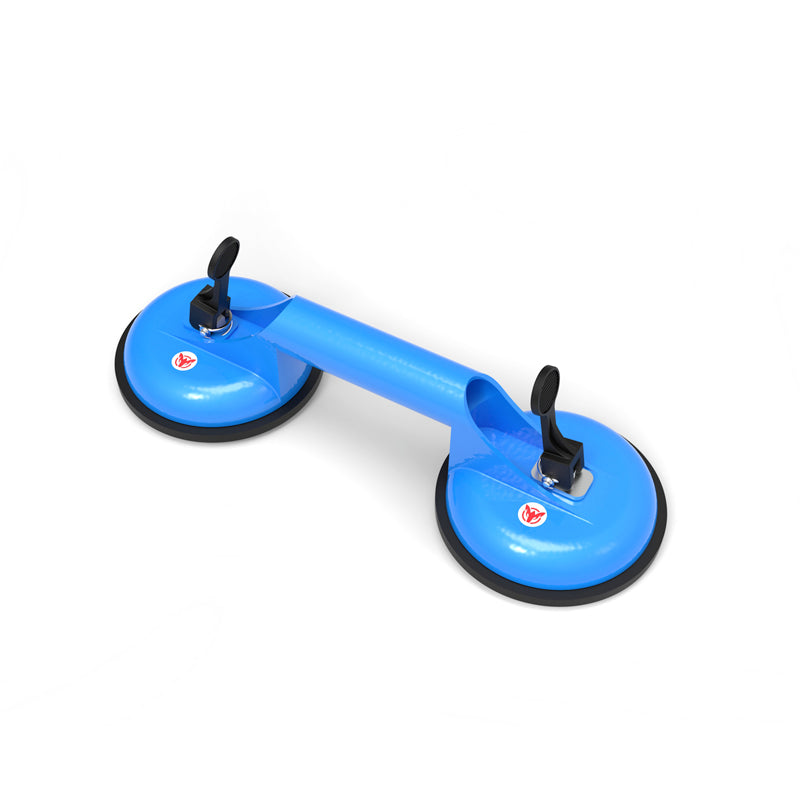

Aardwolf Multi-Cup Suction Cup (HVC05 / HVC06)

The Aardwolf Multi-Cup Suction Cup is a manual hand lifter with multiple suction pads for spreading load across the slab face. HVC05 and HVC06 models offer different cup counts for increased grip and capacity. Pump-action handle creates suction without electricity or air.

Features

  • Multiple suction pads spread load across the slab for added grip
  • HVC05 and HVC06 models for different pad counts
  • Manual pump handle — no electricity or compressed air required
  • Quick-release lever drops the load when set in place
  • Steel handle with rubber pads for slip-resistant carrying
  • Ideal for two-person slab placement and tile setting

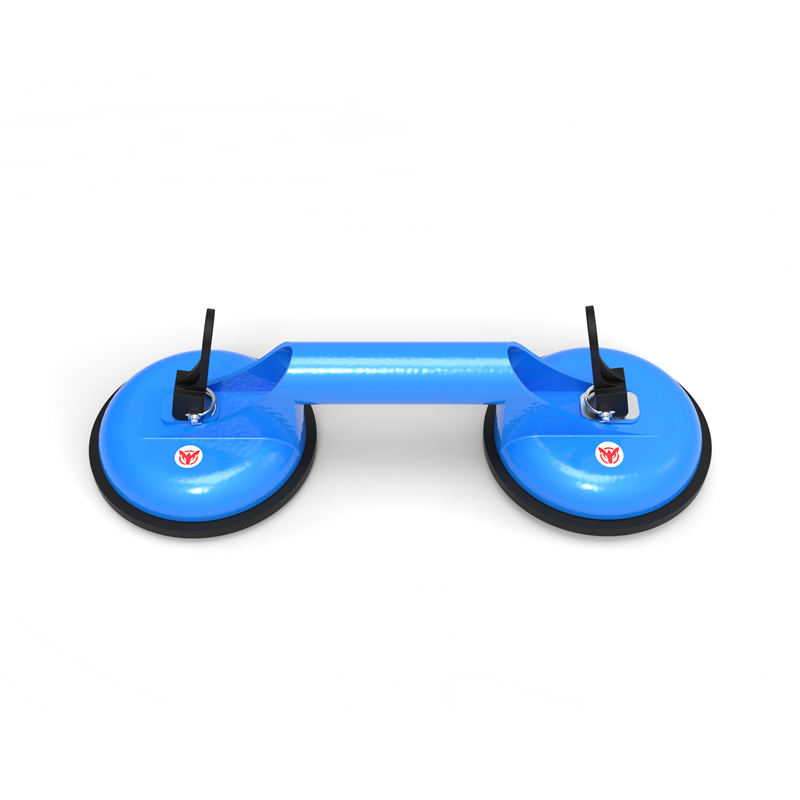

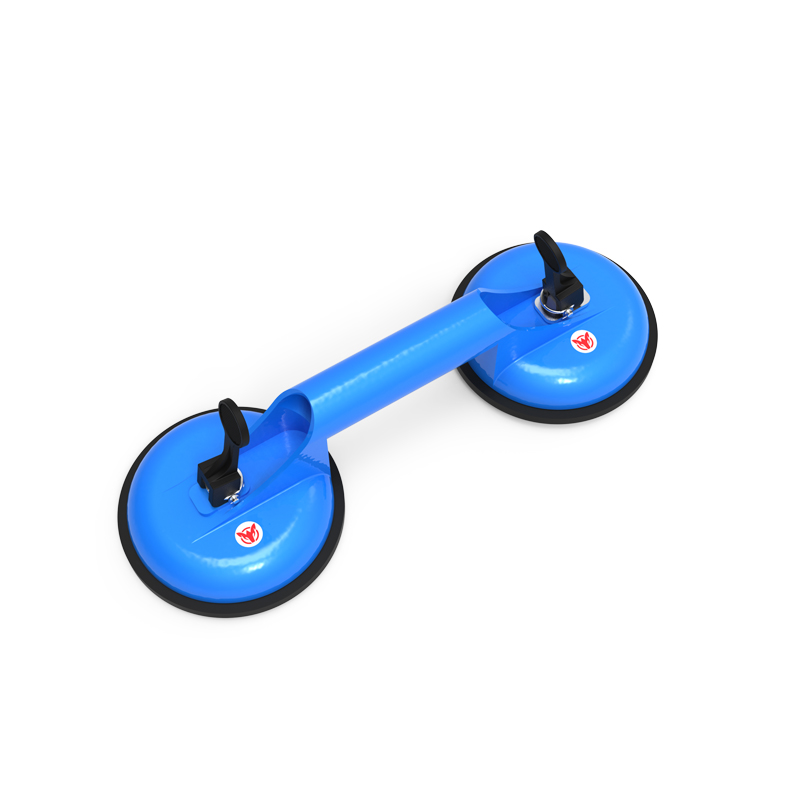

HVC05 — Double Suction Cup
Property Detail
Cup Count 2
Cup Diameter 4.8 in (4.8" / 122 mm)
Vertical Capacity 110 lb (50 kg)
Horizontal Capacity 220 lb (100 kg)
Net Weight 1.8 lb (0.8 kg)
Gross Weight 2.4 lb (1.1 kg)
Operation Manual, two-handed
Application Glass, tile, plastic, smooth non-porous surfaces
HVC06 — Hand Vacuum Cup with Gauge
Property Detail
Cup Count 1
Cup Diameter 8.7 in
Working Load Limit 265 lb
Net Weight 3.2 lb
Gross Weight 4.4 lb
Packaging 10.6 x 10.6 x 4.3 in
Features Integrated vacuum gauge, priming pump, ergonomic handle, carrying case
Property Detail
Brand Aardwolf
Working Load Horizontal 100 lb (45 kg)
Working Load Vertical 220 lb (100 kg)
Cups Double suction
Seal Non-marking rubber seal
Usage Hand lift only (not for mechanical equipment)
Country of Origin Vietnam
  1. Wipe each pad and the slab surface clean of dust and water.
  2. Center the lifter on the slab and press down to seat all rubber seals.
  3. Pump each handle until full vacuum is achieved on every pad.
  4. Lift in coordination with a partner — keep the load low.
  5. Activate the release lever once the slab is fully set.
  6. Wear gloves and steel-toe boots during stone handling.

Suits granite, marble, quartz, porcelain slabs, and flat glass. Best on smooth, clean, non-porous surfaces.

Specifications

Model HVC05, HVC06
Brand Aardwolf
