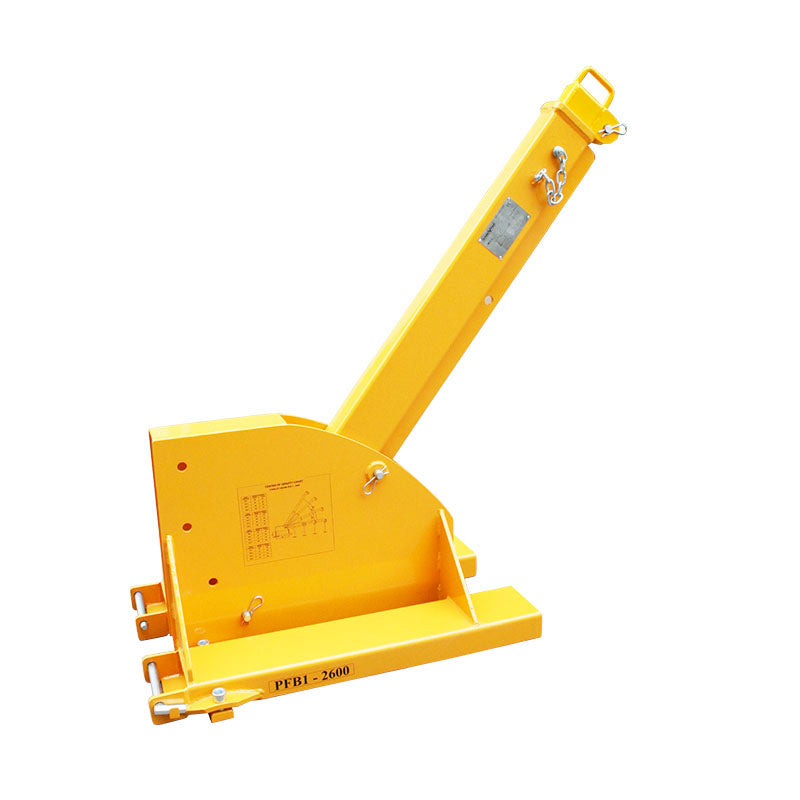

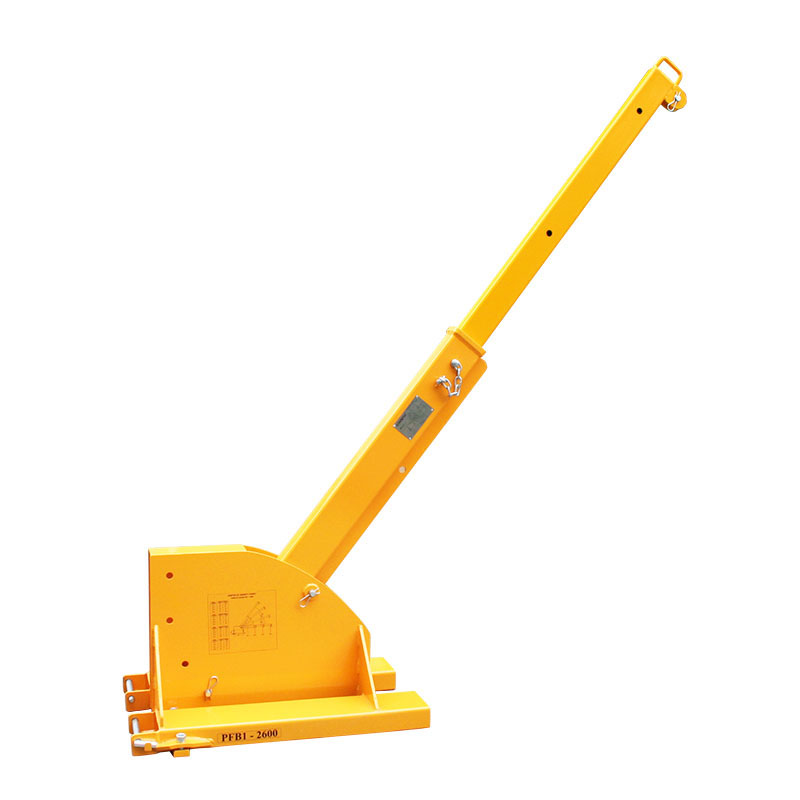

Aardwolf PFB1-2600 Pivot Forklift Boom

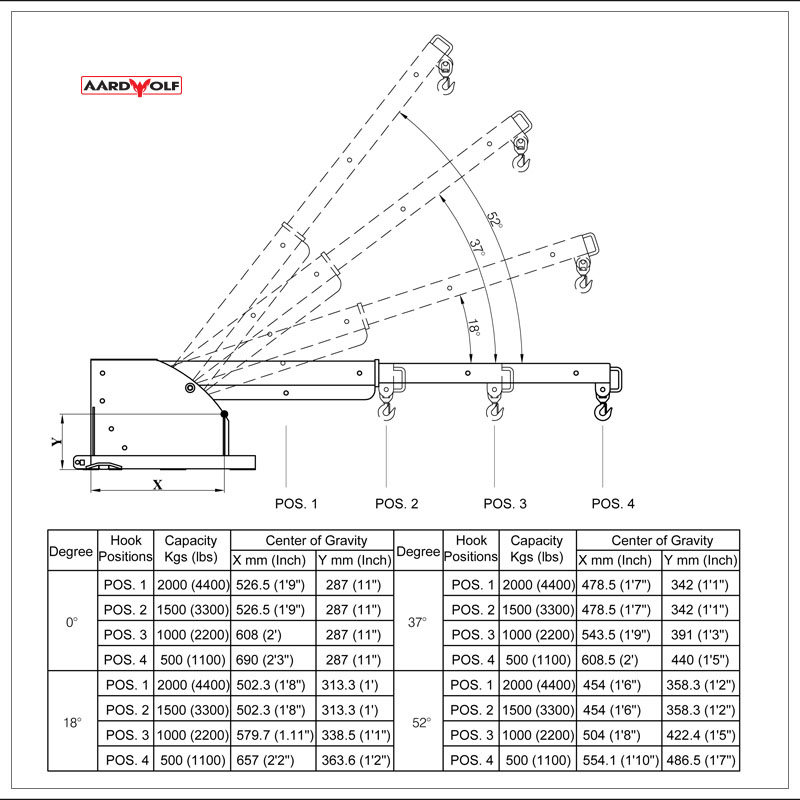

The Aardwolf PFB1-2600 Pivot Forklift Boom is a two-section telescoping rectangular-tube steel boom with a 0–52° pivot, which compensates for hook and sling length when lifting with a jib. It extends manually from 59" to 102.4" and carries 3,307 lb (1,500 kg) fully retracted and 1,102 lb (500 kg) fully extended — capacity drops as the boom extends because leverage increases. It slips onto the forks over a 22" (560 mm) length and is secured with two bolts per fork pocket plus restraint pins. Net weight 333 lb (151 kg); built from AS1163-450 LO rectangular tube steel.
Features
- The boom extension is designed so that it cannot be pulled all the way out
- The boom is firmly secured onto fork blades by two bolts located at the back of each fork pocket and restraint pins
PFB1-2600
| Property | Detail |
|---|---|

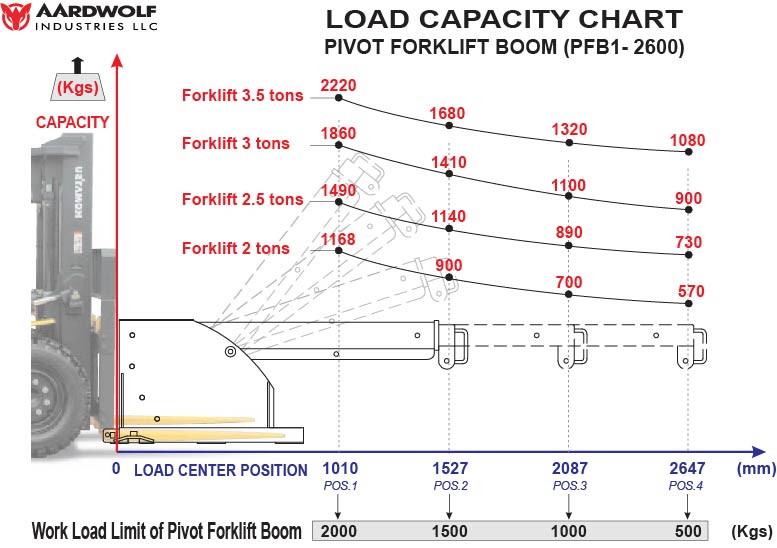

| WLL fully retracted | 3,307 lb (1,500 kg) |
| WLL fully extended | 1,102 lb (500 kg) |
| Boom length range | 59" – 102.4" (1,500–2,600 mm) |
| Telescope increment | 22" (560 mm) — 2 increments |
| Tilt Range | 0 – 52° |
| Boom tube dimensions | 6.1" x 2.3" (154 x 58 mm) |
| Fork pocket | 14.4" (366 mm) centers |
| Slip-onto-forks length | 22" (560 mm) |
| Net Weight | 333 lb (151 kg) |
| Material | AS1163-450 LO rectangular tube steel |
| Operation | Manual telescoping + pivot tilt; secured by 2 bolts per fork pocket + restraint pins |
| Country of Origin | Vietnam |
| Notes | Pivot/tilt compensates for hook + sling length when lifting with a jib |

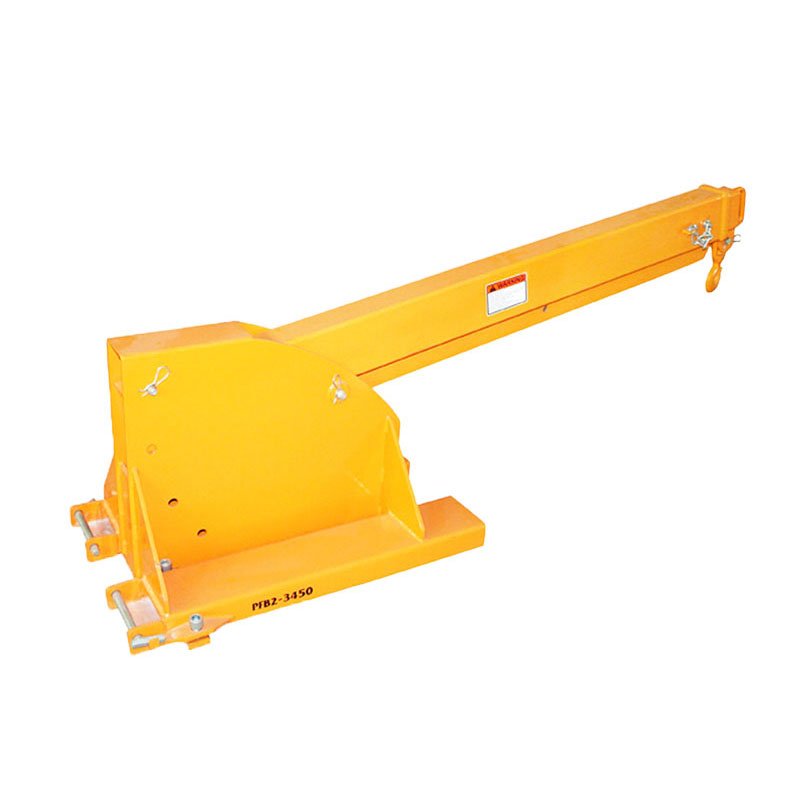

PFB2-3450
| Property | Detail |
|---|---|

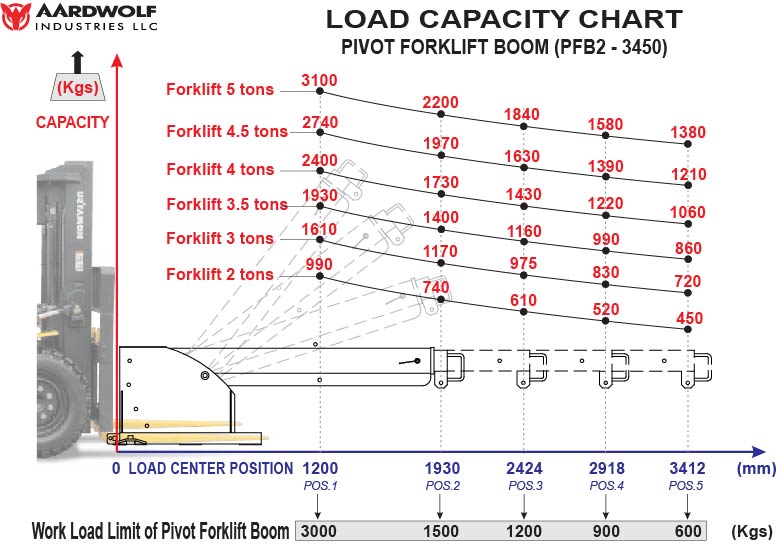

| WLL fully retracted | 3,307 lb (1,500 kg) |
| WLL fully extended | 1,322 lb (600 kg) |
| Boom length range | 76" – 134.3" (1,930–3,412 mm) |
| Telescope increment | 19.4" (494 mm) |
| Tilt Range | 0 – 52° |
| Boom tube dimensions | 6.1" x 2.3" (154 x 58 mm) |
| Fork pocket | 14.4" (366 mm) centers |
| Net Weight | 432 lb (196 kg) |
| Material | AS1163-450 LO |
| Operation | Manual telescoping + pivot tilt; secured by 2 bolts per fork pocket + restraint pins |
| Country of Origin | Vietnam |
| Notes | Same; larger capacity reach |
| Gross Weight | 454 lb (206 kg) |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
