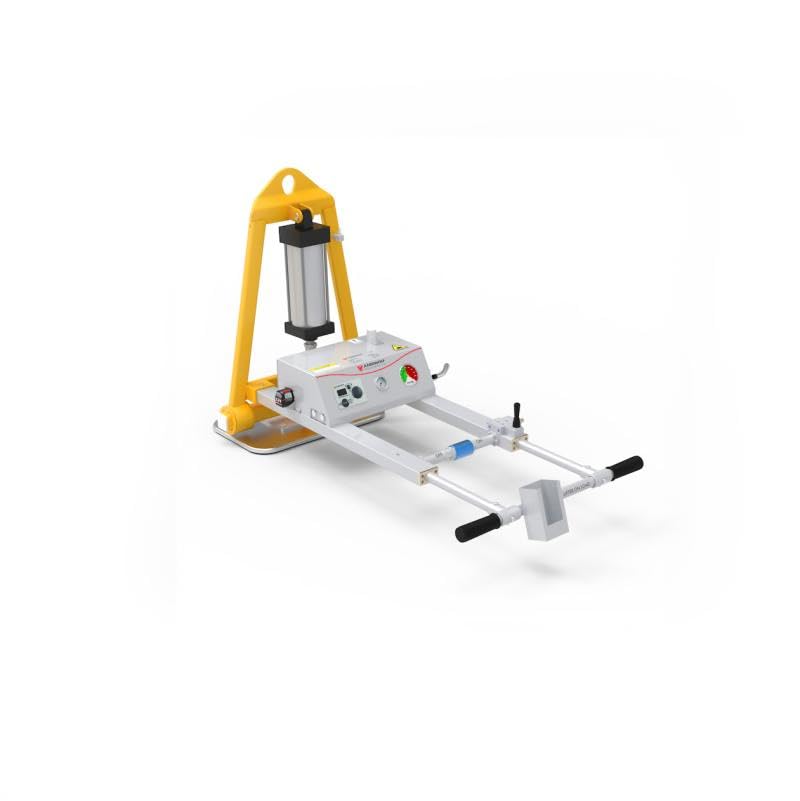

The Vacuum Lifter Pro is a reliable tool for lifting and tilting stone slabs such as granite, marble, and other heavy materials. Powered by compressed air, it allows smooth 0°–90° tilting, making slab handling safer and more efficient.
Pneumatic Tilting – Smooth, precise 0°–90° vertical/horizontal tilting.
Vacuum Tank – Maintains suction during sudden power loss for added safety.
Alarm System – Visual and audio alerts when vacuum pressure is low, powered by a rechargeable 12V battery.
Slide Valve Control – Simple ON/OFF operation for quick attachment and release.
Features
- Capacity, Vertical: 275 lb (125 kg)
- Capacity, Horizontal: 551 lb (250 kg)
- Net Weight: 105 lb (47.6 kg)
- Gross Weight: 170 lb (77.1 kg)
- Number of Pads: 1
- Pad Size: 19-5/8" × 11-3/4" (498 × 298 mm)
- Package Dimensions: 42-1/8 × 15-3/8 × 38-5/8 in (42.1" x 15.4" x 38.6" / 1070 × 391 × 981 mm)

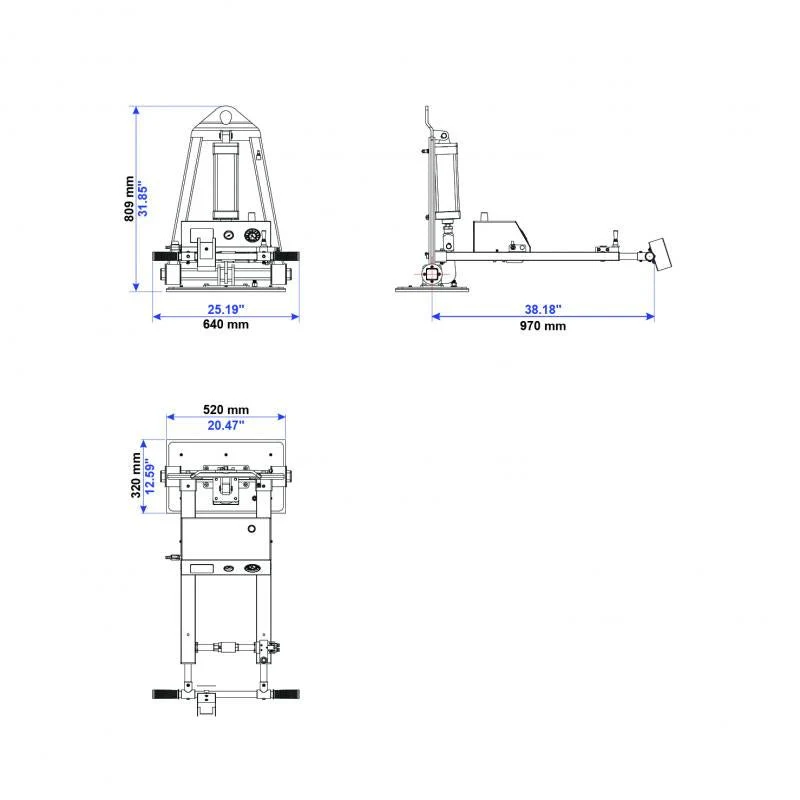

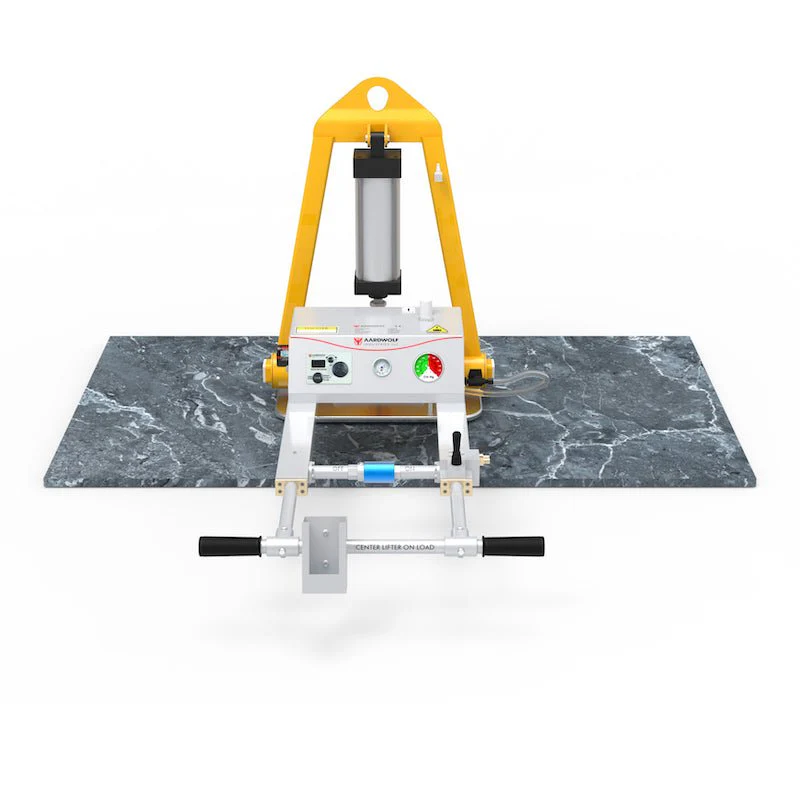

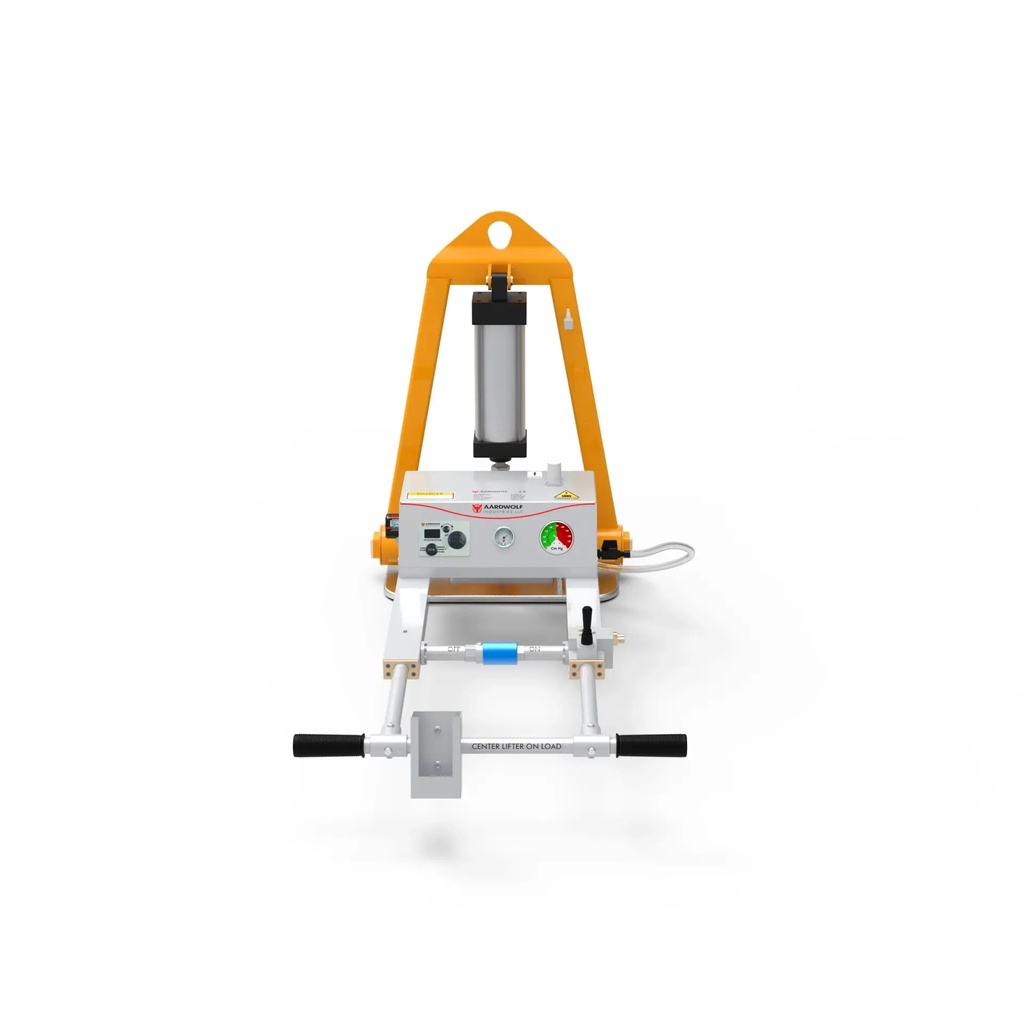

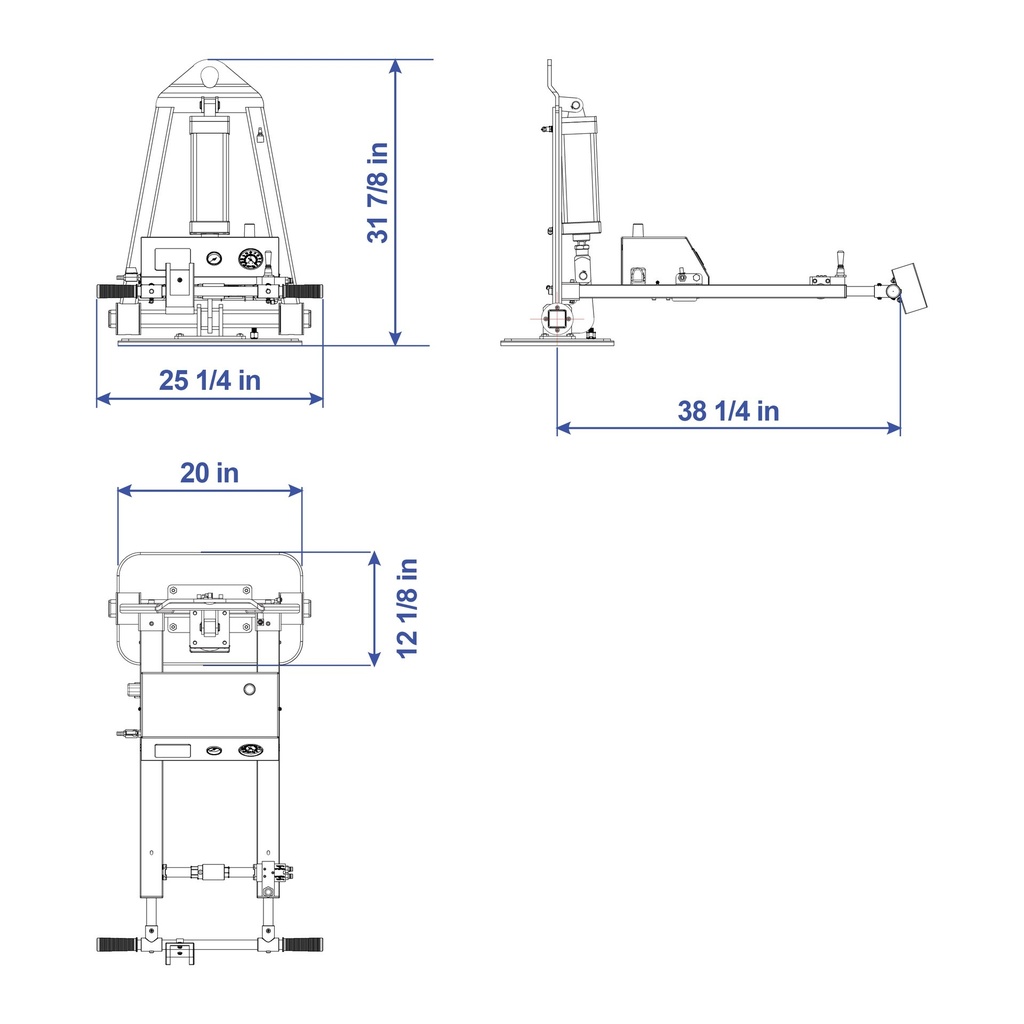

AVLP1PRO-250
| Property | Detail |
|---|---|
| Capacity, Vertical | 275 lb (125 kg) |
| Capacity, Horizontal | 551 lb (250 kg) |
| Number of Pads | 1 |
| Pad Size | 19-5/8" × 11-3/4" (498 × 298 mm) |
| Pump Type | Pneumatic / compressed-air vacuum |
| Air Requirement | 6.4 CFM @ 72 psi (~5 bar) |
| Tilting | Pneumatic 0 – 90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual (rechargeable) |
| Net Weight | 105 lb (47.6 kg) |
| Gross Weight | 170 lb (77.1 kg) |
| Package Dimensions | 42-1/8 × 15-3/8 × 38-5/8 in (42.1" x 15.4" x 38.6" / 1070 × 391 × 981 mm) |
| Compatible Materials | Smooth or rough marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |

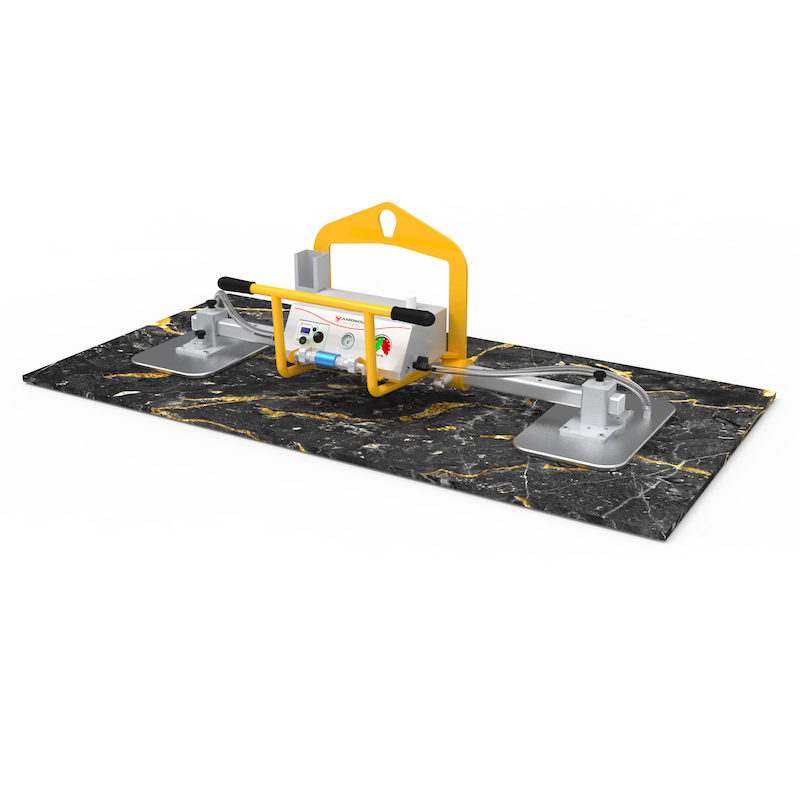

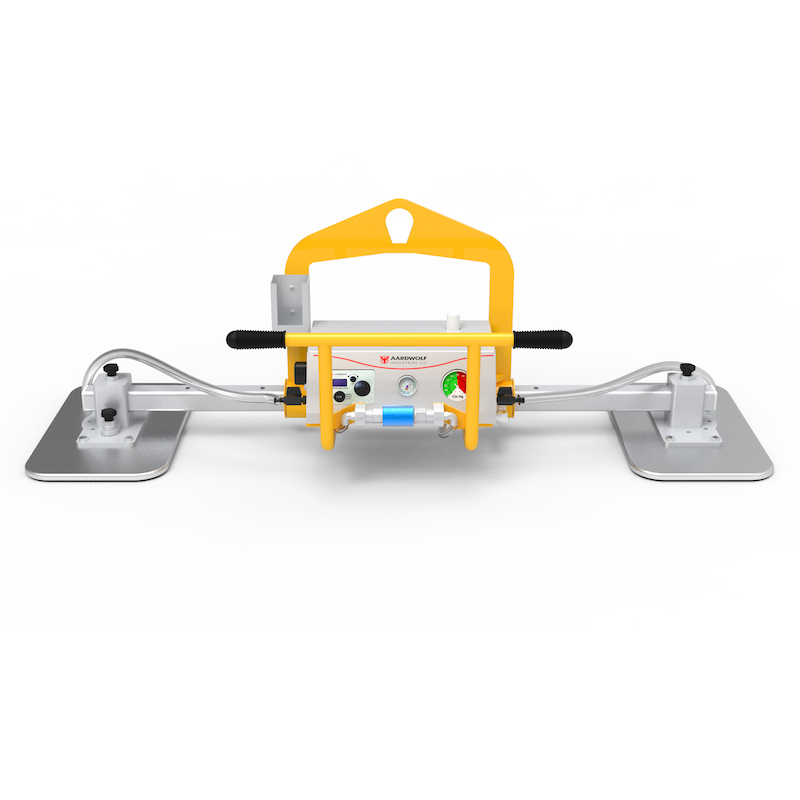

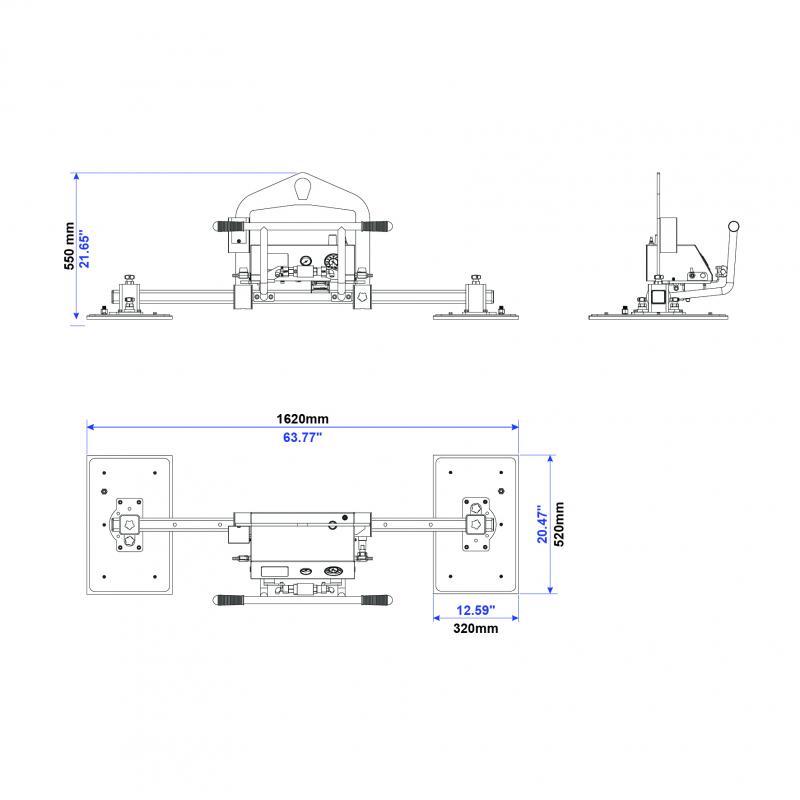

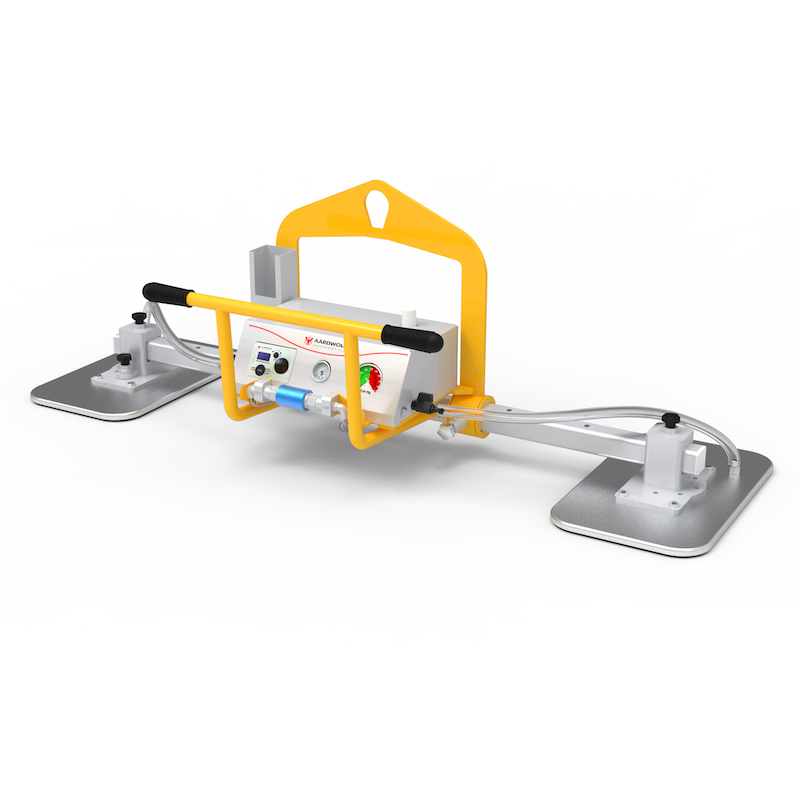

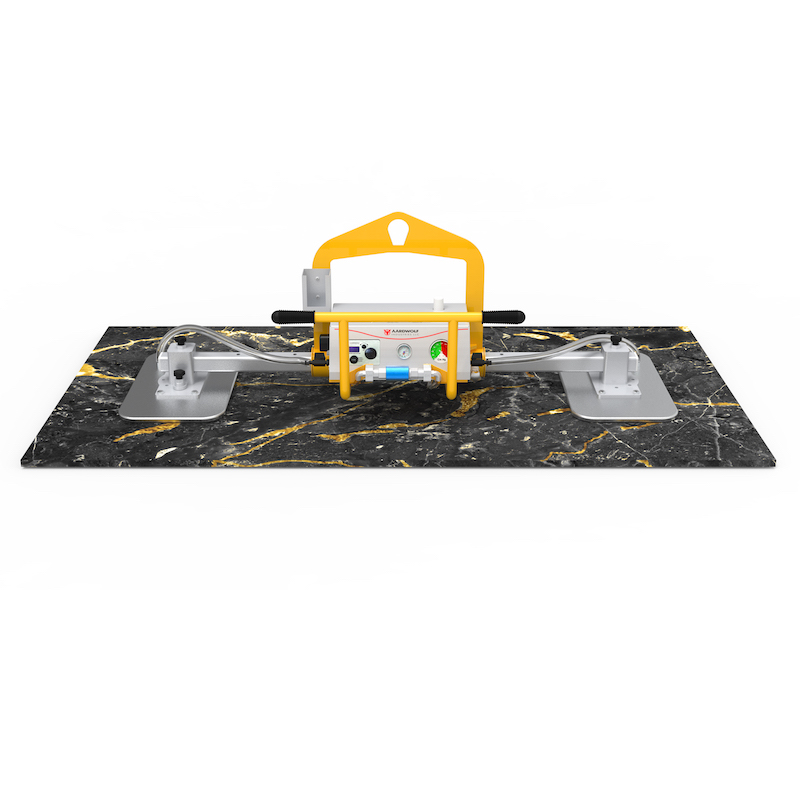

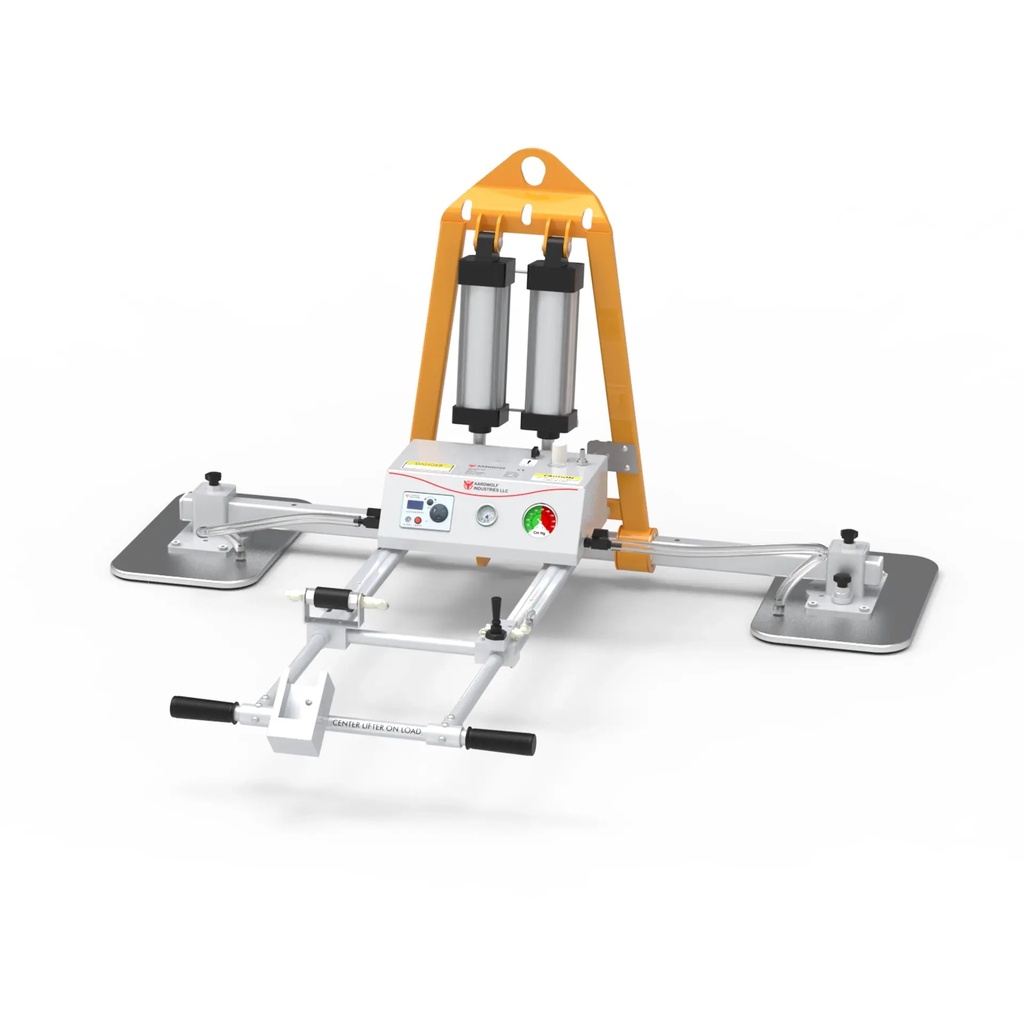

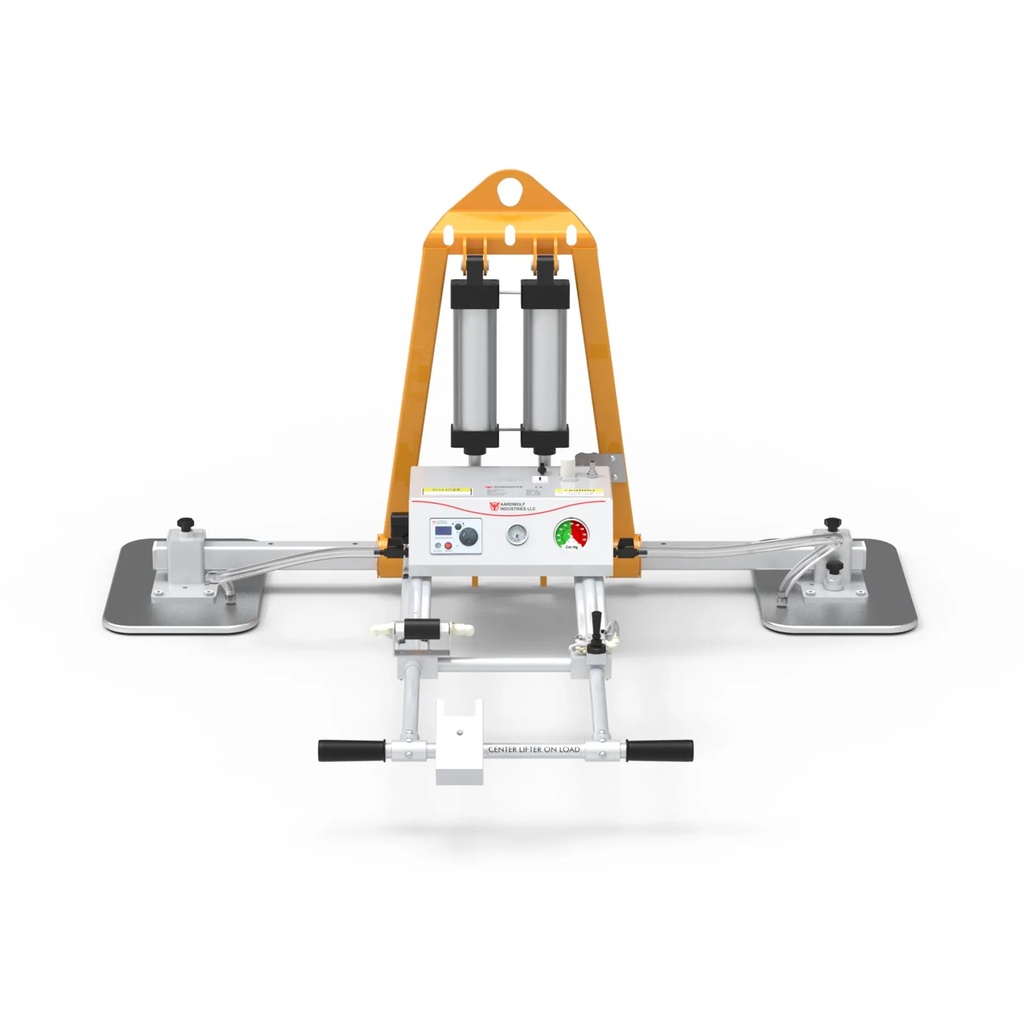

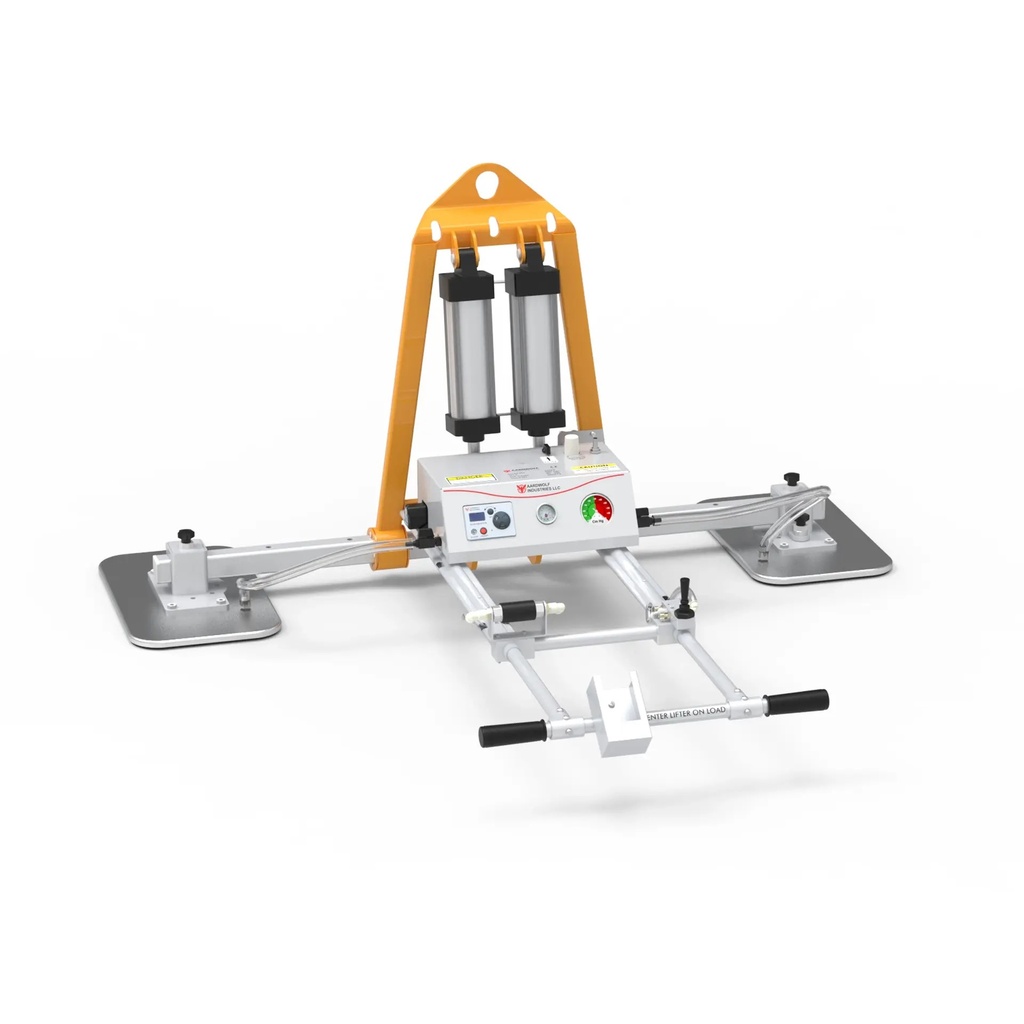

AVLP2-500
| Property | Detail |
|---|---|
| Capacity, Vertical | 551 lb (250 kg) |
| Capacity, Horizontal | 1,102 lb (500 kg) |
| Number of Pads | 2 |
| Pump Type | Pneumatic / compressed-air vacuum |
| Tilting | Pneumatic 0–90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual |
| Compatible Materials | Marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |
| Pad Size | 19 3/4" × 11 3/4" (500 × 300 mm) |
| Air Consumption | 6.4 CFM (180 L/min) @ 72 PSI (5 bar) |

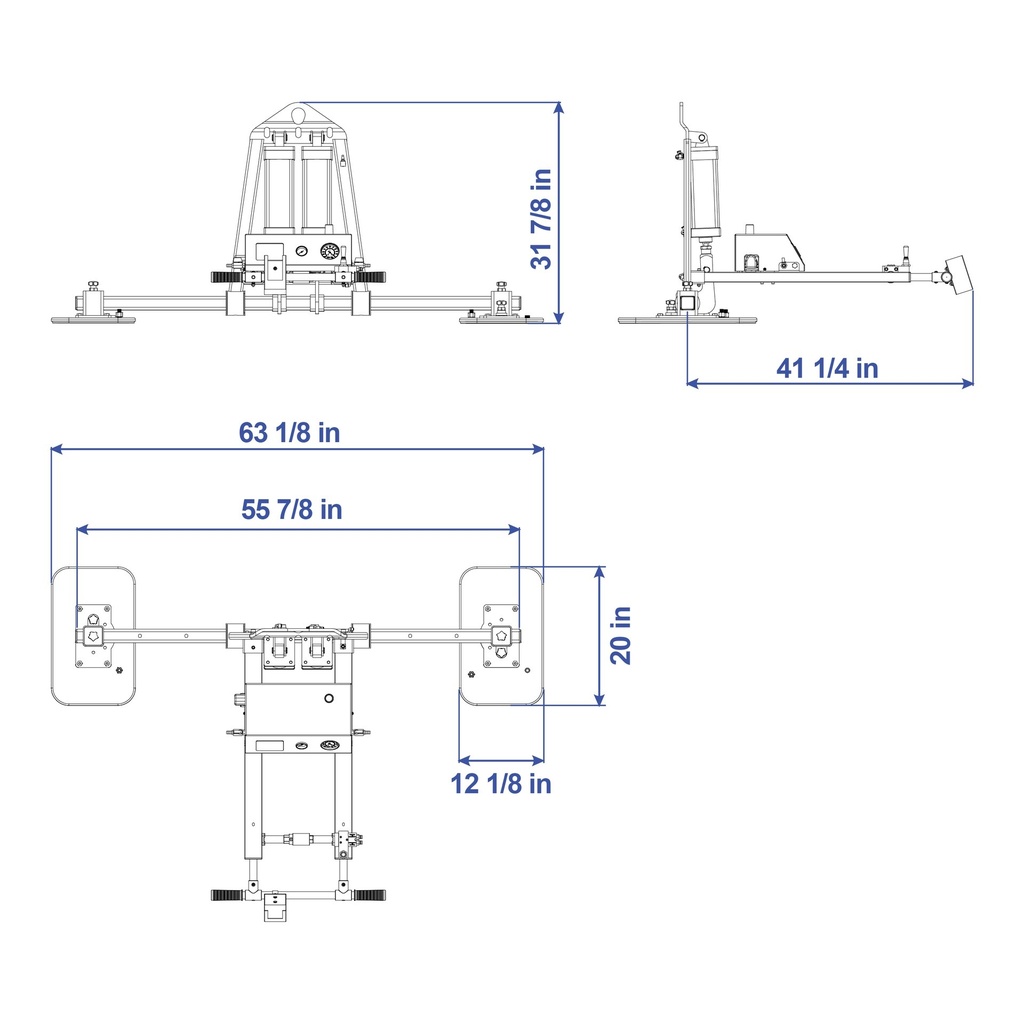

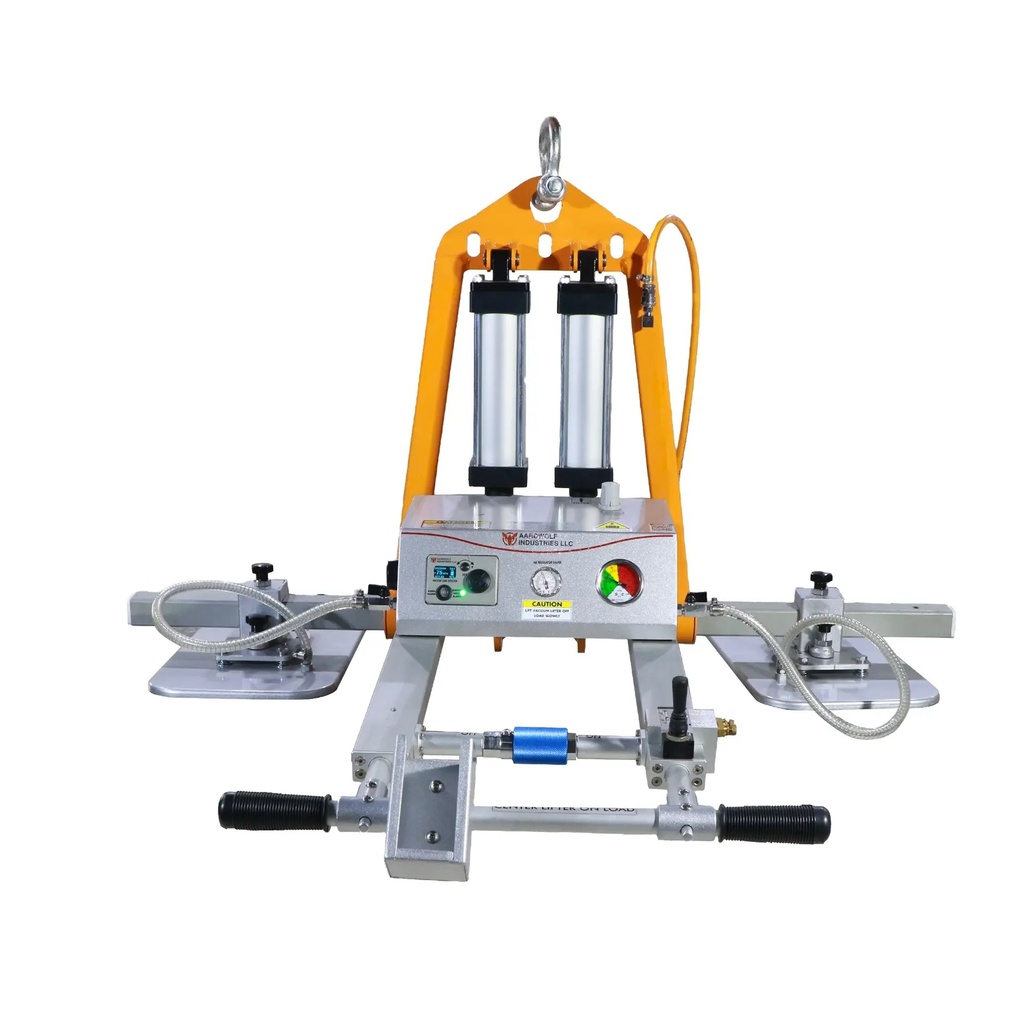

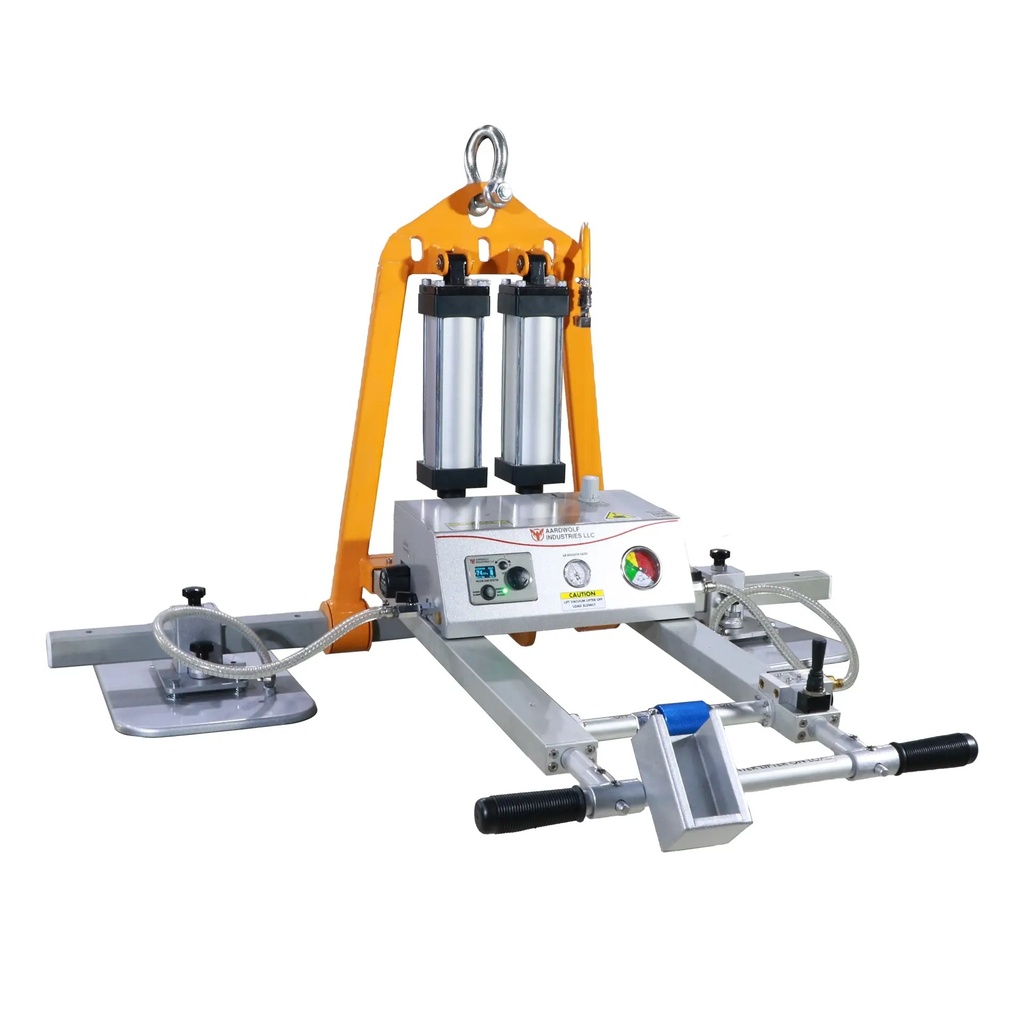

AVLP2PRO-500
| Property | Detail |
|---|---|
| Capacity, Vertical | 551 lb (250 kg) |
| Capacity, Horizontal | 1,102 lb (500 kg) |
| Number of Pads | 2 |
| Pump Type | Pneumatic / compressed-air vacuum |
| Tilting | Pneumatic 0–90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual |
| Compatible Materials | Marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |
| Pad Size | 19 3/4" × 11 3/4" (500 × 300 mm) |
| Air Consumption | 6.4 CFM (180 L/min) @ 72 PSI (5 bar) |

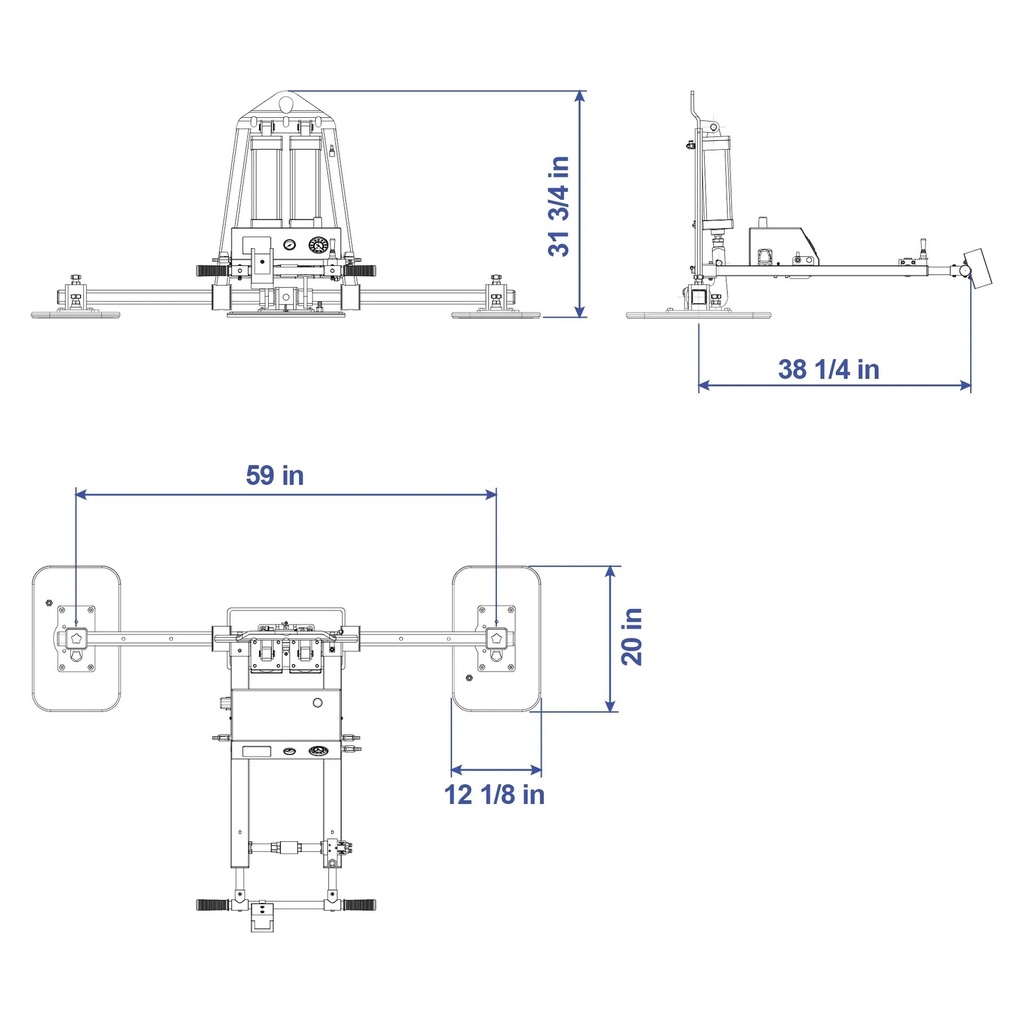

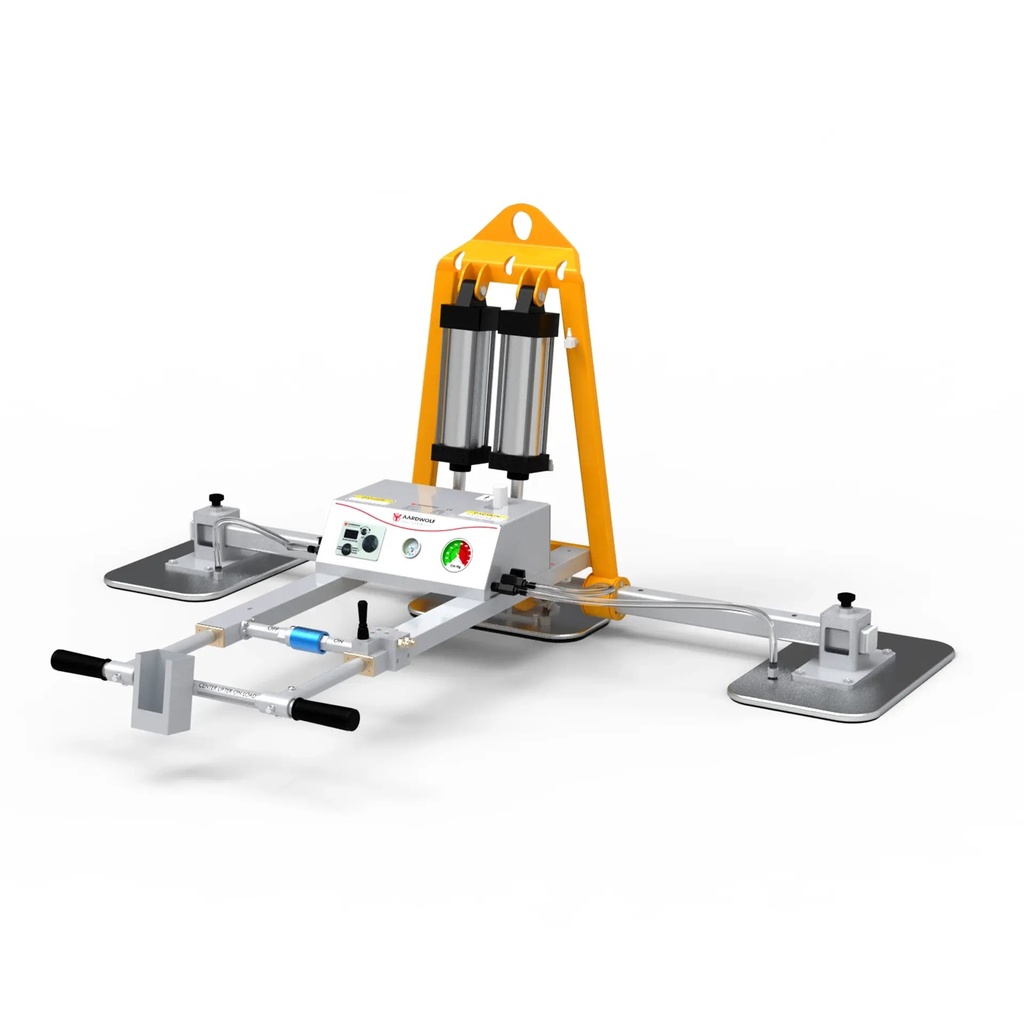

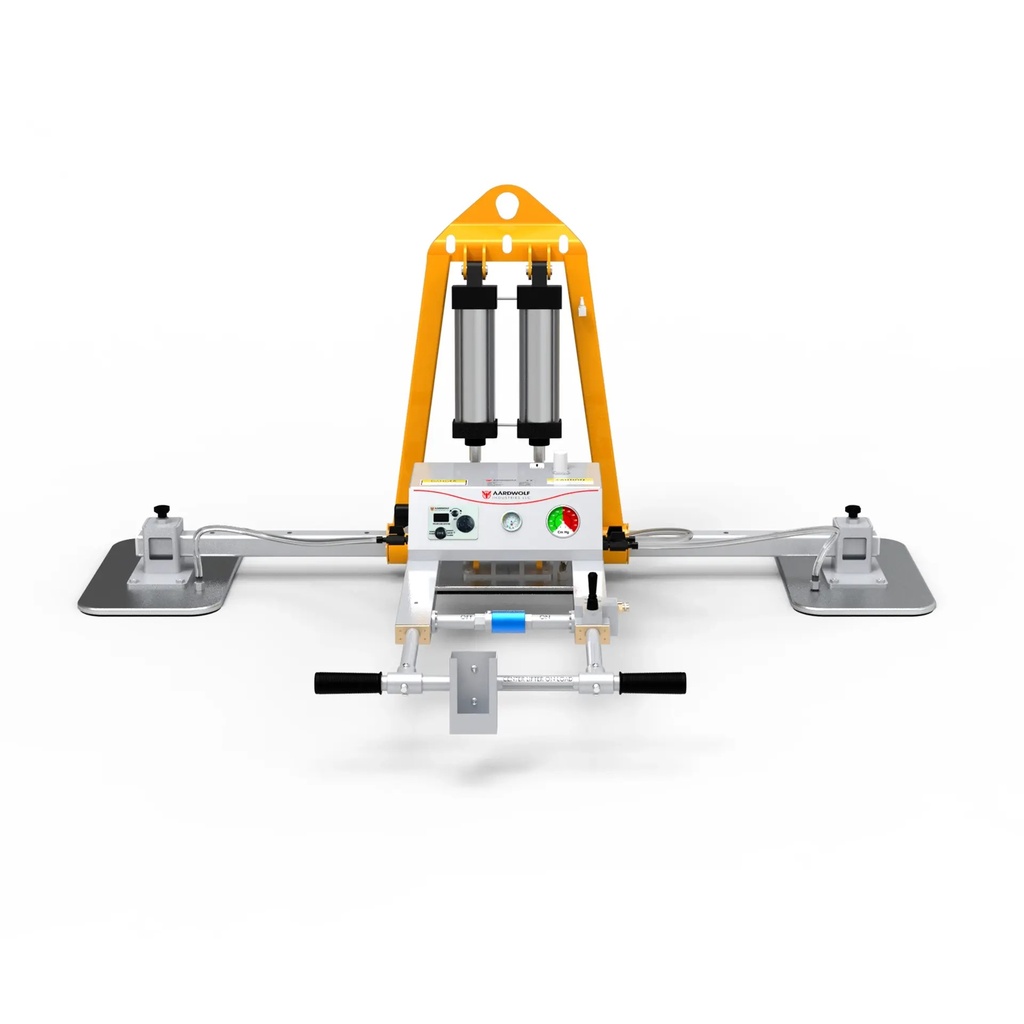

AVLP3-600P
| Property | Detail |
|---|---|
| Capacity, Vertical | 661 lb (300 kg) |
| Capacity, Horizontal | 1,323 lb (600 kg) |
| Number of Pads | 3 |
| Pump Type | Pneumatic / compressed-air vacuum |
| Tilting | Pneumatic 0–90° |
| Rotation | Manual 360° |
| Vacuum Tank | Yes |
| Alarm | Audio + visual |
| Compatible Materials | Marble, granite, stone slabs |
| Operation | Compressed-air pneumatic lifting |
| Country of Origin | Vietnam |
| Pad Size | 19 3/4" × 11 3/4" (500 × 300 mm) |
| Air Consumption | 6.4 CFM (180 L/min) @ 72 PSI (5 bar) |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
Manufacturer demonstration of the AVLP1-250 — same product family; features and operation are representative, ratings differ by model.
