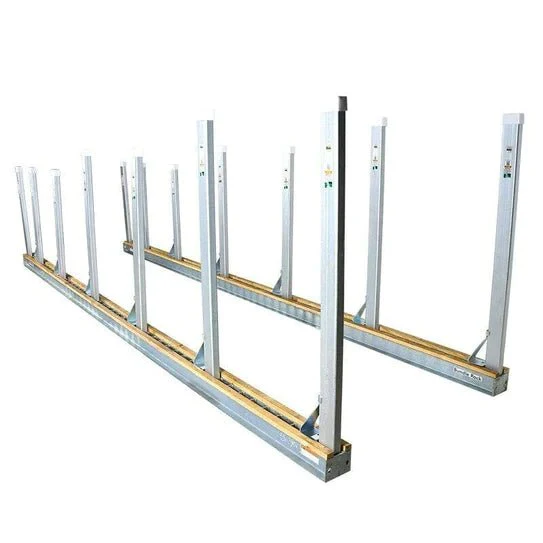

Aardwolf ABR0106 Bundle Rack Kit 47" High

$ 2,259.56 $ 2,259.56
$ 2,259.56

  • Brand
  • Package Dimensions

This combination does not exist.

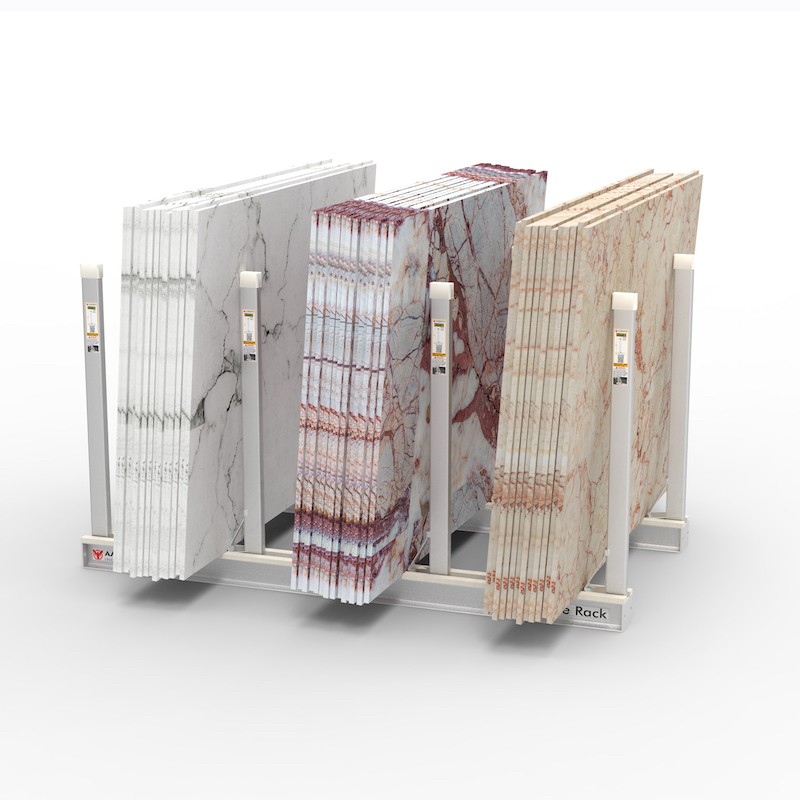

Aardwolf provides the Bundle Rack Kit, which contains a pair of galvanized steel rails 3m long, with rectangular galvanized steel tube posts and steel post bases. The rectangular post can be positioned anywhere along with the rack. All posts are manufactured from rectangular tube steel with a minimum yield strength of 345Mpa and a 5mm wall thickness, ensuring safety for the vertical storage of slab bundles.

Features

  • The bases and seven holes are folded steel, making the rack lightweight.
  • The maximum number of marble or granite slabs that can be safely stored per bay at a 4° lean depends on the slab thickness and dimensions.
  • The bundle rack rail is combined with eight steel tube posts, which have a height of 1200mm and a steel post base of 1200-1400mm for storage.
  • This rack is the best storage solution, offering cost-saving and economic effects for users.
  • Aardwolf has developed a simple calculator to calculate the slab storage capacity precisely.

Specifications

Qty Metric Imperial
Galvanized steel rail 2 3013x167x140 mm 118.6"x6.6"x5.5"
Rack height 160 mm 6.3"
Rectangular hole 101x51 mm 4"x2"
Increment 111 mm 4.4"
Steel tube post 8 100x50x1200 mm 4"x2"x47.2"
Steel post base 6 1200x1400 mm 47.2"x55"
Posts wall thickness 5 mm 0.2"
Rectangular rubber cap 8 100x50 mm 4"x2"
Timber battens per rail 50x20 mm 2"x0.


Specifications

Brand AARDWOLF
Package Dimensions 116" x 48" x 12"
