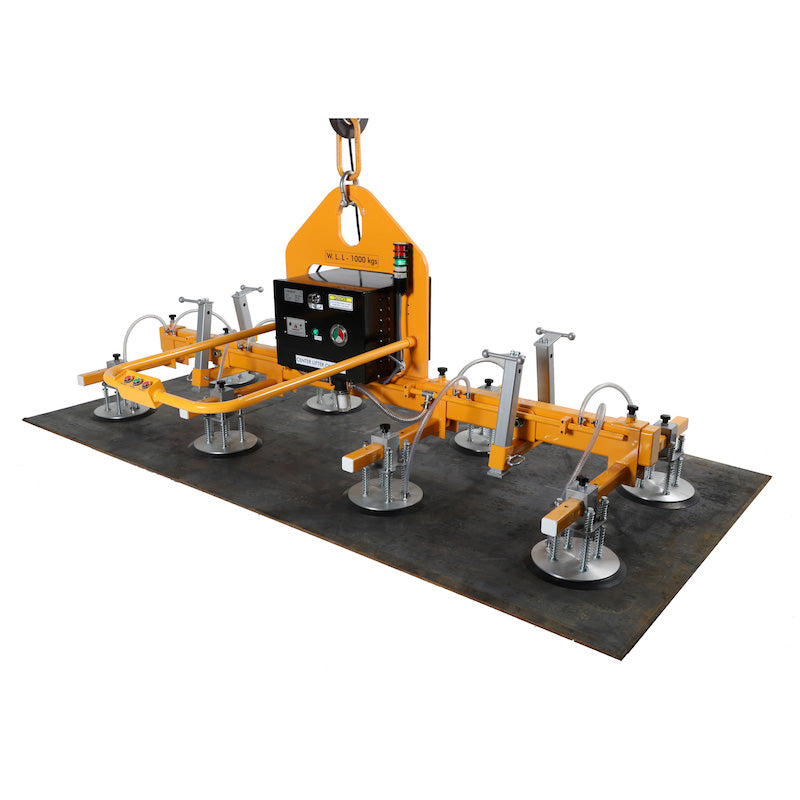

Aardwolf Electric Vacuum Lifter (AEVLP8-1000)
Aardwolf Electric Vacuum Lifter — Eight-pad, electric‑pump system for safe, efficient handling of large metal sheets and other flat, non‑porous materials. Adjustable main beam and pad positions fit varied sheet sizes.
Recommended for: steel and aluminum sheet, coated metals, composite panels, smooth stone, glass (non‑porous surfaces).
- Audio‑visual safety system with pressure‑switch auto‑start of the pump on pressure loss.

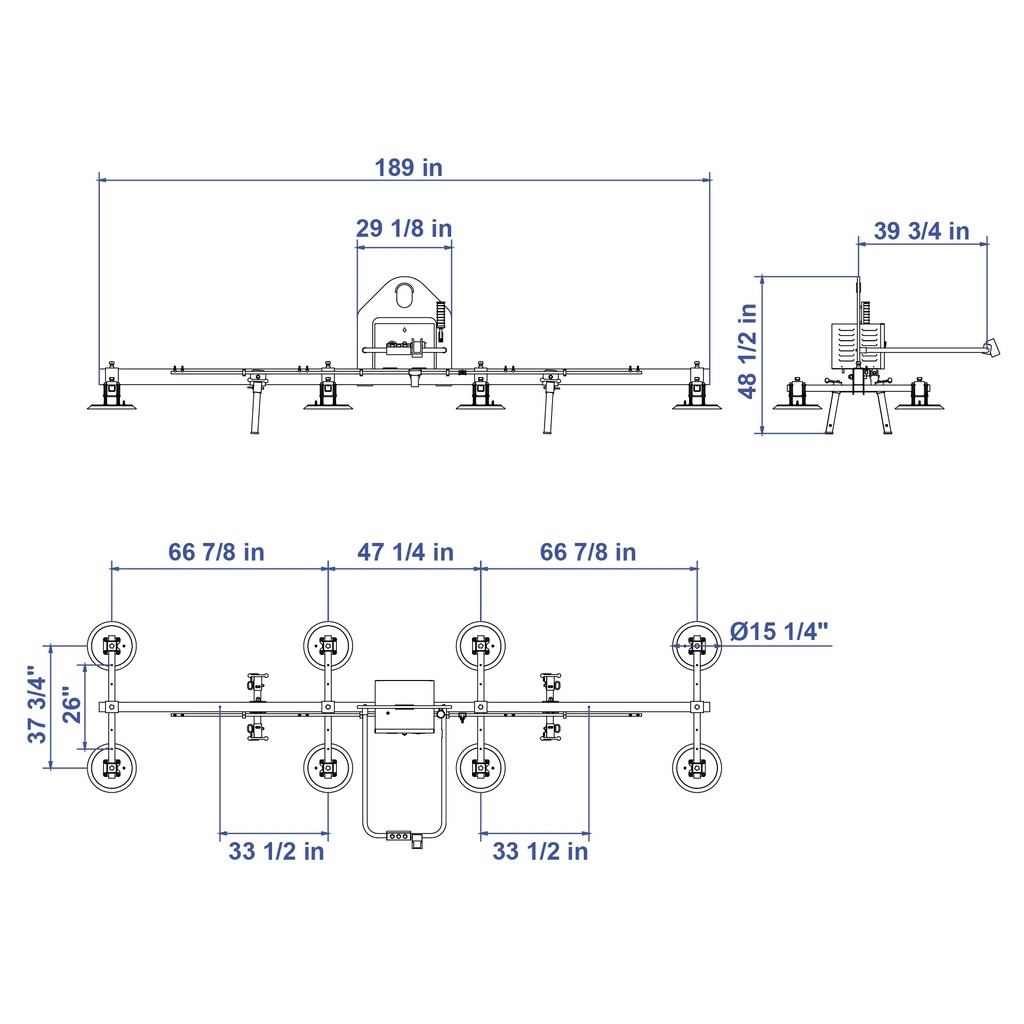

- Adjustable beam and pad layout to suit sheet size (up to approx. 3000 × 1800 mm per Aardwolf spec).
- Dedicated alarm system powered by rechargeable 3.7 V Li‑ion battery (7 h non‑stop working time).
AEVLP8-1000 — Electric Vacuum Lifter (8‑pad)
Specifications
| AEVLP8-1000 | Metric | Imperial |
|---|---|---|
| Number of pads | 8 pcs | - |
| Pad diameter | 300 mm | 11.8" |
| Capacity / WLL | 1000 kg | 2204 lb |
| Alarm battery (power/capacity) | 3.7 V / 2000 mAh | - |
| Alarm battery (runtime) | 7 hours (non‑stop) | - |
| Motor input | AC 380 V, 3‑Phase, 50/60 Hz | - |
| Vacuum flow rate | 4.1 / 4.7 m³/h | - |
| Packaging | 480 × 220 × 124 cm | 189" × 86.6" × 48.8" |
