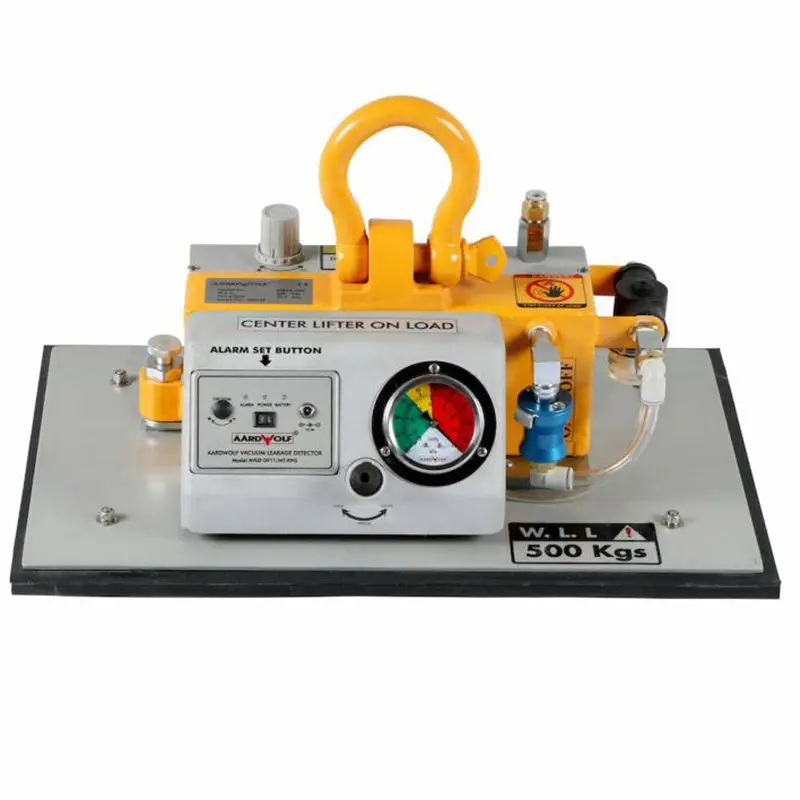

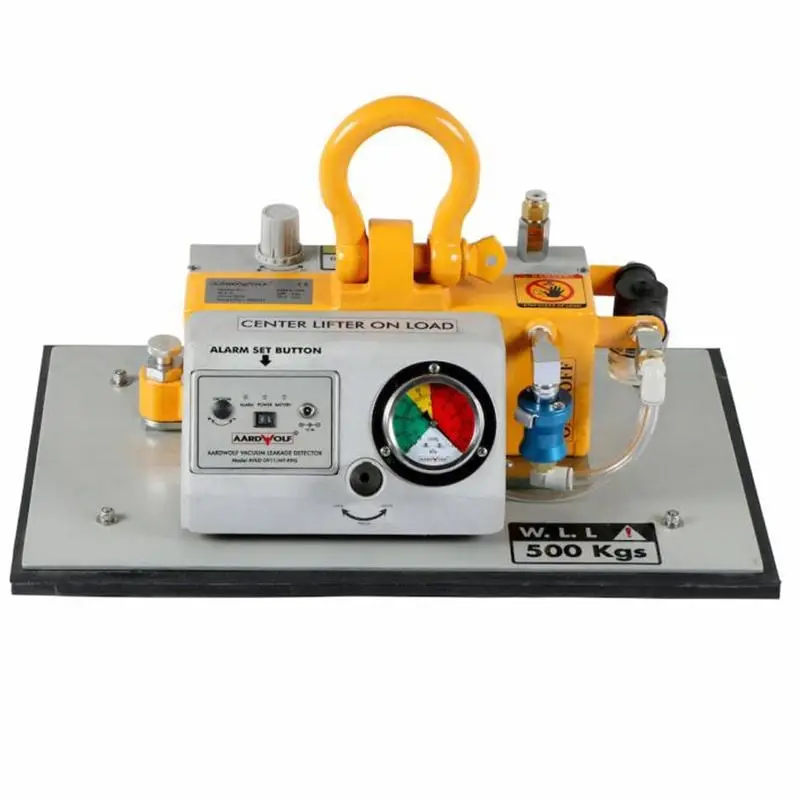

Aardwolf AHVL500 The Handy Vacuum Lifter

(0 review)
LTL $350
$ 2,430.05 $ 2,430.05
$ 2,430.05

  • Brand
  • Package Dimensions
Terms and Conditions
Shipping: 2-3 Business Days
Contact Us

Vacuum lifter, model AHVL 500 is powered by venturi vacuum generator, which requires a source of compressed air in order to function but require no electricity. The vacuum generator has no moving parts and therefore no lubrication is required.

  • Quick change vacuum pad system.
  • Slider valve with on & off position for the attachment of material to vacuum pads and release of material from vacuum pads.
  • Acoustic alarm system. Independently powered by small a 9 V rechargeable battery.
  • Vacuum gauge for visual warning of low vacuum.
Model Working Load Limit Net Weight Gross Weight Package Dimension
AHVL500 20.5 x 5.5: 265 lbs
20.5 x 6.3: 397 lbs
20.5 x 8.7: 639 lbs
20.5 x 12.6: 1058 lbs 		63 lbs 75 lbs 22 x 13.7 x 11.4


Specifications

Brand Aardwolf
Package Dimensions 22" x 13.7" x 11.4"
