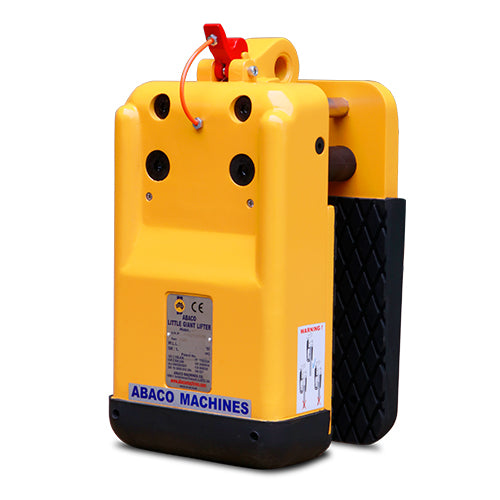

Abaco ALG50-B Little Giant Lifter — Black Rubber Lined Jaws (Stone Slab Clamp)
The ALG50-B is a heavy-duty stone slab lifter from Abaco's Little Giant series, designed for safe vertical handling of granite, marble, engineered stone, and other stone slabs. Black rubber-lined jaws provide high-friction grip ideal for general stone handling.
Features
- Cast aluminum construction for strength and reduced weight
- Rubber-lined jaw pads with high friction and elasticity to prevent slab damage
- 360-degree rotating swivel shackle for seamless handling
- Compact low-profile design for lifting from closely packed racks and containers
- Unbreakable center plate for enhanced safety
- Strong lifting pin
- Straight lift capability
- Force-multiplying clamping ratio of approximately 2.7:1
- Inspect the lifter for damage or wear before each use; ensure rubber pads are intact
- Open the jaws by rotating the handle and position the lifter onto the top edge of the slab
- Ensure the slab thickness is within the 3/8" to 1-15/16" grip range
- Close the jaws and verify the rubber pads are making full contact with both faces of the slab
- Attach the swivel shackle to a hoist, crane hook, or forklift lifting point
- Lift slowly and verify the clamp is gripping securely before full lift
- Transport the slab to the desired location; the swivel shackle allows 360-degree rotation during transit
- Lower the slab gently to the resting surface and release the jaws
| Property | Detail |
|---|---|
| Working Load Limit (WLL) | 2,860 lbs (1,300 kg) |
| Jaw Opening / Grip Range | 3/8" to 1-15/16" (10 - 50 mm) |
| Weight | 50.6 lbs (23 kg) |
| Dimensions (L x W x H) | 8-5/16" x 7-3/16" x 14-9/16" (211 x 183 x 370 mm) |
| Construction | Cast aluminum |
| Shackle | 360-degree swivel shackle included |
| Center Plate | Unbreakable center plate design |
- Granite slabs
- Marble slabs
- Engineered stone / quartz slabs
- Natural stone slabs
- Glass sheets (within thickness range)
ABACO Little Giant Lifter ALG50 — Official Product Demo
ABACO Little Giant Lifter ALG50
How to Lift and Move Slab Stone with Little Giant Lifter
Always wear appropriate PPE. Follow local safety regulations when using power tools or chemical products.
