Alpha Air & Water Hose Assemblies

Alpha® Air, Water & Manifold Hoses

Alpha® offers a complete line of replacement air and water hoses plus manifold adapter hoses, built from Flexzilla® hybrid polymer for all-weather flexibility, zero memory and kink-free performance under pressure. Hoses are available in 15–40 ft. lengths to fit the AIR-680, AIR-830, AIR-850, AIR-680UW, PSC-600 and PSC-150 pneumatic tools, plus 1–3 ft. manifold adapters and 15–40 ft. mobile manifold hoses with hose protector.

Features

All-weather flexibility from −40°F to +140°F (−40°C to 60°C)
Kink-free under pressure
Lightweight and abrasion resistant
Zero memory — lays flat
Made of premium Flexzilla® hybrid polymer

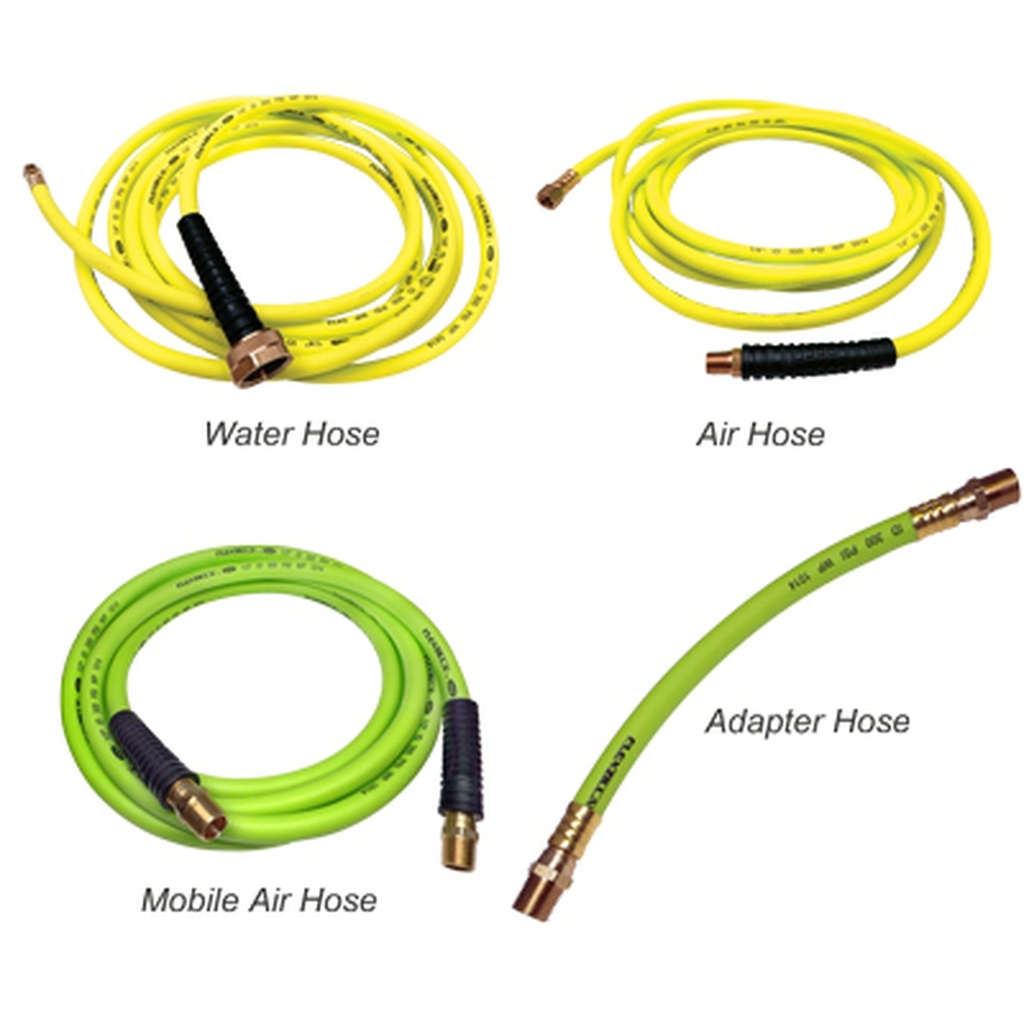

Air, water, adapter and mobile manifold configurations
Threaded ends matched to Alpha® pneumatic tool lineup

Models / Part Numbers

Part No.	Length	Thread	Inside Diameter	UPC
1030-0002	15 ft. (4.5 m)	1/4" NPSM x 1/4" NPT Male	1/4"	749173641565
1030-0003	15 ft. (4.5 m)	1/8" NPSM x 3/4"-11.5 GHT	1/4"	749173641572
1030-0010	20 ft. (6.0 m)	1/4" NPSM x 1/4" NPT Male	1/4"	749173641633
1030-0011	20 ft. (6.0 m)	1/8" NPSM x 3/4"-11.5 GHT	1/4"	749173641640
1030-0012	25 ft. (7.6 m)	1/4" NPSM x 1/4" NPT Male	1/4"	749173641657
1030-0013	25 ft. (7.6 m)	1/8" NPSM x 3/4"-11.5 GHT	1/4"	749173641664
1030-0014	30 ft. (9.1 m)	1/4" NPSM x 1/4" NPT Male	1/4"	749173641671
1030-0015	30 ft. (9.1 m)	1/8" NPSM x 3/4"-11.5 GHT	1/4"	749173641688
1030-0016	35 ft. (10.6 m)	1/4" NPSM x 1/4" NPT Male	1/4"	749173641695
1030-0017	35 ft. (10.6 m)	1/8" NPSM x 3/4"-11.5 GHT	1/4"	749173641701
1030-0018	40 ft. (12.1 m)	1/4" NPSM x 1/4" NPT Male	1/4"	749173641718
1030-0019	40 ft. (12.1 m)	1/8" NPSM x 3/4"-11.5 GHT	1/4"	749173641725
1030-0030	15 ft. (4.5 m)	1/4" NPSM x 3/4"-11.5 GHT	1/4"	749173641732
1030-0031	15 ft. (4.5 m)	3/8" NPSM x 3/8" NPT Male	1/2"	749173641749
1030-0032	20 ft. (6.0 m)	1/4" NPSM x 3/4"-11.5 GHT	1/4"	749173641756
1030-0033	20 ft. (6.0 m)	3/8" NPSM x 3/8" NPT Male	1/2"	749173641763
1030-0034	25 ft. (7.6 m)	1/4" NPSM x 3/4"-11.5 GHT	1/4"	749173641770
1030-0035	25 ft. (7.6 m)	3/8" NPSM x 3/8" NPT Male	1/2"	749173641787
1030-0036	30 ft. (9.1 m)	1/4" NPSM x 3/4"-11.5 GHT	1/4"	749173641794
1030-0037	30 ft. (9.1 m)	3/8" NPSM x 3/8" NPT Male	1/2"	749173641800
1030-0038	35 ft. (10.6 m)	1/4" NPSM x 3/4"-11.5 GHT	1/4"	749173641817
1030-0039	35 ft. (10.6 m)	3/8" NPSM x 3/8" NPT Male	1/2"	749173641824
1030-0040	40 ft. (12.1 m)	1/4" NPSM x 3/4"-11.5 GHT	1/4"	749173641831
1030-0041	40 ft. (12.1 m)	3/8" NPSM x 3/8" NPT Male	1/2"	749173641848

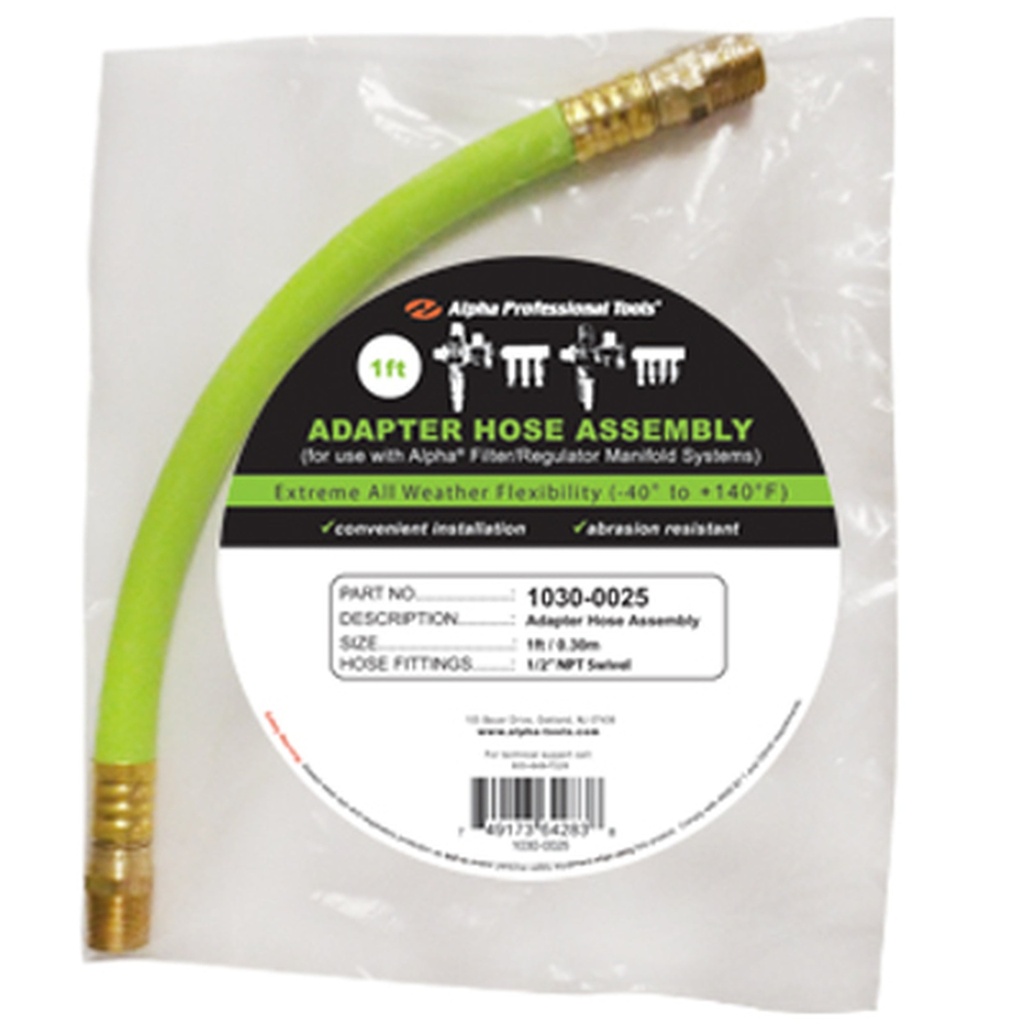

1030-0025	1 ft. (0.3 m)	1/2" NPT Swivel	1/2"	749173642838
1030-0026	2 ft. (0.6 m)	1/2" NPT Swivel	1/2"	749173642845
1030-0027	3 ft. (0.9 m)	1/2" NPT Swivel	1/2"	749173642852

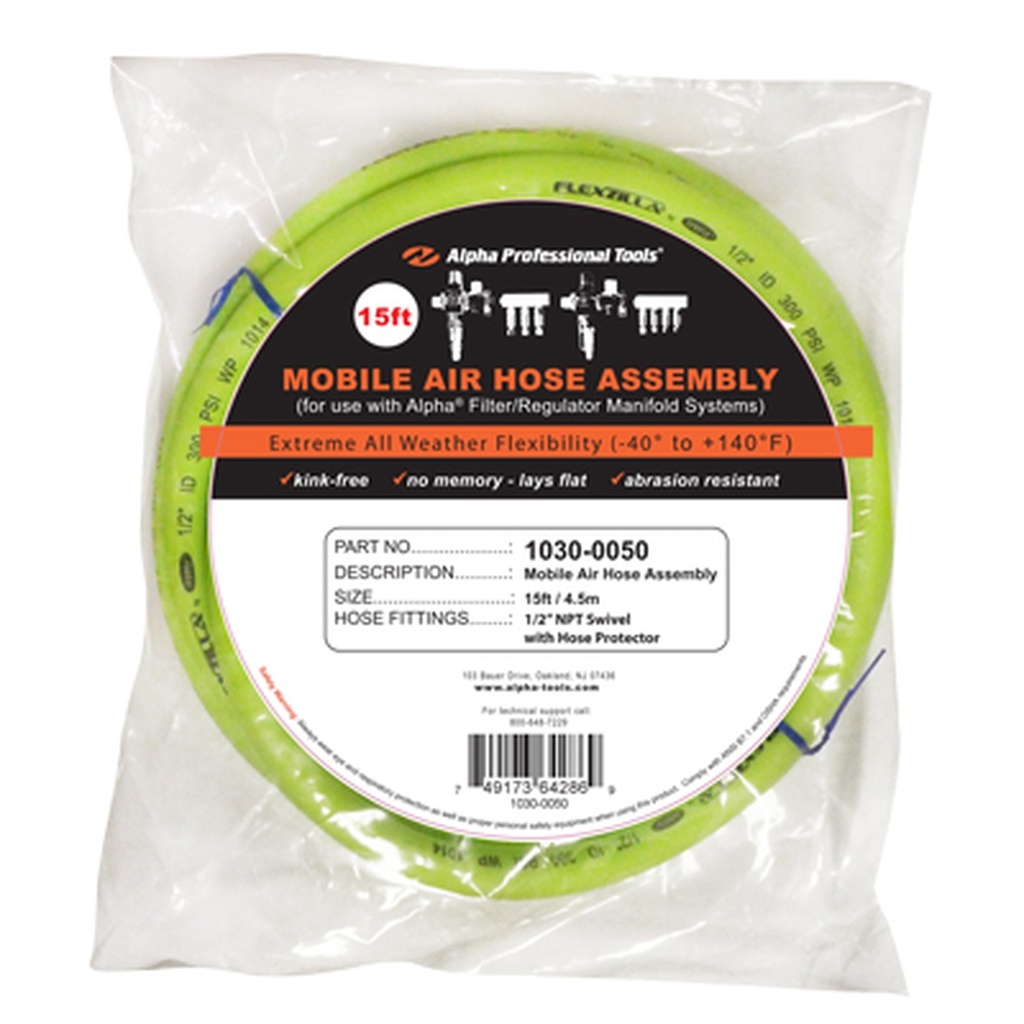

1030-0050	15 ft. (4.5 m)	1/2" NPT Swivel w/ Hose Protector	1/2"	749173642869
1030-0052	20 ft. (6.0 m)	1/2" NPT Swivel w/ Hose Protector	1/2"	749173642876
1030-0054	25 ft. (7.6 m)	1/2" NPT Swivel w/ Hose Protector	1/2"	749173642883
1030-0056	30 ft. (9.1 m)	1/2" NPT Swivel w/ Hose Protector	1/2"	749173642890
1030-0058	35 ft. (10.6 m)	1/2" NPT Swivel w/ Hose Protector	1/2"	749173642906
1030-0060	40 ft. (12.1 m)	1/2" NPT Swivel w/ Hose Protector	1/2"	749173642913

How to Use

Identify the matching Alpha® tool (AIR-680/830/850/680UW, PSC-600 or PSC-150) and the connection type (air, water, adapter or mobile) before ordering.
Confirm the thread on your tool inlet matches the hose end — 1/4" or 3/8" NPT Male for air, 3/4"-11.5 GHT for water.
Hand-thread the hose fitting onto the tool inlet, then snug with a wrench — do not over-tighten.
Pressurize the air line slowly and check all joints for leaks with soapy water before operating the tool.
After use, depressurize, drain water hoses fully, and coil loosely — Flexzilla® has zero memory and stores flat.

Specifications by Variant

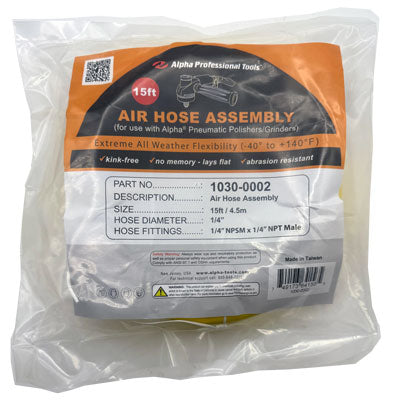

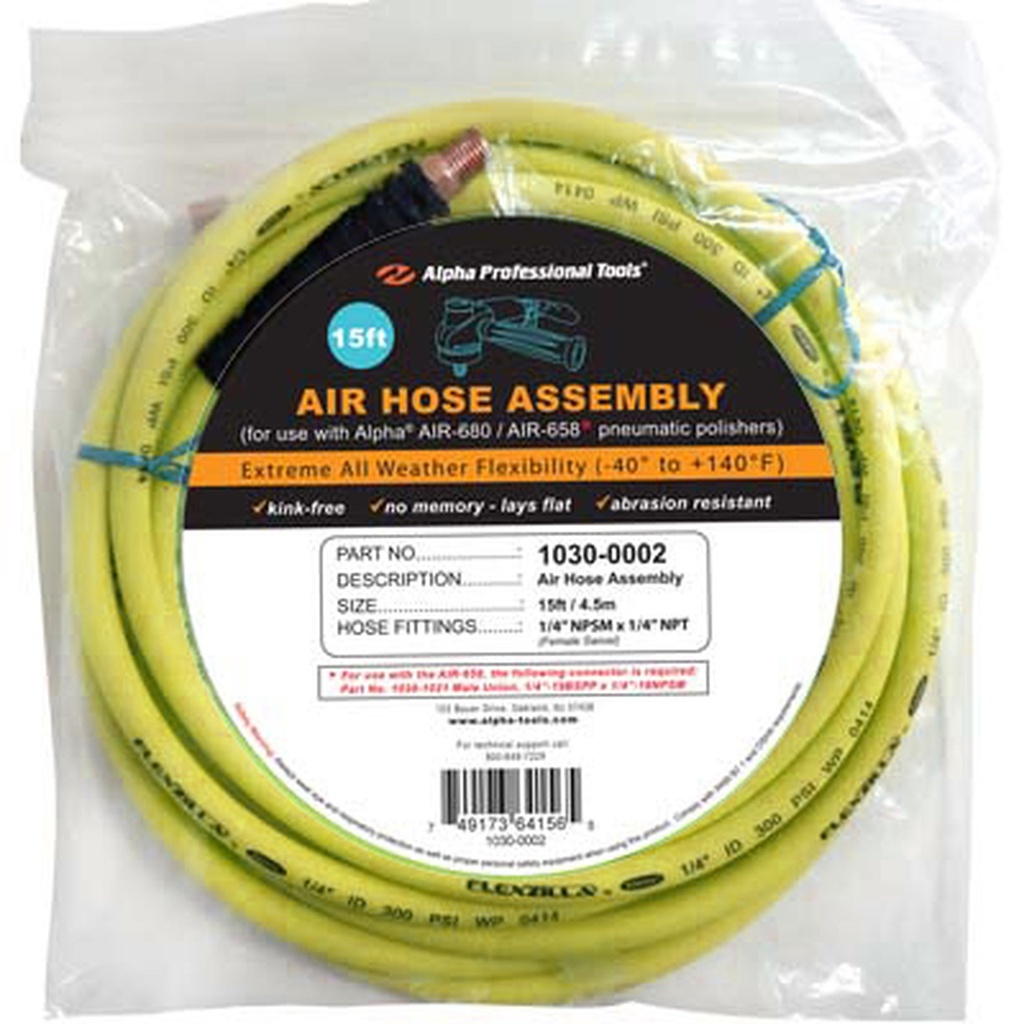

15 ft. (4.5 m) — 1/4" Inside Diameter — Air Hose — 1030-0002

Part No.	1030-0002
UPC	749173641565
Size	15 ft. (4.5 m)
Type	Air Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 1/4" NPT Male
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.06 lbs
Package Dimensions	11" x 11" x 2"
Commodity Code	4009.22.0050
Country of Origin	USA

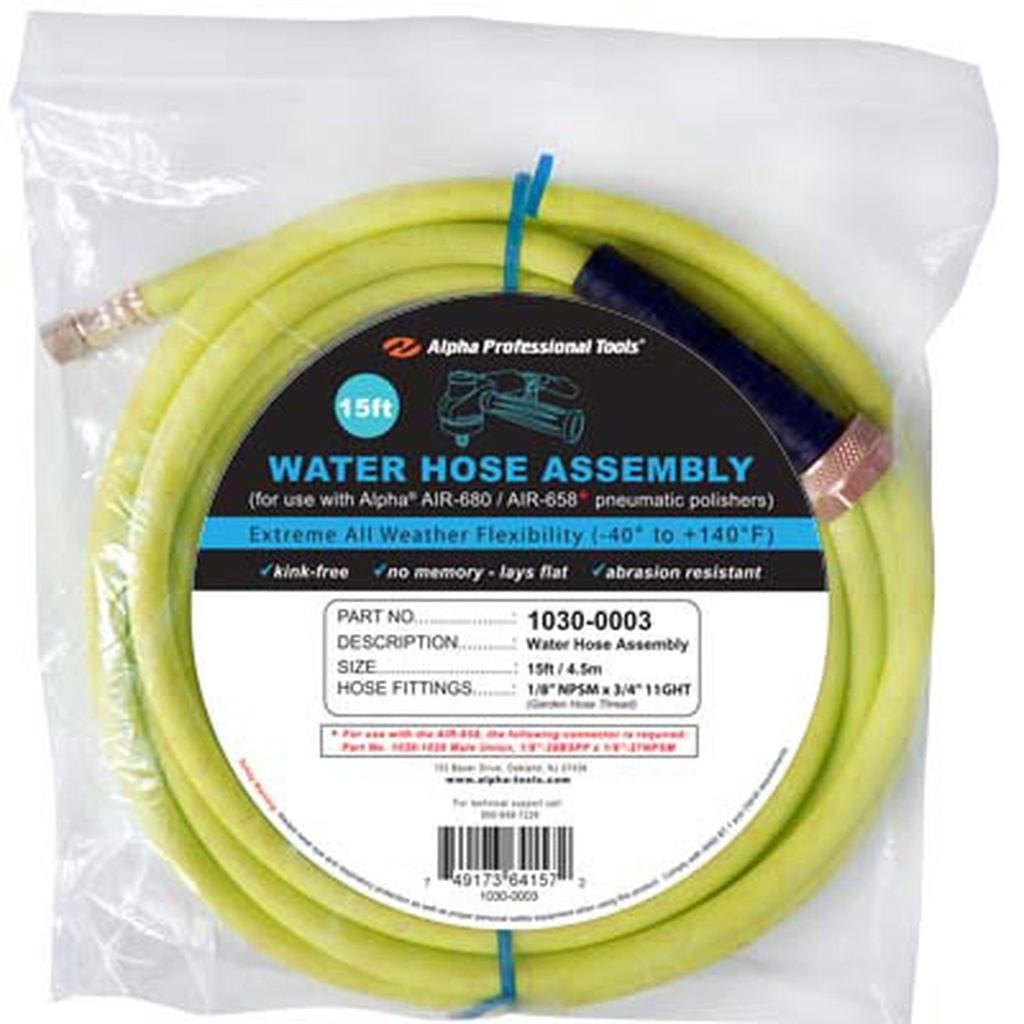

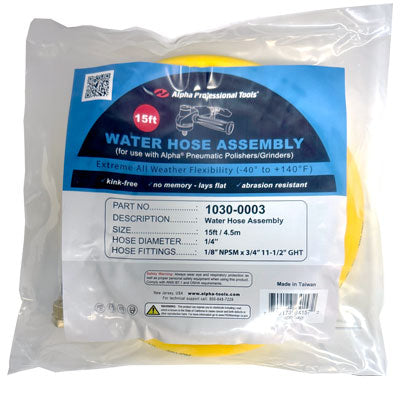

15 ft. (4.5 m) — 1/4" Inside Diameter — Water Hose — 1030-0003

Part No.	1030-0003
UPC	749173641572
Size	15 ft. (4.5 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/8" NPSM x 3/4"-11.5 GHT
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.12 lbs
Package Dimensions	11" x 11" x 2"
Commodity Code	4009.22.0050
Country of Origin	USA

20 ft. (6.0 m) — 1/4" Inside Diameter — Air Hose — 1030-0010

Part No.	1030-0010
UPC	749173641633
Size	20 ft. (6.0 m)
Type	Air Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 1/4" NPT Male
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.32 lbs
Package Dimensions	11" x 11" x 2.5"
Commodity Code	4009.22.0050
Country of Origin	USA

20 ft. (6.0 m) — 1/4" Inside Diameter — Water Hose — 1030-0011

Part No.	1030-0011
UPC	749173641640
Size	20 ft. (6.0 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/8" NPSM x 3/4"-11.5 GHT
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.36 lbs
Package Dimensions	11" x 11" x 2.5"
Commodity Code	4009.22.0050
Country of Origin	USA

25 ft. (7.6 m) — 1/4" Inside Diameter — Air Hose — 1030-0012

Part No.	1030-0012
UPC	749173641657
Size	25 ft. (7.6 m)
Type	Air Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 1/4" NPT Male
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.70 lbs
Package Dimensions	11" x 11" x 3"
Commodity Code	4009.22.0050
Country of Origin	USA

25 ft. (7.6 m) — 1/4" Inside Diameter — Water Hose — 1030-0013

Part No.	1030-0013
UPC	749173641664
Size	25 ft. (7.6 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/8" NPSM x 3/4"-11.5 GHT
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.76 lbs
Package Dimensions	11" x 11" x 3"
Commodity Code	4009.22.0050
Country of Origin	USA

30 ft. (9.1 m) — 1/4" Inside Diameter — Air Hose — 1030-0014

Part No.	1030-0014
UPC	749173641671
Size	30 ft. (9.1 m)
Type	Air Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 1/4" NPT Male
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	1.88 lbs
Package Dimensions	11" x 11" x 3.5"
Commodity Code	4009.22.0050
Country of Origin	USA

30 ft. (9.1 m) — 1/4" Inside Diameter — Water Hose — 1030-0015

Part No.	1030-0015
UPC	749173641688
Size	30 ft. (9.1 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/8" NPSM x 3/4"-11.5 GHT
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	2.04 lbs
Package Dimensions	11" x 11" x 3.5"
Commodity Code	4009.22.0050
Country of Origin	USA

35 ft. (10.6 m) — 1/4" Inside Diameter — Air Hose — 1030-0016

Part No.	1030-0016
UPC	749173641695
Size	35 ft. (10.6 m)
Type	Air Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 1/4" NPT Male
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	2.16 lbs
Package Dimensions	11" x 11" x 3.75"
Commodity Code	4009.22.0050
Country of Origin	USA

35 ft. (10.6 m) — 1/4" Inside Diameter — Water Hose — 1030-0017

Part No.	1030-0017
UPC	749173641701
Size	35 ft. (10.6 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/8" NPSM x 3/4"-11.5 GHT
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	2.38 lbs
Package Dimensions	11" x 11" x 3.75"
Commodity Code	4009.22.0050
Country of Origin	USA

40 ft. (12.1 m) — 1/4" Inside Diameter — Air Hose — 1030-0018

Part No.	1030-0018
UPC	749173641718
Size	40 ft. (12.1 m)
Type	Air Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 1/4" NPT Male
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	2.44 lbs
Package Dimensions	11" x 11" x 4"
Commodity Code	4009.22.0050
Country of Origin	USA

40 ft. (12.1 m) — 1/4" Inside Diameter — Water Hose — 1030-0019

Part No.	1030-0019
UPC	749173641725
Size	40 ft. (12.1 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/8" NPSM x 3/4"-11.5 GHT
Recommended For	AIR-680/830/850/680UW & PSC-600
Packaged Weight	2.72 lbs
Package Dimensions	11" x 11" x 4"
Commodity Code	4009.22.0050
Country of Origin	USA

15 ft. (4.5 m) — 1/4" Inside Diameter — Water Hose — 1030-0030

Part No.	1030-0030
UPC	749173641732
Size	15 ft. (4.5 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 3/4"-11.5 GHT
Recommended For	PSC-150
Packaged Weight	1.20 lbs
Package Dimensions	11" x 11" x 2"
Commodity Code	4009.22.0050
Country of Origin	USA

15 ft. (4.5 m) — 1/2" Inside Diameter — Air Hose — 1030-0031

Part No.	1030-0031
UPC	749173641749
Size	15 ft. (4.5 m)
Type	Air Hose
Attachment	1/2" Inside Diameter
Thread	3/8" NPSM x 3/8" NPT Male
Recommended For	PSC-150
Packaged Weight	2.30 lbs
Package Dimensions	11" x 11" x 2"
Commodity Code	4009.22.0050
Country of Origin	USA

20 ft. (6.0 m) — 1/4" Inside Diameter — Water Hose — 1030-0032

Part No.	1030-0032
UPC	749173641756
Size	20 ft. (6.0 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 3/4"-11.5 GHT
Recommended For	PSC-150
Packaged Weight	2.50 lbs
Package Dimensions	11" x 11" x 2.5"
Commodity Code	4009.22.0050
Country of Origin	USA

20 ft. (6.0 m) — 1/2" Inside Diameter — Air Hose — 1030-0033

Part No.	1030-0033
UPC	749173641763
Size	20 ft. (6.0 m)
Type	Air Hose
Attachment	1/2" Inside Diameter
Thread	3/8" NPSM x 3/8" NPT Male
Recommended For	PSC-150
Packaged Weight	1.32 lbs
Package Dimensions	11" x 11" x 2.5"
Commodity Code	4009.22.0050
Country of Origin	USA

25 ft. (7.6 m) — 1/4" Inside Diameter — Water Hose — 1030-0034

Part No.	1030-0034
UPC	749173641770
Size	25 ft. (7.6 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 3/4"-11.5 GHT
Recommended For	PSC-150
Packaged Weight	2.90 lbs
Package Dimensions	11" x 11" x 3"
Commodity Code	4009.22.0050
Country of Origin	USA

25 ft. (7.6 m) — 1/2" Inside Diameter — Air Hose — 1030-0035

Part No.	1030-0035
UPC	749173641787
Size	25 ft. (7.6 m)
Type	Air Hose
Attachment	1/2" Inside Diameter
Thread	3/8" NPSM x 3/8" NPT Male
Recommended For	PSC-150
Packaged Weight	1.88 lbs
Package Dimensions	11" x 11" x 3"
Commodity Code	4009.22.0050
Country of Origin	USA

30 ft. (9.1 m) — 1/4" Inside Diameter — Water Hose — 1030-0036

Part No.	1030-0036
UPC	749173641794
Size	30 ft. (9.1 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 3/4"-11.5 GHT
Recommended For	PSC-150
Packaged Weight	3.30 lbs
Package Dimensions	11" x 11" x 3.5"
Commodity Code	4009.22.0050
Country of Origin	USA

30 ft. (9.1 m) — 1/2" Inside Diameter — Air Hose — 1030-0037

Part No.	1030-0037
UPC	749173641800
Size	30 ft. (9.1 m)
Type	Air Hose
Attachment	1/2" Inside Diameter
Thread	3/8" NPSM x 3/8" NPT Male
Recommended For	PSC-150
Packaged Weight	2.16 lbs
Package Dimensions	11" x 11" x 3.5"
Commodity Code	4009.22.0050
Country of Origin	USA

35 ft. (10.6 m) — 1/4" Inside Diameter — Water Hose — 1030-0038

Part No.	1030-0038
UPC	749173641817
Size	35 ft. (10.6 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 3/4"-11.5 GHT
Recommended For	PSC-150
Packaged Weight	3.70 lbs
Package Dimensions	11" x 11" x 3.75"
Commodity Code	4009.22.0050
Country of Origin	USA

35 ft. (10.6 m) — 1/2" Inside Diameter — Air Hose — 1030-0039

Part No.	1030-0039
UPC	749173641824
Size	35 ft. (10.6 m)
Type	Air Hose
Attachment	1/2" Inside Diameter
Thread	3/8" NPSM x 3/8" NPT Male
Recommended For	PSC-150
Packaged Weight	2.16 lbs
Package Dimensions	11" x 11" x 3.75"
Commodity Code	4009.22.0050
Country of Origin	USA

40 ft. (12.1 m) — 1/4" Inside Diameter — Water Hose — 1030-0040

Part No.	1030-0040
UPC	749173641831
Size	40 ft. (12.1 m)
Type	Water Hose
Attachment	1/4" Inside Diameter
Thread	1/4" NPSM x 3/4"-11.5 GHT
Recommended For	PSC-150
Packaged Weight	4.10 lbs
Package Dimensions	11" x 11" x 4"
Commodity Code	4009.22.0050
Country of Origin	USA

40 ft. (12.1 m) — 1/2" Inside Diameter — Air Hose — 1030-0041

Part No.	1030-0041
UPC	749173641848
Size	40 ft. (12.1 m)
Type	Air Hose
Attachment	1/2" Inside Diameter
Thread	3/8" NPSM x 3/8" NPT Male
Recommended For	PSC-150
Packaged Weight	2.44 lbs
Package Dimensions	11" x 11" x 4"
Commodity Code	4009.22.0050
Country of Origin	USA

1 ft. (0.3 m) — 1/2" Inside Diameter — Adapter — 1030-0025

Part No.	1030-0025
UPC	749173642838
Size	1 ft. (0.3 m)
Type	Adapter
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel
Recommended For	Manifold
Packaged Weight	0.45 lbs
Commodity Code	3917.33.0000
Country of Origin	USA

2 ft. (0.6 m) — 1/2" Inside Diameter — Adapter — 1030-0026

Part No.	1030-0026
UPC	749173642845
Size	2 ft. (0.6 m)
Type	Adapter
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel
Recommended For	Manifold
Packaged Weight	0.65 lbs
Commodity Code	3917.33.0000
Country of Origin	USA

3 ft. (0.9 m) — 1/2" Inside Diameter — Adapter — 1030-0027

Part No.	1030-0027
UPC	749173642852
Size	3 ft. (0.9 m)
Type	Adapter
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel
Recommended For	Manifold
Packaged Weight	1.30 lbs
Commodity Code	3917.33.0000
Country of Origin	USA

15 ft. (4.5 m) — 1/2" Inside Diameter — Mobile — 1030-0050

Part No.	1030-0050
UPC	749173642869
Size	15 ft. (4.5 m)
Type	Mobile
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel w/ Hose Protector
Recommended For	Manifold
Commodity Code	3917.33.0000
Country of Origin	USA

20 ft. (6.0 m) — 1/2" Inside Diameter — Mobile — 1030-0052

Part No.	1030-0052
UPC	749173642876
Size	20 ft. (6.0 m)
Type	Mobile
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel w/ Hose Protector
Recommended For	Manifold
Commodity Code	3917.33.0000
Country of Origin	USA

25 ft. (7.6 m) — 1/2" Inside Diameter — Mobile — 1030-0054

Part No.	1030-0054
UPC	749173642883
Size	25 ft. (7.6 m)
Type	Mobile
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel w/ Hose Protector
Recommended For	Manifold
Commodity Code	3917.33.0000
Country of Origin	USA

30 ft. (9.1 m) — 1/2" Inside Diameter — Mobile — 1030-0056

Part No.	1030-0056
UPC	749173642890
Size	30 ft. (9.1 m)
Type	Mobile
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel w/ Hose Protector
Recommended For	Manifold
Commodity Code	3917.33.0000
Country of Origin	USA

35 ft. (10.6 m) — 1/2" Inside Diameter — Mobile — 1030-0058

Part No.	1030-0058
UPC	749173642906
Size	35 ft. (10.6 m)
Type	Mobile
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel w/ Hose Protector
Recommended For	Manifold
Commodity Code	3917.33.0000
Country of Origin	USA

40 ft. (12.1 m) — 1/2" Inside Diameter — Mobile — 1030-0060

Part No.	1030-0060
UPC	749173642913
Size	40 ft. (12.1 m)
Type	Mobile
Attachment	1/2" Inside Diameter
Thread	1/2" NPT Swivel w/ Hose Protector
Recommended For	Manifold
Commodity Code	3917.33.0000
Country of Origin	USA

Common Specifications

Property	Detail
Hose Material	Flexzilla® hybrid polymer
Operating Temperature	−40°F to +140°F
Country of Origin	USA

Related & Companion Products

FAQs

No frequently-asked questions are currently published for this product. Contact us at e-commerce@dynamicstonetools.com.

Videos

No product-specific videos are currently available from the manufacturer or DST.

Documentation

📄 Essential Pneumatic Tool Accessories — FR Manifold Flyer

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.

Size	1' (0.3m), 2ft. (0.6m), 3ft. (0.9m), 15ft. (4.5m), 20ft. (6.0m), 25ft. (7.6m), 30ft. (9.1m), 35ft. (10.6m), 40ft. (12.1m)
Hose Type	1/4" Water Hose for PSC-150, 1/4" Air Hose for AIR-600/800, 1/4" Water Hose for AIR-600/800, 1/2" Air Hose for PSC-150, Adapter Hose, Mobile Air Hose
Brand	Alpha
