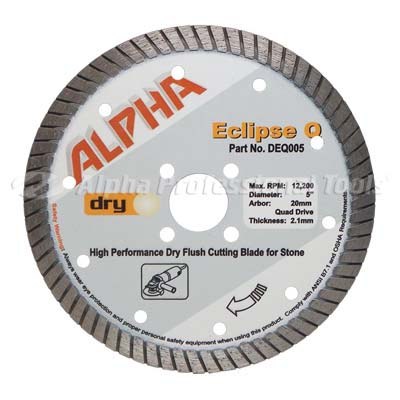

Alpha Eclipse Q High Performance Dry Flush Cutting Blade

(0 review)
$ 48.56 $ 48.56
$ 48.56
  • Brand
  • Size
  • Wet / Dry Use - Wet & Dry
  • Material to Cut - Granite
  • Machine Type - Angle Grinder
Contact Us
Terms and Conditions
Size 5" / 20mm Arbor, 5" / 7/8" Arbor, 6" / 20mm Arbor, 6" / 7/8" Arbor, 7" / 20mm Arbor, 8" / 20mm Flange
Material to Cut Granite, Engineered Stone / Quartz, Concrete & Masonry
Brand Alpha
Wet / Dry Use Wet & Dry
Machine Type Angle Grinder

Alpha® Eclipse Q High-Performance Dry Flush-Cutting Blade

The Alpha® Eclipse Q is a high-performance turbo blade engineered for flush cutting and 90-degree inside-corner work on tile, brick, block, concrete, slate and natural stone — including granite. An 8mm tall diamond layer delivers long blade life and consistent, chip-free cutting on common building materials. The Eclipse Q is paired with the Alpha® Quad Drive or Flange Adapter system so it can run safely on most high-speed angle grinders found in stone and construction shops.

Features

  • Specially designed for flush cutting and 90° inside corners
  • 8mm tall diamond layer for extended blade life
  • Smooth, chip-free performance on medium-to-soft granite (also cuts hard varieties)
  • Available 5", 6", 7" and 8" with 20mm Quad Drive, 7/8" Quad Drive or flanged 8-hole mount
  • Wet- or dry-cuttable — cutting wet extends life and controls silica dust
  • Requires Alpha Quad Drive or Flange Adapter for high-speed angle grinders
Part No. Size Thickness Max RPM Type UPC
DEQ005 5" 2.1mm 12,200 20mm Quad Drive 749173460555
DEQ578 5" 2.1mm 12,200 7/8" Quad Drive 749173461767
DEQ006 6" 2.1mm 10,100 20mm Quad Drive 749173460562
DEQ678 6" 2.1mm 10,100 7/8" Quad Drive 749173461774
DEQ007 7" 2.3mm 8,400 20mm Quad Drive 749173460579
DEQ008 8" 2.3mm 7,400 20mm Flange (8 holes) 749173460586
  1. Confirm the blade arbor (20mm Quad Drive, 7/8" Quad Drive, or 20mm 8-hole flange) matches the Alpha adapter on your grinder.
  2. Mount the blade with the proper Quad Drive (BAH/AAH) or Flange Adapter — never run the Eclipse Q without an adapter.
  3. Check the grinder's max RPM is at or below the blade's rated speed (12,200 RPM for 5", 10,100 RPM for 6", 8,400 RPM for 7", 7,400 RPM for 8").
  4. Make light passes for flush cuts and 90° inside corners; let the blade do the work to avoid chipping.
  5. For best dust control and longer life, cut wet whenever the substrate and grinder allow it.
  6. Do not use the Eclipse Q for groove cutting — use the Alpha® Groove Cutter for that application.
5" — 20mm Quad Drive — DEQ005
Part No. DEQ005
UPC 749173460555
Size 5"
Type 20mm Quad Drive
Recommended For Flush cutting on tile, brick, block, concrete, slate and natural stone (incl. granite)
Packaged Weight 0.40 lbs
Package Dimensions 5.5" x 5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
6" — 20mm Quad Drive — DEQ006
Part No. DEQ006
UPC 749173460562
Size 6"
Type 20mm Quad Drive
Recommended For Flush cutting on tile, brick, block, concrete, slate and natural stone (incl. granite)
Packaged Weight 0.60 lbs
Package Dimensions 6" x 5.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
7" — 20mm Quad Drive — DEQ007
Part No. DEQ007
UPC 749173460579
Size 7"
Type 20mm Quad Drive
Recommended For Flush cutting on tile, brick, block, concrete, slate and natural stone (incl. granite)
Packaged Weight 0.90 lbs
Package Dimensions 7.5" x 7.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
8" — 20mm Flange (8 holes) — DEQ008
Part No. DEQ008
UPC 749173460586
Size 8"
Type 20mm Flange (8 holes)
Recommended For Flush cutting on tile, brick, block, concrete, slate and natural stone (incl. granite)
Packaged Weight 1.00 lbs
Package Dimensions 8.5" x 8.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
5" — 7/8" Quad Drive — DEQ578
Part No. DEQ578
UPC 749173461767
Size 5"
Type 7/8" Quad Drive
Recommended For Flush cutting on tile, brick, block, concrete, slate and natural stone (incl. granite)
Packaged Weight 0.40 lbs
Package Dimensions 5.5" x 5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
6" — 7/8" Quad Drive — DEQ678
Part No. DEQ678
UPC 749173461774
Size 6"
Type 7/8" Quad Drive
Recommended For Flush cutting on tile, brick, block, concrete, slate and natural stone (incl. granite)
Packaged Weight 0.60 lbs
Package Dimensions 6" x 5.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
Property Detail
Application Flush cutting and 90° inside corners on stone, masonry and tile
Diamond Layer Height 8mm
Cutting Mode Dry or wet
Recommended Tool High-speed angle grinder with Alpha Quad Drive / Flange Adapter
Country of Origin Japan
What materials can the Eclipse Q cut?

Tile, brick, block, concrete, slate and natural stone including granite. It is best suited to medium-to-soft granite, but will also cut harder varieties.

Can I run the Eclipse Q wet?

Yes. Wet cutting generally extends blade life and keeps harmful silica dust out of the air.

Why must I use a Quad Drive or Flange Adapter?

The Eclipse Q is engineered to run on the Alpha Quad Drive / Flange Adapter system. It must always be paired with the proper adapter — never mount it directly to a grinder spindle.

What is the diamond layer height?

8mm, which gives the blade extended service life compared to standard turbo blades.

Can I use the Eclipse Q for groove cutting?

No. Use the Alpha® Groove Cutter for grooves. The Eclipse Q is built for flush cuts and 90° inside corners.

Can I mount it on a polisher?

No. Polisher RPM is too low; use a high-speed angle grinder rated at or above the blade's max RPM.

Angle Grinder w/Eclipse Q on Granite

⚠ WARNING: This product can expose you to chemicals including Cobalt, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Always wear appropriate PPE.
