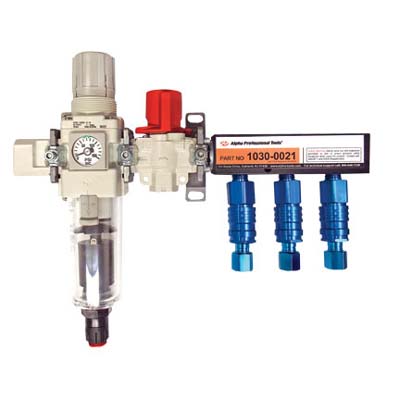

Alpha® Filter/Regulator Manifold System
Alpha® Filter/Regulator (F/R) Manifold Systems protect pneumatic tools from rust and contamination in shop air piping — the leading cause of premature wear in air-powered polishers, grinders and stone cutters. Each system pairs a 5-micron filter/regulator with shut-off / dump valve and an aluminum quick-disconnect manifold, available in 53 CFM (3-port) and 106 CFM (4-port) configurations to feed single or multiple tools at consistent regulated pressure up to 145 PSI.
Features
- 5-micron filter element removes moisture, rust and debris from shop air
- Integrated regulator with shut-off / dump valve, max pressure 145 PSI
- Aluminum manifold with three (53 CFM) or four (106 CFM) quick disconnects
- Helps prevent pressure drop when running multiple high-CFM tools
- Adapts to existing 3/8", 1/2" or 3/4" NPT shop piping
- Kit option available for shops with an existing ball/shut-off valve
- Couplers compatible with Milton V/M, Truflate Hi-Flo/I/M, Flexilla High-Flow, Primefit HF, Amflo Type D, Camel Type D, Campbell Hausfeld I/M
- Made in USA
| Part No. | Size | Threads | Type | UPC |
|---|---|---|---|---|
| 1030-0021 | 53 CFM | 3/8" NPT | 3/8" Filter/Regulator Manifold System | 749173642791 |
| 1030-0022 | 53 CFM | 1/2" NPT | 3/8" Filter/Regulator Manifold System | 749173642807 |
| 1030-0023 | 106 CFM | 1/2" NPT | 1/2" Filter/Regulator Manifold System | 749173642814 |
| 1030-0024 | 106 CFM | 3/4" NPT | 1/2" Filter/Regulator Manifold System | 749173642821 |
| 1030-0070 | ||||
| 1030-0071 | ||||
| 1030-0072 | 53 CFM | 1/2" IN-1/2" OUT | 3/8" Filter/Regulator Kit | 749173644429 |
| 1030-0075 |
- Mount the F/R manifold close to the point of use, downstream of any main shop dryer or in-line filter.
- Adjust shop compressor output to 145 PSI or lower — the Alpha® F/R has a 145 PSI max pressure rating.
- Connect the manifold to existing shop piping using the supplied NPT inlet (3/8", 1/2" or 3/4" depending on Part No.).
- Plug tools into the aluminum quick disconnects; use the integrated shut-off / dump valve to depressurize before disconnecting hoses.
- Service the 5-micron filter element periodically (call 800-648-7229 ext. 240 for replacements). Do not use an automatic in-line oiler — lubricate tools manually with Alpha® Rust Inhibitor Oil (AIR-008) at end of each workday.
53 CFM — 3/8" Filter/Regulator Manifold System — 1030-0021
| Part No. | 1030-0021 |
| UPC | 749173642791 |
| Size | 53 CFM |
| Type | 3/8" Filter/Regulator Manifold System |
| Thread | 3/8" NPT |
| Recommended For | Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers & (3) 1/4" Female NPT Plugs |
| Packaged Weight | 4.70 lbs |
| Package Dimensions | 16" x 12" x 6.75" |
| Commodity Code | 7616.99.5000 |
| Country of Origin | USA |
53 CFM — 3/8" Filter/Regulator Manifold System — 1030-0022
| Part No. | 1030-0022 |
| UPC | 749173642807 |
| Size | 53 CFM |
| Type | 3/8" Filter/Regulator Manifold System |
| Thread | 1/2" NPT |
| Recommended For | Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers & (3) 1/4" Female NPT Plugs |
| Packaged Weight | 5.05 lbs |
| Package Dimensions | 16" x 12" x 6.75" |
| Commodity Code | 7616.99.5000 |
| Country of Origin | USA |
106 CFM — 1/2" Filter/Regulator Manifold System — 1030-0023
| Part No. | 1030-0023 |
| UPC | 749173642814 |
| Size | 106 CFM |
| Type | 1/2" Filter/Regulator Manifold System |
| Thread | 1/2" NPT |
| Recommended For | Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers, (3) 1/4" Female NPT Plugs & (1) 3/8" Female NPT Plug |
| Packaged Weight | 6.70 lbs |
| Package Dimensions | 18" x 14.25" x 6.75" |
| Commodity Code | 7616.99.5000 |
| Country of Origin | USA |
106 CFM — 1/2" Filter/Regulator Manifold System — 1030-0024
| Part No. | 1030-0024 |
| UPC | 749173642821 |
| Size | 106 CFM |
| Type | 1/2" Filter/Regulator Manifold System |
| Thread | 3/4" NPT |
| Recommended For | Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers, (3) 1/4" Female NPT Plugs & (1) 3/8" Female NPT Plug |
| Packaged Weight | 6.70 lbs |
| Package Dimensions | 18" x 14.25" x 6.75" |
| Commodity Code | 7616.99.5000 |
| Country of Origin | USA |
53 CFM — 3/8" Filter/Regulator Kit — 1030-0072
| Part No. | 1030-0072 |
| UPC | 749173644429 |
| Size | 53 CFM |
| Type | 3/8" Filter/Regulator Kit |
| Thread | 1/2" IN-1/2" OUT |
| Recommended For | Filter/Regulator, Adapter Blocks & T-Clamps |
| Packaged Weight | 2.55 lbs |
| Package Dimensions | 12" x 9" x 6" |
| Commodity Code | 7616.99.5000 |
| Country of Origin | USA |
| Property | Detail |
|---|---|
| Max Operating Pressure | 145 PSI |
| Filter Element | 5 micron |
| Manifold Material | Aluminum |
| Country of Origin | USA |
Must I use the 3-port Relief Valve if a ball valve is already installed on my line?
No. You can order just the Filter/Regulator Kit (1030-0072) with adapter blocks and T-clamps, or build a custom assembly from individual manifold parts.
Will the system run on a 165 PSI compressor?
Not directly — the Alpha® Filter/Regulator is rated to a 145 PSI maximum. Set your compressor output to 145 PSI or lower before connecting.
How do I connect the manifold if shop piping is mounted close to the wall?
Alpha® offers 1/2" NPT Swivel Fitting Adapter Hoses in 1 ft., 2 ft. and 3 ft. lengths, plus 15–40 ft. mobile manifold hoses so the F/R can be repositioned closer to the point of use.
Where do I get replacement 5-micron filter elements?
Contact your authorized Alpha dealer, call Alpha at 800-648-7229 ext. 240, or order through the website BUY NOW tab.
Should I add an automatic in-line oiler for tool lubrication?
No. Alpha® does not recommend automatic oilers — oil buildup at the exhaust can stain work surfaces and congeal in cold tools, locking the mechanism. Lubricate manually with Alpha® Rust Inhibitor Oil (AIR-008) at end of each workday.
What happens if compressor oil reaches the filter?
Compressor oil will clog the 5-micron filter element. Service the compressor to eliminate the carryover and replace the filter element.
No product-specific videos are currently available from the manufacturer or DST.
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
