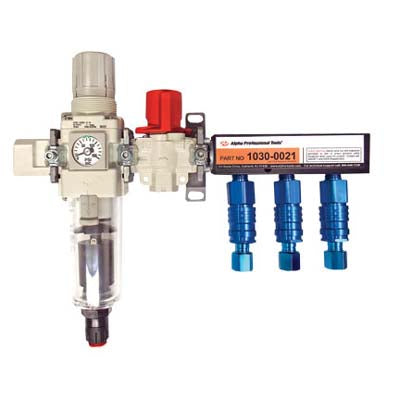

Alpha® Filter/Regulator 3- & 4-Port Manifold System

The Alpha® Filter/Regulator Manifold System protects pneumatic polishers, grinders and stone cutters from rust, moisture and contamination carried through shop air piping — the leading cause of premature wear in air-powered stone fabrication tools. Choose the 3/8" 3-Port (53 CFM) system to feed up to three tools, or step up to the 1/2" 4-Port (106 CFM) system for high-volume shops running multiple high-CFM tools at once, in either NPT or G (BSPP) thread.

Features

  • 5-micron filter element removes moisture, rust and debris from shop air
  • Integrated regulator with shut-off / dump valve, max pressure 145 PSI
  • Aluminum manifold with three (53 CFM) or four (106 CFM) quick-disconnect ports
  • Helps prevent pressure drop when running multiple high-CFM tools
  • Adapts to existing 3/8", 1/2" or 3/4" NPT (or G/BSPP) shop piping
  • Couplers compatible with Milton V/M, Truflate Hi-Flo/I/M, Flexilla High-Flow, Primefit HF, Amflo Type D, Campbell Hausfeld I/M
  • Designed to extend tool life and protect internal vane mechanisms
  • Made in USA
Part No. Size Threads Ports UPC
1040-1000 53 CFM 3/8" NPT 3 749173653735
1040-1001 106 CFM 1/2" NPT 4 749173653742
1040-1002 53 CFM 3/8" G 3 749173653759
1040-1003 106 CFM 1/2" G 4 749173653766
  1. Mount the F/R manifold close to the point of use, downstream of any main shop dryer or in-line filter.
  2. Adjust shop compressor output to 145 PSI or lower — the Alpha® F/R has a 145 PSI max pressure rating.
  3. Connect the manifold to existing shop piping using the supplied inlet thread (NPT for North American shops, G/BSPP for export markets).
  4. Plug tools into the aluminum quick disconnects; use the integrated shut-off / dump valve to depressurize before disconnecting hoses.
  5. Lubricate tools manually at end of each workday with Alpha® Rust Inhibitor Oil (AIR-008) — do not use an automatic in-line oiler.
  6. Service the 5-micron filter element periodically; replace when airflow drops or oil carryover is observed.
53 CFM (3-Port) — 3/8" F/R 3-Port Manifold System — 1040-1000
Part No. 1040-1000
UPC 749173653735
Size 53 CFM (3-Port)
Type 3/8" F/R 3-Port Manifold System
Thread 3/8" NPT
Recommended For Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers & (3) 1/4" Female NPT Plugs
Packaged Weight 4.70 lbs
Package Dimensions 16" x 12" x 6.75"
Commodity Code 7616.99.5000
Country of Origin USA
106 CFM (4-Port) — 1/2" F/R 4-Port Manifold System — 1040-1001
Part No. 1040-1001
UPC 749173653742
Size 106 CFM (4-Port)
Type 1/2" F/R 4-Port Manifold System
Thread 1/2" NPT
Recommended For Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers, (3) 1/4" & (1) 3/8" Female NPT Plugs
Packaged Weight 6.70 lbs
Package Dimensions 18" x 14.25" x 6.75"
Commodity Code 7616.99.5000
Country of Origin USA
53 CFM (3-Port) — 3/8" F/R 3-Port Manifold System (BSPP) — 1040-1002
Part No. 1040-1002
UPC 749173653759
Size 53 CFM (3-Port)
Type 3/8" F/R 3-Port Manifold System (BSPP)
Thread 3/8" G
Recommended For Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers & (3) G-thread Plugs
Packaged Weight 4.70 lbs
Package Dimensions 16" x 12" x 6.75"
Commodity Code 7616.99.5000
Country of Origin USA
106 CFM (4-Port) — 1/2" F/R 4-Port Manifold System (BSPP) — 1040-1003
Part No. 1040-1003
UPC 749173653766
Size 106 CFM (4-Port)
Type 1/2" F/R 4-Port Manifold System (BSPP)
Thread 1/2" G
Recommended For Filter/Regulator, Relief Valve, Adapter Blocks, T-Clamps, Couplers, (3) and (1) G-thread Plugs
Packaged Weight 6.70 lbs
Package Dimensions 18" x 14.25" x 6.75"
Commodity Code 7616.99.5000
Country of Origin USA
Property Detail
Max Operating Pressure 145 PSI
Filter Element 5 micron
Manifold Material Aluminum
Coupler Compatibility Milton V/M, Truflate Hi-Flo/I/M, Flexilla High-Flow, Primefit HF, Amflo Type D, Campbell Hausfeld I/M
Country of Origin USA
Must I use the 3-port Relief Valve if a ball valve is already installed on my line?

No. You can order just the Filter/Regulator Kit with adapter blocks and T-clamps, or build a custom assembly from individual manifold parts.

Will the system run on a 165 PSI compressor?

Not directly — the Alpha® Filter/Regulator is rated to a 145 PSI maximum. Set your compressor output to 145 PSI or lower before connecting.

How do I connect the manifold if shop piping is mounted close to the wall?

Alpha® offers 1/2" NPT Swivel Fitting Adapter Hoses in 1 ft., 2 ft. and 3 ft. lengths, plus 15–40 ft. mobile manifold hoses so the F/R can be repositioned closer to the point of use.

Where do I get replacement 5-micron filter elements?

Contact your authorized Alpha dealer, call Alpha at 800-648-7229 ext. 240, or order through DST.

Should I add an automatic in-line oiler for tool lubrication?

No. Alpha® does not recommend automatic oilers — oil buildup at the exhaust can stain work surfaces and congeal in cold tools, locking the mechanism. Lubricate manually with Alpha® Rust Inhibitor Oil (AIR-008) at end of each workday.

What happens if compressor oil reaches the filter?

Compressor oil will clog the 5-micron filter element. Service the compressor to eliminate the carryover and replace the filter element.

What is the difference between the NPT and G thread variants?

NPT (1040-1000, 1040-1001) is the North American tapered pipe thread standard. G (1040-1002, 1040-1003) is the BSPP parallel thread used in most export markets. Confirm your shop piping standard before ordering.

No product-specific videos are currently available from the manufacturer or DST.

⚠ WARNING: This product can expose you to Nickel, which is known to the State of California to cause cancer. For more information visit www.P65Warnings.ca.gov. Always wear appropriate PPE.
