Alpha Professional Tools Plus Dry Diamond Blade

(0 review)
$ 53.64 $ 53.64
$ 53.64
  • Brand
  • Diameter
  • Wet / Dry Use - Wet & Dry
  • Material to Cut - Granite
  • Machine Type - Angle Grinder
Contact Us
Terms and Conditions
Diameter 4", 4-1/2", 5", 6", 7", 8", 8" Accuglide, 9", 10", 12"
Machine Type Angle Grinder, Tile Saw
Brand Alpha
Wet / Dry Use Wet & Dry
Material to Cut Granite

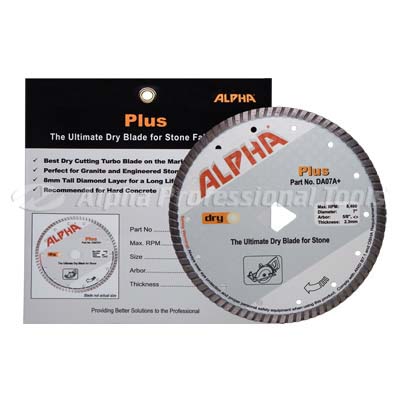

Alpha® Plus — The Ultimate Diamond Blade for Granite

Alpha® Plus is the premium dry-cutting turbo diamond blade engineered for granite, engineered stone, blue stone, marble and hard concrete. An 8 mm tall diamond layer delivers long life, while the high-performance turbo edge provides clean, chip-free cuts on the most demanding applications. Available in 4" through 12" diameters to fit angle grinders, stone cutters, worm drive saws, circular saws and demolition saws.

Features

  • Best dry-cutting turbo blade on the market
  • 8 mm tall diamond layer for extended service life
  • Optimized for granite, engineered stone, blue stone and hard concrete
  • Chip-free cutting on the most demanding applications
  • Fits a broad range of angle grinders, stone cutters, worm drive saws and demolition saws
  • Made in Japan to Alpha Professional Tools quality standards
Part No. Diameter Arbor Max RPM UPC
DA04A+ 4" 20mm, 5/8" 14,500 749173460111
DA0478 4" 7/8", 20mm, 5/8" 14,500 749173462085
DA05A+ 4-1/2" 7/8", 20mm 13,200 749173460135
DA05S 5" 7/8" 12,200 749173460142
DA06A+ 6" 7/8", 5/8" 10,100 749173460166
DA07A+ 7" 5/8" 8,400 749173460197
DA08A+ 8" 5/8" 7,400 749173460210
DA09A+ 9" 7/8", 5/8", Quad-W5 6,600 749173460234
DA10A+ 10" 1", 7/8", 5/8" 5,900 749173460258
DA11A+ 10" 5/8" 5,900 749173460265
DA12A+ 12" 1", 20mm 6,200 749173460289
DA13A+ 12" 20mm 6,200 749173460296
  1. Select the correct diameter and arbor for your tool. Confirm the blade Max RPM equals or exceeds your tool's no-load speed.
  2. Inspect the blade for cracks, missing segments or warping before every use. Do not use a damaged blade.
  3. Mount the blade on a clean spindle with the rotation arrow matching the tool. Tighten the arbor nut firmly per the tool manufacturer's spec.
  4. For dry cutting, take light, repeated passes and let the blade do the work — do not force the cut. Allow the blade to cool between long passes.
  5. For wet cutting, supply a steady water feed to the blade-to-material contact point. Wet cutting extends blade life and controls silica dust.
  6. Use a stone cutter (e.g. AWS-110 / ESC-125) instead of freehand grinding on 5" and smaller diameters for better stability and accuracy.
  7. Never exceed the maximum RPM marked on the blade. Always wear ANSI-rated eye protection, hearing protection and a NIOSH-approved respirator.
4" — 20mm, 5/8" — DA04A+
Part No. DA04A+
UPC 749173460111
Size 4"
Attachment 20mm, 5/8"
Max RPM 14,500
Recommended For Stone Cutter / Angle Grinder
Packaged Weight 0.40 lbs
Package Dimensions 5.25" x 4.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
4" — 7/8", 20mm, 5/8" — DA0478
Part No. DA0478
UPC 749173462085
Size 4"
Attachment 7/8", 20mm, 5/8"
Max RPM 14,500
Recommended For Stone Cutter / Angle Grinder
Packaged Weight 0.40 lbs
Package Dimensions 5.25" x 4.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan

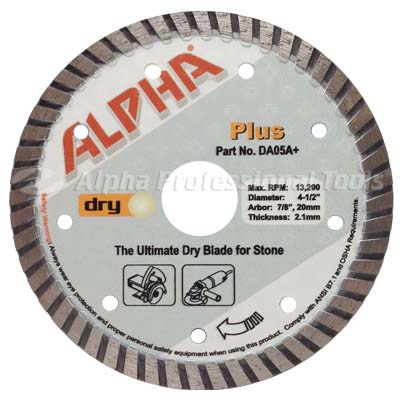

4-1/2" — 7/8", 20mm — DA05A+
Part No. DA05A+
UPC 749173460135
Size 4-1/2"
Attachment 7/8", 20mm
Max RPM 13,200
Recommended For Stone Cutter / Angle Grinder
Packaged Weight 0.40 lbs
Package Dimensions 6" x 5.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
5" — 7/8" — DA05S
Part No. DA05S
UPC 749173460142
Size 5"
Attachment 7/8"
Max RPM 12,200
Recommended For Stone Cutter / Angle Grinder
Packaged Weight 0.40 lbs
Package Dimensions 6" x 5.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
6" — 7/8", 5/8" — DA06A+
Part No. DA06A+
UPC 749173460166
Size 6"
Attachment 7/8", 5/8"
Max RPM 10,100
Recommended For Stone Cutter / Angle Grinder
Packaged Weight 0.70 lbs
Package Dimensions 7" x 6.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan

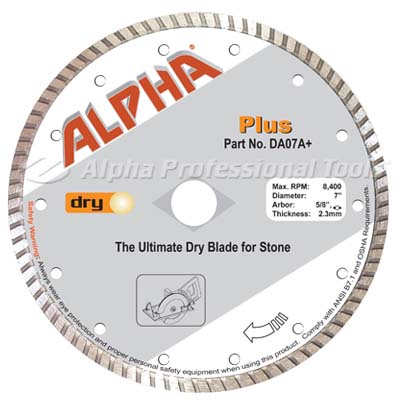

7" — 5/8" — DA07A+
Part No. DA07A+
UPC 749173460197
Size 7"
Attachment 5/8"
Max RPM 8,400
Recommended For Worm Drive Saw
Packaged Weight 0.90 lbs
Package Dimensions 7.5" x 7.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
8" — 5/8" — DA08A+
Part No. DA08A+
UPC 749173460210
Size 8"
Attachment 5/8"
Max RPM 7,400
Recommended For Worm Drive Saw
Packaged Weight 1.10 lbs
Package Dimensions 8.5" x 8.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
9" — 7/8", 5/8", Quad-W5 — DA09A+
Part No. DA09A+
UPC 749173460234
Size 9"
Attachment 7/8", 5/8", Quad-W5
Max RPM 6,600
Recommended For Circular Saw / Angle Grinder
Packaged Weight 1.90 lbs
Package Dimensions 10.5" x 9.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
10" — 1", 7/8", 5/8" — DA10A+
Part No. DA10A+
UPC 749173460258
Size 10"
Attachment 1", 7/8", 5/8"
Max RPM 5,900
Recommended For Circular Saw / Demolition Saw
Packaged Weight 2.30 lbs
Package Dimensions 10.5" x 10.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
10" — 5/8" — DA11A+
Part No. DA11A+
UPC 749173460265
Size 10"
Attachment 5/8"
Max RPM 5,900
Recommended For Circular Saw / Demolition Saw
Packaged Weight 2.30 lbs
Package Dimensions 10.5" x 10.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
12" — 1", 20mm — DA12A+
Part No. DA12A+
UPC 749173460289
Size 12"
Attachment 1", 20mm
Max RPM 6,200
Recommended For Demolition Saw
Packaged Weight 3.20 lbs
Package Dimensions 13.5" x 12.75" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
12" — 20mm — DA13A+
Part No. DA13A+
UPC 749173460296
Size 12"
Attachment 20mm
Max RPM 6,200
Recommended For Demolition Saw
Packaged Weight 3.30 lbs
Package Dimensions 13.5" x 12.75" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
8" — Accuglide — BALPHP8
Part No. BALPHP8
Size 8"
Attachment Accuglide
Recommended For Alpha Accuglide Rail System (-bundled configuration)
Country of Origin Japan
Property Detail
Type Turbo segmented diamond blade
Edge Height 8 mm diamond layer
Wet or Dry Dry cutting; may also be used wet
Primary Materials Granite, engineered stone, marble, blue stone, hard concrete, tile, brick, block, slate
Granite Classification Best for Hard to Medium; also cuts Soft granite
Country of Origin Japan
Commodity Code (HS) 8202.91.0000
What materials can be cut using the Plus blades?

The Alpha Plus Series cuts tile, brick, block, concrete, slate and natural stone, with superior results on granite.

What is the cutting-edge rim height of the Plus blades?

The Alpha Plus blade cutting-edge rim height is 8 mm.

Which granite classification is the Alpha Plus blade recommended for?

The Plus blades work best on Hard-to-Medium granite, but they also cut Soft granite classifications.

Why use an Alpha Stone Cutter rather than an angle grinder for 5" or smaller blades?

The AWS-110 or AWS-125 Stone Cutter provides better stability because the base glides across the surface, offering increased accuracy compared with freehand grinder use.

Can the Alpha Plus dry blade be used wet?

Yes. Wet cutting generally increases blade life and keeps harmful silica dust out of the air.

Can I use an 18 V cordless circular saw with the Alpha Plus blades?

No. The 3,200 RPM of most 6-1/4" cordless circular saws is too slow for diamond blades and will cause premature wear or out-of-round edges.

No product-specific videos are currently available from the manufacturer or DST.

⚠ WARNING: This product can expose you to chemicals including Cobalt and Nickel, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Always wear appropriate PPE.
