Alpha Professional Tools Quad Dry Blade

(0 review)
$ 55.22 $ 55.22
$ 55.22
  • Brand
  • Diameter
  • Wet / Dry Use - Wet & Dry
  • Material to Cut - Granite
  • Machine Type - Angle Grinder
Contact Us
Terms and Conditions
Diameter 4", 5", 6", 7", 8", 9", 10"
Material to Cut Granite, Marble & Soft Stone, Engineered Stone / Quartz, Quartzite, Sintered Stone / Dekton, Porcelain & Tile
Brand Alpha
Wet / Dry Use Wet & Dry
Machine Type Angle Grinder

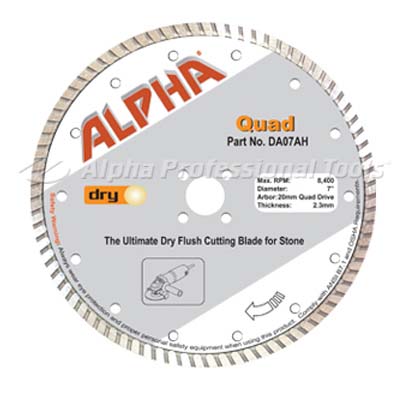

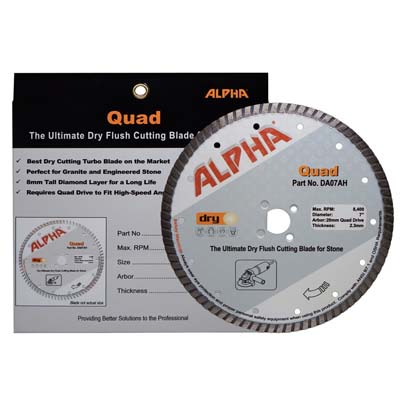

Alpha® Quad Dry Cutting Blade

The Alpha® Quad combines the performance of Alpha® Plus — our top-of-line diamond blade — with a unique flush-cutting core design. The Quad mounts on a high-speed angle grinder through a BAH or FAH Quad Drive adapter, letting fabricators flush-cut sinks, make true 90° inside corners, and clean up large-diameter saw marks on granite, marble, and engineered stone.

Features

  • Designed for flush cutting and 90° inside-corner cleanup
  • Best-in-class dry-cutting turbo blade; runs wet for even longer life
  • Chip-free cuts on the most demanding stone applications
  • Available in 4", 5", 6", 7", 8", 9", and 10" diameters
  • Quad Drive arbor — requires BAH or FAH adapter (sold separately)
  • 8 mm cutting-edge rim height
  • Made in Japan
Part No. Diameter Thickness Max RPM Arbor / Drive UPC
DA04AH 4" 2.1 mm 14,500 20 mm Quad Drive 749173460128
DA05SH 5" 2.1 mm 12,200 20 mm Quad Drive 749173460159
DA06AH 6" 2.1 mm 10,100 20 mm Quad Drive 749173460173
DA07AH 7" 2.3 mm 8,400 20 mm Quad Drive 749173460203

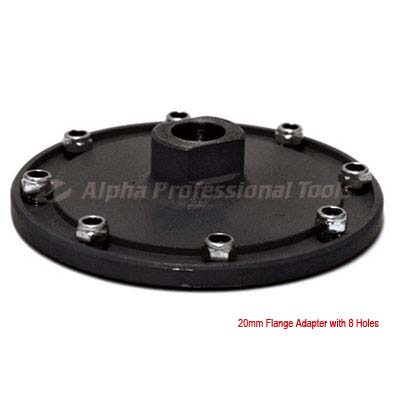

DA08AH 8" 2.3 mm 7,400 20 mm flange, 8-hole 749173460227
DA09AH 9" 2.5 mm 6,600 20 mm flange, 8-hole 749173460241
DA11AH 10" 2.5 mm 5,900 20 mm flange, 8-hole 749173460272

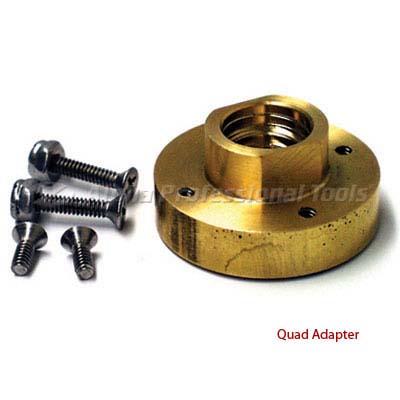

  1. Install the correct BAH or FAH Quad Drive adapter on the angle-grinder spindle — do not mount the blade directly to the flange.
  2. Verify the grinder RPM is at or below the blade maximum (see Models chart).
  3. Make light scoring passes first, then full-depth cuts to minimize chipping.
  4. For inside 90° corners, finish the cut from the opposite face to eliminate over-run.
  5. Wet cutting is supported and extends blade life; always wet-cut when feasible to reduce silica dust.
  6. Re-dress the blade in a soft concrete block if it glazes and slows down.
4" — 20 mm Quad Drive (BAH/FAH adapter) — Dry flush-cutting blade — DA04AH
Part No. DA04AH
UPC 749173460128
Size 4"
Type Dry flush-cutting blade
Attachment 20 mm Quad Drive (BAH/FAH adapter)
Max RPM 14,500
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 0.30 lbs
Package Dimensions 5.25" x 4.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
5" — 20 mm Quad Drive (BAH/FAH adapter) — Dry flush-cutting blade — DA05SH
Part No. DA05SH
UPC 749173460159
Size 5"
Type Dry flush-cutting blade
Attachment 20 mm Quad Drive (BAH/FAH adapter)
Max RPM 12,200
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 0.40 lbs
Package Dimensions 6" x 5.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
6" — 20 mm Quad Drive (BAH/FAH adapter) — Dry flush-cutting blade — DA06AH
Part No. DA06AH
UPC 749173460173
Size 6"
Type Dry flush-cutting blade
Attachment 20 mm Quad Drive (BAH/FAH adapter)
Max RPM 10,100
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 0.70 lbs
Package Dimensions 7" x 6.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
7" — 20 mm Quad Drive (BAH/FAH adapter) — Dry flush-cutting blade — DA07AH
Part No. DA07AH
UPC 749173460203
Size 7"
Type Dry flush-cutting blade
Attachment 20 mm Quad Drive (BAH/FAH adapter)
Max RPM 8,400
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 0.90 lbs
Package Dimensions 7.5" x 7.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
8" — 20 mm flange, 8-hole (BAH/FAH adapter) — Dry flush-cutting blade — DA08AH
Part No. DA08AH
UPC 749173460227
Size 8"
Type Dry flush-cutting blade
Attachment 20 mm flange, 8-hole (BAH/FAH adapter)
Max RPM 7,400
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 1.10 lbs
Package Dimensions 8.5" x 8.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
9" — 20 mm flange, 8-hole (BAH/FAH adapter) — Dry flush-cutting blade — DA09AH
Part No. DA09AH
UPC 749173460241
Size 9"
Type Dry flush-cutting blade
Attachment 20 mm flange, 8-hole (BAH/FAH adapter)
Max RPM 6,600
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 1.90 lbs
Package Dimensions 10.5" x 9.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
10" — 20 mm flange, 8-hole (BAH/FAH adapter) — Dry flush-cutting blade — DA11AH
Part No. DA11AH
UPC 749173460272
Size 10"
Type Dry flush-cutting blade
Attachment 20 mm flange, 8-hole (BAH/FAH adapter)
Max RPM 5,900
Recommended For Flush cutting and 90° inside corners — angle grinder
Packaged Weight 2.20 lbs
Package Dimensions 10.5" x 10.5" x 0.25"
Commodity Code 8202.91.0000
Country of Origin Japan
Property Detail
Blade Type Turbo-rim dry-cutting diamond (wet-rated)
Cutting Edge Rim Height 8 mm
Drive Quad Drive — requires BAH or FAH adapter
Adapter Thread (BAH-5/8, FAH-5/8) 5/8"-11
Best On Granite (all classifications), marble, engineered stone
Cuts Flush cuts and 90° inside corners
Country of Origin Japan
Commodity Code 8202.91.0000
What applications are Quad blades designed for?

Flush cutting and making true 90° inside corners on granite, marble, and engineered stone.

Can I use the Quad for groove cutting?

No. Use the Alpha® Groove Cutter with the Universal Safety Guard Kit for groove work.

Can I mount the Quad blade directly to my grinder flange?

No. The Quad has countersunk holes in the core and must be used with a BAH or FAH adapter.

Which granite classification is best?

The Quad performs across all classifications and is especially strong on hard granite.

Can the Quad be used wet?

Yes. Wet cutting increases blade life and helps keep silica dust out of the air.

What is the cutting-edge rim height?

8 mm.

What spindle thread do the BAH-5/8 and FAH-5/8 adapters fit?

5/8"-11 thread.

Can the Quad be used on a polisher?

No. Polisher RPMs are too slow for diamond cutting blades.

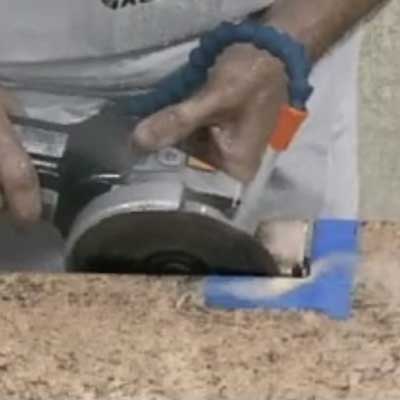

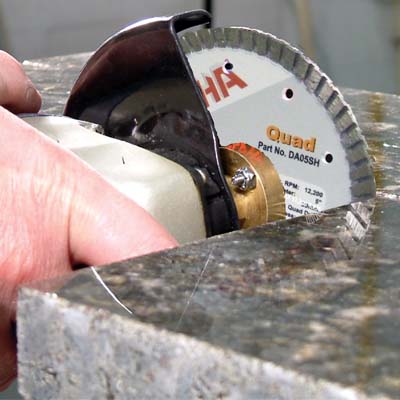

Quad Blade on Granite
