Alpha® Profiler Z-Series — Vertical Grinding Wheel
The Alpha® Profiler Z-Series — also known as zero-tolerance or drum-grinding wheels — uses vacuum-brazed diamond technology to maintain its original cylindrical shape over a long working life, unlike sintered-bond profilers that quickly lose geometry. Paired with the Alpha® AWS-125 Stone Cutter for sink-hole fabrication, the Profiler Z delivers aggressive cutting performance for sink-rim shaping, corner work and edge profiling on granite, engineered stone, porcelain and other hard materials. Available in 1-1/4", 1-1/2" and 2" sizes with a 5/8"-11 female thread and internal water passage.
Features
- Vacuum-Brazed Diamond Technology — True Zero-Tolerance Shape
- Never Loses Original Geometry for the Life of the Wheel
- Vertical Grinding for Sink Rims, Corners and Edge Profiling
- For Granite, Engineered Stone, Porcelain, Marble and Limestone
- 5/8"-11 Female Thread with Internal Water Passages
- Compatible with All Popular Water-Fed Polishers (AIR-680, VSP-320, etc.)
- Pairs with Alpha® Corner Ruler for Precision Corner Work
- Available in 1-1/4" (3 cm), 1-1/2" (4 cm) and 2" (5 cm)
| Part No. | Size | Max RPM | Shape | Thread | UPC |
|---|---|---|---|---|---|
| PFZ301 | 1-1/4" (3 cm) | 3,500 RPM | Straight | 5/8"-11 | 749173470615 |
| PFZ401 | 1-1/2" (4 cm) | 3,500 RPM | Straight | 5/8"-11 | 749173470622 |
| PFZ501 | 2" (5 cm) | 6,000 RPM | Straight | 5/8"-11 | 749173473234 |
- Select the Profiler Z size that matches your material thickness (3 cm stock → PFZ301, 4 cm stock → PFZ401).

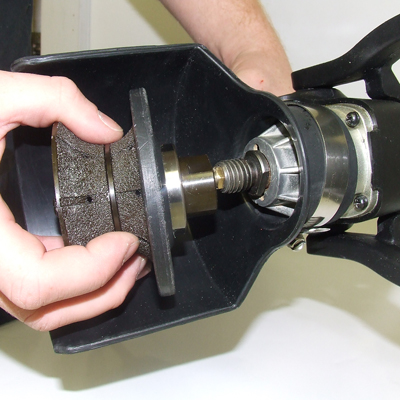

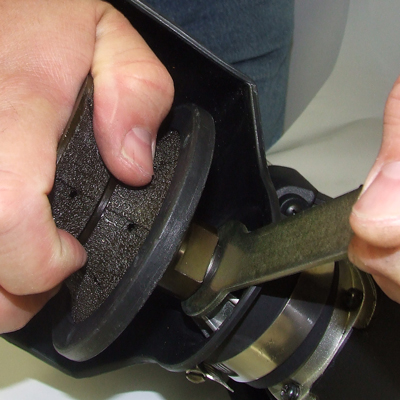

- Thread the wheel onto a low-RPM wet polisher with a 5/8"-11 spindle — max 3,500 RPM (PFZ301/401) or 6,000 RPM (PFZ501).
- Connect the polisher to a water supply; the Profiler Z is for wet applications only.

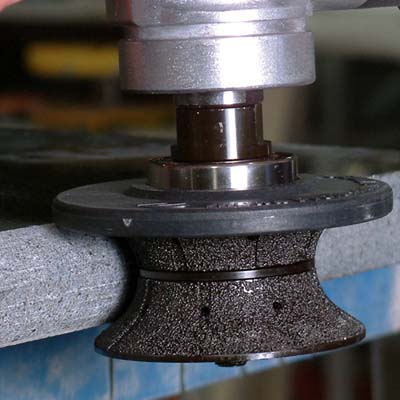

- For sink rims, follow the contour cut left by the AWS-125 Stone Cutter using firm vertical pressure.
- Use the optional PFBNG02B Nylon Guide to prevent dipping and keep the wheel level on the material.
- Allow the wheel to do the work — do not bear down or stall the polisher.
- For corner profiling, pair with an Alpha® Corner Ruler for guided, repeatable geometry.
- After use, flush internal water passages and inspect diamond surface for clogging.
Vertical Grinding Profiler 1-1/4" (3 cm) — PFZ301
| Part No. | PFZ301 |
| UPC | 749173470615 |
| Type | Vertical Grinding Profiler 1-1/4" (3 cm) |
| Thread | 5/8"-11 |
| Max RPM | 3,500 RPM |
| Recommended For | Wet vertical grinding / sink-rim profiling on granite, engineered stone, porcelain, marble |
| Packaged Weight | 1.80 lbs |
| Package Dimensions | 4.25" x 4.25" x 5" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
Vertical Grinding Profiler 1-1/2" (4 cm) — PFZ401
| Part No. | PFZ401 |
| UPC | 749173470622 |
| Type | Vertical Grinding Profiler 1-1/2" (4 cm) |
| Thread | 5/8"-11 |
| Max RPM | 3,500 RPM |
| Recommended For | Wet vertical grinding / sink-rim profiling on granite, engineered stone, porcelain, marble |
| Packaged Weight | 2.00 lbs |
| Package Dimensions | 4.25" x 4.25" x 5" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
Vertical Grinding Profiler 2" (5 cm) — PFZ501
| Part No. | PFZ501 |
| UPC | 749173473234 |
| Type | Vertical Grinding Profiler 2" (5 cm) |
| Thread | 5/8"-11 |
| Max RPM | 6,000 RPM |
| Recommended For | Wet vertical grinding / sink-rim profiling on granite, engineered stone, porcelain, marble |
| Packaged Weight | 2.25 lbs |
| Package Dimensions | 5.5" x 6" x 5.25" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
| Property | Detail |
|---|---|
| Bond | Vacuum-Brazed Diamond |
| Shape | Straight (Cylindrical) |
| Thread | 5/8"-11 Female |
| Water Feed | Internal Passages |
| Application | Wet Only |
| Materials | Granite, Engineered Stone, Porcelain, Marble, Limestone |
| Country of Origin | China |
Which Profiler Z size should I use for my material?
Use PFZ301 (1-1/4") for 2 cm or 3 cm stock, PFZ401 (1-1/2") for 4 cm material, and PFZ501 (2") for thicker stock or rougher stock-removal work.
Can the Profiler Z be used dry?
No. All Alpha® Profilers are for wet applications only — dry use will destroy the bond and overheat the diamond.
How do I prevent the wheel from dipping into the material?
Use the optional PFBNG02B Nylon Guide. Pressed firmly against the work, the guide keeps the wheel perfectly level.
Can I run the Profiler Z on a high-speed angle grinder?
No. Maximum 3,500 RPM is recommended; the Profiler Z is engineered for low-RPM wet polishers such as the Alpha AIR-680 and VSP-320.
Will it work on concrete?
Concrete is possible, but the life of the wheel will be extremely short. Dedicated concrete wheels are recommended.
What materials is the Profiler Z designed for?
Granite, engineered stone (quartz), porcelain, marble and limestone.
Is it compatible with Park Industries Wizard / Deluxe machines?
Yes — the 5/8"-11 thread and 3,500 RPM max are within Wizard/Deluxe operating parameters.
Why does the Profiler Z keep its shape longer than competitor wheels?
Vacuum-brazed diamond bonding holds individual diamonds in place far longer than sintered bonds, so the wheel maintains true zero-tolerance geometry throughout its life.

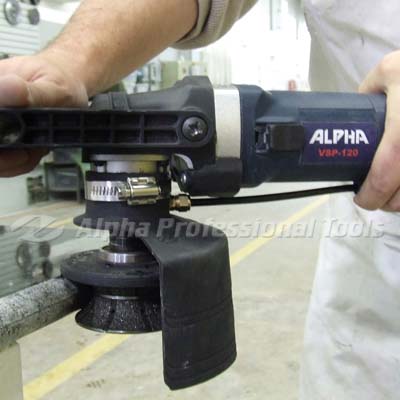

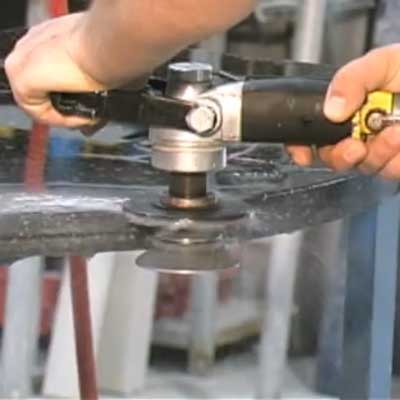

VSP-120 with Profiler Z — Sink Rim on Granite
AIR-658 with Profiler Z — Sink Rim on Crystallized Glass
⚠ WARNING: This product can expose you to chemicals including respirable crystalline silica, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. Always wear appropriate PPE.
