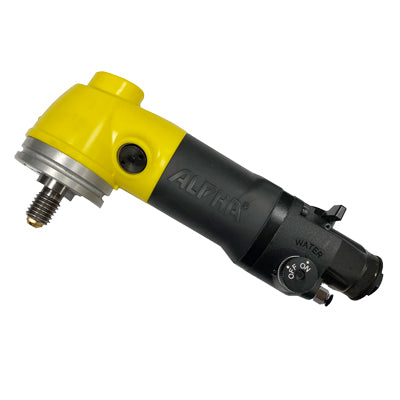

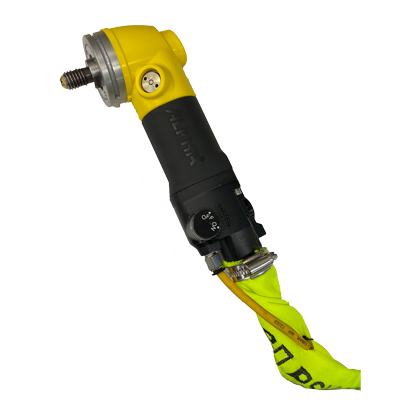

Alpha PSP-158/114 High-Performance Industrial Pneumatic Polisher (5,500 RPM)

(0 review)
  • Next Generation Polisher from Alpha®
  • High-Performance Industrial Pneumatic Polisher
  • Powerful New Motor for Demanding Applications
  • Comes With 30' Kink-Free Twin-Air/Water Hose for Better Maneuverability
  • All-Weather Hoses with Flexibility Down To -40°F Or +140°F (-40°C Or +60°C)
  • Quarter-Turn Switches for Precise Control
  • Central Water-Feed System Delivers Ample Water Regardless of Position
  • No-Load RPM- 5,500
  • Comes In A Reusable Toolbox
  • Silicon Gear Head Cover Provides Cushion and Keeps Hands Warm
  • One Year Tool Warranty*
$ 469.00 $ 469.00
$ 469.00

  • Thread
Terms and Conditions
Contact Us
Documents
Alpha PSP-158 Flyer.pdf Alpha PSP-158 Instruction Manual.pdf Alpha PSP-158,PSP-114 and PSP-114N Parts List.pdf Alpha Pneumatic Polisher Comparsion Chart.pdf

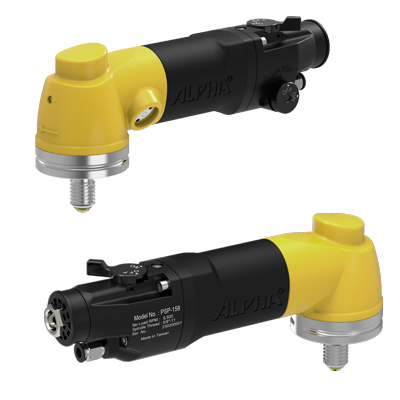

Alpha® PSP-158/114 High-Performance Industrial Pneumatic Polisher

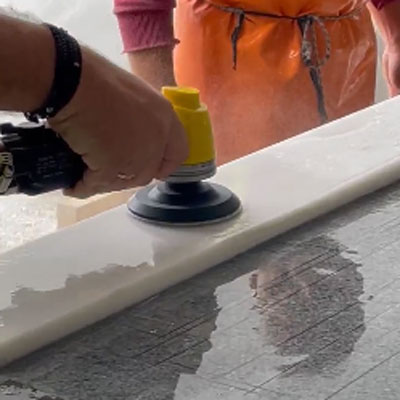

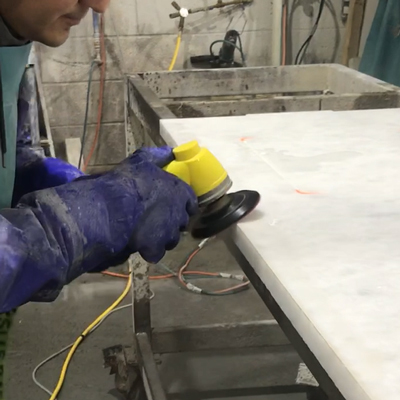

Alpha®'s flagship pneumatic polisher modernizes wet polishing, drilling, and profiling with a powerful new motor, precise quarter-turn speed control, and an integrated central water-feed system. Delivered with a 30′ kink-free twin air/water hose, the PSP-158/114 is engineered for demanding fabrication-shop and jobsite use.

Features

  • Next-generation industrial pneumatic polisher from Alpha®
  • Powerful motor (0.70 HP) tuned for demanding wet polishing and grinding applications

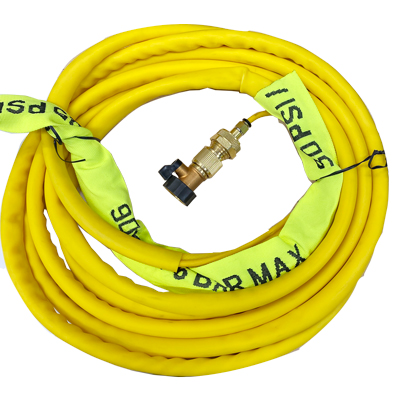

  • 30′ (9.1 m) kink-free twin air/water hose for better maneuverability
  • All-weather hoses rated -40°F to +140°F (-40°C to +60°C)
  • Quarter-turn switches for precise air and water control
  • Central water-feed system — no external water lines
  • Silicon gear-head cover for thermal and impact protection
  • Choice of 5/8"-11 (PSP-158) or M14-2 (PSP-114) spindle thread

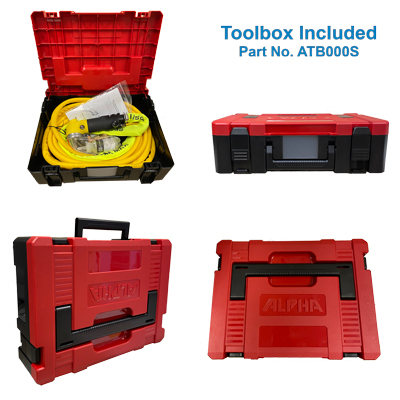

  • Includes rust-inhibitor oil, exhaust hose with clamp, quick-connect ball valve, and reusable toolbox
  • One-year tool warranty
Part No. Spindle Thread Max RPM Recommended For UPC
PSP-114 M14-2 5,500 Wet Polishing, Drilling & Profiling 749173430282
PSP-158 5/8"-11 5,500 Wet Polishing, Drilling & Profiling 749173430275
  1. Confirm your compressor delivers at least 21 CFM at 90 PSI; dedicate the line to the polisher for best results.
  2. Connect the supplied 30′ twin air/water hose to the quick-connect ball valve and tool inlets.
  3. Thread the appropriate Alpha® wet polishing pad, core bit, or profile wheel onto the 5/8"-11 (PSP-158) or M14-2 (PSP-114) spindle.
  4. Open the water quarter-turn valve to start the central water feed, then open the air valve gradually to ramp RPM.
  5. Keep the tool moving and let water flow continuously through the pad — never dry-run a wet polisher.
  6. At end of shift, add a few drops of rust-inhibitor oil into the air-inlet oil port and pulse air briefly to coat the rotor and cylinder.
  7. Store the tool dry in the supplied toolbox.
PSP-114
Part No. PSP-114
UPC 749173430282
Thread M14-2
Max RPM 5,500
Recommended For Wet Polishing, Drilling & Profiling
Packaged Weight 10.75 lbs
Package Dimensions 13.5" x 11.5" x 3.5"
Commodity Code 8467.11.5090
Country of Origin Taiwan
PSP-158
Part No. PSP-158
UPC 749173430275
Thread 5/8"-11
Max RPM 5,500
Recommended For Wet Polishing, Drilling & Profiling
Packaged Weight 10.75 lbs
Package Dimensions 13.5" x 11.5" x 3.5"
Commodity Code 8467.11.5090
Country of Origin Taiwan
Property Detail
Air Pressure 90 PSI (6.2 bar)
Air Consumption 21 CFM (594 L/min)
No-Load Speed 5,500 RPM
Max. HP 0.70 HP
Tool Weight 3 lbs (1.37 kg)
Air Inlet 1/4" BSPT
Water Inlet 1/8" BSPT
Included Hose 30 ft (9.1 m) twin air/water hose
Operating Temp Range -40°F to +140°F (-40°C to +60°C)
Warranty One year
My compressor is large enough, but the PSP-158 bogs down occasionally. What can I do?

If multiple tools share the same compressed-air line you may not have enough flow available. Dedicate the line to the polisher, or upgrade to a compressor that delivers at least 21 CFM @ 90 PSI under continuous duty.

How much rust-inhibitor oil should I add to the oil port?

Alpha® recommends only a few drops at the end of each shift, then slowly turn on the air to lubricate the rotor and cylinder.

Can I use the PSP-158 for grinding?

Yes. The PSP-158 delivers 5,500 no-load RPM with enough torque for grinding applications in addition to wet polishing.

What is the warranty?

One-year tool warranty. See the manual for details.

Where can I get the parts list and schematic?

Download the parts schematic from the Documentation section above, or call Alpha® at 800-648-7229.

Can I use the PSP-158 as a dry polisher?

Yes, with the appropriate dry sanding/polishing accessory kit from Alpha®.

Does Alpha® offer a pneumatic high-speed angle grinder with center water feed?

Yes — the PSC-600 features a center water-feed system, and the PSG-125 Wet Cutting Kit uses an exterior water feed.

Next-Gen Air Polisher from Alpha®

Next-Gen Air Polisher Features

⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.

Specifications

Thread 5/8"-11, M14-2
